Hydraulic motor installation may look straightforward, but small errors during setup can have a lasting impact on equipment performance.
Incorrect coupler alignment, improper fastening, contamination, or forcing components into position can introduce unnecessary stress into the drive system before the compressor ever enters service.

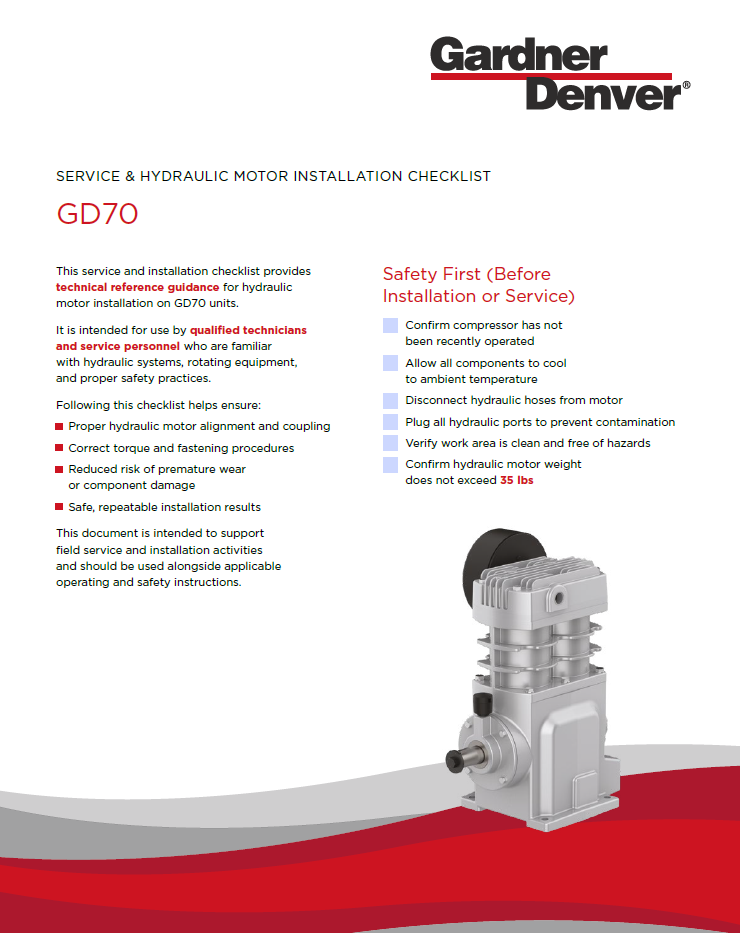

The GD70 Service & Hydraulic Motor Installation Checklist was developed as a technical reference for qualified technicians and service personnel working with hydraulic drive systems.
Rather than relying on memory or informal installation habits, the guide provides a repeatable process covering safety, alignment, coupler preparation, fastening, and final installation checks.
The hydraulic motor, coupler, and compressor shaft operate as one connected drive system.
If those components are not aligned and secured correctly, the result can be more than an installation inconvenience.
Poor installation practices can contribute to:
For fleet maintenance teams and service technicians, avoiding those problems starts before the unit ever goes back into operation.
Alignment Before Fastening
One of the most important stages of hydraulic motor installation happens before the final bolts are tightened.
The motor coupler, spider, compressor coupler, and mounting surface must all align correctly so the drive system can operate without unnecessary stress.
Forcing components together or overlooking alignment can create problems that may not become visible until the equipment is operating under load.
Correct Torque Is Part of the Installation
Fasteners do more than hold the assembly together.
Correct torque helps ensure the mounting system remains secure while maintaining proper component positioning.
Under-tightening can allow movement. Over-tightening can create its own installation problems.
The checklist provides specific fastening guidance so technicians can follow a consistent process rather than relying on feel.
Contamination Control Starts During Service
Hydraulic systems are particularly sensitive to contamination.
During installation or service, open hydraulic lines and fittings can become an entry point for dirt or debris if they are not properly protected.
Good installation practice therefore begins with a clean work area, protected hydraulic ports, and careful handling of system components.
The coupling system transfers power from the hydraulic motor to the compressor.
That makes coupler preparation and positioning especially important.
The installation process requires attention to:
These steps help ensure the coupling system can transmit torque without introducing unnecessary stress into the drive assembly.
Before installation or service begins, technicians should confirm the equipment is safe to work on.
The checklist reinforces several important precautions, including allowing recently operated components to cool, disconnecting hydraulic lines, protecting open ports, and ensuring the work area is free of hazards.
The guide is intended to support trained personnel and should be used alongside applicable operating and safety instructions.
A structured installation process can help reduce the likelihood of:
Misalignment
Improper coupler or motor positioning can introduce unwanted loads into the drive system.
Premature Wear
Incorrect alignment or fastening may accelerate wear on couplers, shafts, and connected components.
Repeat Service Work
A consistent installation process helps technicians verify critical steps the first time.
Installation Variability
Using a standardized checklist helps different technicians follow the same approved procedure.
This resource is especially useful for:
It can also serve as a field reference when replacing or reinstalling hydraulic motors on GD70-equipped systems.
The full GD70 Service & Hydraulic Motor Installation Checklist includes guidance on:
Proper alignment helps ensure power is transferred through the coupling system without introducing unnecessary stress, vibration, or premature component wear.
