Specification | Value |
|---|---|
Technology | 3×5 Helical Screw |
Capacity | Up to 5,625 CFM |
Pressure | Up to 36 PSI |
Motor Range | 7.5-500 HP |
Speed Options | Fixed or Variable Speed |
Controller | AirSmart G2 Controller |
Package Options | High Pressure and Low Pressure |
Configurations | Enclosed or Unenclosed |
The Gardner Denver IQ-HE is a high-efficiency helical screw blower package engineered for demanding pressure applications. It delivers capacities up to 5,625 CFM and pressures up to 36 psi, combining patented screw technology with a compact package design and AirSmart G2 controls.
High-Efficiency Screw Technology
Patented 3×5 helical screw technology supports high-capacity performance while helping reduce energy consumption across operating conditions.
Performance Up to 36 psi
The IQ-HE helical screw blower package delivers capacities up to 5,625 CFM and pressures up to 36 psi for demanding pressure applications.
AirSmart G2 Controls
AirSmart G2 provides continuous monitoring, operating-status information, maintenance tracking, service advisories, and shutdown protection.
Compact, Service-Friendly Package
Compact dimensions, side-by-side installation capability, and front-access maintenance help simplify equipment placement and routine service

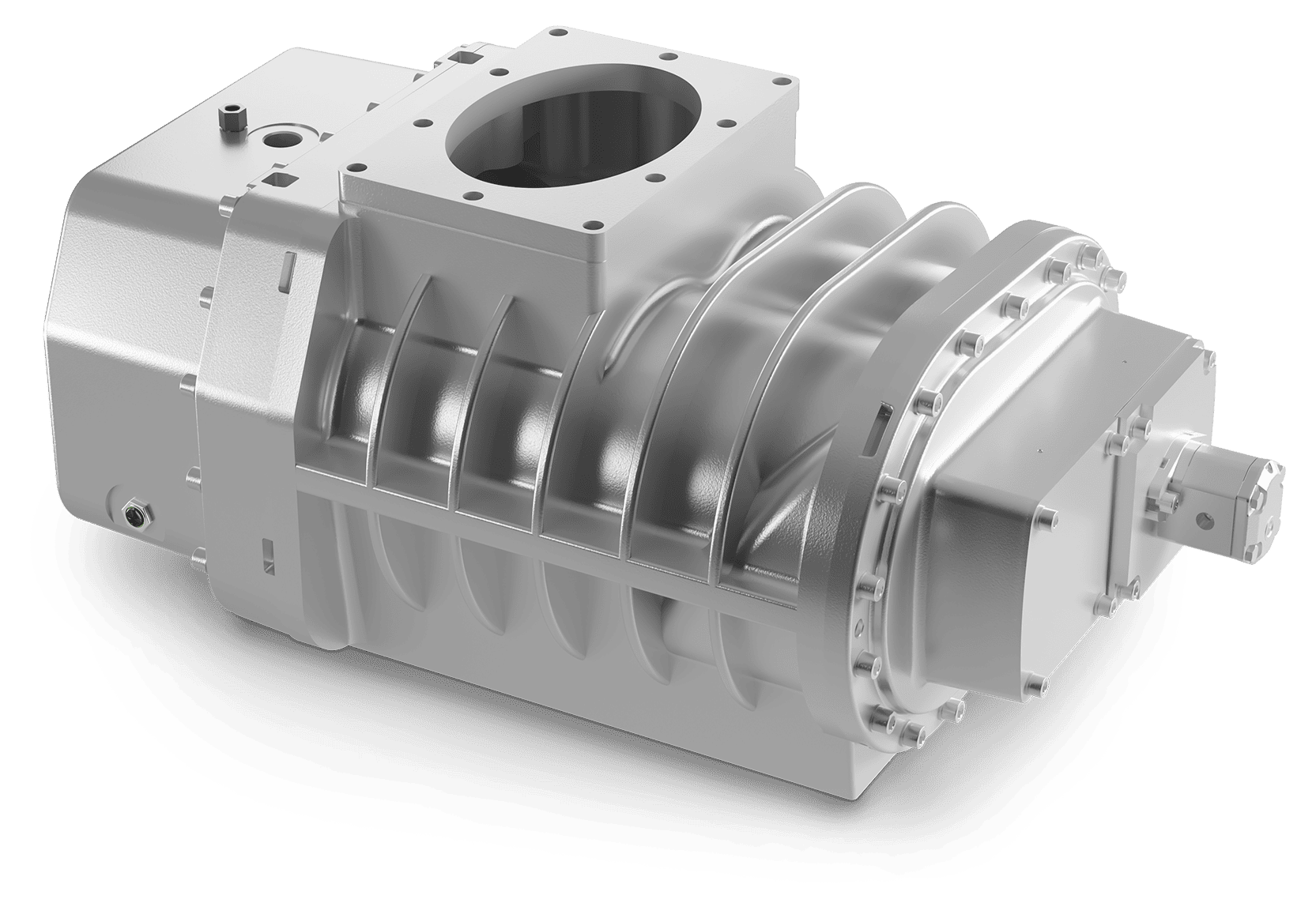

The IQ-HE helical screw blower package features a patented rotor profile with PTFE-coated rotors engineered to help maximize efficiency and deliver consistent performance. This advanced rotor design is the foundation of the IQ-HE's high-efficiency operation, helping reduce air loss while supporting reliable performance across a wide range of operating conditions.
.png?format=pjpeg&width=1600&quality=75&auto=webp)
Designed to deliver maximum capacity with minimum energy consumption, the patented rotor technology helps reduce the number of revolutions and energy consumption across operating conditions. The result is efficient operation and reduced energy costs for demanding pressure applications.
Built around Gardner Denver's patented 3×5 helical screw technology, the IQ-HE supports capacities up to 5,625 CFM and pressures up to 36 psi. The package is available in low- and high-pressure designs as well as enclosed and unenclosed configurations, allowing customers to select the package that best fits their operational requirements.
AirSmart G2 Monitoring and Protection
Available on enclosed IQ-HE packages, the AirSmart G2 controller continuously monitors blower package operation and provides status information, maintenance schedule tracking, and service advisories. Shutdown protection responds to overpressure and high-temperature conditions to help protect the package when critical operating limits are reached.
Controller Features
- Continuous package monitoring
- Operating-status indication
- Maintenance schedule tracking
- Service advisories
- Overpressure shutdown protection
- High-temperature shutdown protection

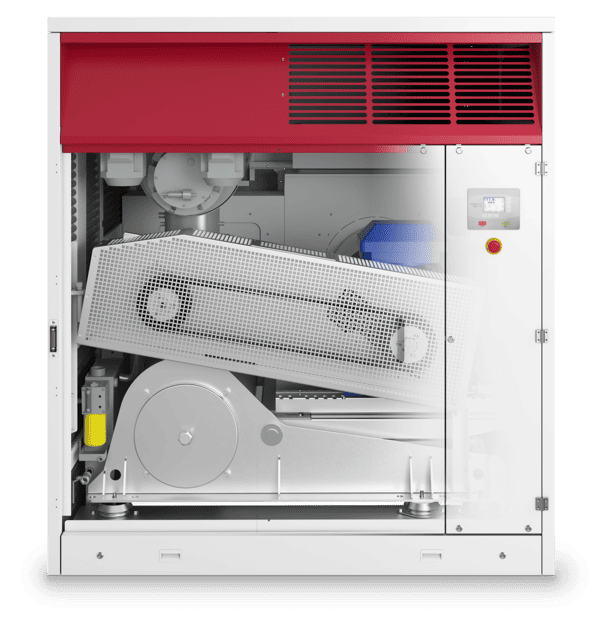

The IQ-HE package is designed with extremely compact dimensions and supports side-by-side installation to help optimize floor space. Routine maintenance operations can be performed from the front of the package for simplified service access.
Front-Access Maintenance
- Oil changes
- Oil filter replacement
- Oil pressure adjustments
- Air filter replacement
- Belt drive replacement
Additional Maintenance Features
- Sight glass for oil level inspection during operation
- Filter clogging gauge
- Discharge pressure gauge
_(1).png?format=pjpeg&width=1600&quality=75&auto=webp)
The IQ-HE incorporates multiple design features intended to minimize sound emissions during operation.
Noise Reduction Features
- Rotor profile design
- Low rotor rotation speed
- Noise enclosure with optimized air passages
- Sound-absorbing enclosure materials
- Inlet silencers
- Discharge silencers
These features are designed to reduce residual pulsations and sound energy while maintaining package performance.
What monitoring and protection features are included with the AirSmart G2 controller?
The AirSmart G2 controller provides continuous monitoring of blower package operation along with status indication, maintenance schedule tracking, and service advisories. The controller also includes shutdown protection for overpressure and high-temperature conditions to help protect the package during operation.
What package configurations are available for the IQ-HE?
The IQ-HE helical screw blower package is available in enclosed and unenclosed configurations, as well as low-pressure and high-pressure package designs. Unenclosed models utilize mechanical gauges, while enclosed models are equipped with the AirSmart G2 smart controller. Low-pressure packages are designed for applications up to 15 psi, while high-pressure packages are available for applications above 15 psi.
What maintenance tasks can be performed from the front of the package?
The IQ-HE is designed to simplify routine service by providing front-panel access to common maintenance tasks. Activities that can be performed from the front of the package include oil changes, oil filter replacement, oil pressure adjustments, air filter replacement, and belt drive replacement. Additional maintenance features include a sight glass for oil-level inspection during operation, a filter clogging gauge, and a discharge pressure gauge.
What distinguishes the IQ-HE from other IQ package options?
The IQ-HE is the high-efficiency member of the IQ blower package family and is built around patented 3×5 helical screw technology. The package combines a patented rotor profile and PTFE rotor coating to deliver maximum capacity with minimum energy consumption while supporting pressures up to 36 psi. It also incorporates the AirSmart G2 controller, compact package design, simplified front-access maintenance, and flexible package configurations for demanding pressure applications.
