Electra TS Series Rotary Screw Air Compressors

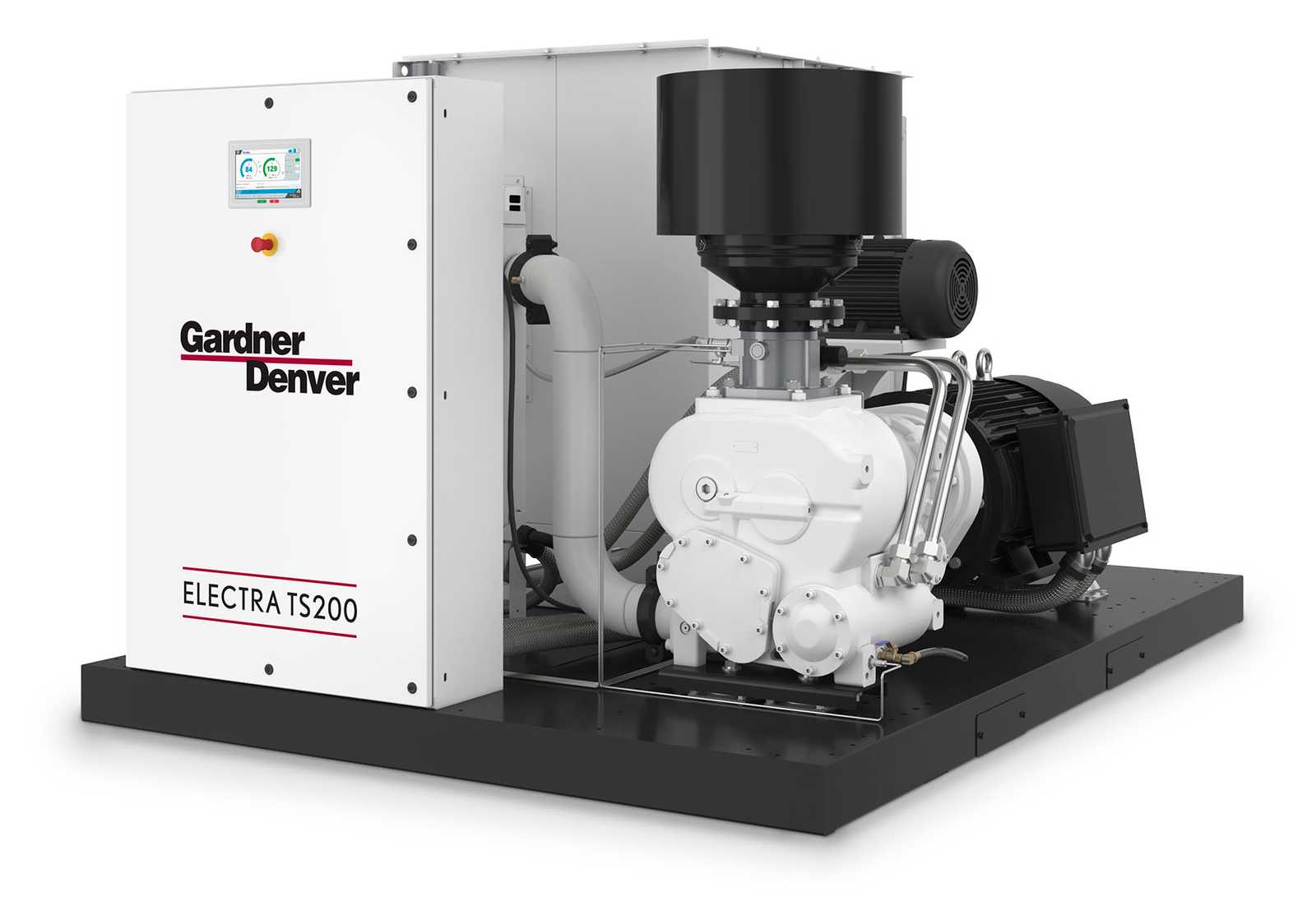

Product Photo Exterior right Electra TS Unenclosed

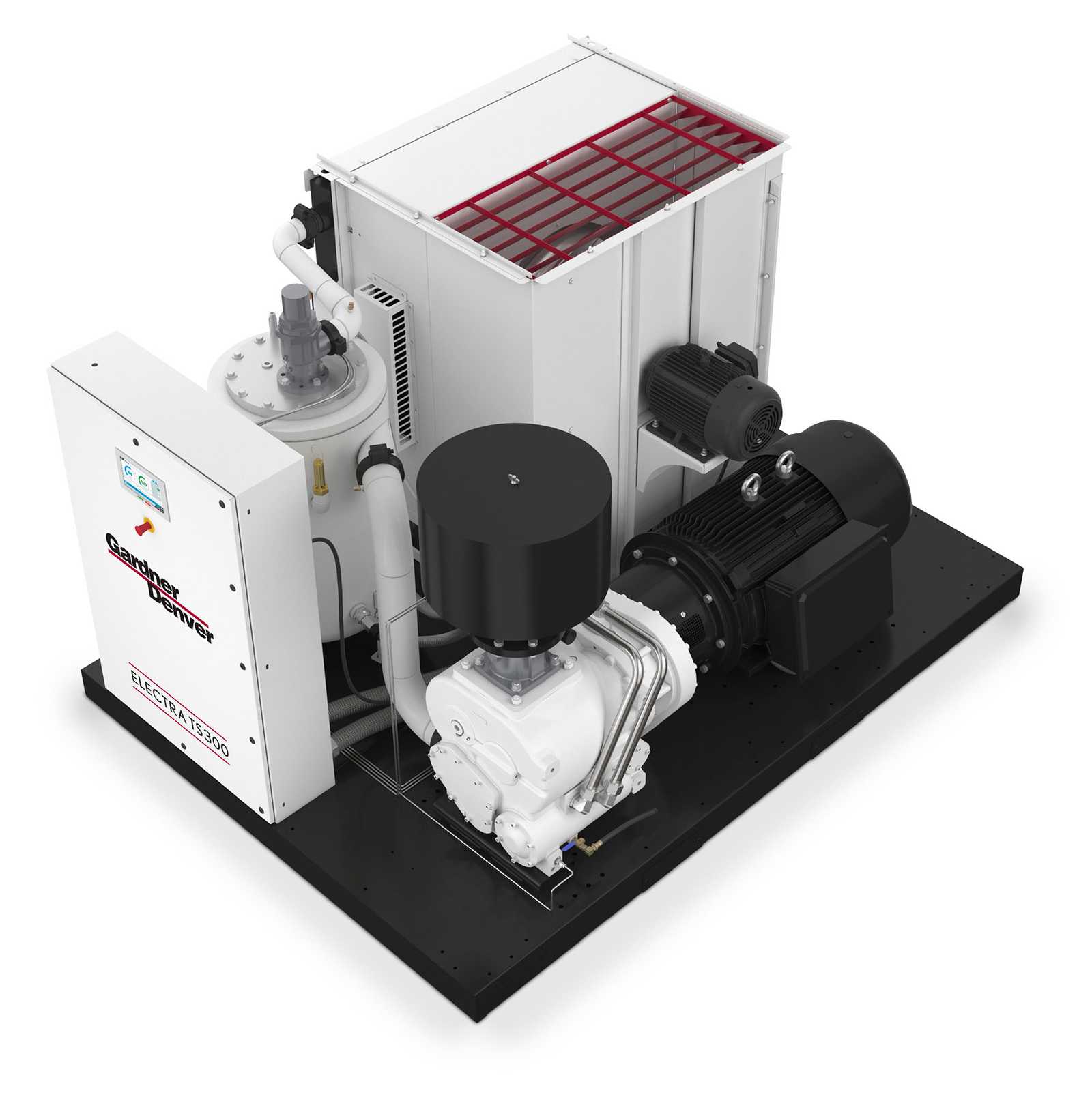

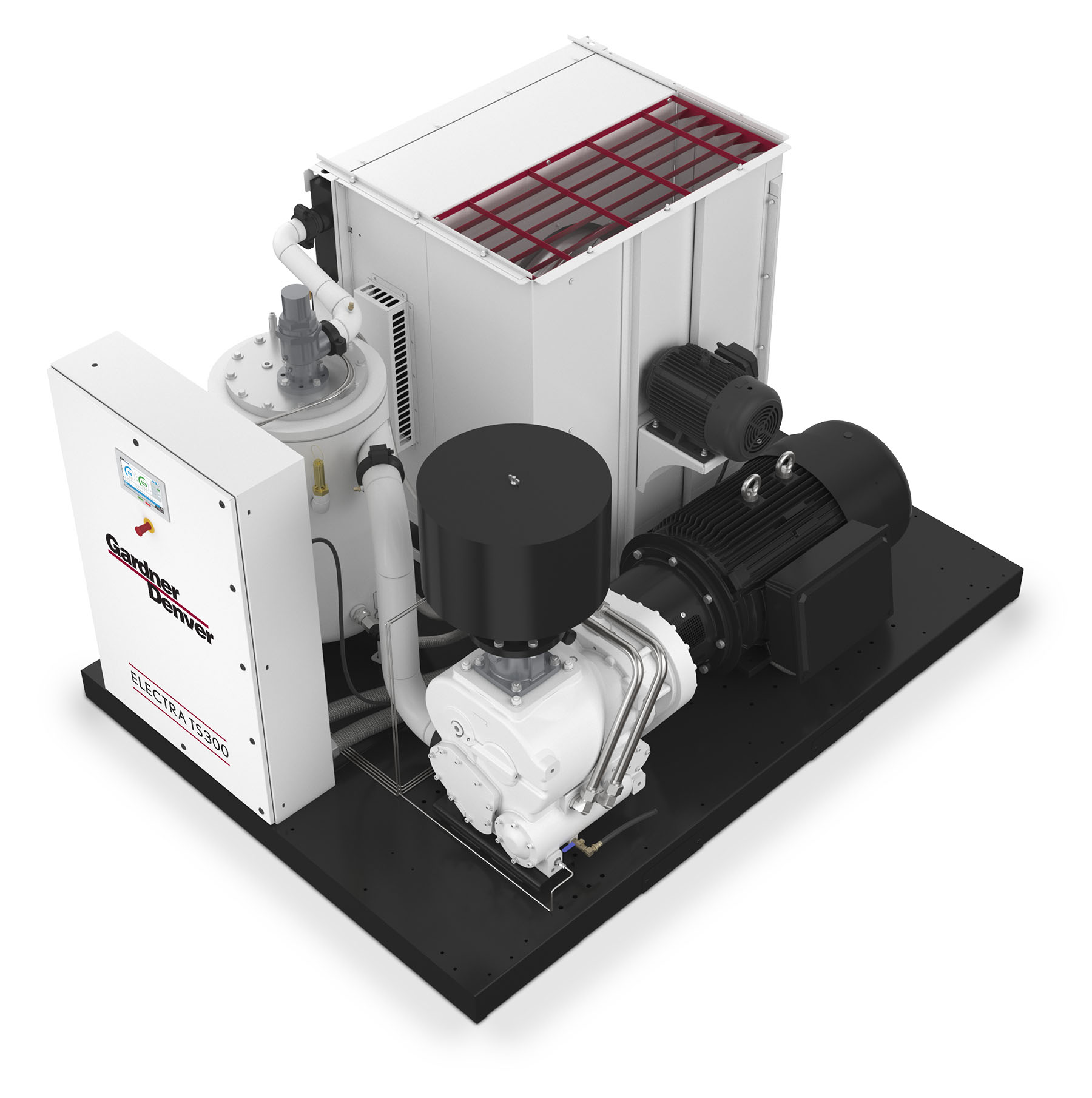

Product Photo Exterior top Electra TS Unenclosed

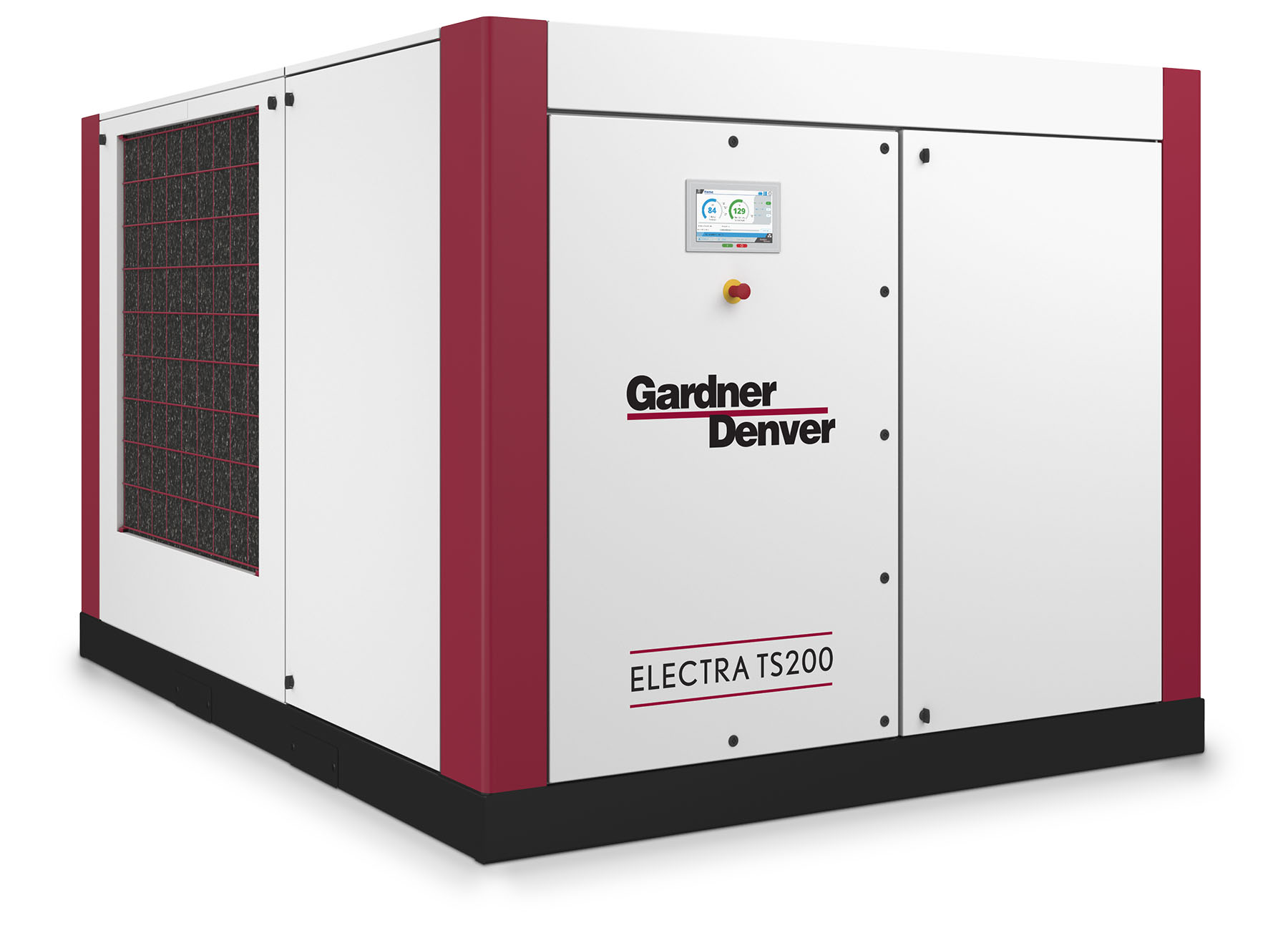

Product Photo Exterior left Electra TS Enclosed

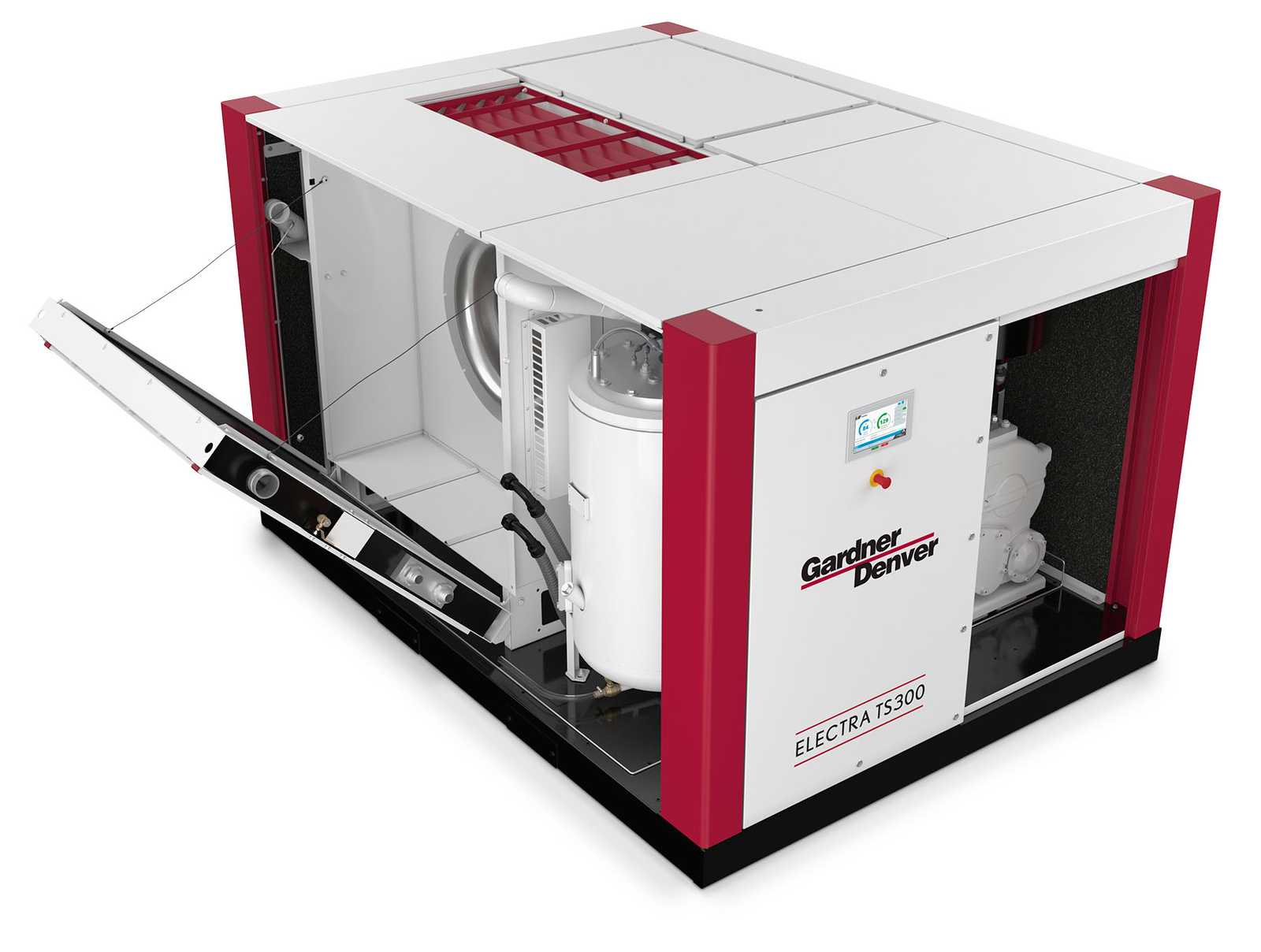

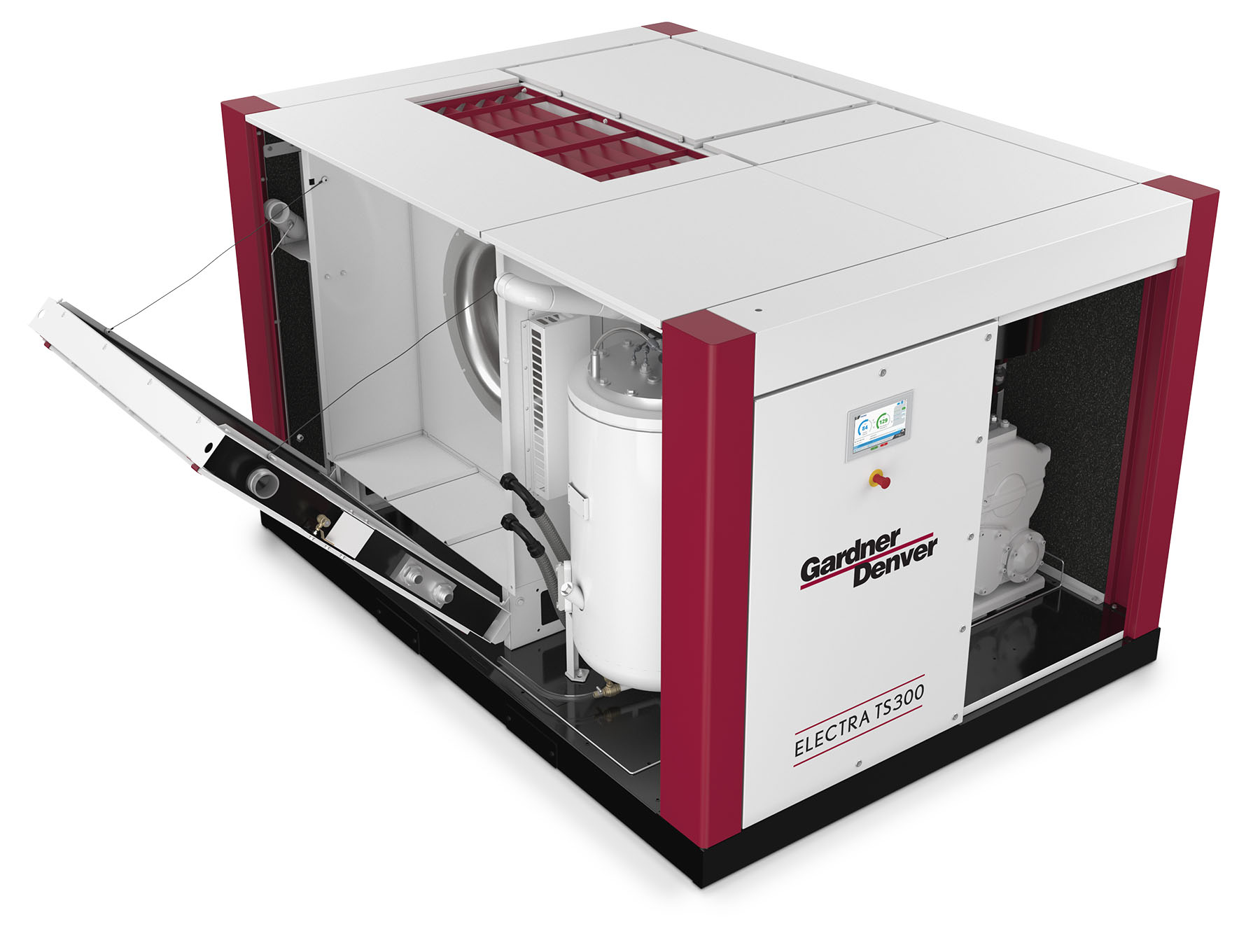

Product Photo Exterior left Electra TS Enclosed Tipout

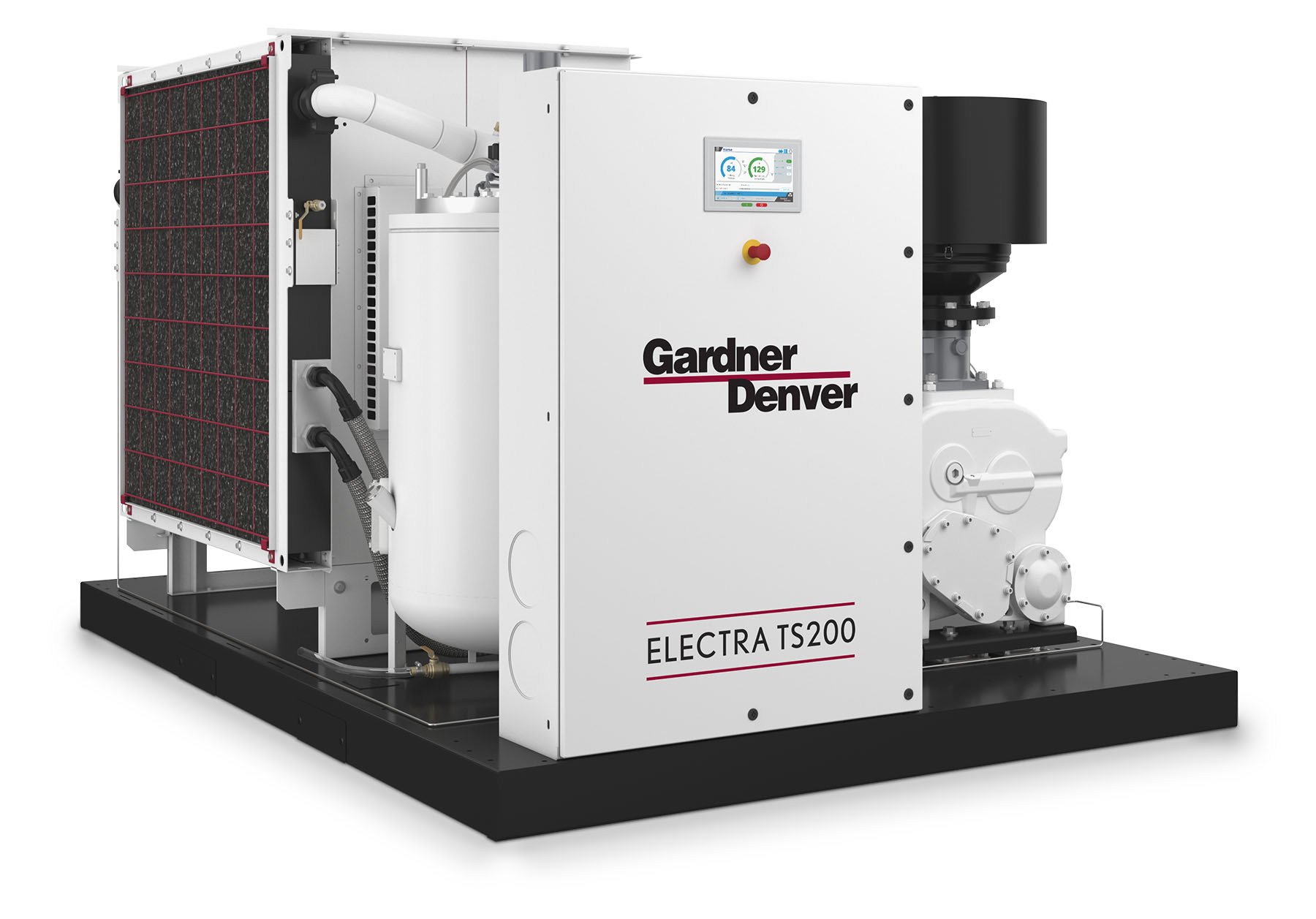

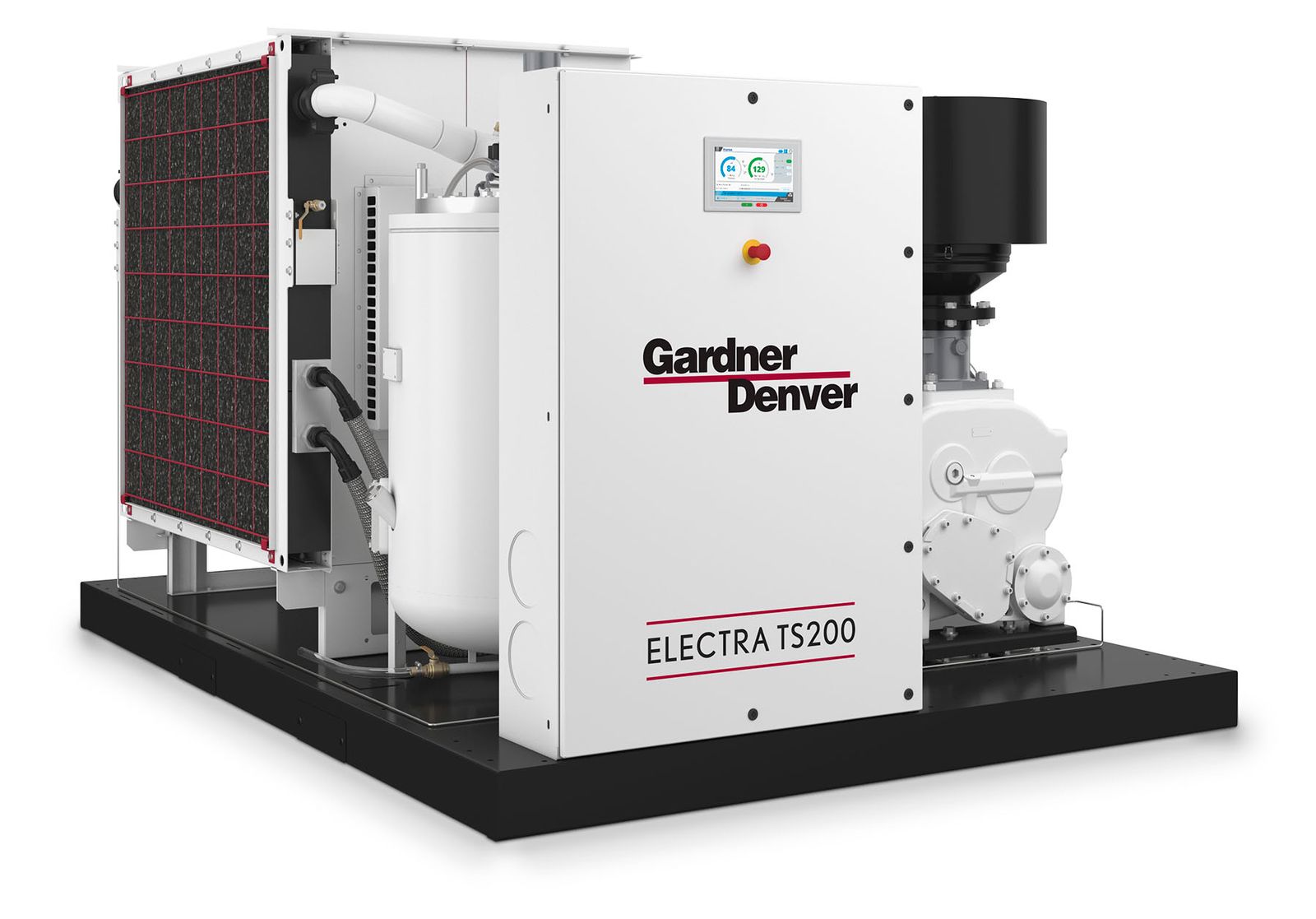

Product Photo Exterior left Electra TS Unenclosed

The engineering ingenuity of Gardner Denver began in 1859. For over 150 years, our compressed air products have been a dependable resource for meeting the world’s most demanding and ever-changing industrial needs. Featuring high performance airends, premium effciency motors and following the same design philosophy as the Electra Saver G2; we offer the same clean design, service benefits and features in a compact, two stage machine.

Featuring a semi-integrated over/under two stage proven airend with integral cartridge filter makes a compact, lean and easy-to-service package. The Electra TS utilizes commonality in parts and components with the Electra Saver/SaverII 200–300 HP packages. This truly makes the Gardner Denver Electra series a comprehensive and complete family portfolio. Following our good, better and best philosophy of supporting our customer in ALL applications and market segments.

• 200-300 HP

• Two stage high efficiency airend

• Enclosed or Unenclosed Base Mount on all HP

• Air or Water Cooled

• Standard 1800 rpm TEFC motors

• NEMA 4 Control Enclosure Standard on all Models

• New 10" Governor touchscreen microprocessor controller

• Load/No Load Capacity Control

• Tip-out Air and Oil Cooler

• Stainless Steel Control Lines

Reduced downtime due to service-friendly package design

Integrated cartridge style oil filter
Tip-out cooler
Enclosed package with large access doors allows for quick access to all service items

Slow speed GD10DS airend design ensures reliability and efficiency

1800RPM slow speed airend, maximizes efficiency and increases reliability
New 4 gear VS traditional 3 gear design adds rigidity and reduces bearing load
Integrated cartridge style oil filter reduces risk of leakage and aides in a compact airend design
Integrated interstage cooling improves efficiency and relability of the airend

Governor Controller = Information at your fingertips

Easy to use touchscreen display & navigation
10" Full-Color LCD Screen
Built-in digital gauges
Advanced machine diagnostics
Real-time and historical trending

MODEL	DRIVE MOTOR		50 Hz				60 Hz				NOISE LEVEL²	WEIGHT³		DIMENSIONS (L × W × H)
	DRIVE MOTOR		NOMINAL PRESSURE		FAD		NOMINAL PRESSURE		FAD		NOISE LEVEL²	WEIGHT³		DIMENSIONS (L × W × H)
	HP	kW	PSIG	BAR	ACFM	M³/MIN	PSIG	BAR	ACFM	M³/MIN	DB(A)	LBS	KG	IN. (MM)
ETS-200	200	150	100 125 200	6.9 8.6 13.8	1092 1057 839	30.94 29.93 23.76	100 125 200	6.9 8.6 13.8	1159 1062 835	32.81 30.08 23.65	80/93	10924	4955	129 × 92 × 76 (3277 × 2337 × 1930)
ETS-250	250	185	100 125 200	6.9 8.6 13.8	1375 1285 1048	38.93 36.38 29.68	100 125 200	6.9 8.6 13.8	1404 1298 1053	39.75 36.77 29.82	80/93	11522	5226
ETS-300	300	225	100 125 200	6.9 8.6 13.8	1639 1526 1164	46.42 43.22 32.97	100 125 200	6.9 8.6 13.8	1632 1526 1248	46.21 43.22 35.35	80/93	12040	5461

Noise levels are for enclosed/unenclosed air-cooled models.
Weights and dimensions are for air-cooled unenclosed models.
