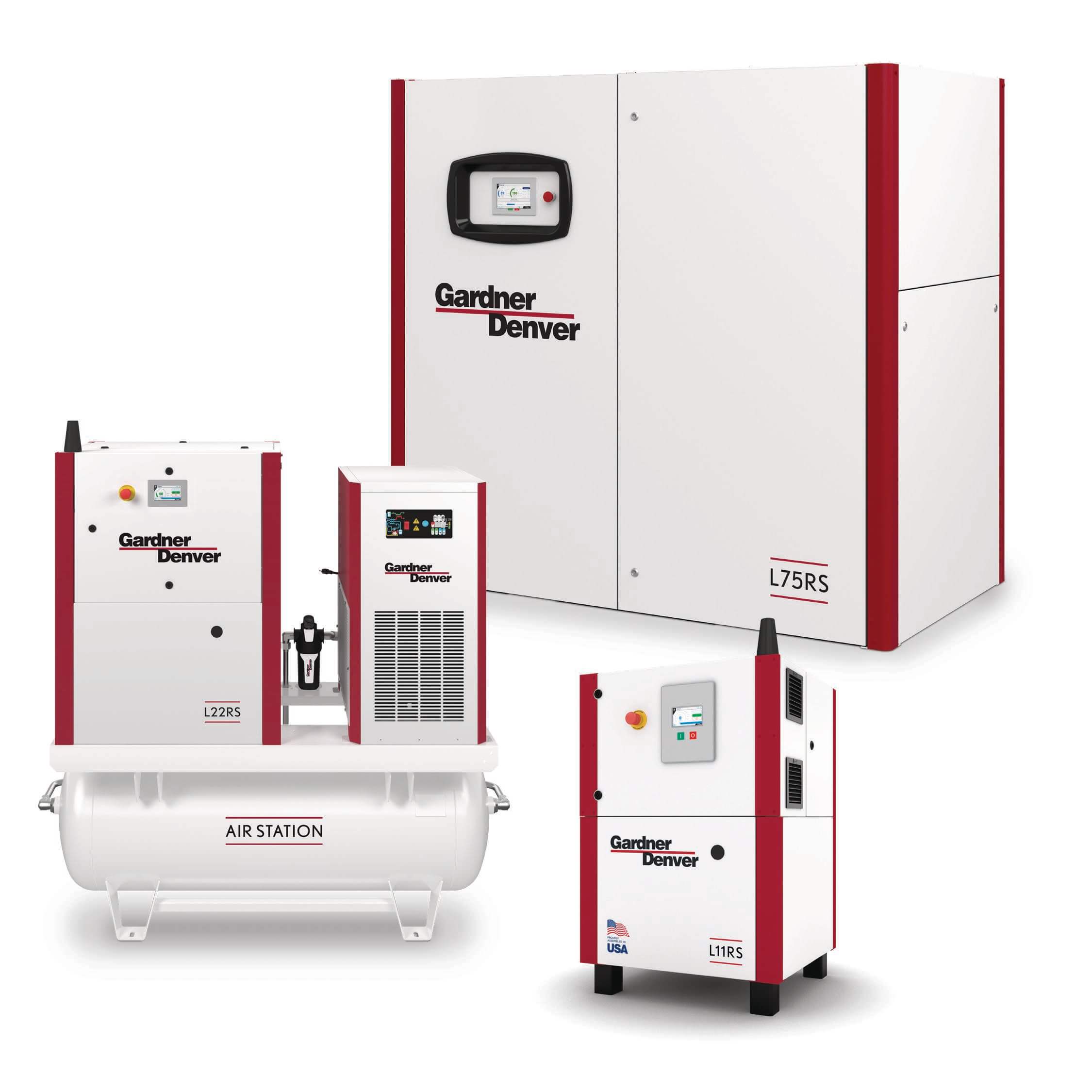

Product Photo LRS Series Family
Product Photo Exterior front LRS Series AirStation
Product Photo Exterior right LRS Series Small Rotary Tank Mounted
Product Photo Exterior right LRS Series Small Rotary
Product Photo Exterior right LRS37
Product Photo Exterior right LRS75
Product Photo Exterior left LRS160
Product Photo LRS Series Family
Product Photo Exterior front LRS Series AirStation
Product Photo Exterior right LRS Series Small Rotary Tank Mounted
Product Photo Exterior right LRS Series Small Rotary
Product Photo Exterior right LRS37
Product Photo Exterior right LRS75
Product Photo Exterior left LRS160
Back to the product list

LRS-Series 10-400 HP Rotary Screw Air Compressors

The LRS-Series product line by Gardner Denver features variable speed Rotary Screw air compressors, making them more versatile than most other compressor products on the market. The inverter drive system in the LRS-Series precisely matches power consumption with air demand, providing world-class energy efficiency. Each LRS-Series Rotary Screw air compressor is fully enclosed, preventing excessive noise from occurring on the job.

• 7-290 kW or 10-400HP
• LRS07-LRS22 (10-30HP) Belt Driven
• LRS23-LRS290 (30-400HP) Direct-Gear Driven
• Standard Quiet Enclosure on all HP
• LRS07-LRS22 (10-30HP) Base, Tank, and AirStation Configurations w/Dryer Available
• Standard Air Cooled with Available Water Cooling from 75 to 400HP
• State of the Art Governor Touch Screen Microprocessor Controller Standard on LRS7-LRS290 (10-400HP)
• 3600 RPM TEFC Motors with Wye-Delta Starters Standard on all Models
• All Models Equipped with Robust Invert Drives

Perfect Response to Your Individual Air Demand

Variable speed compressors from Gardner Denver can efficiently and reliably handle the varying air demand. The right variable speed compressor in the right application delivers significant energy savings and a stable air supply at constant pressure.

Minimize Your Energy Consumption

The largest cost component of a compressor during its lifetime is the power required to operate it. Maximum efficiency at any level of demand cuts energy costs and saves money.

MODEL

DRIVE
MOTOR

50 Hz

60 Hz

NOISE LEVEL²

WEIGHT³

DIMENSIONS
(L × W × H)

NOMINAL
PRESSURE

FAD

NOMINAL
PRESSURE

FAD¹

HP

kW

PSIG

BAR

ACFM

M³/MIN

PSIG

BAR

ACFM

M³/MIN

DB(A)

LBS

KG

IN. (MM)

L07RS

10

7.5

NA

NA

NA

NA

110

130

145

190

7.6

9.0

10.0

13.1

44.5

38.7

34.8

28.2

1.26

1.10

0.99

0.80

70

575

261

26 × 28 × 44

(667 × 698 × 1124)

L11RS

15

11

NA

NA

NA

NA

110

130

145

190

7.6

9.0

10.0

13.1

62.2

57.2

53.8

44.2

1.76

1.62

1.52

1.25

71

575

261

L15RS

20

15

NA

NA

NA

NA

110

130

190

7.6

9.0

13.1

88.3

79.7

59.2

2.50

2.26

1.68

74

945

429

32 × 35 × 50

(881 × 820 × 1274)

L18RS

25

18

NA

NA

NA

NA

110

130

190

7.6

9.0

13.1

106.4

95.0

77.5

3.01

2.69

2.20

74

945

429

L22RS

30

22

NA

NA

NA

NA

110

130

190

7.6

9.0

13.1

124.6

116.0

90.7

3.53

3.29

2.57

74

945

429

L23RS

30

22

100

130

190

6.9

9.0

13.1

145.8

132.1

102.1

4.13

3.74

2.89

110

145

190

7.6

10.0

13.1

145.5

123.5

102.1

4.12

3.50

2.89

68

1501

681

53 × 35 × 64
(1345 × 880 × 1612)

L26RS

35

26

100

130

190

6.9

9.0

13.1

169.2

154.0

125.7

4.79

4.36

3.56

110

145

190

7.6

10.0

13.1

168.9

144.9

125.7

4.78

4.10

3.56

70

1561

708

L29RS

40

30

100

130

190

6.9

9.0

13.1

191.4

171.6

134.9

5.42

4.86

3.82

110

145

190

7.6

10.0

13.1

190.9

159.0

134.9

5.41

4.50

3.82

70

1570

712

L30RS

40

30

100

125

145

6.9

8.6

10.0

194.2

179.0

169.8

5.50

5.07

4.81

110

125

145

7.6

8.6

10.0

194.3

182.5

170

5.51

5.17

4.82

68

2039

925

68 × 37 × 66

(1722 × 920 × 1659)

L37RS

50

37

100

125

190

6.9

8.6

13.1

238.3

221.0

182.5

6.75

6.26

5.17

110

125

190

7.6

8.6

13.1

238.5

224.6

182.5

6.75

6.36

5.17

69

2099

952

L45RS

60

45

100

125

190

6.9

8.6

13.1

277.5

258.0

216.0

7.86

7.31

6.12

110

125

190

7.6

8.6

13.1

277.0

262.3

216.3

7.85

7.43

6.13

71

2147

974

L55RS

75

55

110

125

145

7.5

8.6

10.0

361.3

341.1

318.6

10.2

9.7

9.0

110

125

145

7.6

8.6

10.0

364.7

344.0

318.0

10.33

9.74

9.00

69

3732

1693

85 × 49 × 78

(2159 × 1222 × 1971)

L75RS

100

75

110

145

190

7.5

10.0

13.0

463.4

410.5

362.5

13.1

11.6

10.3

110

125

190

7.6

8.6

13.1

473.4

448.4

367.8

13.41

12.70

10.41

72

3895

1767

L90RS

125

90

100

125

190

6.9

8.6

13.1

612.8

571.5

450.4

17.36

16.19

12.76

100

130

190

7.6

9.0

13.1

627.3

593.0

464.8

17.76

16.79

13.26

77

6102

2768

92 × 54 × 81

(2337 × 1372 × 2039)

L110RS

150

110

100

125

190

6.9

8.6

13.1

731.1

679.2

551.4

20.71

19.24

15.62

100

130

190

7.6

9.0

13.1

742.7

704.6

581.5

21.03

19.95

16.46

77

6107

2770

L132RS

180

132

100

125

190

6.9

8.6

13.1

802.4

747.7

609.3

22.73

21.18

17.26

100

130

190

7.6

9.0

13.1

819.7

781.4

642.4

23.21

22.13

18.19

78

6142

2786

L160RS

215

160

100

125

190

6.9

8.6

13.1

1116.5

1045.7

836.8

31.62

29.61

23.70

100

125

190

6.9

8.6

13.1

1119.2

1049.8

819.7

31.69

29.73

23.21

76

9652

4378

115 × 82 × 86

(2907 × 2071 × 2193)

L200RS

270

200

100

125

190

6.9

8.6

13.1

1368.0

1299.1

1051.9

38.74

36.79

29.79

100

125

190

6.9

8.6

13.1

1365.2

1291.3

1027.3

38.66

36.57

29.09

78

10082

4573

L250RS

340

250

100

125

190

6.9

8.6

13.1

1477.3

1401.0

1138.9

41.83

39.67

32.25

100

125

190

6.9

8.6

13.1

1466.0

1369.8

1091.6

41.51

38.79

30.91

79

10293

4669

L290RS

390

290

100

125

190

6.9

8.6

13.1

1620.7

1542.6

1250.4

45.89

43.68

35.41

100

125

190

6.9

8.6

13.1

1605.6

1504.0

1201.0

45.47

42.59

34.01

81

10326

4684

1) Data measured and stated in accordance with ISO1217, Ed. 4, Annex C Annex E at the following conditions: Air Intake Pressure 1 bar A, Air Intake Temperature 20 ° C, Humidity 0 % (Dry).

2) Noise levels are for air-cooled and water-cooled models, and measured in free field conditions in accordance with ISO 2151, tolerance +/ – 3 dB.

3) Weights are for air-cooled models.
