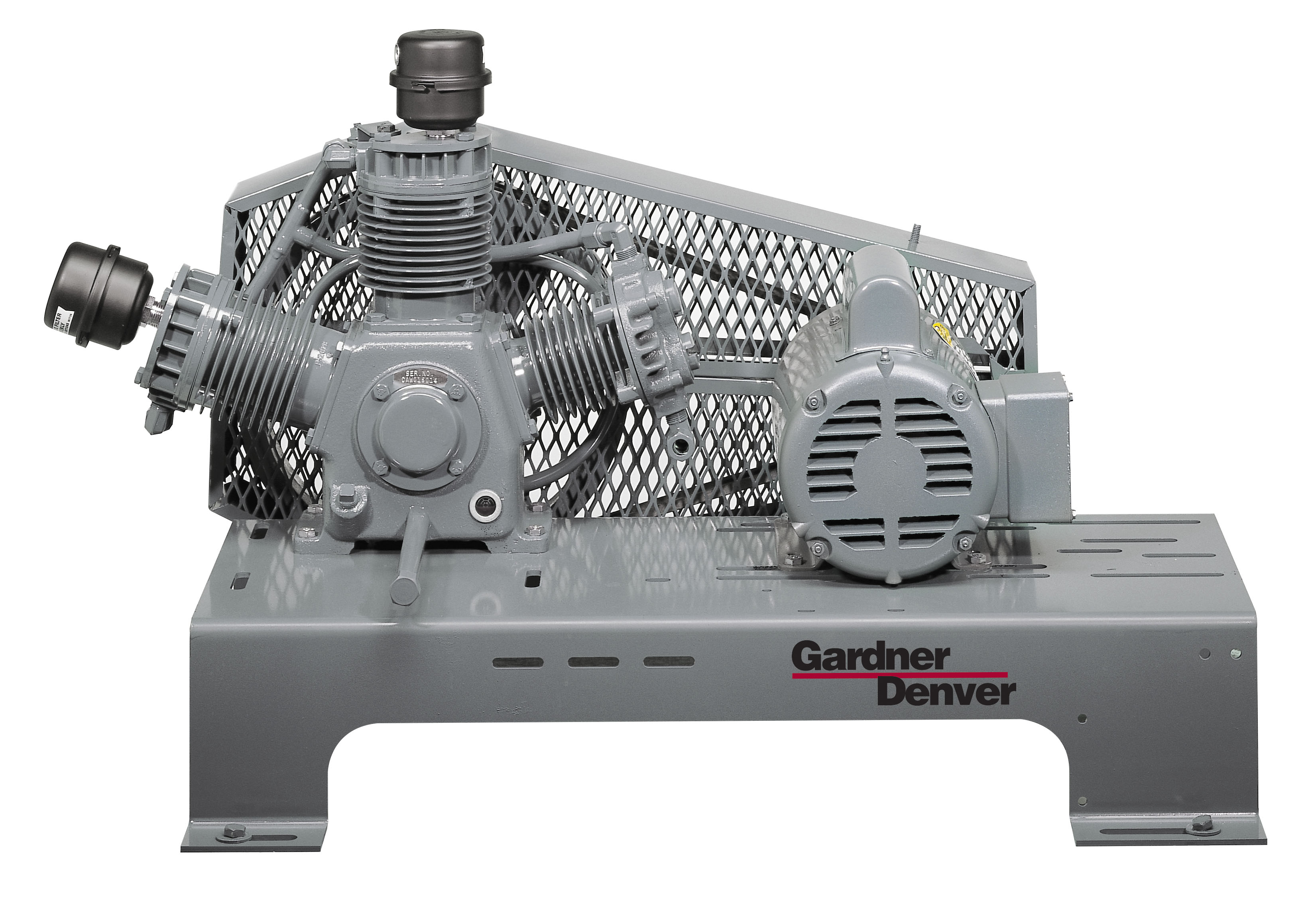

Product Photo Commandair basemount

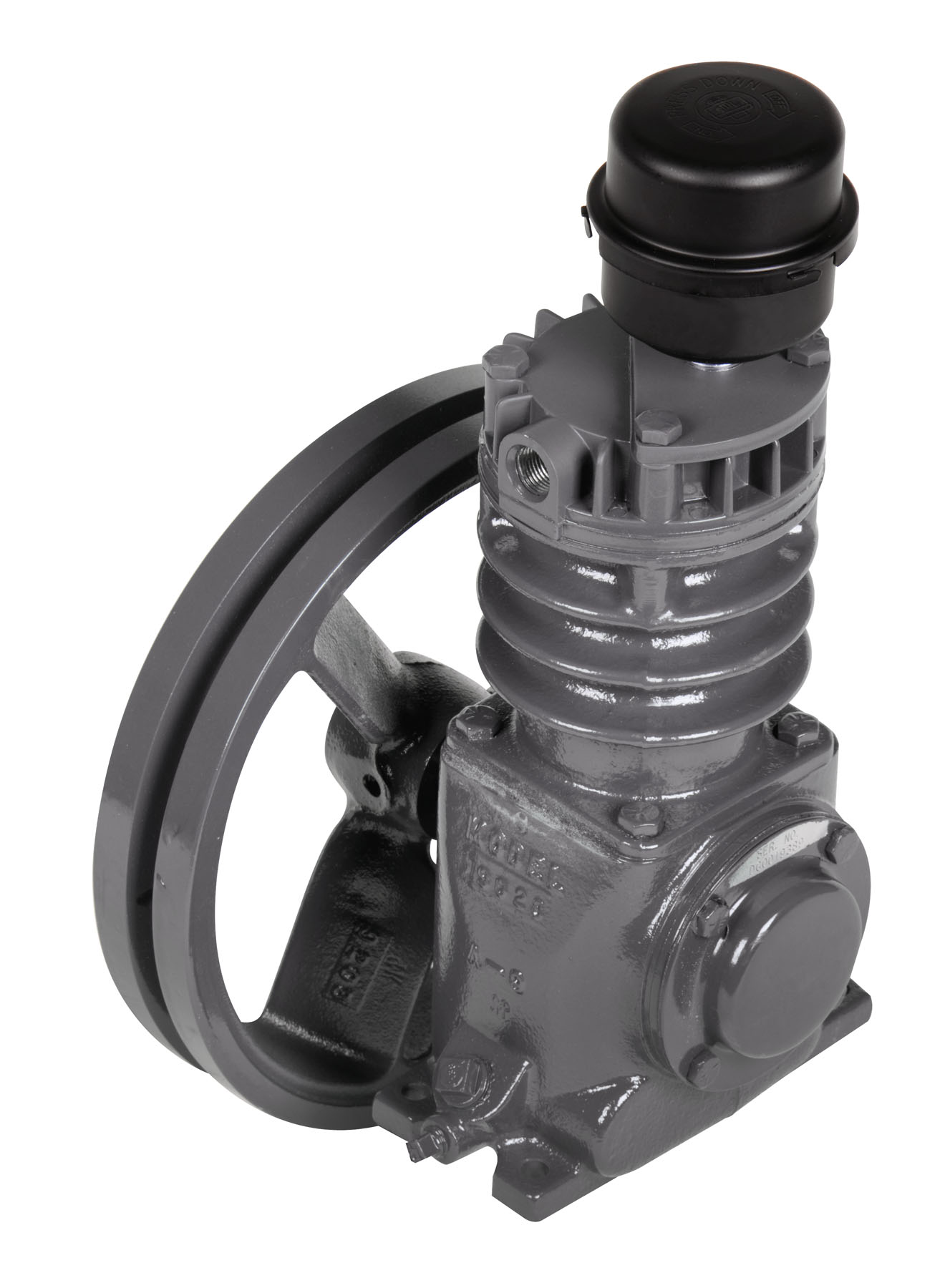

Product Photo Commandair barepump 1

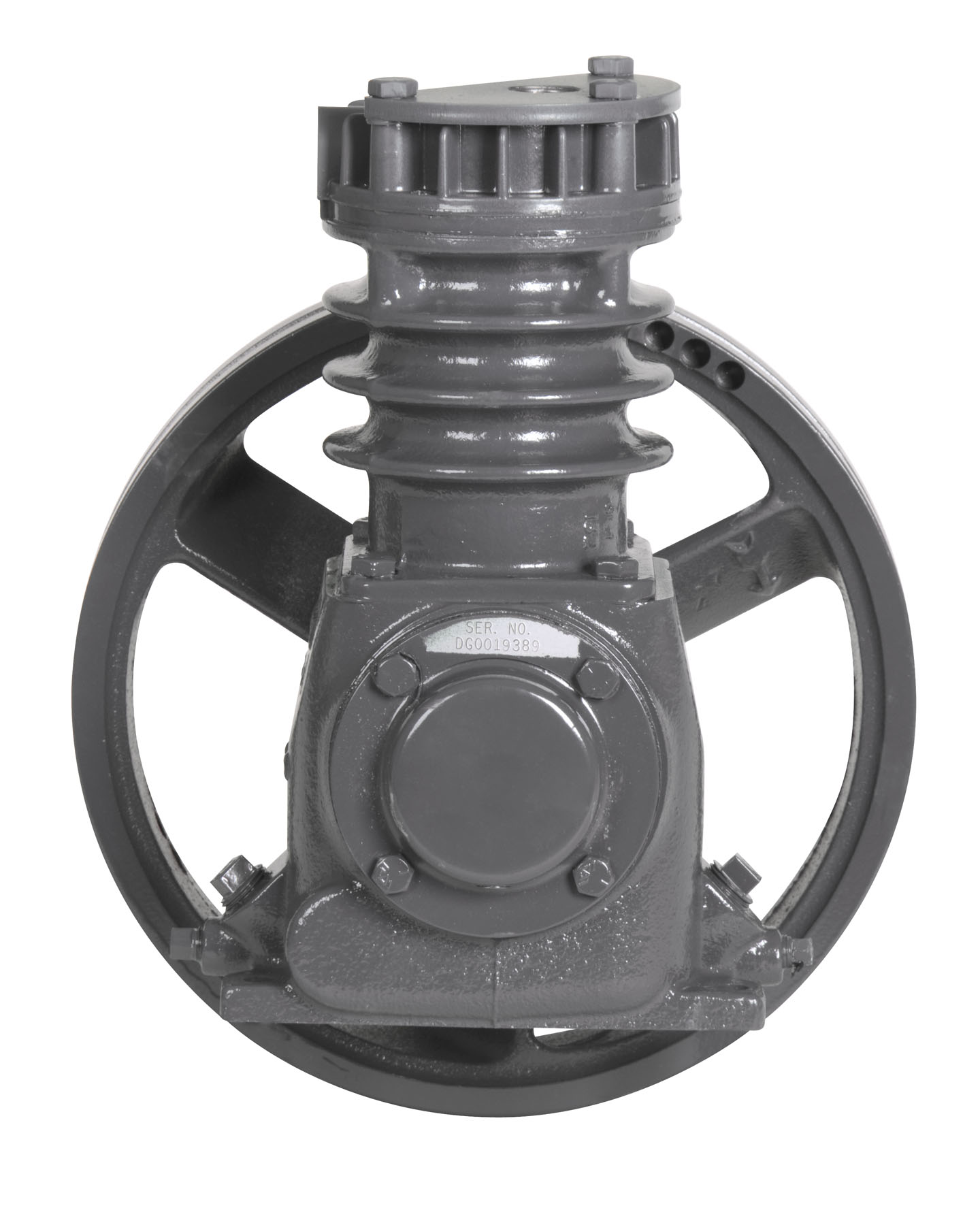

Product Photo Commandair barepump 2

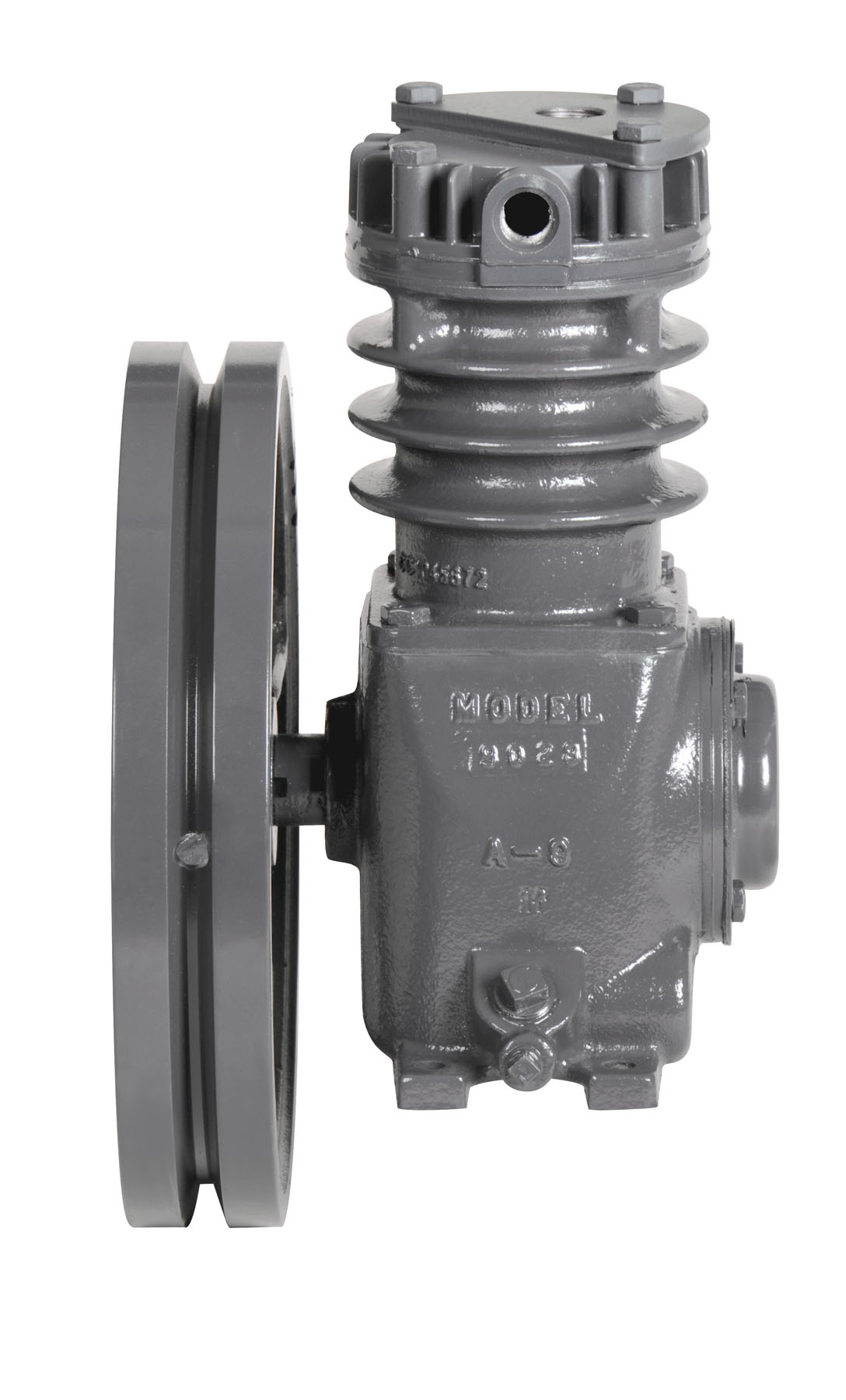

Product Photo Commandair barepump 3

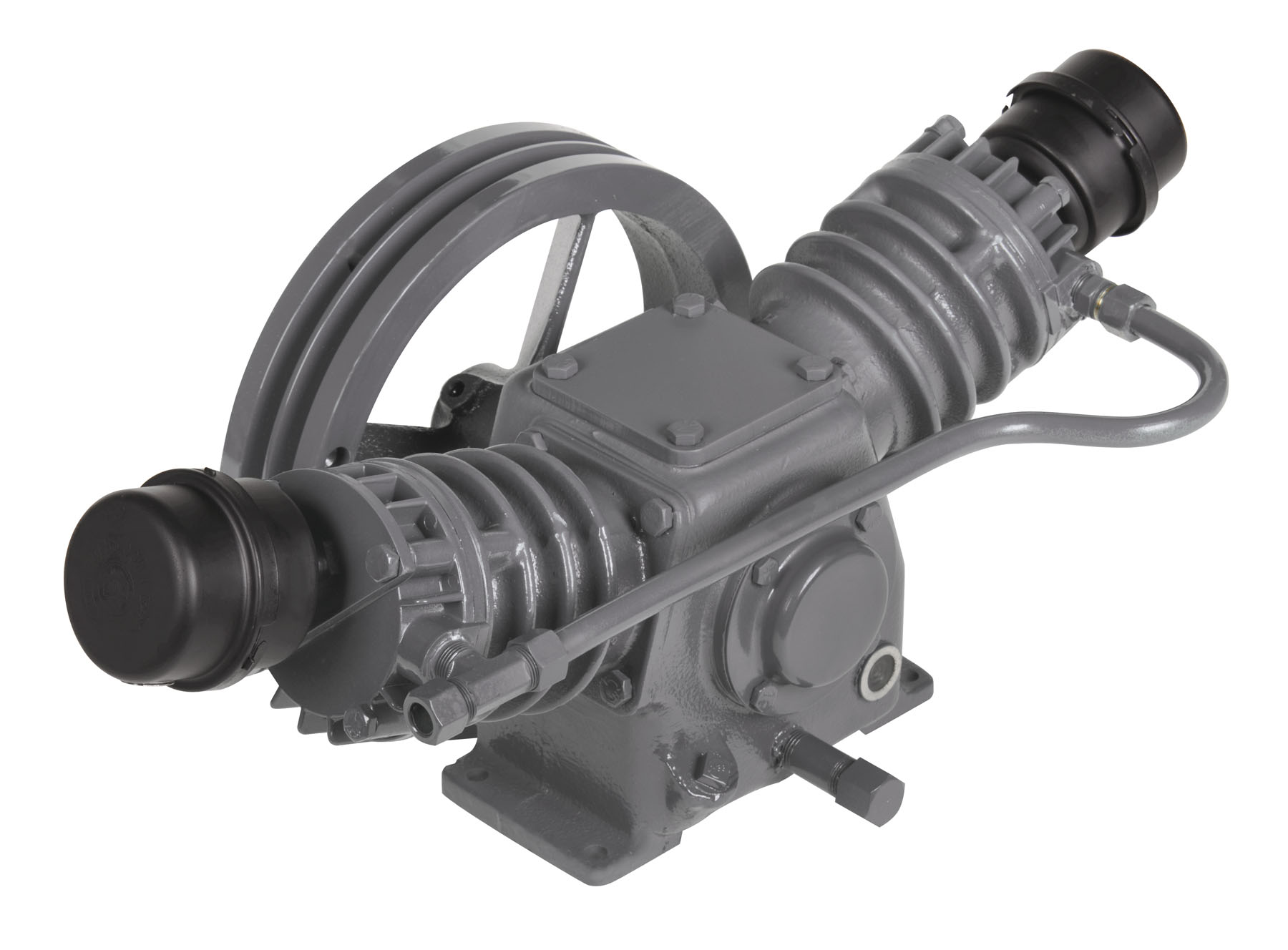

Product Photo Commandair barepump 4

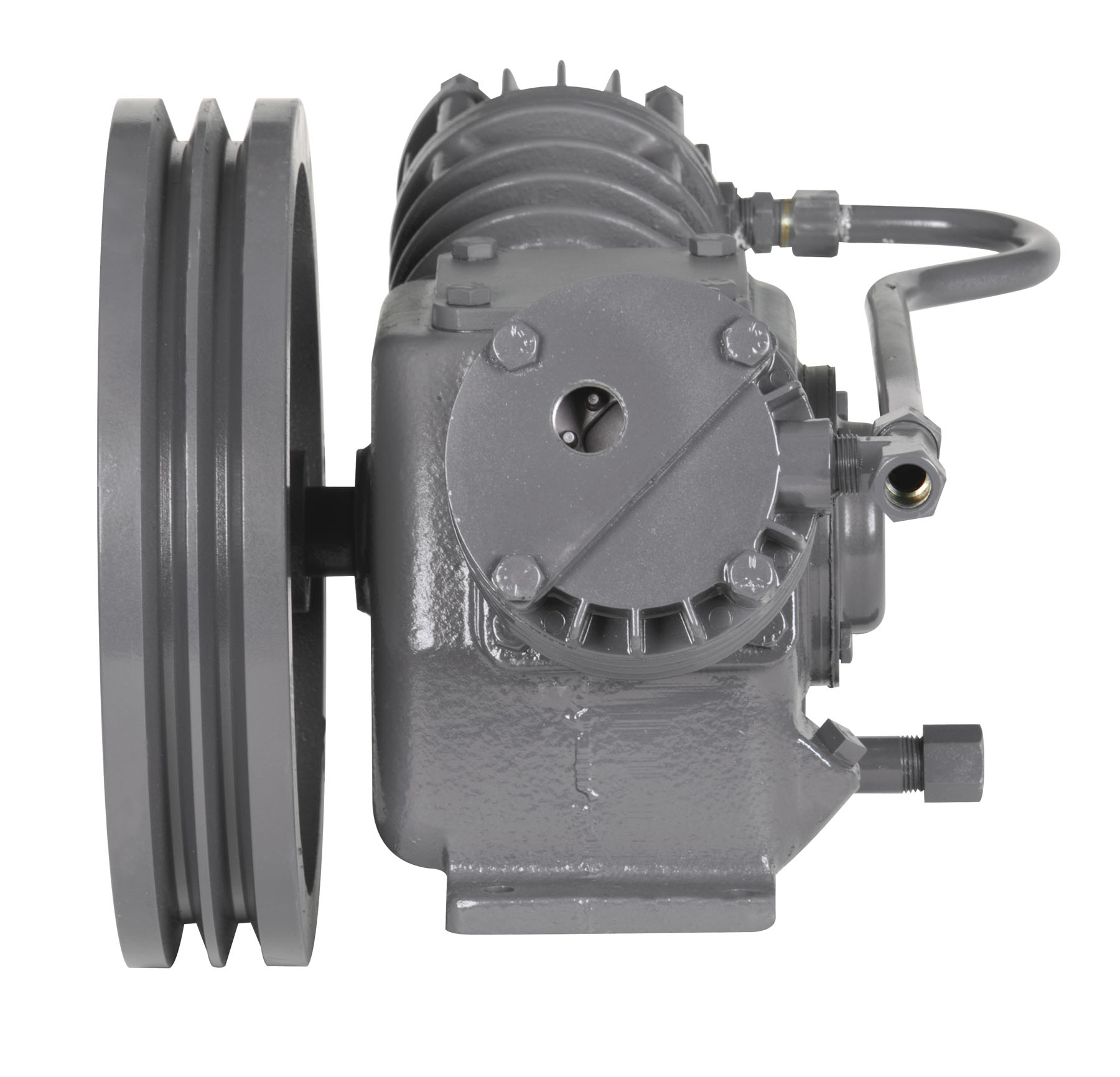

Product Photo Commandair barepump 5
Product Photo Commandair hero
Product Photo Commandair basemount
Product Photo Commandair barepump 1
Product Photo Commandair barepump 2
Product Photo Commandair barepump 3
Product Photo Commandair barepump 4
Product Photo Commandair barepump 5
Back to the product list

Commandair Reciprocating Compressor (.5-3 HP)

A full line of compact Commandair reciprocating compressors are manufactured to the same quality as our industrial models. These packages are sized for smaller air requirements such as small industrial plants, schools, small automotive centers, and do-it-yourselfers.

Even though this single stage splash lubricated compressor may be smaller, it still produces pressures up to 125 psig. The reciprocating compressor can be mounted to a base, or a tank. Options are available in vertical and horizontal configuration. The Commandair line provides superior value to our customers.

  • .5-3 HP (37-3.7 kW)
  • Automatic Start/Stop Operation
  • Loadless Starting via Pressure Switch
  • ODP NEMA 1760 RPM
  • 10 Micron Industrial Grade Intake Filter
  • Oil-Level Sight Gauge
  • Available Voltages
  • Single Phase - 115, 208, 230
  • Three Phase - 208, 230, 460
Available Options
  • Automatic Tank Drain
  • Vibration Isolators
  • Cast iron cylinders for holding rigid tolerances and ensuring high compressor efficiency.
  • Lightweight aluminum alloy pistons ensure proper reciprocating balance. Two compression rings and one oil-control ring are used for better oil control, less air blow-by, and higher efficiency.
  • High density, high silicon die-cast aluminum alloy connecting rods minimize reciprocating weight and help promoted exceptional compressor life.
  • High-quality Swedish Steel reed-type valves provide long life.
  • Tapered roller bearings on two and three-cylinder models provide offer premium low friction movement for minimized efficiency.
  • Precision balanced flywheel has fan blades for maximum compressor cooling resulting in cooler compressor operating temperatures.
  • Rugged ductile iron crankshaft has large diameter throws for minimum bearing loads and counterweights to minimize vibration.
  • Rugged cast iron crankcase designed to rigidly support the crankshaft and bearings.
  • Convenient oil level sight gauge on 2 and 3 cylinder models.
  • Removable cartridge-type intake filter features a 10-micron rated element.

Model

Dimensions

L × W × H

 Inches

Approx.
Ship Weight
lbs.

Bore Dia.
inches

Stroke Inches

# of
Cylinders

Oil
Capacity
qts

MIN/MAX
PUMP RPM

B1 & B1S

6.3 × 7.2 × 10.8

24.3

2.6

2

1

.19

400/1020

BVA & BVAS

23.4 × 10.4 × 10.2

48

2.6

2

2

.5

500/1000

BWA

23.4 × 10.2 × 15.8

55

2.6

2

3

.5

500/1000

SIMPLEX BASE MOUNTED UNITS

MOTOR
HP

Compressor Pump Model

COMMANDAIR

CESCAA

Dimensions

L × W × H

Inches

Approx.
Ship Weight
lbs.

Bore Dia. Inches

Stroke Inches

# OF
Cylinders

Bolt Down L × W Inches

90 PSI



















RPM

CFM
Del’y

0.5

B1S

BMB1S5

38.8 × 20.6 × 20.5

64

2.38

2

1

25.6 × 14.5

525

1.8

0.75

B1

BMB17

38.8 × 20.6 × 20.5

71

2.38

2

1

25.6 × 14.5

715

3.67

1

B1

BMB110

38.8 × 20.6 × 20.5

84

2.38

2

1

25.6 × 14.5

919

4.71

1

BVAS

BMBVAS10

38.8 × 20.6 × 20.5

93

2.38

2

2

25.6 × 14.5

505

3.4

1.5

BVA

BMBVA15

38.8 × 20.6 × 20.5

95

2.38

2

2

25.6 × 14.5

731

5.3

2

BVA

BMBVA20

38.8 × 20.6 × 20.5

98

2.38

2

2

25.6 × 14.5

929

6

2

BWA

BMBWA20

38.8 × 20.6 × 20.5

102

2.38

2

3

25.6 × 14.5

700

7.2

SIMPLEX VERTICAL TANK MOUNTED UNITS

MOTOR HP

Tank
Capacity
Gal.

Compressor Pump Model

COMMANDAIR CESCAA

Dimensions

L × W × H

Inches

Approx.
Ship Weight
lbs.

Bore Dia. Inches

Stroke Inches

# OF
Cylinders

Bolt Down L × W Inches

90 PSI





















RPM

CFM
Del’y

0.5

30

B1S

30B1S5V

32.3 × 22.4 × 56.6

130

2.38

2

1

4 on 18" BC

525

1.8

0.75

30

B1

30B17V

32.3 × 22.4 × 56.6

139

2.38

2

1

4 on 18" BC

715

3.67

1

30

B1

30B110V

32.3 × 22.4 × 56.6

168

2.38

2

1

4 on 18" BC

919

4.71

1

30

BVAS

30BVAS10V

32.3 × 22.4 × 56.6

130

2.38

2

1

4 on 18" BC

505

3.4

1.5

30

BVA

30BVA15V

32.3 × 22.4 × 56.6

218

2.38

2

2

4 on 18" BC

731

5.3

2

30

BVA

30BVA20V

32.3 × 22.4 × 56.6

220

2.38

2

2

4 on 18" BC

929

6

3

30

BWA

30BWA30V

32.3 × 22.4 × 51.6

314

2.38

2

3

4 on 18" BC

995

10.2

SIMPLEX HORIZONTAL TANK MOUNTED UNITS

MOTOR HP

Tank
Capacity
Gal.

Compressor Pump Model

COMMANDAIR CESCAA

Dimensions

L × W × H

Inches

Approx.
Ship Weight
lbs.

Bore Dia. Inches

Stroke Inches

# OF
Cylinders

Bolt Down L × W Inches

90 PSI





















RPM

CFM
Del’y

0.5

30

B1S

30B1S5H

42 × 21 × 33.4

128

2.38

2

1

20 × 12.8

525

1.8

0.75

30

B1

30B17H

42 × 21 × 33.4

137

2.38

2

1

20 × 12.8

715

3.67

1

30

B1

30B110H

42 × 21 × 33.4

166

2.38

2

1

20 × 12.8

919

4.71

1

30

BVAS

30BVAS10H

42 × 21 × 33.4

203

2.38

2

2

20 × 12.8

505

3.4

1.5

30

BVA

30BVA15H

42 × 21 × 33.4

205

2.38

2

2

20 × 12.8

731

5.3

1.5

60

BVA

60BVA15H

51 × 23.5 × 41

295

2.38

2

2

28 × 16.5

731

5.3

2

30

BVA

30BVA20H

42 × 21 × 33.4

208

2.38

2

2

20 × 12.8

929

6

2

30

BWA

30BWA20H

42 × 21 × 35

212

2.38

2

3

20 × 12.8

700

10.77

2

60

BWA

60BWA20H

51 × 23.5 × 41

303

2.38

2

3

28 × 16.5

700

10.77

3

30

BWA

30BWA30H

42 × 21 × 35

299

2.38

2

3

20 × 12.8

995

15.31

SPRINKLER SYSTEMS: 40 PSIG SYSTEM (30 MINUTES MAXIMUM PUMPING TIME)

MOTOR HP

MAX
VOLUME
GALLON

Compressor Pump Model

COMMANDAIR CEWCAA

Dimensions

L × W × H

Inches

Approx.
Ship Weight
lbs.

Bore Dia. Inches

Stroke Inches

# OF
Cylinders

Bolt Down L × W Inches

40 PSI





















RPM

CFM
Del’y

0.5

214

B1

BMB1-5SS

38.8 × 20.6 × 20.5

64

2.38

2

1

25.6 × 14.5

673

2.6

0.75

230

B1

BMB1-7SS

38.8 × 20.6 × 20.5

71

2.38

2

1

25.6 × 14.5

715

2.8

1

305

B1

BMB1-10SS

38.8 × 20.6 × 20.5

84

2.38

2

1

25.6 × 14.5

950

3.7

1.5

470

BVA

BMBVA-15SS

38.8 × 20.6 × 20.5

93

2.38

2

2

25.6 × 14.5

731

5.7

2

602

BVA

BMBVA-20SS

38.8 × 20.6 × 20.5

95

2.38

2

2

25.6 × 14.5

939

7.3

Commandair Reciprocating Compressor (.5-3 HP)

Brochure, English

Standard Warranty

The standard warranty covers parts and labor on the package components for one year and three years on the compressor pump. Each new Gardner Denver assembled unit has a 3 year warranty on the compressor pump against defects in materials of workmanship under normal use and service.


Premium Extended Warranty

Purchase a Premium Warranty Kit at the same time as your new Gardner Denver compressor package to receive extended warranty protection. This offer will double the coverage with an additional 3 years of warranty on the compressor pump (pumps & labor) providing 6 YEARS of worry-free coverage. The Premium Extended Warranty also provides an extra 12 months coverage on the package for a total of 24months.
