- .5-1.5 HP (.4-1.12 kW)
- Tank Mounted, Simplex & Duplex Models

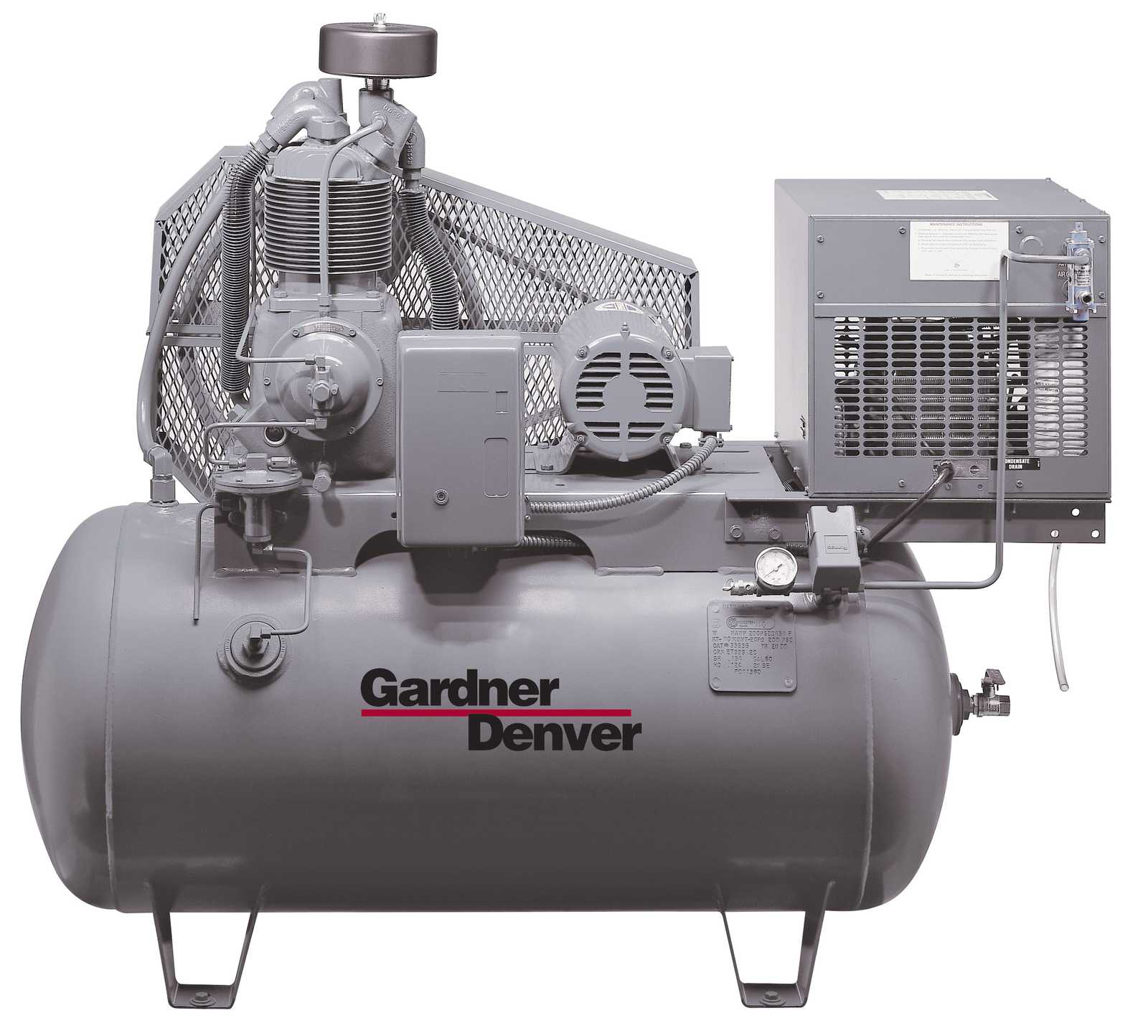

- Mounted Dryer Option
- Single & Two Stage
- Air Cooled, Splash Lubricated
- OSHA Approved Heavy Duty Enclosed Belt Guard
- Factory filled with AEON lubricant

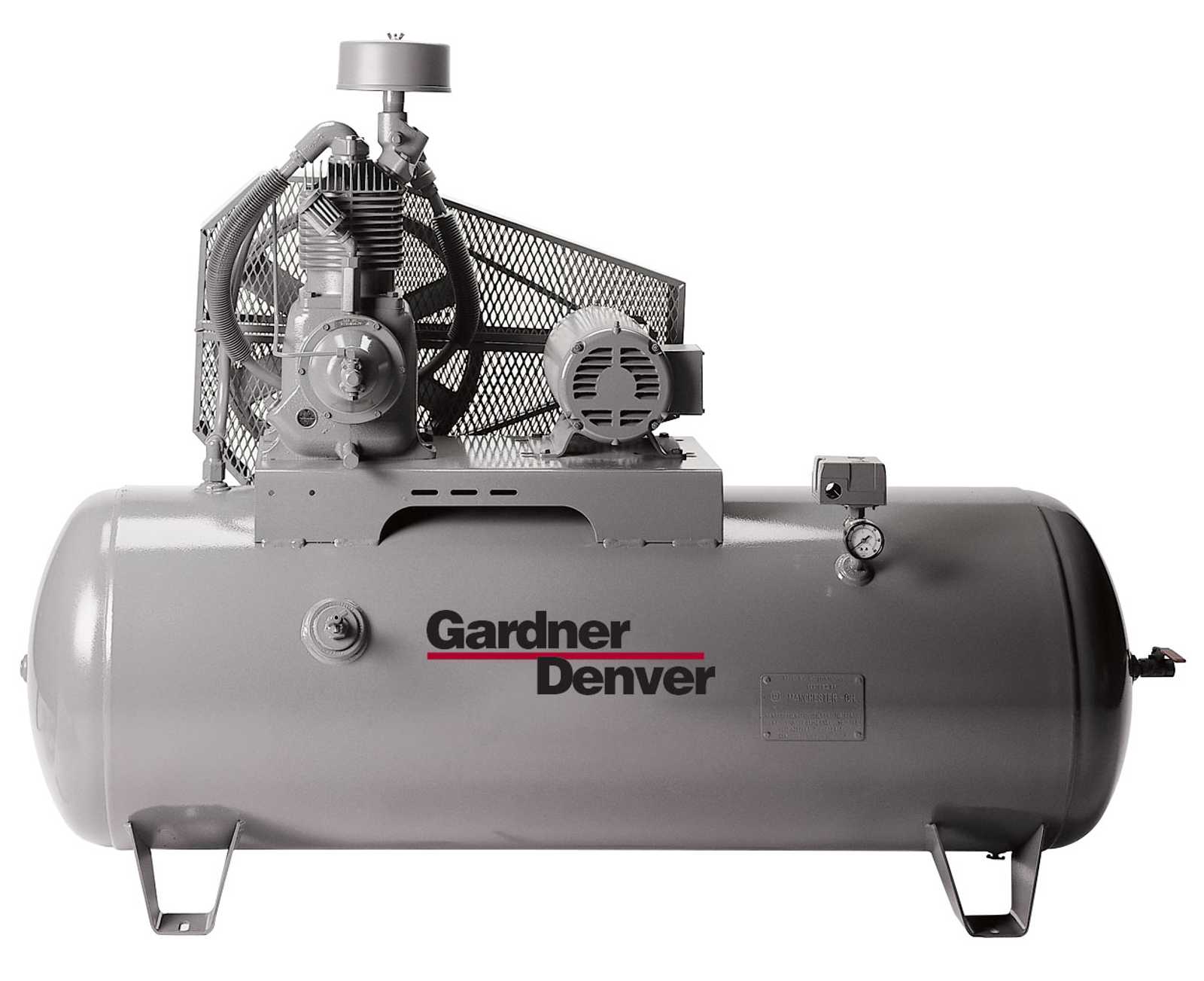

Specially-designed Climate Control Reciprocating Compressors can fit your application's specific needs. The Gardner Denver line of specially-designed climate control compressors represents years of intensive industrial research and testing. We've listened to the needs of the end user, and seen the short-comings of our competitors. The result is a line of machines suitable to critical industry demands for value and lasting performance.
A low operating RPM on this industrial air compressor results in longer component life, lower operating temperatures, and greater efficiency levels. Models can reach up to 175 psi, and are available as a single or a two stage system. This reciprocating compressor is available as a simplex or duplex model, outfitted with an OSHA approved heavy duty belt guard.
- Low operating RPM for longer component life
- Multi-finned cylinders for cooler operating temperatures
- Greater energy efficiency
- Inlet filter silencers for quiet operation and maximum particulate protection
- Integral cylinder/head design eliminating the possibility of blown head gaskets for trouble-free operation
- Balanced crankshaft, constructed of rugged, ductile iron with larger diameter throws for maximum bearing loads
- Domed piston, which allows the use of large diameter, low lift valves, while minimizing clearance volume for maximum air delivery
Simplex
Model | Horsepower | CFM @ 80 PSI | RPM |
|---|---|---|---|
B1CC | 0.5 Hp | 2.2 | 510-685 |
BVACC | 0.75-1 Hp | 3.9-4.6 | 510-685 |
BWACC | 1.5 Hp | 5.7 | 570 |
*Double CFM values for Duplex Units
Standard Warranty
The standard warranty covers parts and labor on the package components for one year and three years on the compressor pump. Each new Gardner Denver assembled unit has a 3 year warranty on the compressor pump against defects in materials of workmanship under normal use and service.
Premium Extended Warranty
Purchase a Premium Warranty Kit at the same time as your new Gardner Denver compressor package to receive extended warranty protection. This offer will double the coverage with an additional 3 years of warranty on the compressor pump (pumps & labor) providing 6 YEARS of worry-free coverage. The Premium Extended Warranty also provides an extra 12 months coverage on the package for a total of 24months.
Learn more about our reciprocating warranty options and how to register below:
