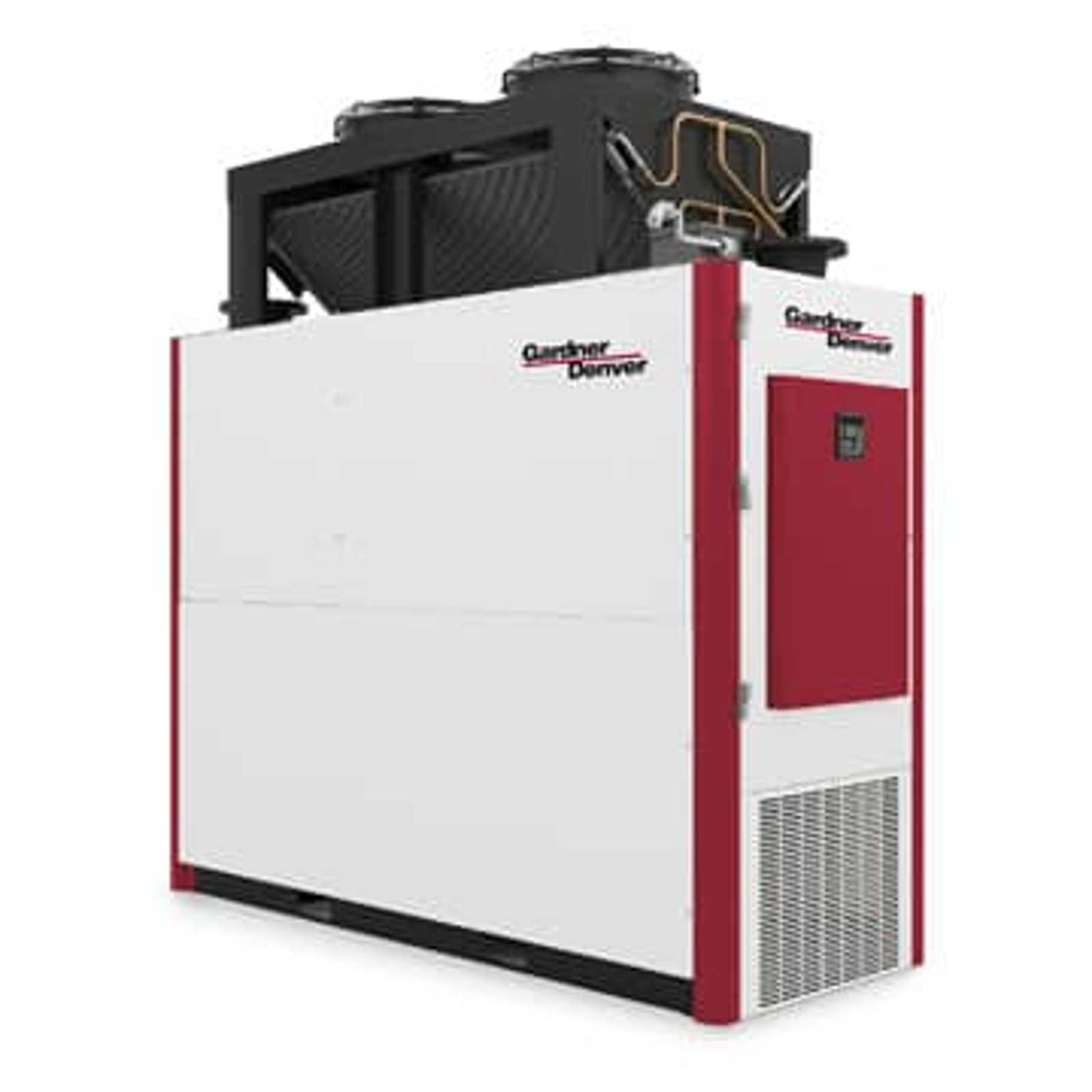

X Series Large Refrigerated Dryer

At the heart of Gardner Denver's large capacity refrigerated dryers is the patent pending large capacity heat exchanger. Using advanced modeling and simulation software tools. the heat exchanger's performance is optimized to deliver unprecedented performance that significantly lowers energy costs. Improvements include:

18-58% Energy efficiency improvement
25% Greater flow capacity
Over 1,000% improved thermal conductivity

Design Features

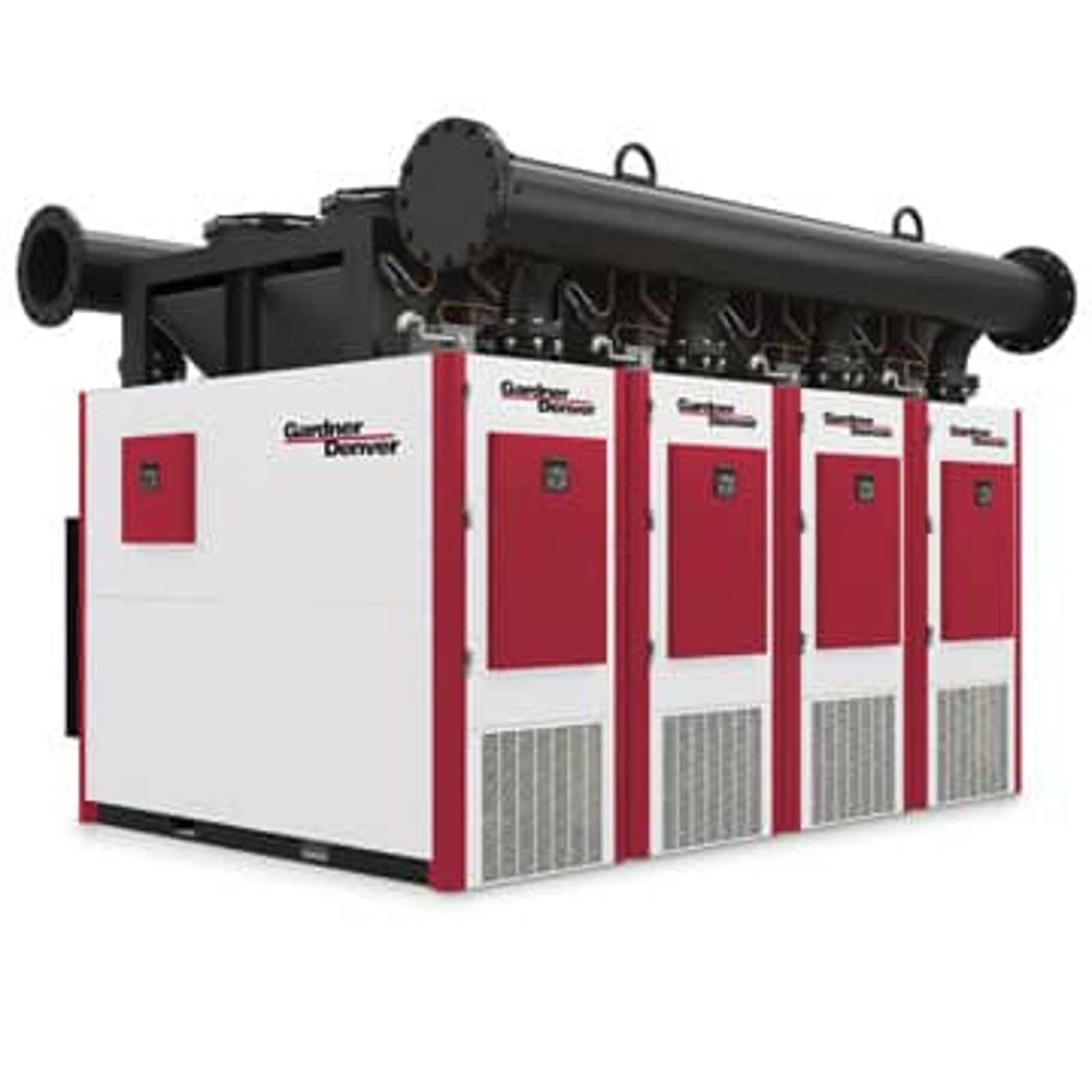

Multiplex Unit Standard Features

Complete factory assembled and fully functional tested system
System shall be designed to allow for single point connection for main power
Low pressure drop inlet & outlet compressed air header system. designed to be rigged
R410A refrigeration system
Thermal Mass: Propylene glycol provided safe use
Dual element, GP Grade inlet filter w/ DP switch
Isolation Valves: Standard
Condensate Drains: Standard
Master Sequencer Controller with RS485

Space-Saving Design

With expanded drying capacity and an integrated pre-filter, Gardner Denver large capacity refrigerated dryers have a smaller footprint to simplify your installation and free up valuable floorspace in your manufacturing operation.

Maximum Reliability

Complete ISO Class 2-4-3 protection provides the reliability you need. With integrated pre-filters and redundant no-loss drains closely monitored by a smart controller, you'll realize superior uptime.

Increased Sustainability

Advanced refrigeration circuitry, as well as meeting global requirements to reduce the use of high Global Warming Potential (GWP) substances, will help to reduce your carbon footprint and support your sustainability goals well into the future.

Lower Energy Costs

Gardner Denver's patent pending large capacity heat exchanger delivers significant efficiency gains, proven to reduce energy costs by as much as 50%.

XGNC Series | Non-Cycling | Refrigerated Dryers, 60HZ

Model	Flow Rate		Connect Size	Air-Cooled Operating	Water-Cooled Operating	Dimensions - Air Cooled (Width × Depth × Height)		Weight Air Cooled
	cfm	m³/hr	in	kW	kW	IN	MM	LB	KG
XGNC1800	1800	3000	6	8	5.8	34 x 91.5 x 93	864 x 2,324 x 2,362	2706	1227
XGNC2400	2400	4000	6	10	6.98	34 x 91.5 x 93	864 x 2,324 x 2,362	2856	1295
XGNC3000	3000	5000	6	13.9	9.2	34 x 91.5 x 93	864 x 2,324 x 2,362	2959	1342
XGNC3600	3600	6000	8	16.3	11.9	81 x 99 x 112	2,057 x 2,515 x 2,845	6058	2748
XGNC4800	4800	8000	8	20.3	14.2	81 x 99 x 112	2,057 x 2,515 x 2,845	6358	2884
XGNC6000	6000	10000	10	28.1	18.7	81 x 99 x 112	2,057 x 2,515 x 2,845	6754	3063
XGNC7200	7200	12000	10	30.4	21.2	116 x 99 x 112	2,946 x 2,515 x 2,845	9701	4400
XGNC9000	9000	15000	12	42	27.9	116 x 99 x 112	2,946 x 2,515 x 2,845	10287	4666
XGNC12000	12000	20000	14	55.9	37.1	151 x 99 x 112	3,835 x 2,515 x 2,845	13882	6297

XGCY Series |Cycling| Refrigerated Dryers, 60 Hz

XGCY1800	1,800	3,000	6	5.1	6.6	34 × 91.5 × 93	864 × 2,324 × 2,362	3,006	1,363
XGCY2400	2,400	4,000	6	13.0	8.2	34 × 91.5 × 93	864 × 2,324 × 2,362	3,156	1,432
XGCY3000	3,000	5,000	6	14.7	10.1	34 × 91.5 × 93	864 × 2,324 × 2,362	3,259	1,478
XGCY3600	3,600	6,000	8	10.4	13.4	81 × 99 × 112	2,057 × 2,515 × 2,845	6,441	2,922
XGCY4800	4,800	8,000	8	26.3	16.7	81 × 99 × 112	2,057 × 2,515 × 2,845	6,741	3,058
XGCY6000	6,000	10,000	10	29.7	20.5	81 × 99 × 112	2,057 × 2,515 × 2,845	7,169	3,252
XGCY7200	7,200	12,000	10	39.4	25.0	116 × 99 × 112	2,946 × 2,515 × 2,845	10,166	4,611
XGCY9000	9,000	15,000	12	44.4	30.6	116 × 99 × 112	2,946 × 2,515 × 2,845	11,093	5,032
XGCY12000	12,000	20,000	14	59.1	40.7	151 × 99 × 112	3,835 × 2,515 × 2,845	15,037	6,821
XGCY15000	15,000	25,000	14	73.8	50.8	186 × 99 × 112	4,724 × 2,515 × 2,845	18,471	8,379
XGCY18000	18,000	30,000	16	88.5	60.9	221 × 99 × 112	5,613 × 2,515 × 2,845	22,596	10,249
XGCY21000	21,000	35,000	16	103.2	71.0	256 × 99 × 112	6,502 × 2,515 × 2,845	26,465	12,005
XGCY24000	24,000	40,000	16	118.0	81.1	291 × 99 × 112	7,391 × 2,515 × 2,845	30,310	13,749

Nominal Flows indicated are for 100°F inlet temperature, 100°F ambient temperature and 100 psig compressed air pressure. Designed to deliver avg. Class 4 PDP at rated load conditions. Maximum compressed air inlet pressure: 200 PSIG / Minimum 50 PSIG. Consult factory for lower operating pressures. Minimum pressure w/o need for external control pressure to operate drain – 75 PSIG. For lower operating pressures, a separate 80 – 100 PSI compressed air source required for operating drains.

XGCY Series |Cycling, High-Pressure| Refrigerated Dryers, 60HZ

Model	Flow Rate		Connect Size	Air-Cooled Operating	Water-Cooled Operating	Dimensions - Air Cooled (Width × Depth × Height)		Weight Air Cooled
	cfm	m³/hr	in	kW	kW	IN	MM	LB	KG
XGCYHP3000	3000	5100	6	6.6	6.6	36 x 88 x 93	915 x 2,236 x 2,363	3569	1619
XGCYHP4000	4000	7000	6	8.3	8.3	36 x 88 x 93	916 x 2,236 x 2,363	3579	1624
XGCYHP6000	6000	10200	8	20.8	13.2	82 x 100 x 98	2,071 x 2,532 x 2,486	7399	3357
XGCYHP8000	8000	14000	8	26	16.6	82 x 100 x 98	2,071 x 2,532 x 2,487	7419	3366

Nominal Flows indicated are for 100°F inlet temperature, 100°F ambient temperature and 580 psig compressed air pressure. Designed to deliver avg. Class 4 PDP at rated load conditions. Maximum compressed air inlet pressure: 680 PSIG.
