- Utilizes R-513A refrigerant with low Global Warming Potential to meet environmental standards
- Constant pressure valve ensures stable operation and consistent performance
- Brazed aluminum heat exchangers enhance durability, efficiency, and longevity (2550cfm)
- Low pressure drop design reduces energy usage and operational costs
- Integrated timed solenoid drain
- ETL certified to UL60335-1 and UL60335-2-40 standards
- High-quality components and rigorous testing minimize downtime and ensure dependable performance
- Simple design reduces servicing time and effort

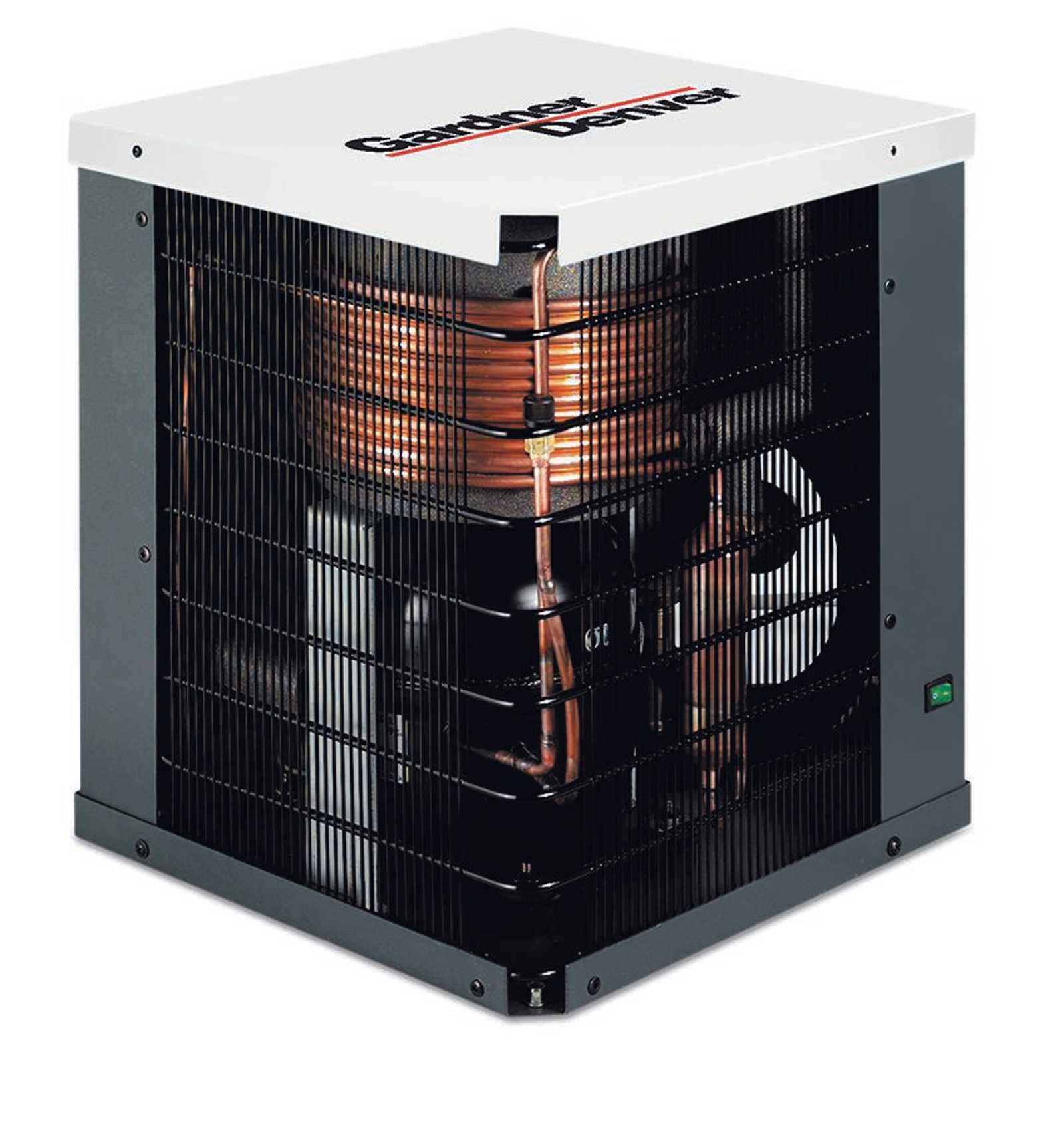

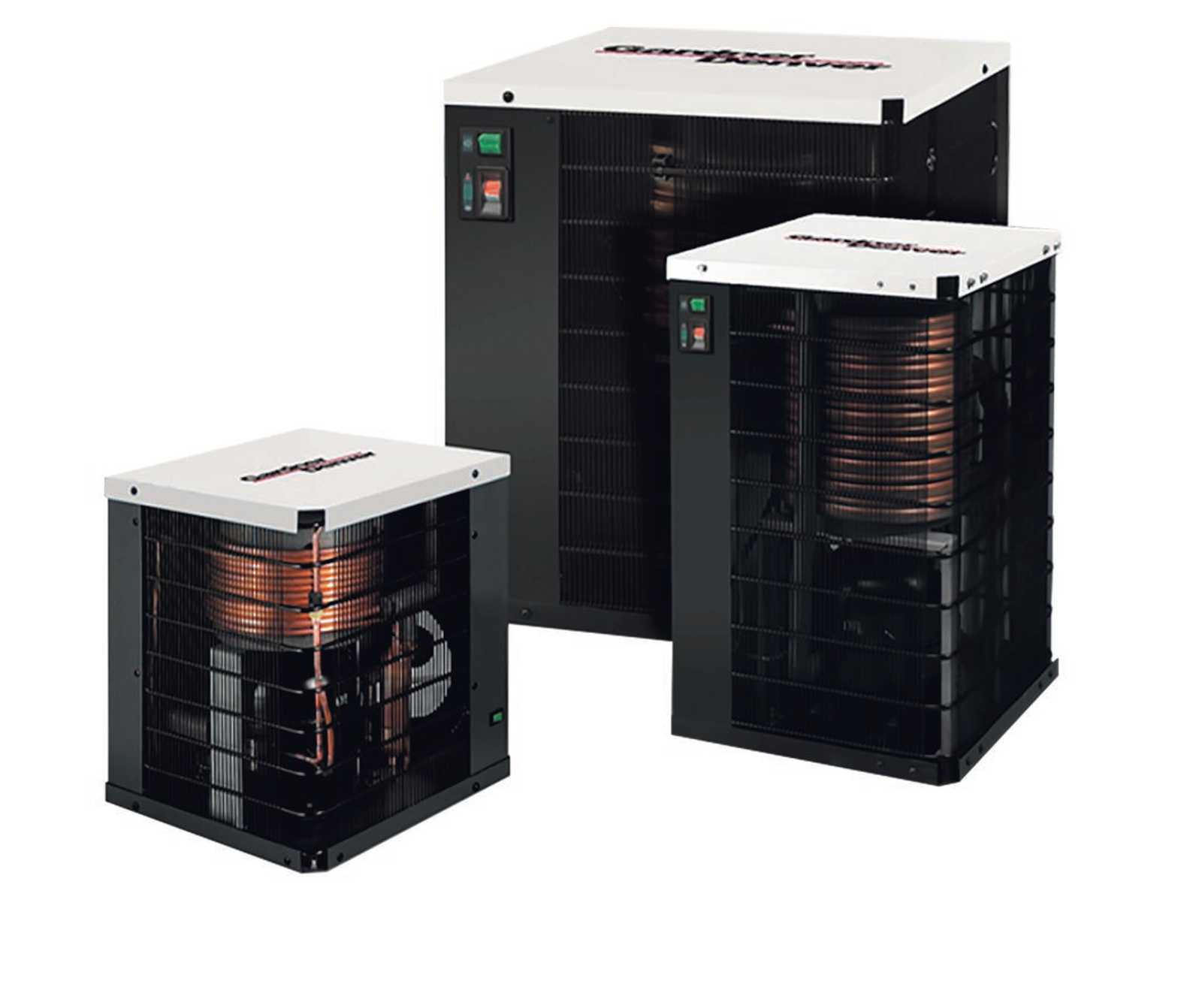

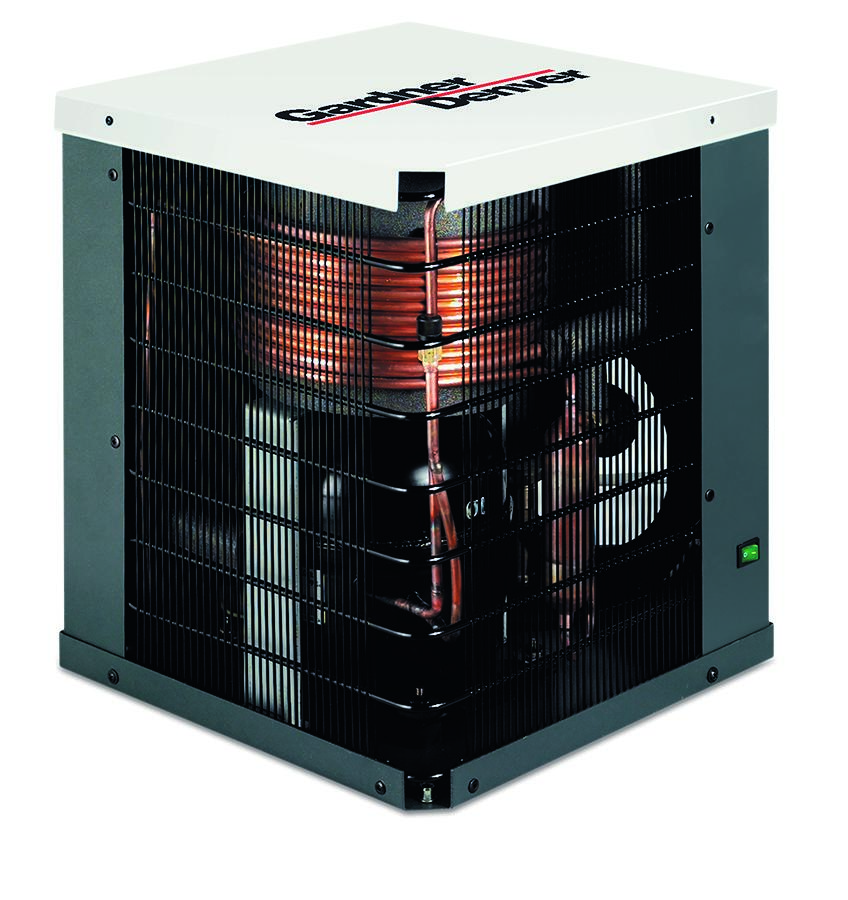

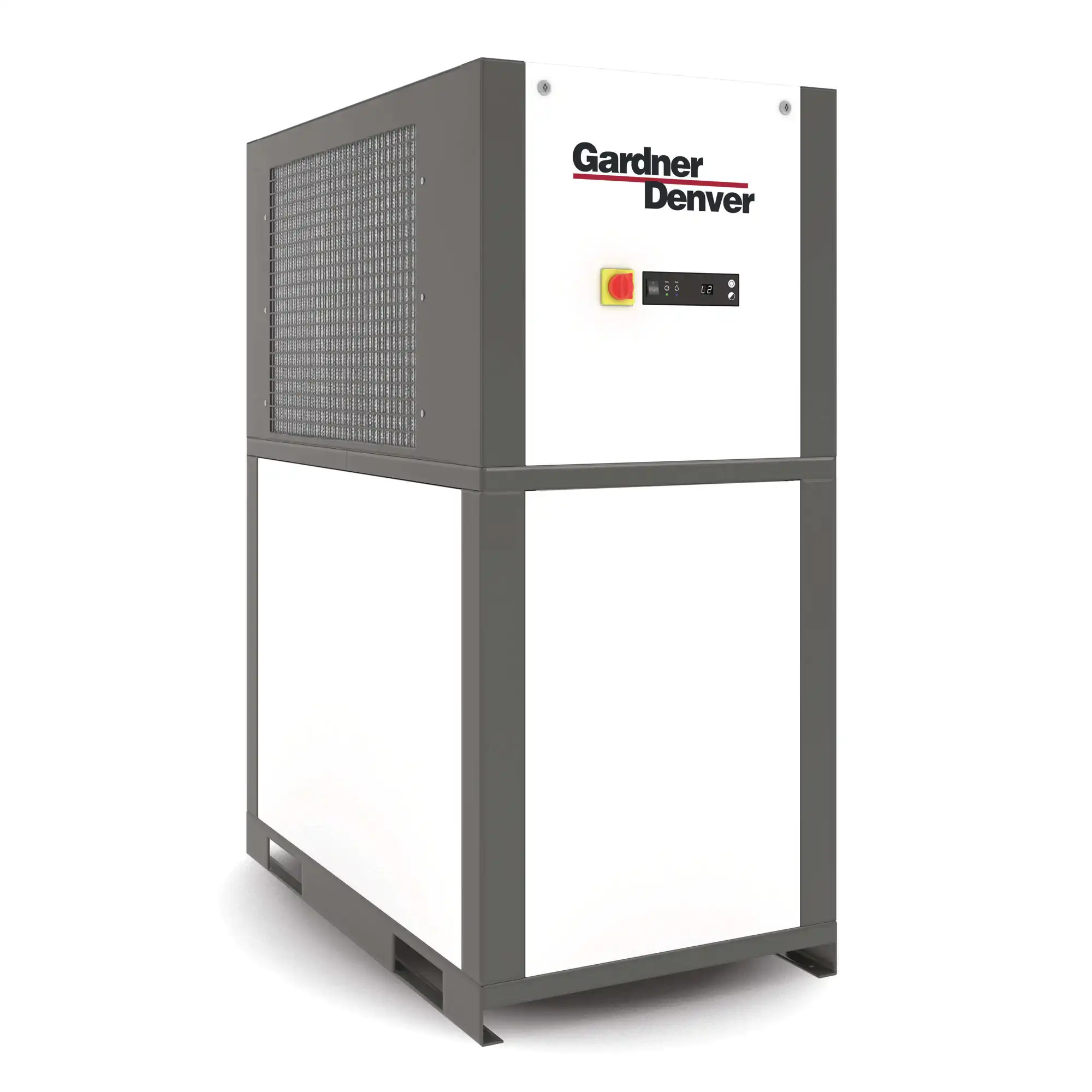

Non-Cycling Refrigerated Dryer
The RGDA Series refrigerated air dryers deliver reliable ISO 8573-1 Air Quality, Class 5 pressure dew point, and uses eco-friendly R513A refrigerant. Featuring durable copper and aluminum heat exchangers and integrated timer drains, the dryers ensure dependable moisture removal. Certified to UL and CSA safety standards, they ensure performance, versatility, and compliance with environmental regulations.
MODEL | Inlet SCFM* | Inlet Flow (NM³/H) | Pressure Drop (PSID) | Voltages | Air in/out connect size (in) | Power Consumption (kw) | Refrigerant | Width (in.) | Depth (in.) | Height (in.) | Width (mm) | Depth (mm) | Height (mm) | Weight (lbs.) | Weight (kg) |
RGDA7 A1 | 7 | 11.9 | 3.5 | 115/1 /60 | 3/8" MNPT | 0.15 | R513A | 12.6 | 12.6 | 15.3 | 365.8 | 424.2 | 444.5 | 45 | 20.41 |
RGDA1 1A1 | 11 | 18.7 | 6 | 115/1 /60 | 3/8" MNPT | 0.16 | R513A | 12.6 | 12.6 | 15.3 | 365.8 | 424.2 | 444.5 | 45 | 20.41 |
RGDA1 5A1 | 15 | 25.5 | 8.5 | 115/1 /60 | 3/8" MNPT | 0.16 | R513A | 12.6 | 12.6 | 15.3 | 365.8 | 424.2 | 444.5 | 45 | 20.41 |
RGDA2 5A1 | 25 | 42.5 | 0.5 | 115/1 /60 | 1/2" FNPT | 0.27 | R513A | 15.4 | 16.9 | 17.5 | 454.7 | 513.1 | 533.4 | 58 | 26.31 |
RGDA3 2A1 | 32 | 54.4 | 0.6 | 115/1 /60 | 1/2" FNPT | 0.27 | R513A | 15.4 | 16.9 | 17.5 | 454.7 | 513.1 | 533.4 | 58 | 26.31 |
RGDA4 2A1 | 42 | 71.4 | 1 | 115/1 /60 | 1/2" FNPT | 0.51 | R513A | 15.4 | 16.9 | 17.5 | 454.7 | 513.1 | 533.4 | 69 | 31.3 |
RGDA5 0A1 | 50 | 85 | 1.3 | 115/1 /60 | 1/2" FNPT | 0.52 | R513A | 15.4 | 16.9 | 17.5 | 454.7 | 513.1 | 533.4 | 69 | 31.3 |
