5-15 HP
Quiet Enclosed design utilizing 2” foam on external panels
Legendary R-Series compressor pump
ASME inter-stage pressure relief valve for protection
ODP NEMA 1760 RPM electric motor
10 Micron industrial grade intake filter
ASME coded receiver
0-300 PSIG air pressure gauge on tank
Available voltages:
Three phase-208/230/460/575
50 HZ options available

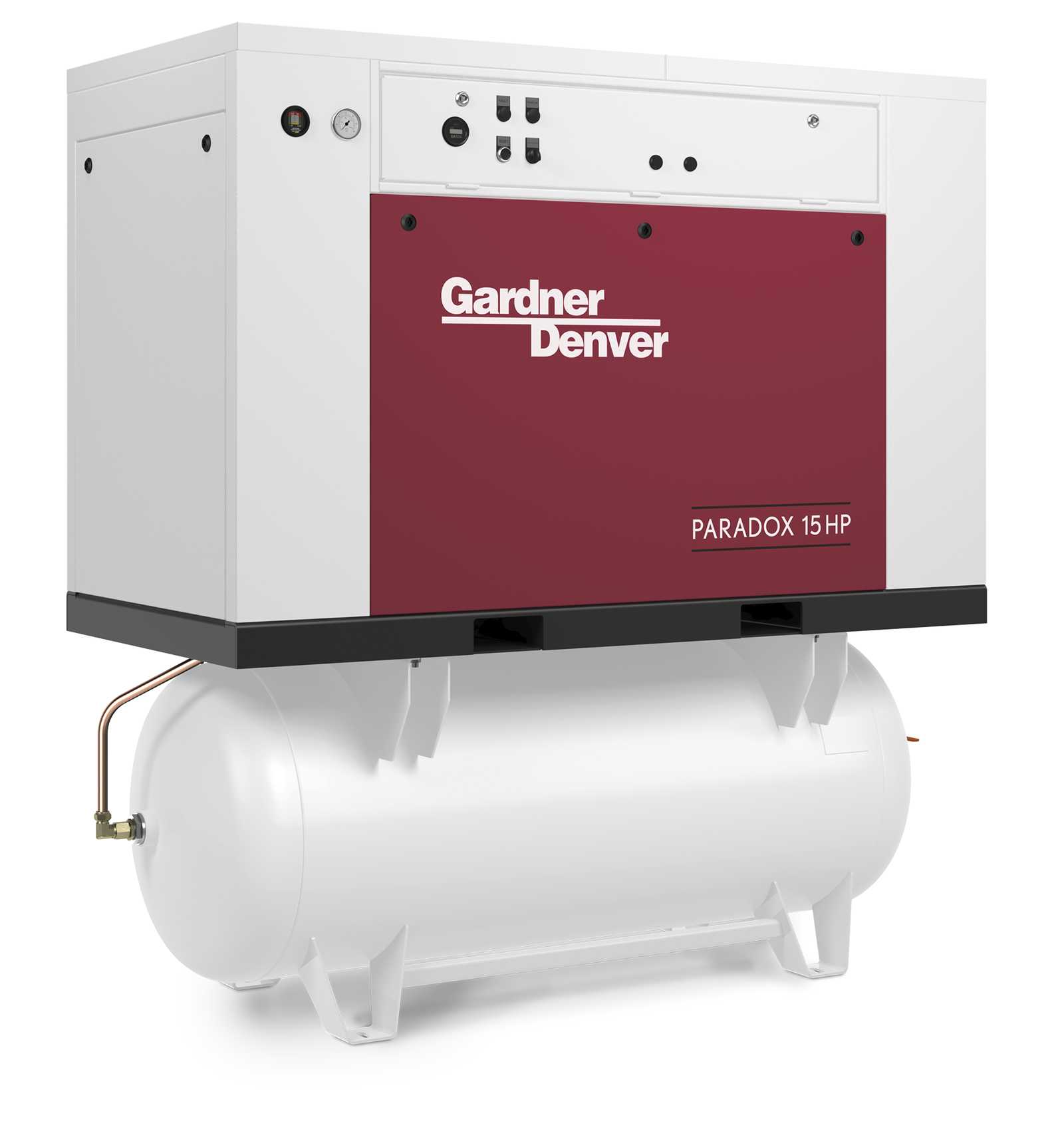

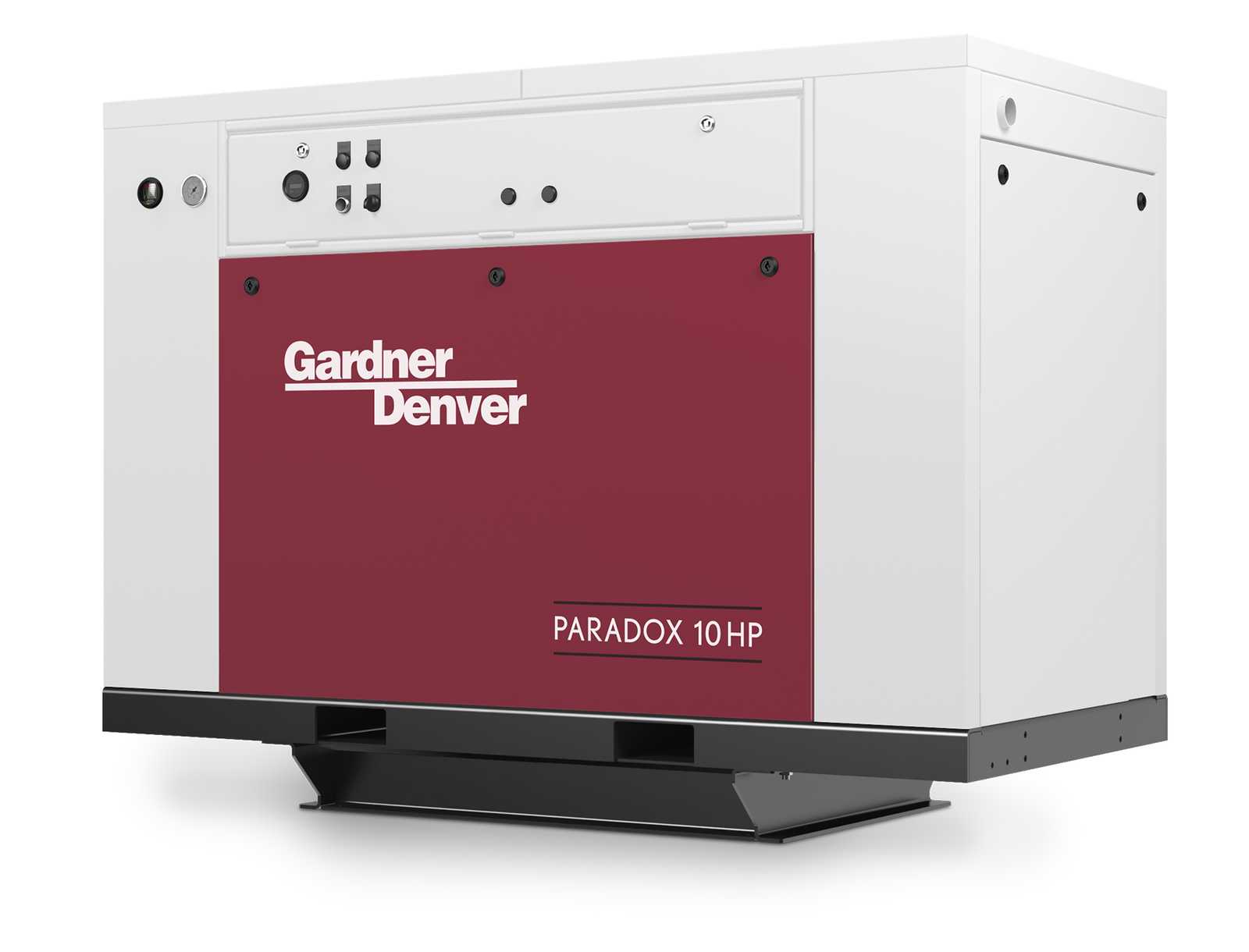

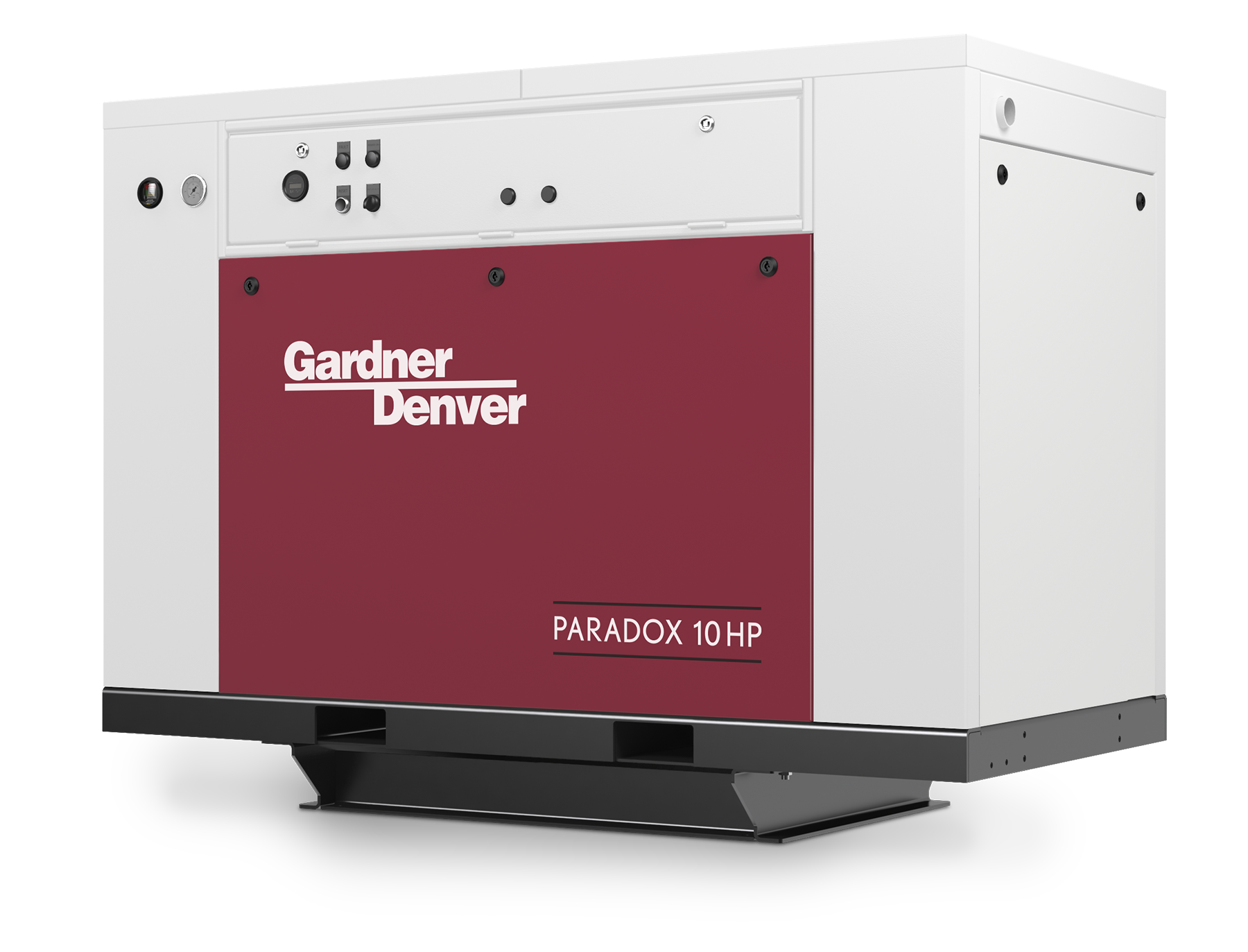

Gardner Denver has always prided itself on bringing the most innovative technology to the marketplace. There is no better example of this than the state of the art, re-designed Quiet Enclosed Reciprocating compressor package. Using our legendary R-Series compressor pump, this compressor combines the reliability and high performance of our flagship compressor pump into an enclosure that provides optimum cooling and low sound levels.
The Paradox is ideal for applications that require the technology of a reciprocating compressor but also lower sound levels. This compressor has dBA levels as low, or even lower, than a typical Rotary Screw compressor and approach temperatures less than 20 degrees.
Package Benefits:
Sophisticated control panel design with power on light, fault light, Hour Meter and ON-OFF switch as standard
Remarkably low sound levels, as low as 62 dBA!
Bottom intake and discharge for better sound attenuation
2” foam on external panels
Efficient over-sized bar and plate after-cooler
Large cooling fan provides optimum airflow and cooler temperatures
Ability to run the package with doors on, making it a fully enclosed quiet package or with the doors off allowing for even more airflow
B11.19 compliant enclosure

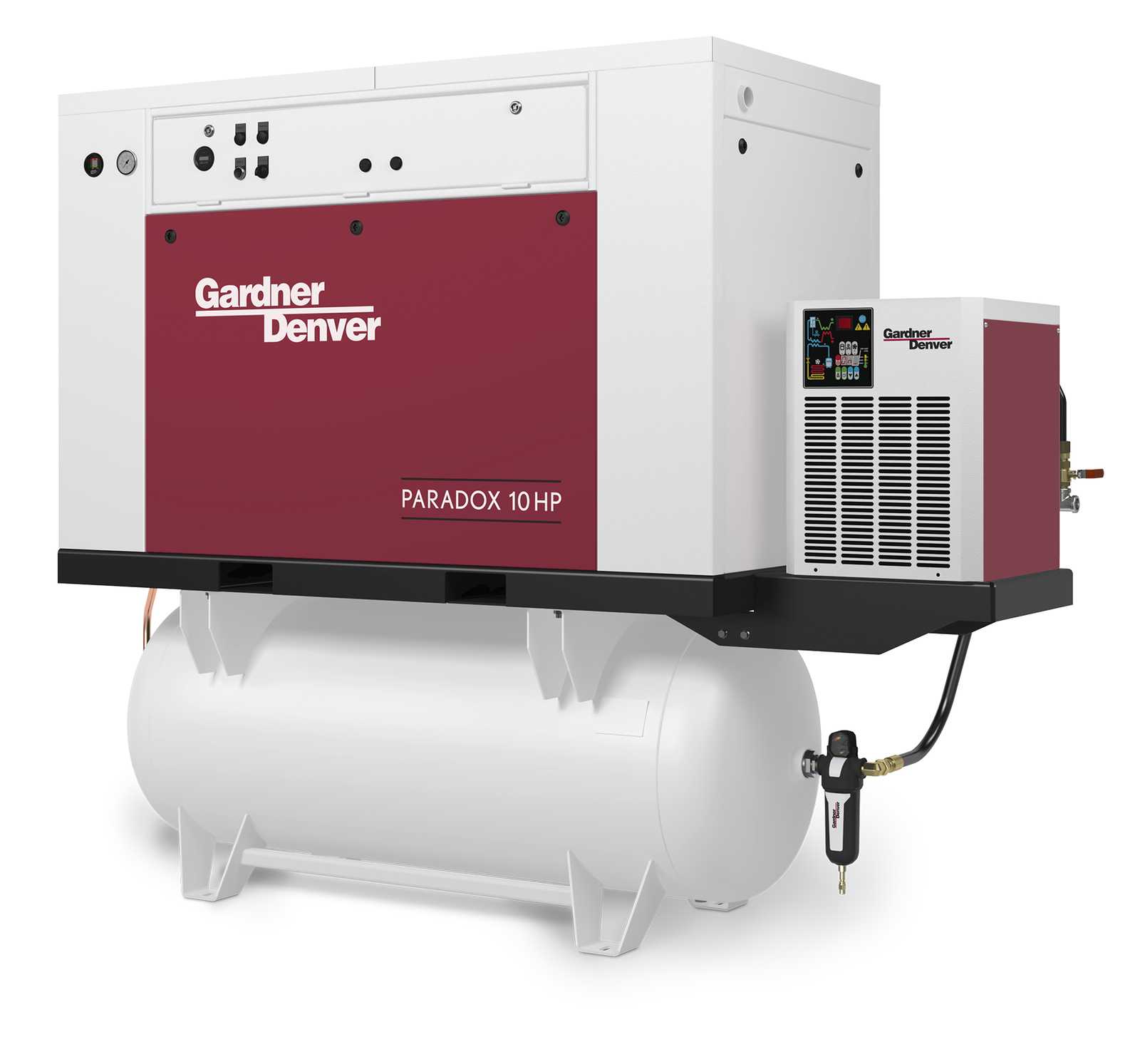

Save on space and installation costs by selecting the mounted refrigerated dryer option to the package
Electronic tank drain
High temp switch
Food Grade Oil
Pump Benefits:
Multi-Finned Cylinders for Cooler Operating Temperatures
Integral Cylinder/Head Design for Trouble-Free Operation
Balanced Pistons
Piston Rings Provide Excellent Oil Control and High Efficiency
Lightweight, Two-Piece Connecting Rods
Pressure Relief Valves
Large Diameter Finned Intercoolers
Optimized Cooling Fan/Flywheel
Reliable High-Flow Disc Valves
Tapered Roller Main Bearings
Balanced Crankshaft
Large Capacity Cast-Iron Crankcase
Centrifugal Unloader for Minimized Starting Power & Completely Load-Less Starting
MOTOR | TANK | PACKAGE | DIMENSIONS L × W × H | APPROX. | APPROX. | Paradox SOUND LEVEL | 175 PSI RATING | |||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
| LESS | WITH DRYER | LESS | WITH DRYER |
|
|
| |
HP | GAL |
| INCHES | INCHES | LBS | LBS | DBA | DBA | RPM | CFM DEL’Y |
5 | - | BQR5 | 61 × 32 × 45 | - | 1114 | - | 75 | 63 | 734 | 16.8 |
5 | 80 | HQR5-8 | 70 × 32 × 64 | 71 × 32 × 64 | 1285 | 1401 |
| 734 | 16.8 | |
7.5 | - | BQR7F | 61 × 32 × 45 | - | 1141 | - | 77 | 65 | 990 | 22.4 |
7.5 | 80 | HQR7F | 70 × 32 × 64 | 71 × 32 × 64 | 1312 | 1412 |
| 990 | 22.4 | |
Pump Model R-30D
Paradox 10–15 HP SIMPLEX UNITS
MOTOR | TANK | PACKAGE | DIMENSIONS L × W × H | APPROX. | APPROX. | Paradox SOUND LEVEL | 175 PSI RATING | |||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
| LESS | WITH DRYER | LESS | WITH DRYER |
|
|
| |
HP | GAL | INCHES | INCHES | LBS | LBS | DBA | DBA | RPM | CFM DEL’Y | |
10 | - | BQR10 | 68 × 33 × 50 | - | 1371 | - | 78 | 62 | 720 | 33.5 |
10 | 120 | HQR10-12 | 76 × 33 × 74 | 93 × 33 × 71 | 1647 | 1764 |
| 65 | 720 | 33.5 |
15 | - | BQR15F | 68 × 33 × 50 | - | 1440 | - | 82 | 65 | 1035 | 46.6 |
15 | 120 | HQR15F-12 | 76 × 33 × 74 | 93 × 33 × 71 | 1716 | 1833 |
| 68 | 1035 | 46.6 |
Bare Pumps
R-SERIES RECIPROCATING COMPRESSOR
MODEL | # OF CYLINDERS | BORE DIA. | STROKE | OIL | PUMP | APPROX | MIN | MAX |
|---|---|---|---|---|---|---|---|---|
|
| INCHES | INCHES | QTS | INCHES | LBS |
|
|
R-15 | 2 | 4.63 × 2.5 | 3 | 2 | 20 × 17 × 24 | 135 | 400 | 1050 |
R-30 | 4 | 4.63 × 2.5 | 3 | 4 | 22 × 24 × 24 | 240 | 400 | 1050 |
Standard Warranty
The standard warranty covers parts and labor on the package components for one year and three years on the compressor pump. Each new Gardner Denver assembled unit has a 3 year warranty on the compressor pump against defects in materials of workmanship under normal use and service.
Premium Extended Warranty
Purchase a Premium Warranty Kit at the same time as your new Gardner Denver compressor package to receive extended warranty protection. This offer will double the coverage with an additional 3 years of warranty on the compressor pump (pumps & labor) providing 6 YEARS of worry-free coverage. The Premium Extended Warranty also provides an extra 12 months coverage on the package for a total of 24months.
