- 100% oil-free
- TEFC motors
- Quiet enclosed package
- Single-stage, direct-drive maximizes efficiency and minimizes maintenance
- State-of-the-art GD Pilot TS touch screen controller
- High quality water injection lubricates, cools and seals the compression process, maximizing efficiency

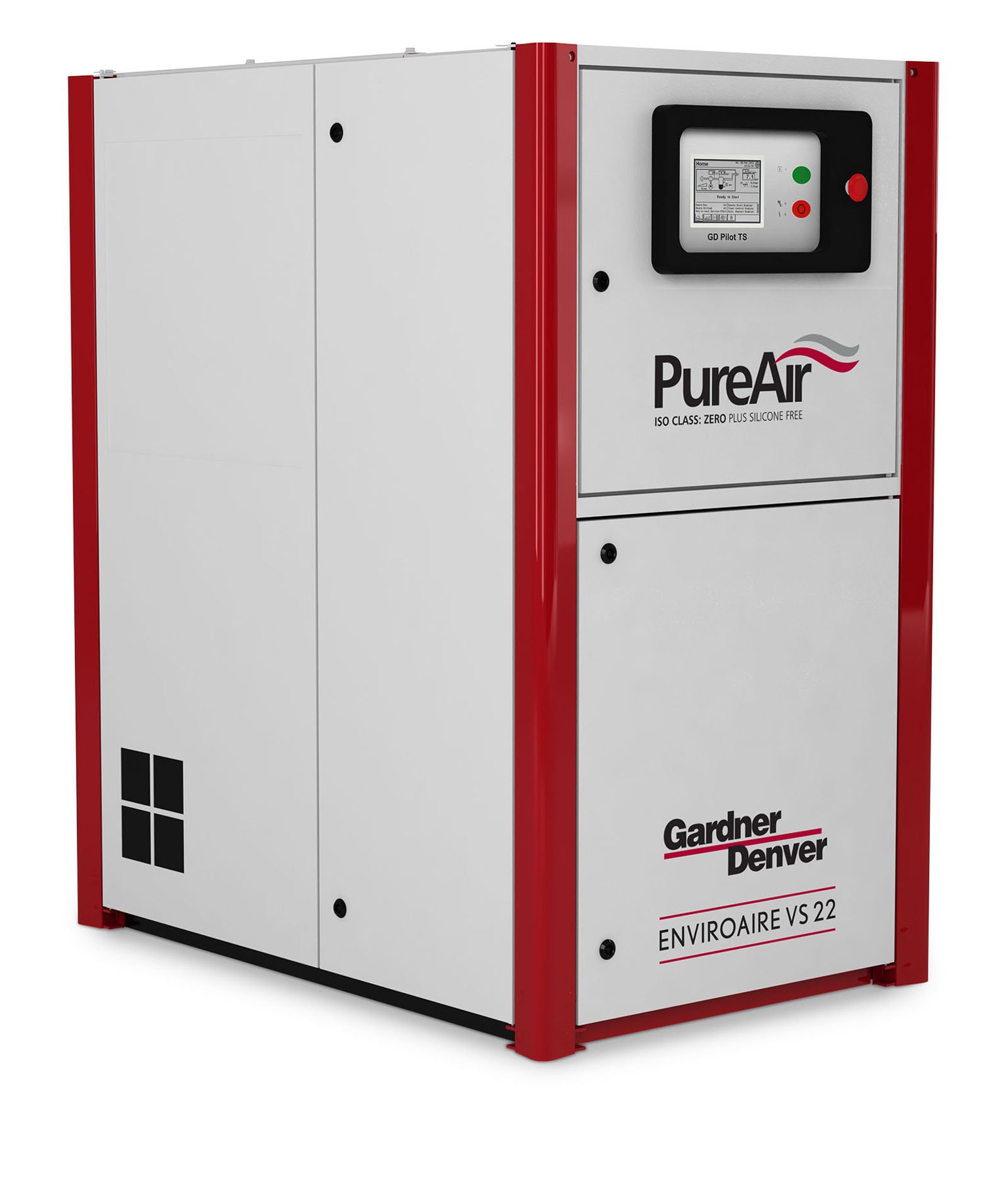

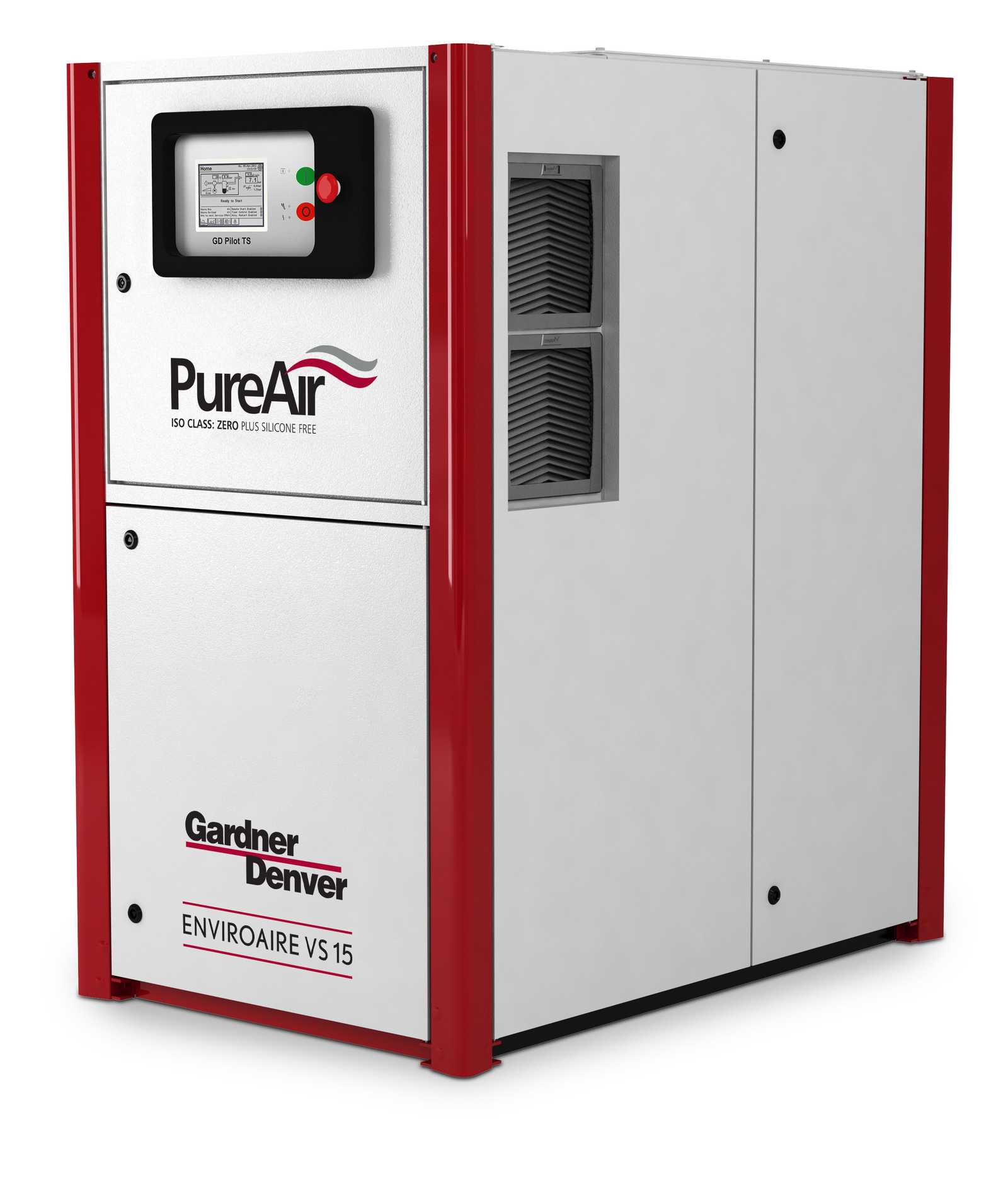

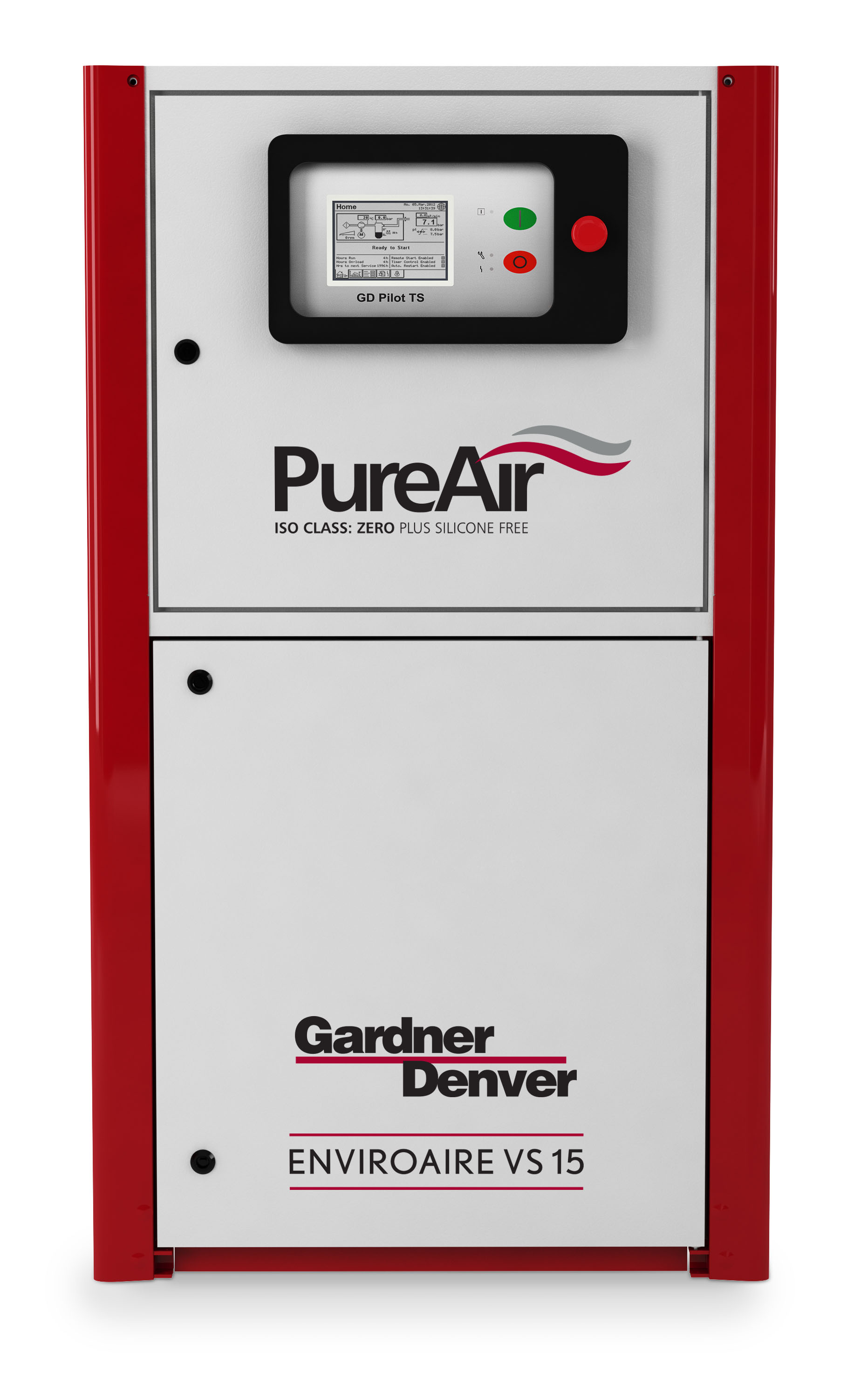

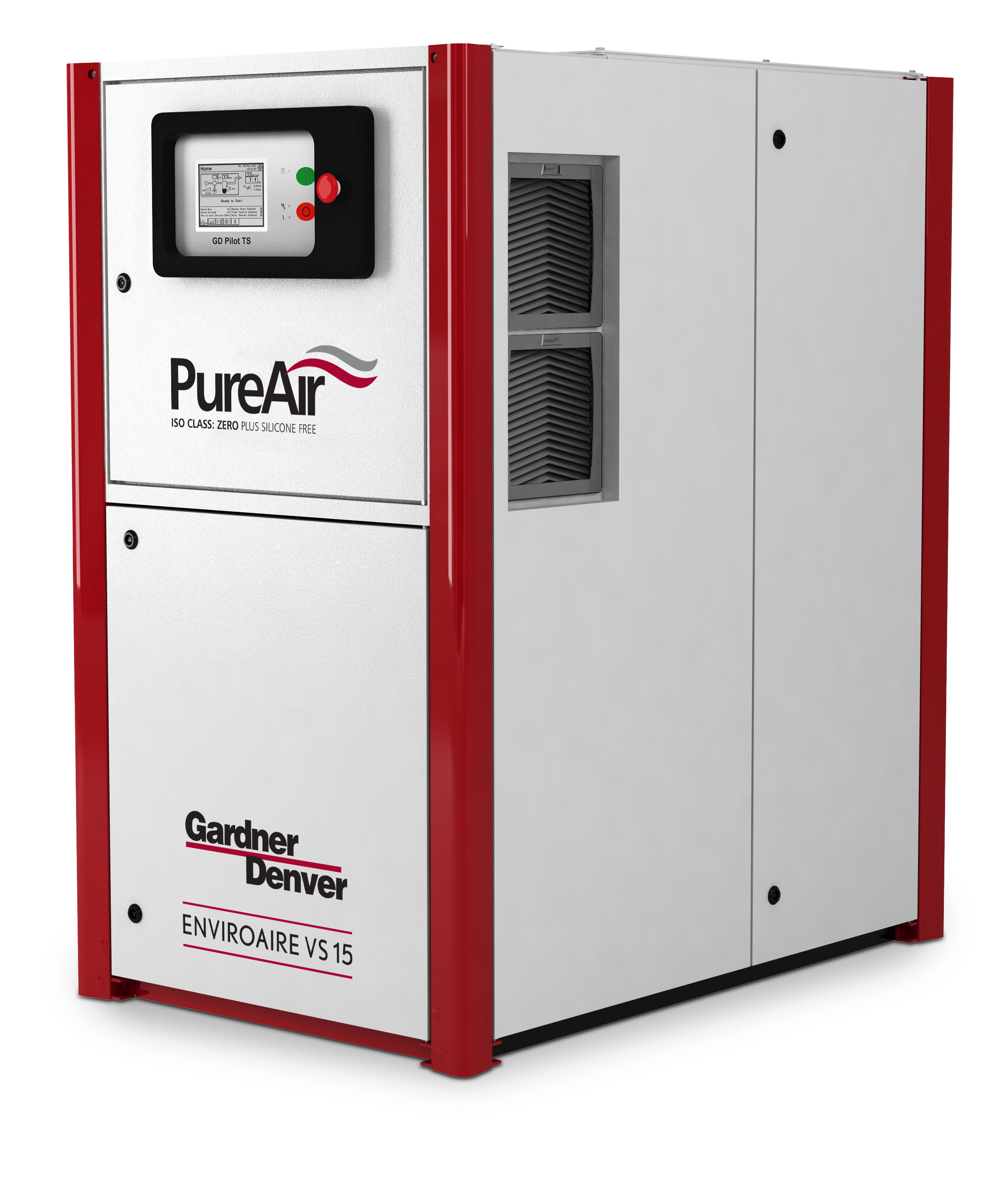

EnviroAire VS Series 15-37 kW
Perfect for all applications where no oil can be present, the EnviroAire VS oil-free screw air compressor series compressors give you a clean, reliable air supply that benefits your business and your bottom line. Certified to ISO 8573-1 Class Zero (2010) standards and silicone free, there is absolutely no risk of oil contaminating your product. An investment in this highly engineered product leads to less downtime and more productivity.
Why oil-free? Don't compromise on quality
The EnviroAire VS oil-free screw air compressor series compressors by Gardner Denver deliver uncompromising air quality standards, essential for industries where air purity is critical to avoid issues like product spoilage, production downtime, and equipment damage, which can subsequently tarnish brand reputation. Engineered to provide 100% oil-free air and superior energy efficiency, the EnviroAire VS Series is designed to fulfill the stringent requirements across various sectors, ensuring high-quality output without compromise.
- Pure Air Production: Eliminates the risk of oil contamination in your air supply, ensuring the Class 0 100% oil-free air and the safety and quality of your end products.
- Cost Savings: The highly efficient TEFC NEMA premium efficiency motor significantly reduces energy consumption, leading to lower electricity bills.
- Low-Maintenance and Eco-Friendly: Employs maintenance-free sealed bearings thanks to low operating temperatures and bearing loads, assuring 100% oil-free compression and removing the need for oil-related maintenance, thus reducing environmental impact and associated costs..
- Precision Control: An advanced Pilot TS controller allows for meticulous operation management, giving you control and confidence in the performance.
Variable Speed machines
Model | Cooling Method | Drive Motor | Working psig (bar) | Free Air Delivered @CFM (m³/m) | Dimensions | Noise Level | Weight | ||||
HP | kW | Min. | Max. | Min.* | Max.* | in. (MM) | dB(A) | lbs | KG | ||
VS15 | Air | 20 | 15 | 73 (5.0) | 145 (10) | 12.1 (0.34) | 79.6 (2.25) | 53 × 35 × 64 | 69 | 1515 | 687 |
Water | 66 | 1409 | 639 | ||||||||
VS22 | Air | 30 | 22 | 73 (5.0) | 145 (10) | 24.3 (0.69) | 118.8 (3.36) | 53 × 35 × 64 | 69 | 1556 | 706 |
Water | 66 | 1451 | 658 | ||||||||
VS37 | Air | 50 | 37 | 73 (5.0) | 145 (10) | 43.2 (1.22) | 226.6 (6.42) | 68 × 36 × 65 | 72 | 2194 | 995 |
Water | 61 | 1973 | 895 | ||||||||
Data measured and stated in accordance with ISO 1217 Edition 4, Annex C & E at the following conditions:
Air Intake Pressure 1 bar a/14.5 psi; Air Intake Temperature 20° C/68° F; Humidity 0 % (dry)
Measured in free field conditions in accordance with ISO 2151, tolerance ± 3 dB (A)
