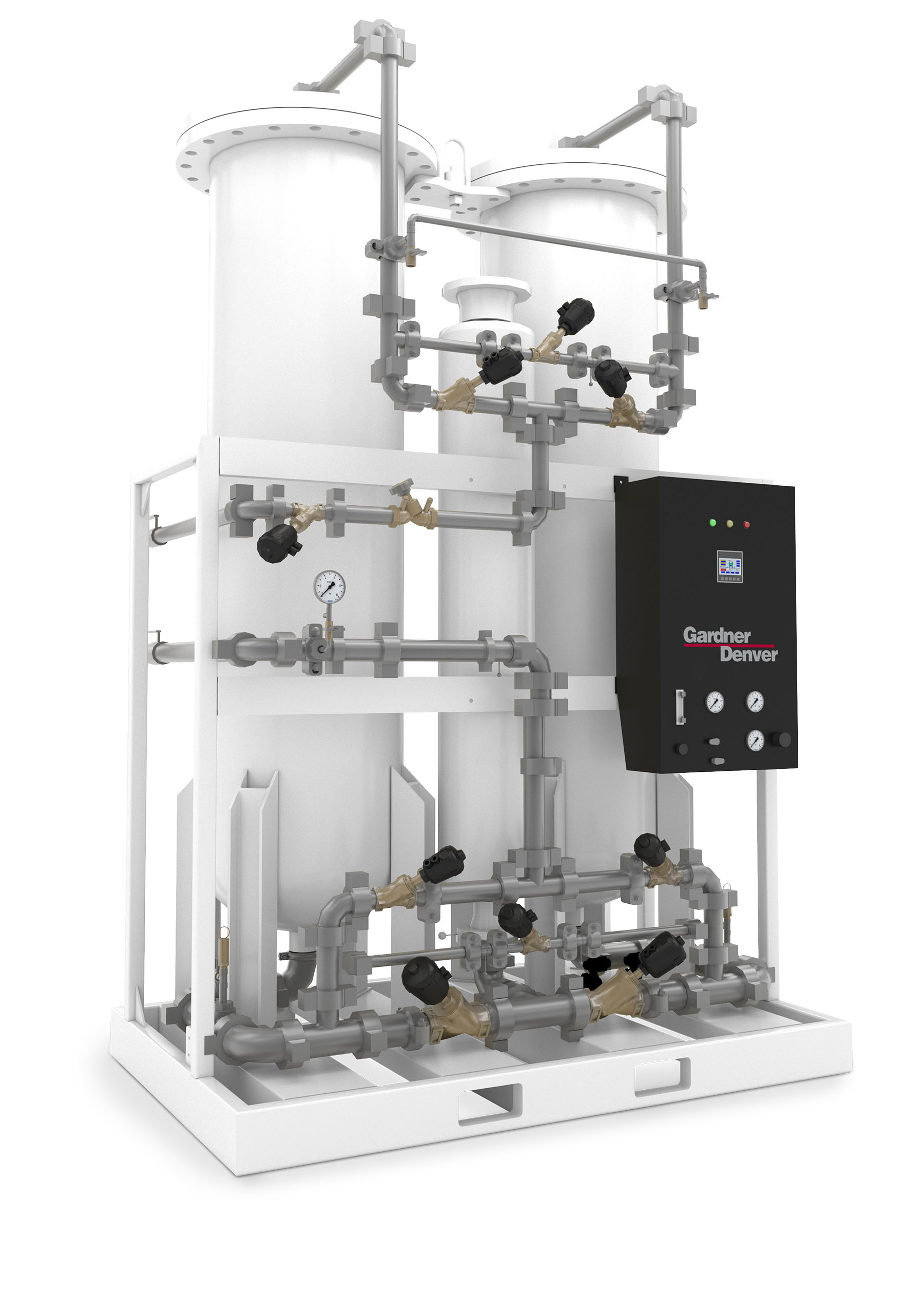

Product Photo Exterior bottom Xgn2

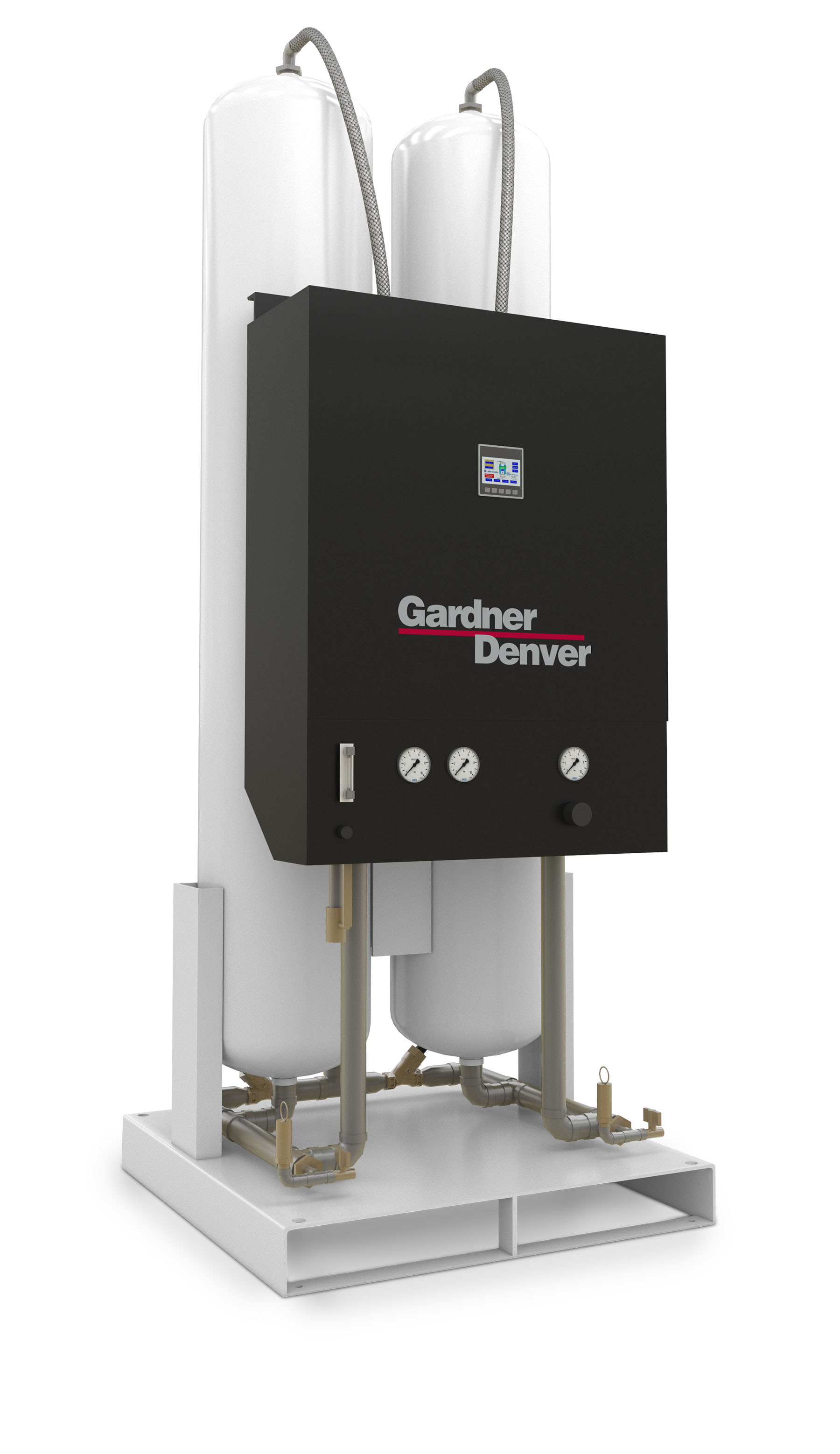

Product Photo Exterior Xgn2
Product Photo Exterior bottom Xgn2
Product Photo Exterior Xgn2
Back to the product list

XGN2 Nitrogen Generators

On-Site Nitrogen Generators

Gardner Denver’s XGN2 takes on-site nitrogen generation to new levels. Powered by Gardner Denver’s Pressure Swing Adsorption (PSA) or our Membrane technology, the XGN2 system eliminates the need for traditional nitrogen shipments and storage.

The XGN2 System is composed of:

· Gardner Denver Pressure Swing Adsorption (PSA) technology powered by Gardner Denver Air Compressors

· X Series Air Tanks

· X Series Filtration

· X Series Carbon Tower

· X Series Refrigerated Air Dryers

· QLBL Piping Products


Key Benefits and Features

Take a look at the features and benefits that Gardner Denver’s XGN2 on-site nitrogen generation system offers. Not only will your nitrogen production capacity and quality increase, but you will reduce operating costs compared to traditional nitrogen supply.

Features

The XGN2 Series is equipped with:

· 1-2000+ CFM

· An intuitive touch screen controller

· A long-life oxygen analyzer

· A long-life CMS adsorption media

· ASME-certified pressure vessels

· A noise-reducing silencer

· Pressure-safety valves


Designed to maximize performance and efficiency, PSA technology utilizes a twin-tower design where nitrogen production and regeneration occur simultaneously. In between cycles, pressure is equalized between the two towers to conserve compressed air and energy. The regenerated tower switches its focus to nitrogen generation while the other tower is regenerated.

Our membrane units work with compressed air passing through a separation membrane consisting of thousands of hollow tubes. There are no moving parts to this design, simply controlling the pressure and flow rate of compressed air through the membrane results in the desired purity.

The XGN2 Series can help you:

· Lower your operating cost by generating nitrogen at your facility from freely available air

· Maximize system energy efficiency by providing industry-leading air-to-nitrogen utilization

· Provide N₂ purity tailored to your operation, whether you need 95% or 99.9995%

· Reduce waste, allowing you to operate more sustainably

· Decrease safety and footprint issues associated with storing nitrogen



Membrane Nitrogen Generation Performance, 77°F Ambient, 125 psig

MODEL*

N₂ FLOW AT EACH PURITY SCFM

INLET

OUTLET

DIMENSIONS

L×W×H

WEIGHT

95%

99%

99.5%

FNPT

FNPT

INCHES

mm

LBS

KG

XGN21MP

1.00

0.39

0.29

1/4"

1/4"

21 × 4 × 45

534 × 102 × 1143

25

12

XGN22MP

1.68

0.65

0.49

1/4"

1/4"

21 × 4 × 45

533 × 102 × 1143

27

13

XGN24MP

2.98

1.16

0.87

1/4"

1/4"

21 × 4 × 45

533 × 102 × 1143

35

16

XGN27MP

4.90

1.90

1.43

3/8"

1/4"

21 × 7 × 69

533 × 178 × 1753

117

54

XGN28MP

5.43

2.15

1.62

1/4"

1/4"

21 × 4 × 45

533 × 102 × 1143

35

16

XGN29MP

8.35

3.13

2.32

3/8"

1/4"

21 × 4 × 45

533 × 102 × 1143

46

21

XGN212MP

8.70

3.47

2.62

3/8"

3/8"

21 × 7 × 69

533 × 178 × 1753

117

54

XGN218MP

16.95

6.55

4.85

1/2"

1/2"

21 × 7 × 69

533 × 178 × 1753

142

65

XGN218ME

16.95

6.55

4.85

1"

3/4"

31 × 20 × 63

787 × 508 × 1600

302

137

XGN235ME

33.90

13.10

9.70

1"

3/4"

31 × 20 × 63

787 × 508 × 1600

327

149

XGN253ME

50.85

19.65

14.55

1"

3/4"

31 × 20 × 63

787 × 508 × 1600

352

160

XGN276ME

74.83

29.07

26.87

1-1/2"

1-1/2"

49 × 24 × 77

1245 × 610 × 1956

873

396

XGN2115ME

112.25

43.60

40.30

1-1/2"

1-1/2"

49 × 24 × 77

1245 × 610 × 1956

950

431

XGN2153ME

149.67

58.13

53.73

1-1/2"

1-1/2"

49 × 24 × 77

1245 × 610 × 1956

1027

466

Additional models available; contact your local Gardner Denver representative for more information.

Consult factory for operation at other conditions.


PSA Nitrogen Generation Performance, 70°F Ambient, 110 psig

MODEL*

N₂ FLOW AT EACH PURITY SCFM

INLET

OUTLET

DIMENSIONS

L×W×H

WEIGHT

95%

99%

99.5%

FNPT

FNPT

INCHES

MM

LBS

KG

XGN215LS

13.3

7.5

6.7

3/4"

1/2"

35 × 26 × 80

889 × 661 × 2032

702

319

XGN221LS

17.4

9.9

8.8

3/4"

1/2"

35 × 26 × 100

889 × 660 × 2540

738

335

XGN226LS

23.0

13.1

11.6

3/4"

1/2"

35 × 26 × 80

889 × 660 × 2032

866

393

XGN232LS

28.4

16.2

14.3

3/4"

1/2"

35 × 26 × 97

889 × 660 × 2464

998

453

XGN241LS

35.1

20.0

17.7

1"

3/4"

35 × 30 × 80

889 × 762 × 2032

1,060

481

XGN247LS

42.3

24.1

21.3

1"

3/4"

35 × 30 × 100

889 × 762 × 2540

1,194

542

XGN259LS

49.6

28.2

24.9

1"

3/4"

35 × 30 × 100

889 × 762 × 2540

1,292

587

XGN268LS

58.4

33.2

29.3

1"

3/4"

35 × 30 × 91

889 × 762 × 2311

1,443

655

XGN276LS

64.8

36.8

32.6

1"

3/4"

35 × 37 × 85

889 × 940 × 2159

1,500

681

XGN288LS

76.2

43.3

38.3

1-1/2"

1"

35 × 37 × 96

889 × 940 × 2438

1,630

740

XGN2100LS

89.1

50.6

44.8

1-1/2"

1"

35 × 39 × 85

889 × 991 × 2159

1,850

840

XGN2118LS

101.0

57.4

50.7

1-1/2"

1"

35 × 39 × 99

889 × 991 × 2515

2,025

919

XGN2132HS

119.5

67.9

60.0

1-1/2"

1"

35 × 39 × 116

889 × 991 × 2946

3,450

1,565

XGN2144HS

130.1

73.9

65.3

1-1/2"

1"

64 × 34 × 124

1626 × 864 × 3150

3,610

1,638

XGN2159HS

143.3

81.5

71.9

2"

1-1/2"

64 × 34 × 134

1626 × 864 × 3404

3,810

1,729

XGN2174HS

149.5

85.0

75.1

2"

1-1/2"

76 × 48 × 110

1930 × 1219 × 2794

4,330

1,965

XGN2191HS

163.8

93.1

82.2

2"

1-1/2"

76 × 48 × 117

1930 × 1219 × 2972

4,520

2,051

XGN2212HS

182.2

103.6

91.5

2"

1-1/2"

76 × 48 × 135

1930 × 1219 × 3429

4,750

2,155

XGN2232HS

200.6

114.0

100.7

2"

1-1/2"

76 × 48 × 146

1930 × 1219 × 3708

4,990

2,264

XGN2259HS

223.1

126.8

112.0

2"

1-1/2"

76 × 48 × 119

1930 × 1219 × 3023

5,280

2,395

XGN2285HS

245.0

139.3

123.0

2"

1-1/2"

76 × 48 × 119

1930 × 1219 × 3023

6,120

2,776

XGN2315HS

271.8

154.5

136.4

2"

1-1/2"

76 × 48 × 128

1930 × 1219 × 3251

6,430

2,917

XGN2347HS

298.6

169.8

149.9

2"

1-1/2"

76 × 48 × 137

1930 × 1219 × 3480

6,760

3,067

XGN2382HS

328.4

186.7

164.9

2"

1-1/2"

76 × 48 × 147

1930 × 1219 × 3734

7,120

3,230

XGN2418HS

358.2

203.6

179.8

2"

1-1/2"

76 × 48 × 157

1930 × 1219 × 3988

7,480

3,393

XGN2456HS

392.3

223.0

196.9

3"

2"

95 × 53 × 125

2413 × 1346 × 3175

8,030

3,643

XGN2503HS

434.7

247.1

218.2

3"

2"

95 × 53 × 135

2413 × 1346 × 3429

8,510

3,861

XGN2550HS

477.2

271.3

239.5

3"

2"

95 × 53 × 143

2413 × 1346 × 3632

8,990

4,078

XGN2606HS

524.3

298.1

263.2

3"

2"

95 × 53 × 153

2413 × 1346 × 3886

9,550

4,332

XGN2668HS

576.2

327.6

289.2

3"

2"

95 × 53 × 164

2413 × 1346 × 4166

10,170

4,614

XGN2735HS

637.5

362.4

320.0

3"

2"

95 × 53 × 177

2413 × 1346 × 4496

10,870

4,931

XGN2809HS

697.0

396.2

349.9

3"/4" FLG

2"/3" FLG

111 × 60 × 148

2819 × 1524 × 3759

14,090

6,392

XGN2894HS

771.3

438.5

387.2

3"/4" FLG

2"/3" FLG

111 × 60 × 159

2819 × 1524 × 4039

15,010

6,809

XGN2982HS

852.3

484.5

427.8

3"/4" FLG

3" FLG

111 × 60 × 171

2819 × 1524 × 4343

15,980

7,249

XGN21071HS

926.6

526.7

465.1

3"/4" FLG

2"/3" FLG

111 × 60 × 182

2819 × 1524 × 4623

16,910

7,671

XGN21176HS

1017.9

578.7

511.0

3"/4" FLG

3" FLG

120 × 66 × 158

3048 × 1676 × 4013

17,430

7,907

XGN21306HS

1129.1

641.9

566.8

3"/4" FLG

3" FLG

120 × 66 × 170

3048 × 1676 × 4318

19,200

8,709

XGN21438HS

1249.6

710.4

627.3

3"/4" FLG

3" FLG

120 × 66 × 183

3048 × 1676 × 4648

20,540

9,317

XGN21588HS

1379.3

784.1

692.4

3"/4" FLG

3" FLG

120 × 66 × 197

3048 × 1676 × 5004

22,030

9,993

XGN21765HS

1528.5

868.9

767.3

3"/4" FLG

3" FLG

120 × 66 × 213

3048 × 1676 × 5410

23,760

10,778

XGN21929HS

1673.1

951.1

839.9

4"/6" FLG

3" FLG

135 × 76 × 190

3429 × 1930 × 4826

28,620

12,982

XGN22130HS

1841.7

1047.0

924.5

4"/6" FLG

3" FLG

135 × 76 × 204

3429 × 1930 × 5182

30,650

13,903

XGN22353HS

2034.5

1156.6

1021.3

4"/6" FLG

3" FLG

135 × 76 × 220

3429 × 1930 × 5588

32,950

14,946

Additional models available; contact your local Gardner Denver representative for more information.

Consult factory for operation at other conditions.

• 24/30 Months Standard Product Warranty
• Long-Life Design with Low Product Maintenance
