Extend Performance Reliability
- Minimize contaminants, corrosion, energy use
- Reduce costs by treating only the air you need
- Deliver quiet performance on the spot
- Sustain high efficiency with easy maintenance

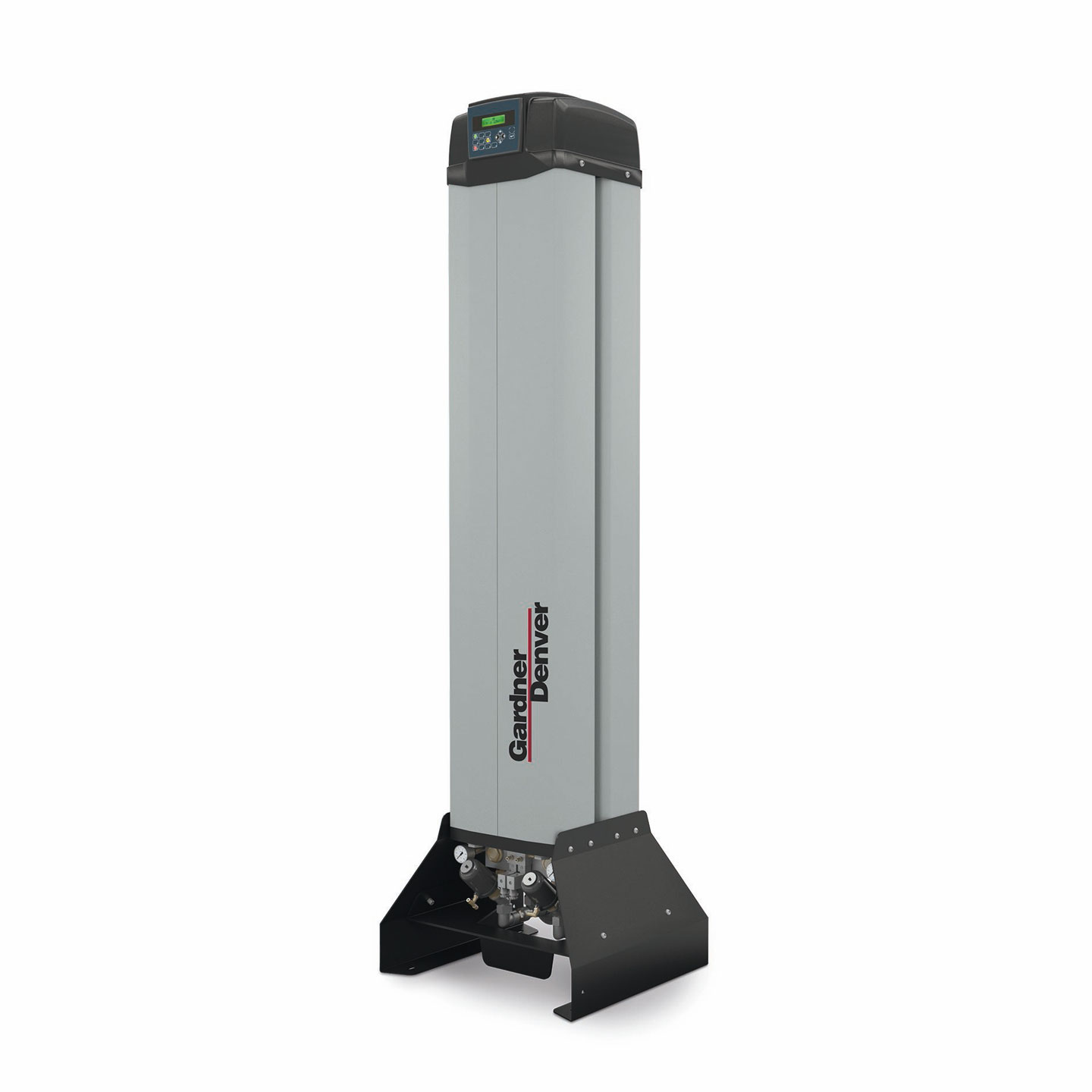

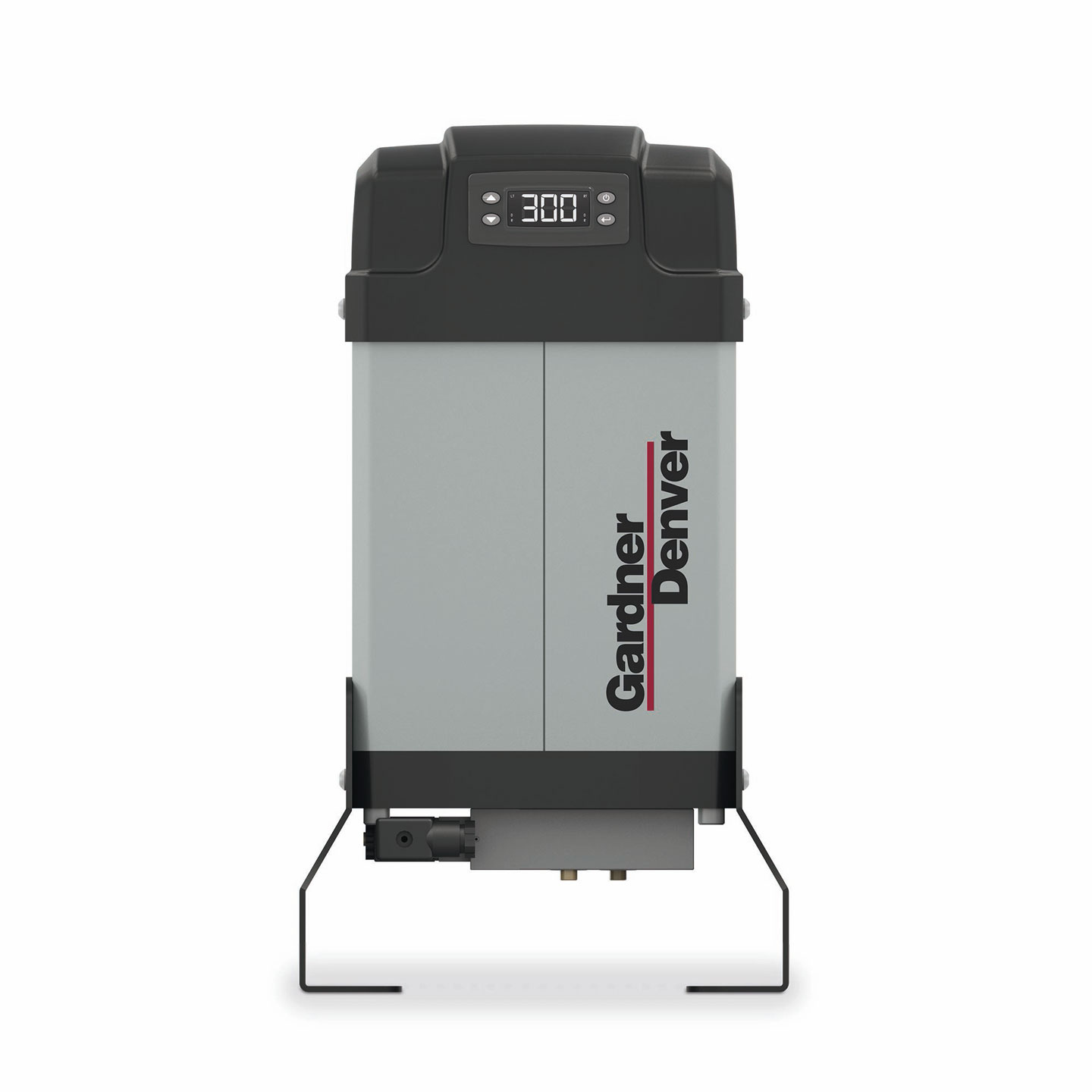

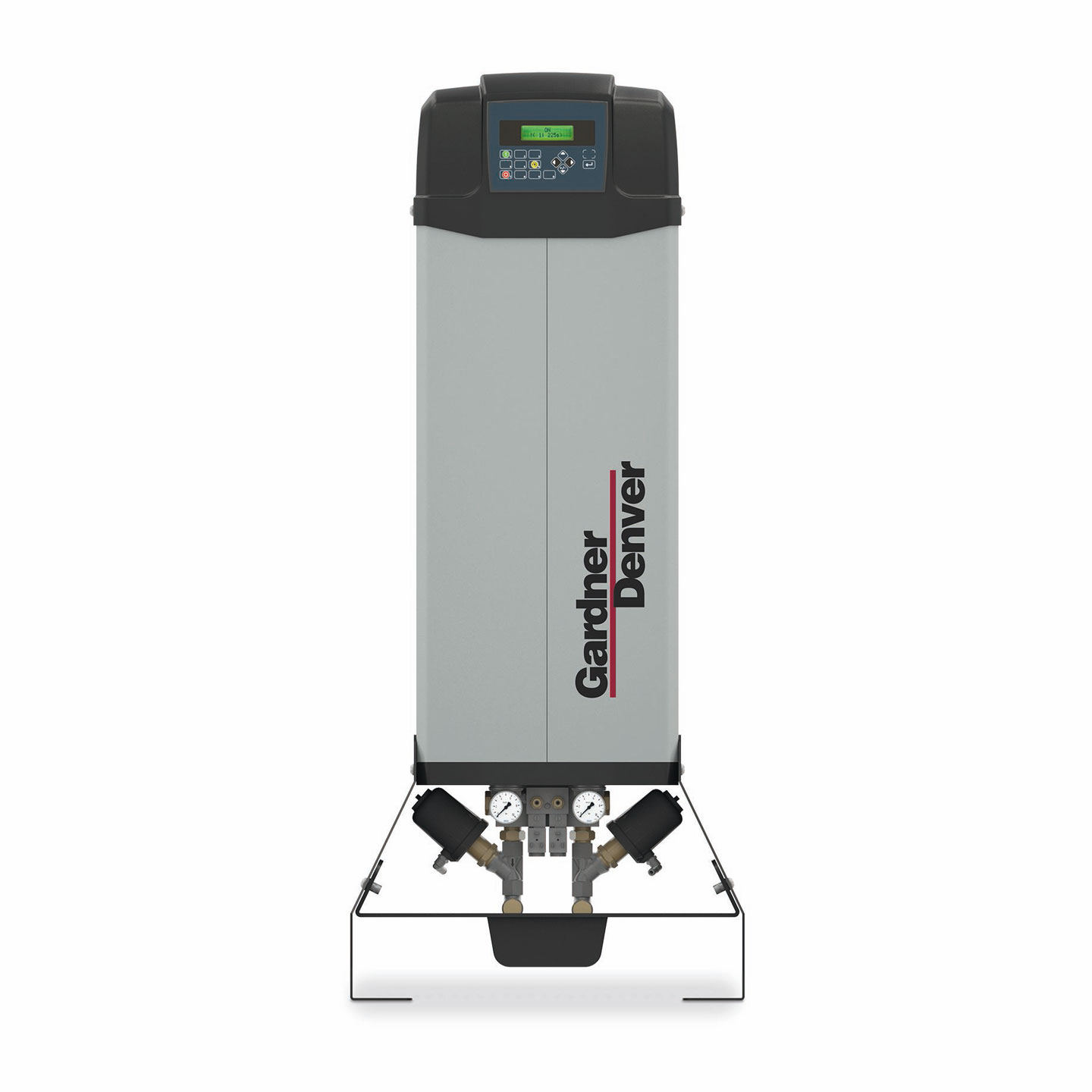

Modular Desiccant Dryer
Innovative modular air dryers by Gardner Denver make it easier and more affordable than ever to deliver high-quality compressed air for instrumentation, process equipment, or production lines—virtually wherever it is needed. The XGMLA Series modular desiccant dryers feature standard ISO Class 2 dewpoint performance, with optional ISO Class 1 to meet the most stringent requirements. This helps prevent corrosion and minimizes production disruptions or losses due to moisture or contamination. And easy on-site maintenance—less than 15 minutes after 12,000 hours of use—gets you back on line quickly.
Benefits of Modular Desiccant Dryers
- High-efficiency filtration and desiccant bed adsorption provide clean, dry air
- Compact, fully integrated units install at point-of-use, so you pay for drying only the air required
- Low noise levels (<75 dB)
- Conservative pressure drop to help lower power costs
- -40°F and -100°F PDP models
- Optional energy management system for larger units reduces purge air during partial loads

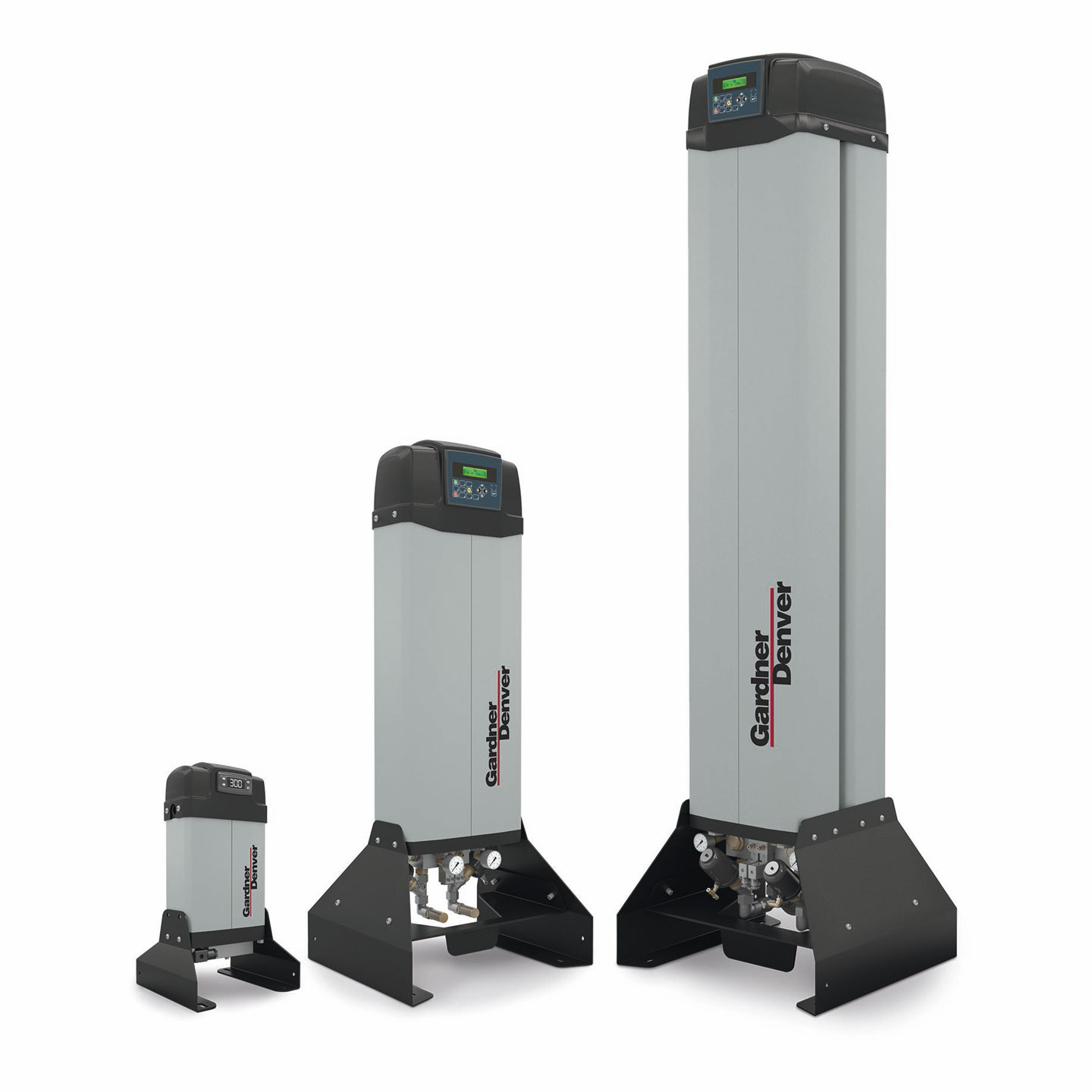

Modular Air Dryers
Model | Capacity | Inlet/Outlet Connection | Max. | Dimensions | Weight | ||||
scfm | m³/hr | NPT (in) | psig | barg | inches | mm | lb | kg | |
XGMLA3 | 3 | 5 | 3/8" | 203 | 14 | 9.4 × 8.3 × 16.7 | 238 × 212 × 423 | 24.2 | 11 |
XGMLA9 | 9 | 15 | 3/8" | 203 | 14 | 9.4 × 8.3 × 32.4 | 238 × 212 × 823 | 39.7 | 18 |
XGMLA15 | 15 | 25 | 3/8" | 203 | 14 | 9.4 × 8.3 × 42.2 | 238 × 212 × 1073 | 59.5 | 27 |
XGMLA24 | 24 | 40 | 3/4" | 203 | 14 | 18.7 × 15.9 × 38.1 | 475 × 405 × 968 | 97 | 44 |
XGMLA32 | 32 | 55 | 3/4" | 203 | 14 | 18.7 × 15.9 × 44 | 475 × 405 × 1118 | 110.2 | 50 |
XGMLA41 | 41 | 70 | 3/4" | 203 | 14 | 18.7 × 15.9 × 51.9 | 475 × 405 × 1318 | 132.2 | 60 |
XGMLA59 | 59 | 100 | 1" | 203 | 14 | 18.7 × 15.9 × 65.9 | 475 × 405 × 1673 | 160.9 | 73 |
XGMLA88 | 88 | 151 | 1" | 203 | 14 | 18.7 × 15.9 × 73.7 | 475 × 405 × 1873 | 198.4 | 90 |
XGMLA118 | 118 | 200 | 1 1/2" | 203 | 14 | 21.1 × 19.5 × 67.1 | 536 × 495 × 1705 | 390.1 | 177 |
XGMLA147 | 147 | 251 | 1 1/2" | 203 | 14 | 21.1 × 19.5 × 75 | 536 × 495 × 1905 | 396.7 | 180 |
XGMLA177 | 177 | 300 | 1 1/2" | 203 | 14 | 21.1 × 19.5 × 75 | 536 × 495 × 1905 | 414.4 | 188 |
