- 150 - 8000 SCFM; higher flows available
- Maximum Working Pressure: 150 PSIG standard; higher pressures available
- Low Profile Design
- Low Mounted Filtration for Ease of Service
- NEMA 4 - Standard
- 7” Color Touchscreen Controller - Standard
- Tower Pressure Gauges
- Packaged Filtration - Standard

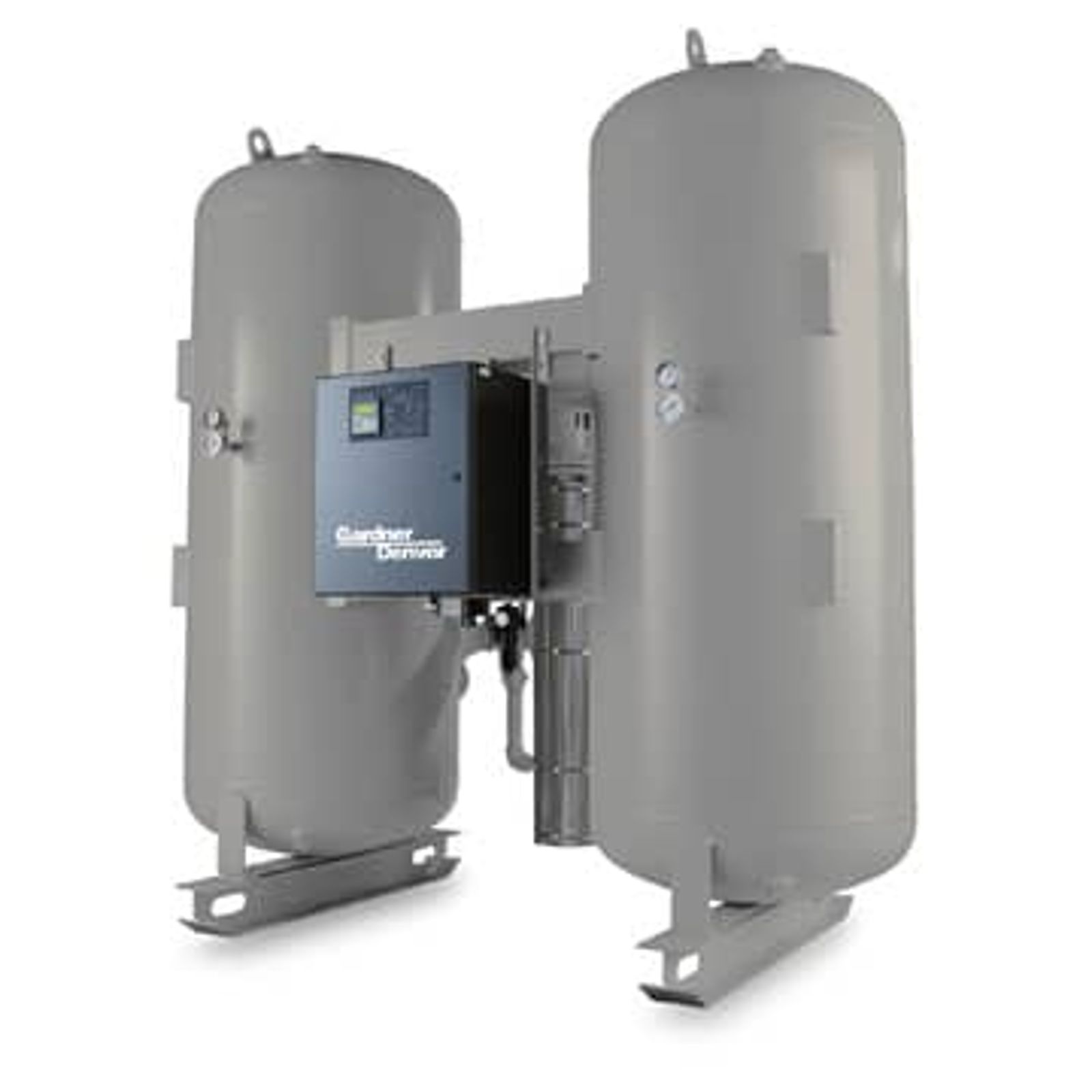

Externally Heated Purge Desiccant Dryer
One look tells you that these dryers are like no others - extremely low silhouette, manifolds and valves within an arm's reach of the operator, and readily accessible fill and drain ports are just a few of the differences apparent on the outside. Both externally and internally, each model combines innovative engineering and technically advanced, highly durable components to provide easy installation, operation, maintenance, and simply the most reliable desiccant dryers available.
All of our desiccant dryers are designed with energy efficiency, reliability, productivity and safety in mind:
- Engineered for low pressure drop through valve selection, tower size and filter design.
- Optional Energy Management System (EMS) reduces purge consumption while maintaining a constant dew point, monitors the dew point and extends the dryer cycle to greatly reduce energy costs.
- Large sound attenuating purge mufflers minimize noise and include built-in relief valves to enhance safety.
- Low profile places valves at operator's level and provides ready access to fill and drain ports, increasing operator safety and ease of maintenance.
- Pre-filter and after-filter protect desiccant and downstream air from oil contamination and particulates to help improve air quality, increasing productivity.
- Easy-to-replace stainless steel desiccant screens prevent contamination of the downstream sir system and are easily removed for cleaning, keeping downtime to a minimum.
- High-efficiency heater and/or blower controlled by outlet regeneration temperature that shuts off to save electrical power once desiccant has been thoroughly regenerated (available with EMS on heated dryers)
150–8,000 scfm
Model | Capacity | Heater | In/Out | Dimensions | weight | |||||||
scfm | Nm³/min | kW | in | inches | mm | LB | KG | |||||
XGHPA150 | 150 | 4.2 | 2.0 | 1 NPT | 66.0 × 45.0 × 33.0 | 1,676 × 1,130 × 813 | 874 | 396 | ||||
XGHPA200 | 200 | 5.7 | 3.0 | 11/2 NPT | 67.0 × 49.0 × 35.0 | 1,702 × 1,232 × 813 | 1,136 | 515 | ||||
XGHPA250 | 250 | 7.1 | 3.0 | 11/2 NPT | 68.0 × 53.0 × 39.0 | 1,727 × 1,334 × 889 | 1,379 | 625 | ||||
XGHPA300 | 300 | 8.5 | 3.0 | 11/2 NPT | 68.0 × 53.0 × 39.0 | 1,727 × 1,334 × 889 | 1,477 | 670 | ||||
XGHPA400 | 400 | 11.3 | 4.5 | 2 NPT | 83.0 × 57.0 × 42.0 | 2,083 × 1,435 × 864 | 1,897 | 860 | ||||
XGHPA500 | 500 | 14.2 | 4.5 | 2 NPT | 83.0 × 57.0 × 42.0 | 2,083 × 1,435 × 864 | 2,111 | 958 | ||||
XGHPA600 | 600 | 17.0 | 6.0 | 3 NPT | 86.0 × 64.0 × 54.0 | 2,184 × 1,626 × 1,194 | 2,804 | 1,272 | ||||
XGHPA800 | 800 | 22.7 | 9.0 | 3 NPT | 86.0 × 64.0 × 54.0 | 2,184 × 1,626 × 1,194 | 3,198 | 1,451 | ||||
XGHPA1000 | 1,000 | 28.3 | 9.0 | 3 NPT | 80.0 × 78.0 × 59.0 | 2,032 × 1,994 × 1,219 | 3,767 | 1,709 | ||||
XGHPA1200 | 1,200 | 34.0 | 12.0 | 3 NPT | 80.0 × 78.0 × 59.0 | 2,032 × 1,994 × 1,219 | 4,091 | 1,856 | ||||
XGHPA1500 | 1,500 | 42.5 | 15.0 | 3 NPT | 92.0 × 84.0 × 66.0 | 2,337 × 2,134 × 1,397 | 5,515 | 2,502 | ||||
XGHPA1800 | 1,800 | 51.0 | 18.0 | 4 FLG | 92.0 × 84.0 × 68.0 | 2,337 × 2,134 × 1,524 | 6,113 | 2,773 | ||||
XGHPA2100 | 2,100 | 59.5 | 18.0 | 4 FLG | 92.0 × 84.0 × 68.0 | 2,337 × 2,134 × 1,524 | 6,911 | 3,135 | ||||
XGHPA2700 | 2,700 | 76.5 | 24.0 | 4 FLG | 102.0 × 96.0 × 75.0 | 2,590 × 1,905 × 2,483 | 4,993 | 2,265 | ||||
XGHPA3000 | 3,000 | 84.9 | 30.0 | 4 FLG | 102.0 × 96.0 × 75.0 | 2,591 × 2,438 × 1905 | 5,480 | 2,486 | ||||
XGHPA4000 | 4,000 | 113.3 | 36.0 | 6 FLG | 94.0 × 102.0 × 86.0 | 2,388 × 2,591 × 2,184 | 6,967 | 3,161 | ||||
XGHPA5000 | 5,000 | 141.6 | 50.0 | 6 FLG | 97.0 × 120.0 × 91.0 | 2,464 × 3,048 × 2,311 | 7,520 | 3,411 | ||||
XGHPA6000 | 6,000 | 169.9 | 60.0 | 6 FLG | 102.0 × 132.0 × 97.0 | 2,591 × 3,353 × 2,464 | 8,790 | 3,987 | ||||
XGHPA8000 | 8,000 | 226.5 | 75.0 | 8 FLG | 105.0 × 156.0 × 103.0 | 2,667 × 3,962 × 2,616 | 11,946 | 5,419 | ||||
Performance data per ISO 7183
Compressed Air Dryers—Specifications and Testing Maximum working pressure is 10.3 bar g (150 psig).
Desiccant is factory installed on all models except XGHPA 3000–8000 and XGHBA 2700–8000. Dimensions and weights are approximate.
Dryer weight shown does not include desiccant on XGHPA 3000-8000 and XGHBA 2700-8000 Desiccant shipped separately.
Larger sizes available upon request.
