Air Compressor Filter

XG Series Filters

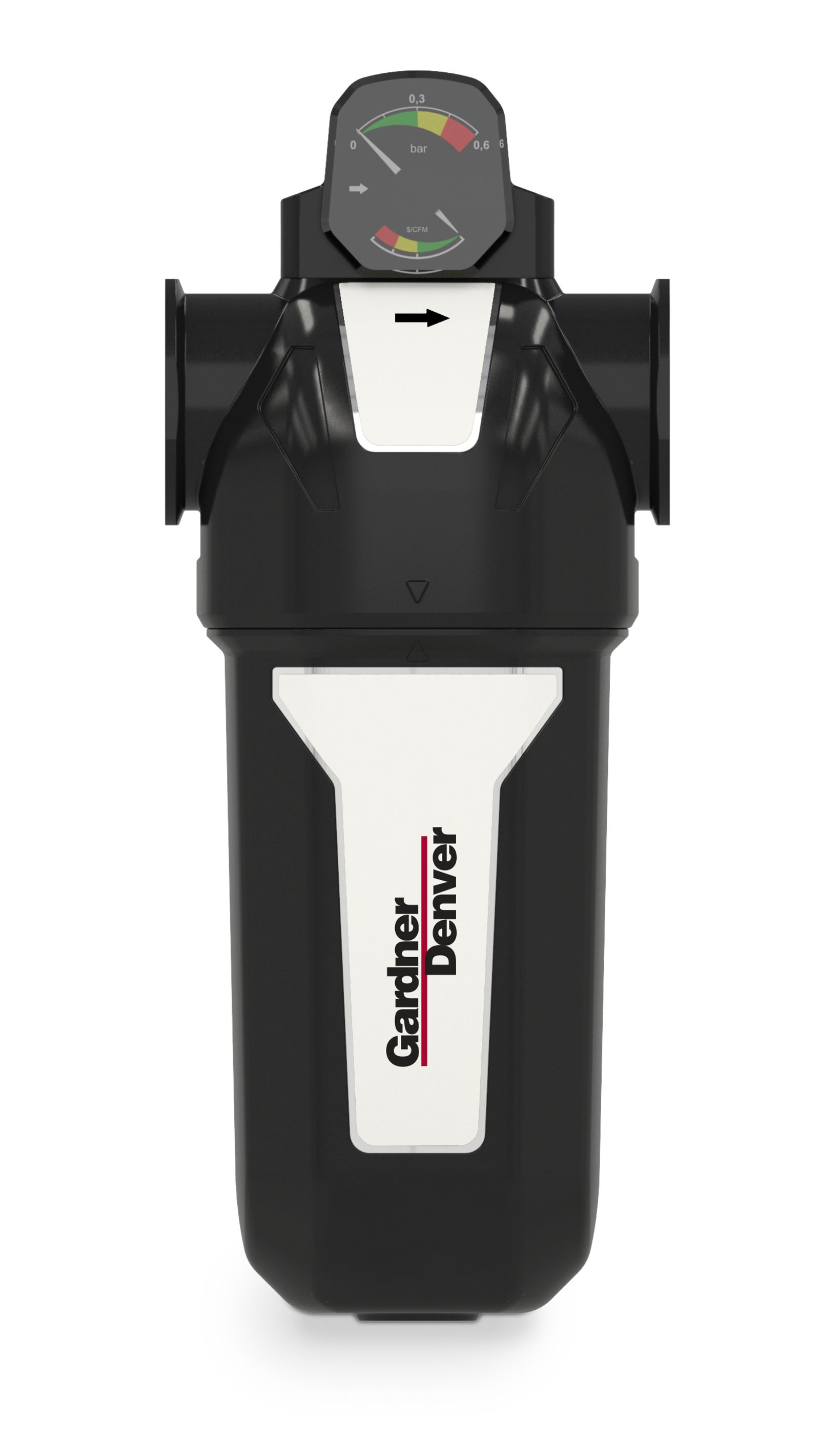

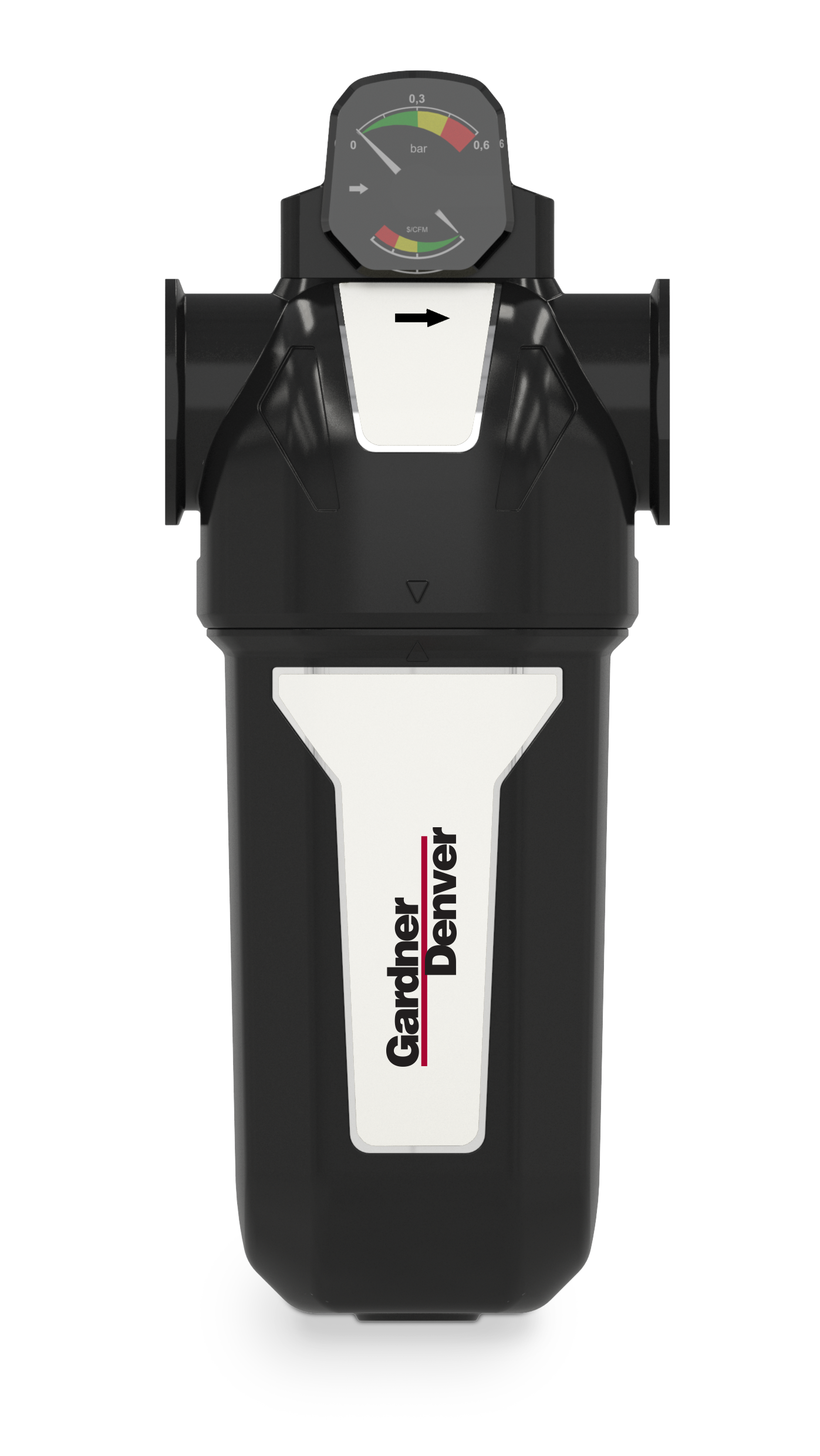

Advanced XG Series compressed air ﬁlters by Gardner Denver reduce contamination in your air stream to help protect your critical processes and valuable equipment. Our ﬁlters are rigorously tested and engineered with superior components to provide years of reliable performance and consistently high-quality air.

Filtration from 18-13,200 cfm
Mist Eliminators from 125-10,000 cfm
All-Aluminum Cast Body
Proprietary Corrosion Coating applied on inside and outside of housing
Industrial Grade Brass Float Drain
Deep-Pleated Filter Media

XG Series ﬁlters provide clean, high-quality air as deﬁned by ISO 8573-1:2010. With multiple ﬁlter element grades available, there is a ﬁltration solution that will meet your unique requirements.

Pressure drop accounts for over three-quarters of the ownership cost of a compressed air ﬁlter. Even when a ﬁlter element is clean and dry, it can rob a compressed air system of pressure, causing the air compressor to work harder and increase energy costs. The ﬂow path through the XG Series ﬁlter housing reduces turbulence and enhances efficiency, while the deep-pleated element design further minimizes pressure drop.

Filter		Pipe Size	Flow Rates		Dimensions								Weight
Model Number			100 psig/7 bar g		A		B		C		D
Model	Grade	in	scfm	m3/min	in	mm	in	mm	in	mm	in	mm	lb	kg
XG18	GP, HE, DP, AC	3/8	18	0.48	2.99	76	6.81	173	0.63	16	2.09	53	1.2	0.56
XG24	GP, HE, DP, AC	1/2	24	0.62	2.99	76	6.81	173	0.63	16	2.09	53	1.2	0.55
XG44	GP, HE, DP, AC	3/4	44	1.27	3.86	98	8.98	228	0.87	22	2.09	53	2.4	1.07
XG65	GP, HE, DP, AC	3/4	65	1.84	3.86	98	8.98	228	0.87	22	2.09	53	2.4	1.09
XG88	GP, HE, DP, AC	1	88	2.49	5.08	129	10.51	267	1.26	32	2.09	53	4.5	2.06
XG112	GP, HE, DP, AC	1	112	3.12	5.08	129	10.51	267	1.26	32	2.09	53	4.5	2.06
XG135	GP, HE, DP, AC	1	135	3.82	5.08	129	10.51	267	1.26	32	2.09	53	4.5	2.06
XG235	GP, HE, DP, AC	1 1/2	235	6.66	5.08	129	14.06	357	1.26	32	2.09	53	5.2	2.36
XG288	GP, HE, DP, AC	1 1/2	288	8.21	5.08	129	14.06	357	1.26	32	2.09	53	5.2	2.36
XG353	GP, HE, DP, AC	2	353	9.91	6.69	170	18.35	466	1.50	38	2.09	53	11.5	5.20
XG471	GP, HE, DP, AC	2	471	13.31	6.69	170	18.35	466	1.50	38	2.09	53	11.5	5.24
XG589	GP, HE, DP, AC	2	589	16.99	6.69	170	18.35	466	1.50	38	2.09	53	11.6	5.26
XG706	GP, HE, DP, AC	3	706	20.11	8.07	205	21.42	544	2.17	55	2.09	53	20.5	9.31
XG918	GP, HE, DP, AC	3	918	26.05	8.07	205	25.35	644	2.17	55	2.09	53	23.6	10.69
XG1077	GP, HE, DP, AC	3	1077	30.59	8.07	205	25.35	644	2.17	55	2.09	53	23.6	10.69
XG1354	GP, HE, DP, AC	3	1354	38.23	8.07	205	34.49	876	2.17	55	2.09	53	30.2	13.70
XG1589	GP, HE, DP, AC	3	1589	45.31	8.07	205	34.49	876	2.17	55	2.09	53	30.2	13.70
PLEASE NOTE: THE BELOW MODELS REQUIRE A 150 LB FLANGE
XG1800	GP, HE, DP, AC, HT	4 FLG	1800	50.00	37.00	940	19.00	483	9.25	235	-	-	168	75.6
XG2400	GP, HE, DP, AC, HT	4 FLG	2400	67.00	37.00	940	19.00	483	9.25	235	-	-	170	76.5
XG3000	GP, HE, DP, AC, HT	4 FLG	3000	83.00	37.00	940	22.00	559	10.37	263	-	-	208	93.6
XG3600	GP, HE, DP, AC, HT	6 FLG	3600	102.00	42.50	1080	27.50	699	12.63	321	-	-	210	94.5
XG4200	GP, HE, DP, AC, HT	6 FLG	4200	118.00	42.50	1080	27.50	699	12.63	321	-	-	316	142.2
XG4800	GP, HE, DP, AC, HT	6 FLG	4800	135.00	42.50	1080	27.50	699	12.63	321	-	-	318	143.1
XG6000	GP, HE, DP, AC, HT	6 FLG	6000	168.00	42.50	1080	27.50	699	12.63	321	-	-	320	144.0
XG9000	GP, HE, DP, AC, HT	8 FLG	9000	253.00	52.00	1321	39.00	991	17.25	438	-	-	586	263.7
XG13200	GP, HE, DP, AC, HT	8 FLG	13200	373	52	1321	39	991	17.25	438	-	-	600	270

Line Pressure	bar g	1	2	3	5	7	9	11	13	15	16	17
Line Pressure	psig	15	29	44	73	100	131	160	189	218	232	250
Correction Factors		0.38	0.53	0.65	0.85	1.00	1.13	1.25	1.36	1.46	1.51	1.56

To use correction factors, multiply the filter’s capacity by the correction factor to get the new filter flow capacity at the non-standard operating pressure.

For example, a 110 SCFM filter operating at 160 psig has a correction factor of 1.25.

1.25 × 110 = 138.75 SCFM capacity at 160 psig

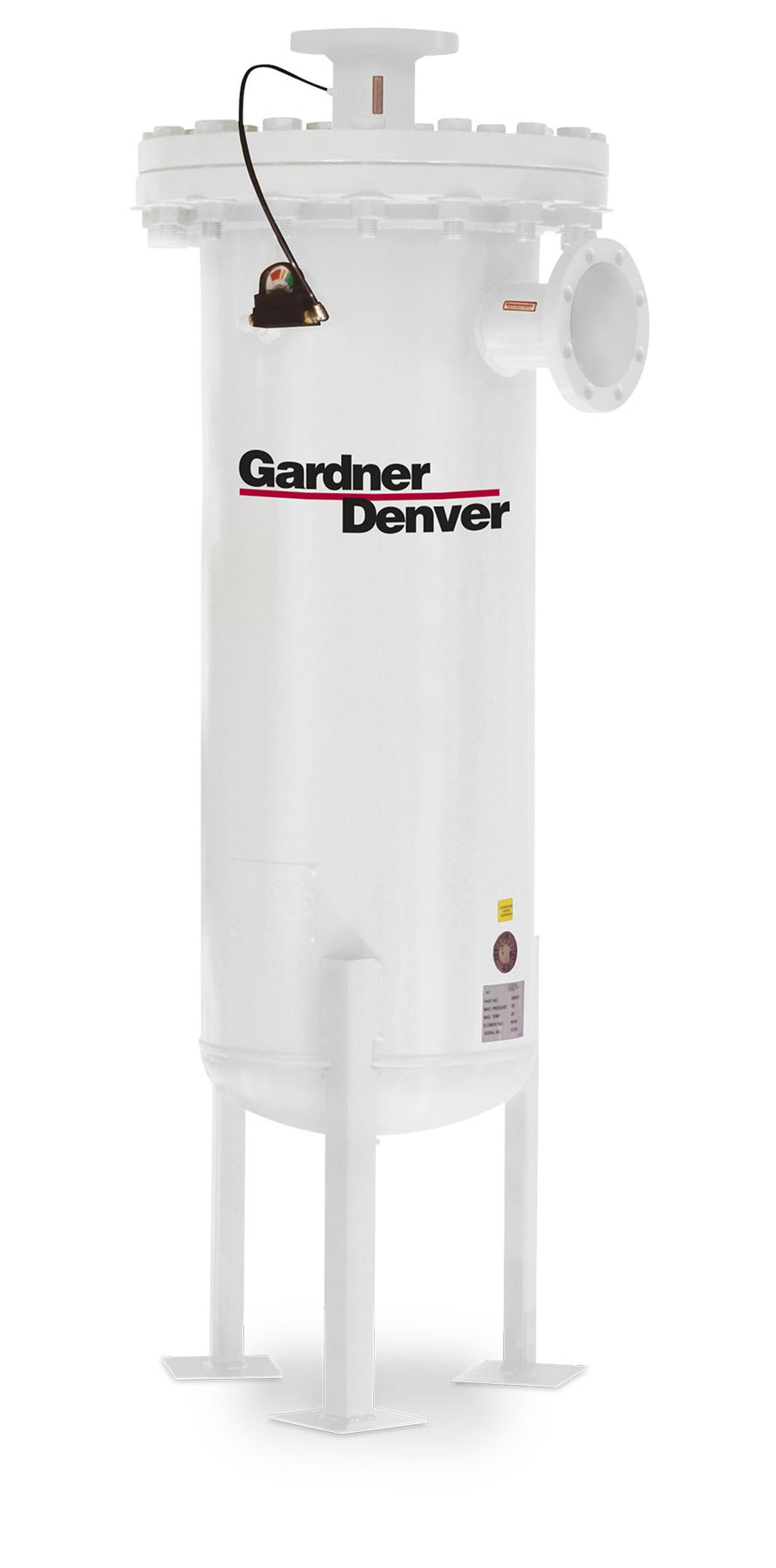

XGME Series Mist Eliminators

Model	scfm Flow	Connection Size	Drain Port	Shipping Weight		Dimensions inches
	@100 psig	A & B	C	Housing & Element	Replacement Element	D	E	F	G	H
XGME125	125	2" MPT	1" FPT	455	20	14	14.5	42.3	13	21
XGME250	250	2" MPT	1" FPT	455	25	14	14.4	42.3	13	25
XGME500	500	3" MPT	1" FPT	520	35	14	14.4	68.3	13	37
XGME800	800	3" MPT	1" FPT	530	60	14	14.5	68.3	13	51
XGME1100	1,100	3" MPT	1" FPT	660	70	16	15.5	72.3	14	57
XGME1500	1,500	4" FLG	1" FPT	775	100	18	15.6	72.3	15	57
XGME1900	1,900	4" FLG	1" FPT	1,225	120	24	16.9	75.8	18	59
XGME2400	2,400	4" FLG	1" FPT	1,245	140	24	16.9	75.8	18	59
XGME3000	3,000	4" FLG	1" FPT	1,385	160	24	16.9	88.8	18	69
XGME4500	4,500	6" FLG	1.5" FLG	1,770	250	24	18	153	18	118
XGME6000	6,000	8" FLG	2" FLG	2,460	350	30	18	155	21	118
XGME8000	8,000	8" FLG	2" FLG	2,850	375	30	19	181	21	142
XGME10000	10,000	10" FLG	2" FLG	4,500	475	30	21	211	25.75	173
