- Filled with activated carbon adsorbent
- Required pre-filtration: .01 µm
- Residual oil vapor content down to .003 mg/m³
- Max. Inlet moisture: 30% (dryer required upstream)
- Max. Operating pressure: 150 psig
- Max. Operating temperature: 120°F
- Standard two year warranty

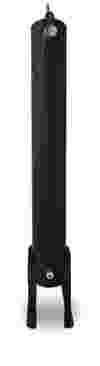

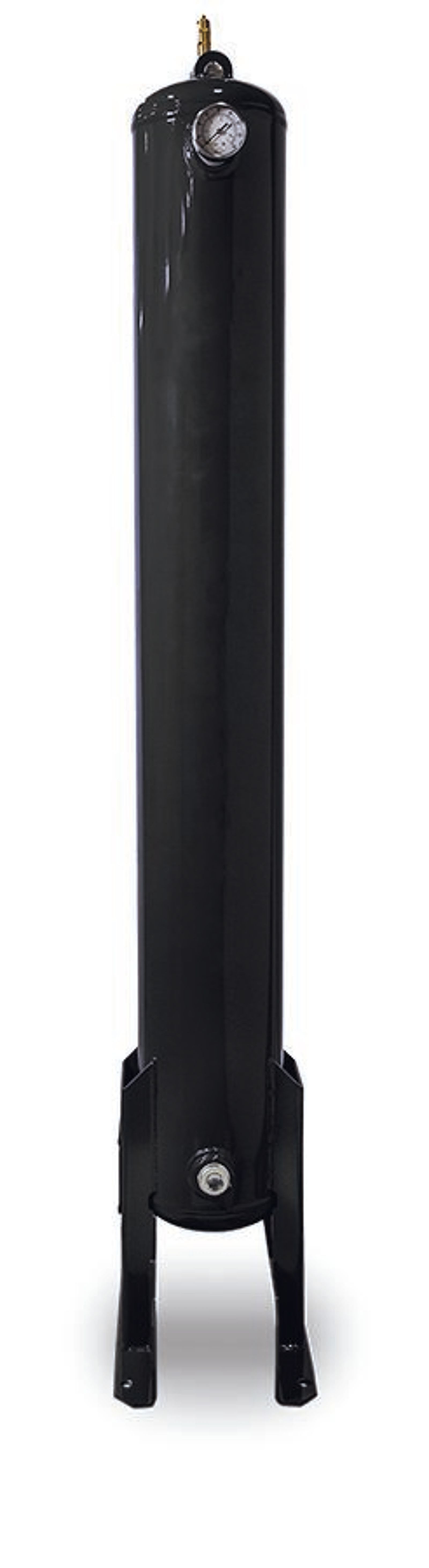

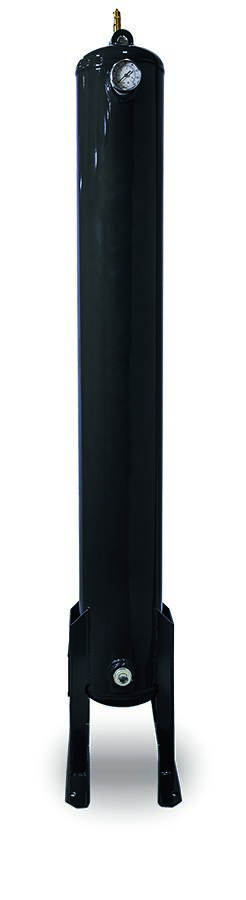

XGCT Activated Carbon Tower Series
The XGCT Activated Carbon Tower will assist in the life of your media bed, whether that be for your desiccant dryer or your nitrogen generation system. This activated carbon tower allows for more of your air to flow across the surface of the carbon verse using a carbon filtration cartridge. Keeping your media beds from containments will provide a longer life span and less media replacements over the life of your units.
- OIL-FREE AIR
- The pre-dried, laboratory grade activated carbon used in our XGCT begins adsorbing oil immediately upon start-up with no wait time.
- FLOW OPTIMIZED
- The unique curved inlet design provides the lowest possible differential pressure to ensure maximum energy efficiency across the entire product range.
- MAXIMUM RELIABILITY
- Our vessels are highly optimized and engineered to factor in the heavy loads to the product while ensuring the lifetime of the unit, and your investment in our product.
- MAINTENANCE
- Engineered for ease of use with top and bottom access ports to make both draining and filling a simple and easy maintenance procedure.
Model Number | Flow Rate | Inlet/Outlet Connection | Dimensions (H x W x D) | Total Weight per Adsorber |
|---|---|---|---|---|
scfm | in. (NPT) | in. | lbs. | |
80 | 80 | 3/4 | 58 × 11 × 16 | 41 |
100 | 100 | 1 | 70 × 11 × 17 | 51 |
120 | 120 | 1 | 70 × 11 × 17 | 51 |
160 | 160 | 1 1/4 | 68 × 13 × 18 | 77 |
200 | 200 | 1 1/4 | 68 × 13 × 18 | 77 |
250 | 250 | 1 1/2 | 77 × 15 × 22 | 127 |
300 | 300 | 1 1/2 | 77 × 15 × 22 | 127 |
400 | 400 | 2 | 68 × 17 × 24 | 149 |
500 | 500 | 2 | 78 × 19 × 26 | 225 |
650 | 650 | 2 1/2 | 74 × 22 × 29 | 271 |
800 | 800 | 2 1/2 | 72 × 24 × 31 | 338 |
1000 | 1000 | 2 1/2* | 86 × 24 × 27 | 354 |
1200 | 1200 | 2 1/2* | 85 × 26 × 28 | 428 |
1500 | 1500 | 3* | 90 × 28 × 29 | 536 |
1900 | 1900 | 3* | 78 × 36 × 36 | 729 |
2300 | 2300 | 4* | 93 × 36 × 35 | 853 |
2800 | 2800 | 4* | 83 × 40 × 41 | 1105 |
*Flanged Connection
Unit ratings
Adhere to the following inlet conditions per ISO 7183, Table 2, Option A2 | |
|---|---|
Inlet Compressed Air Temp: | 100°F (38°C) |
Inlet Compressed Air Pressure: | 100 psig (7 bar) |
Maximum Ambient Temperature: | 100°F (38°C) |
Correction Factors
Operating Pressure (psig) | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 |
|---|---|---|---|---|---|---|---|---|---|---|
Correction Factor | 0.65 | 0.74 | 0.83 | 0.91 | 1 | 1.12 | 1.16 | 1.2 | 1.25 | 1.29 |
