Electra Saver TSV Series Rotary Screw Air Compressors

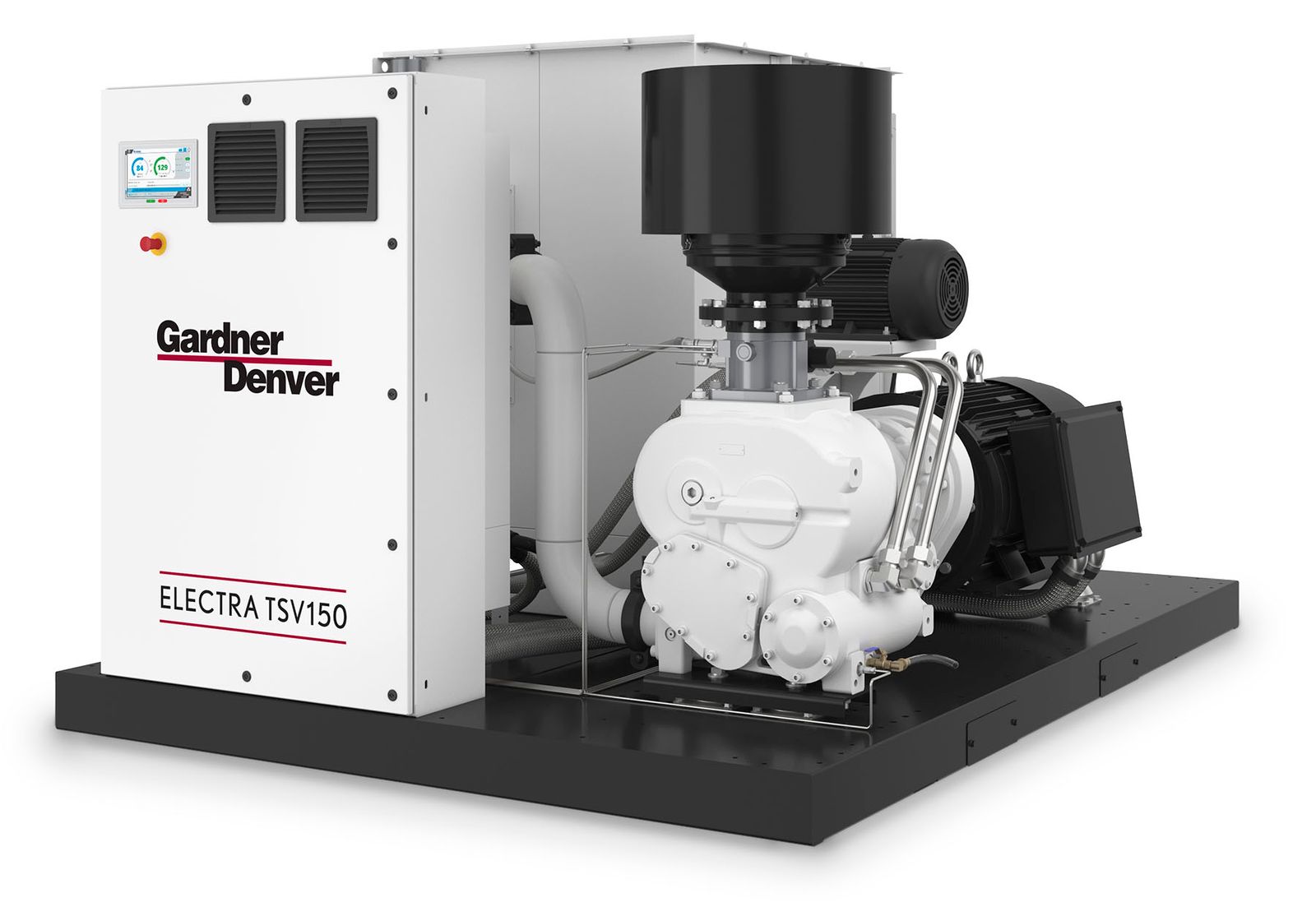

Product Photo Exterior right Electra TSV Unenclosed

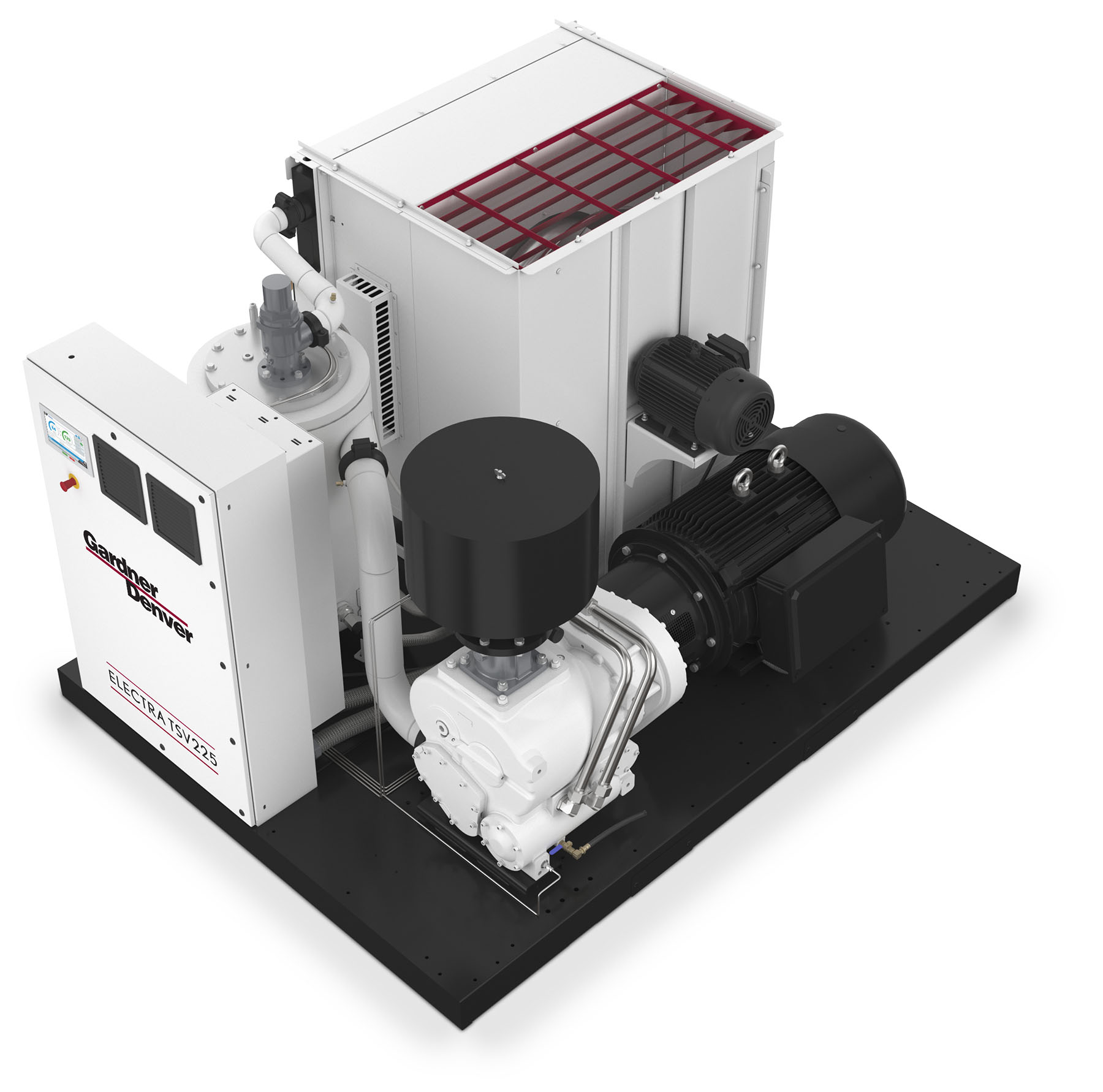

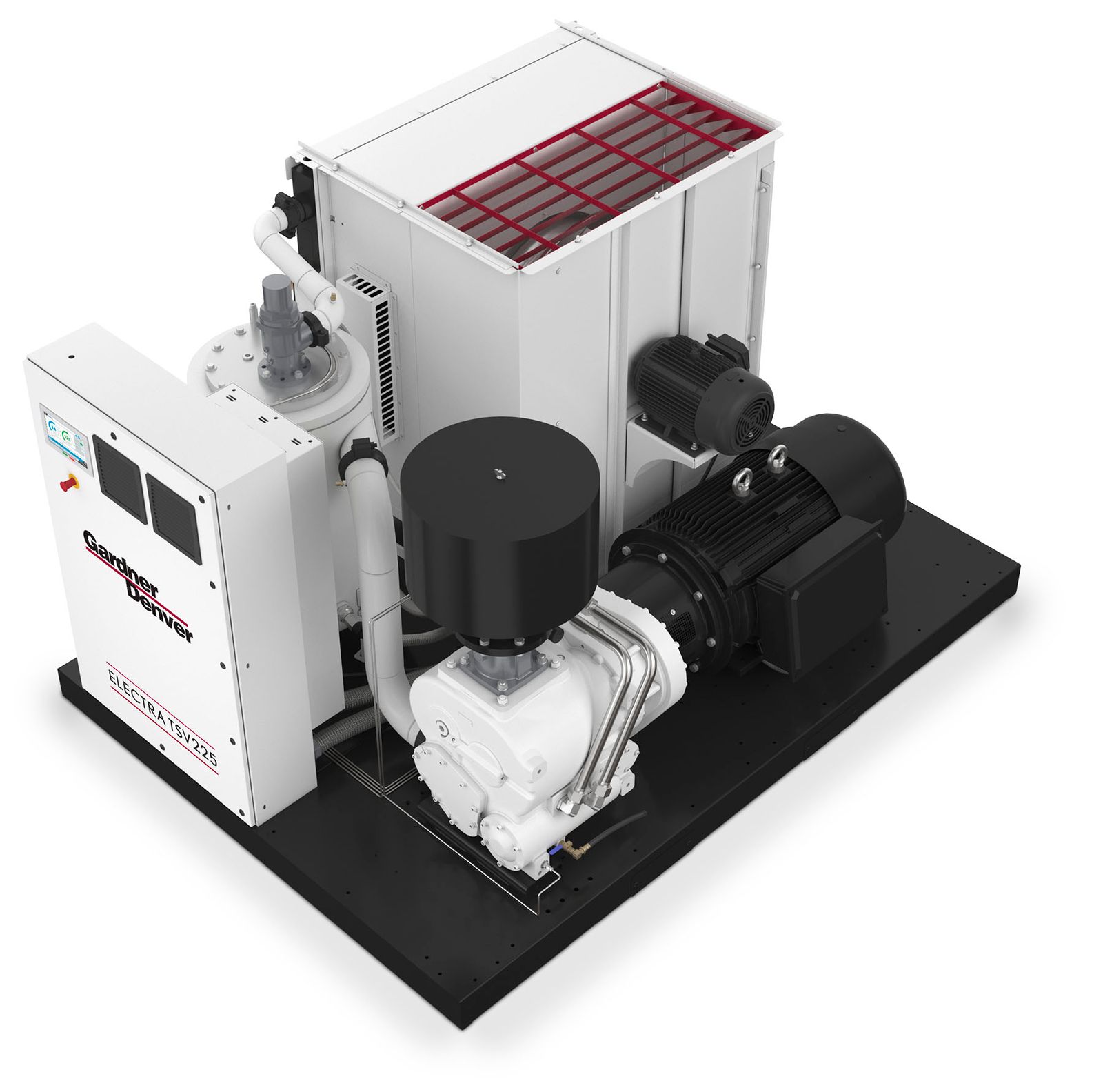

Product Photo Exterior top Electra TSV Unenclosed

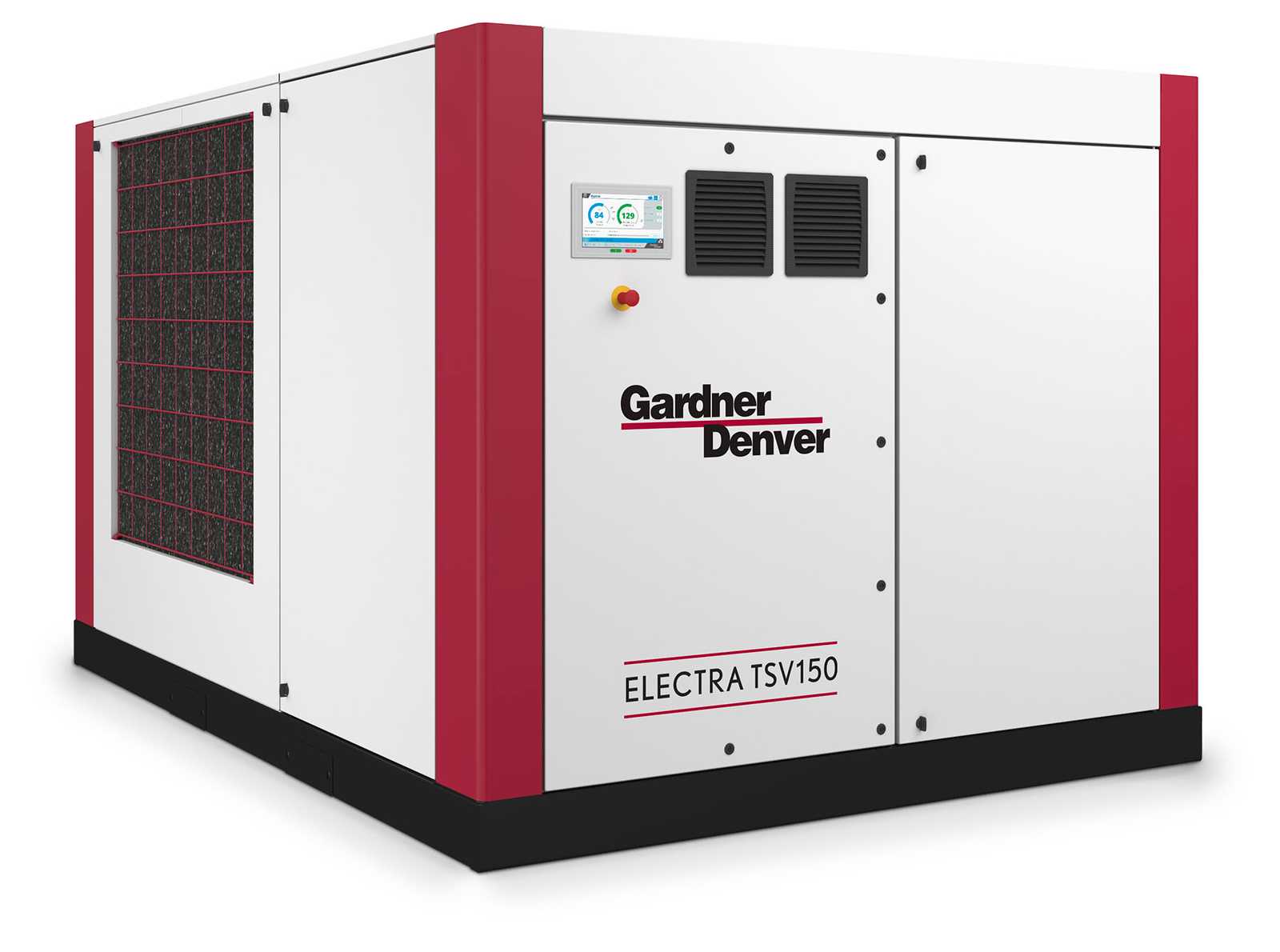

Product Photo Exterior left Electra TSV Enclosed

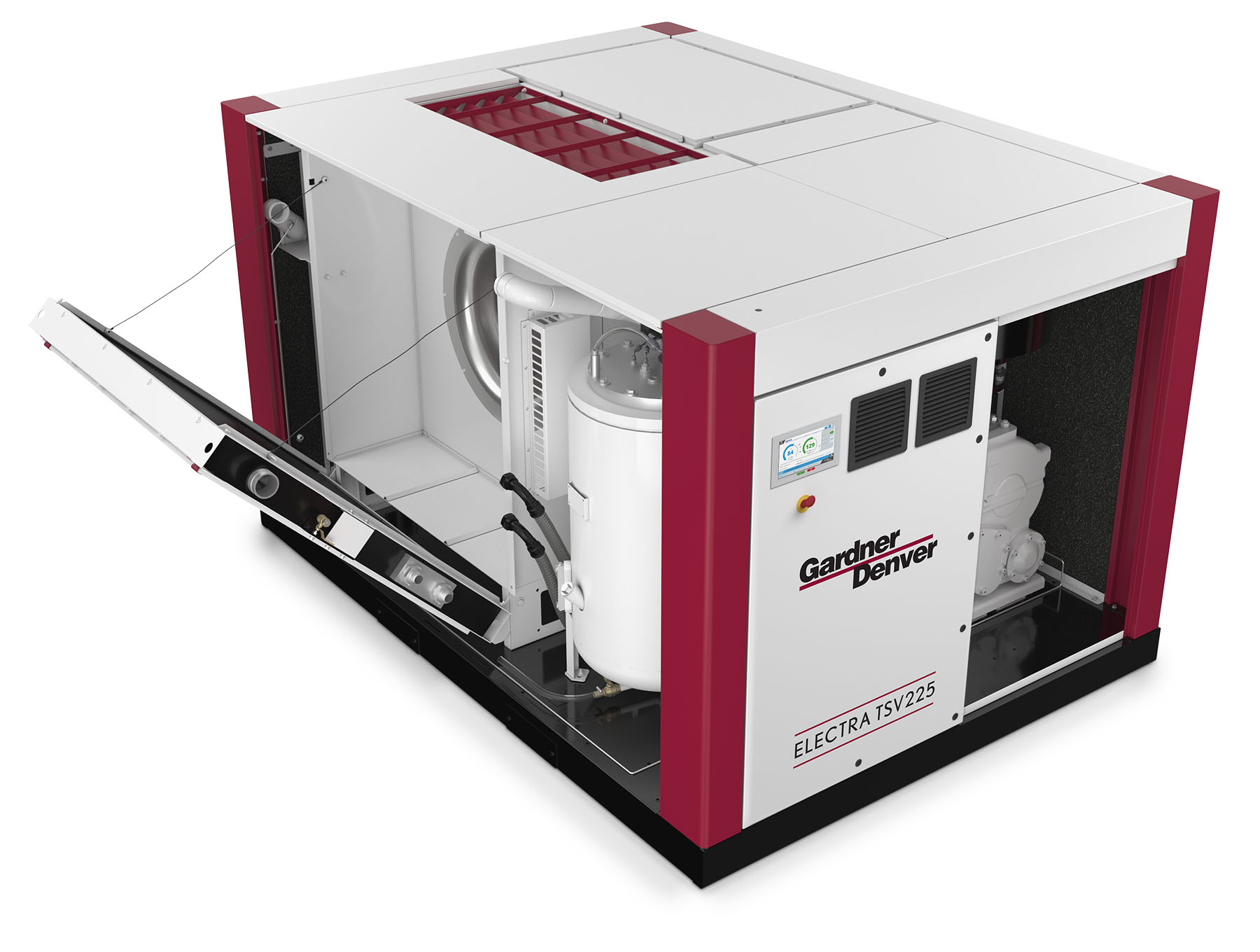

Product Photo Exterior left Electra TSV Enclosed Tipout

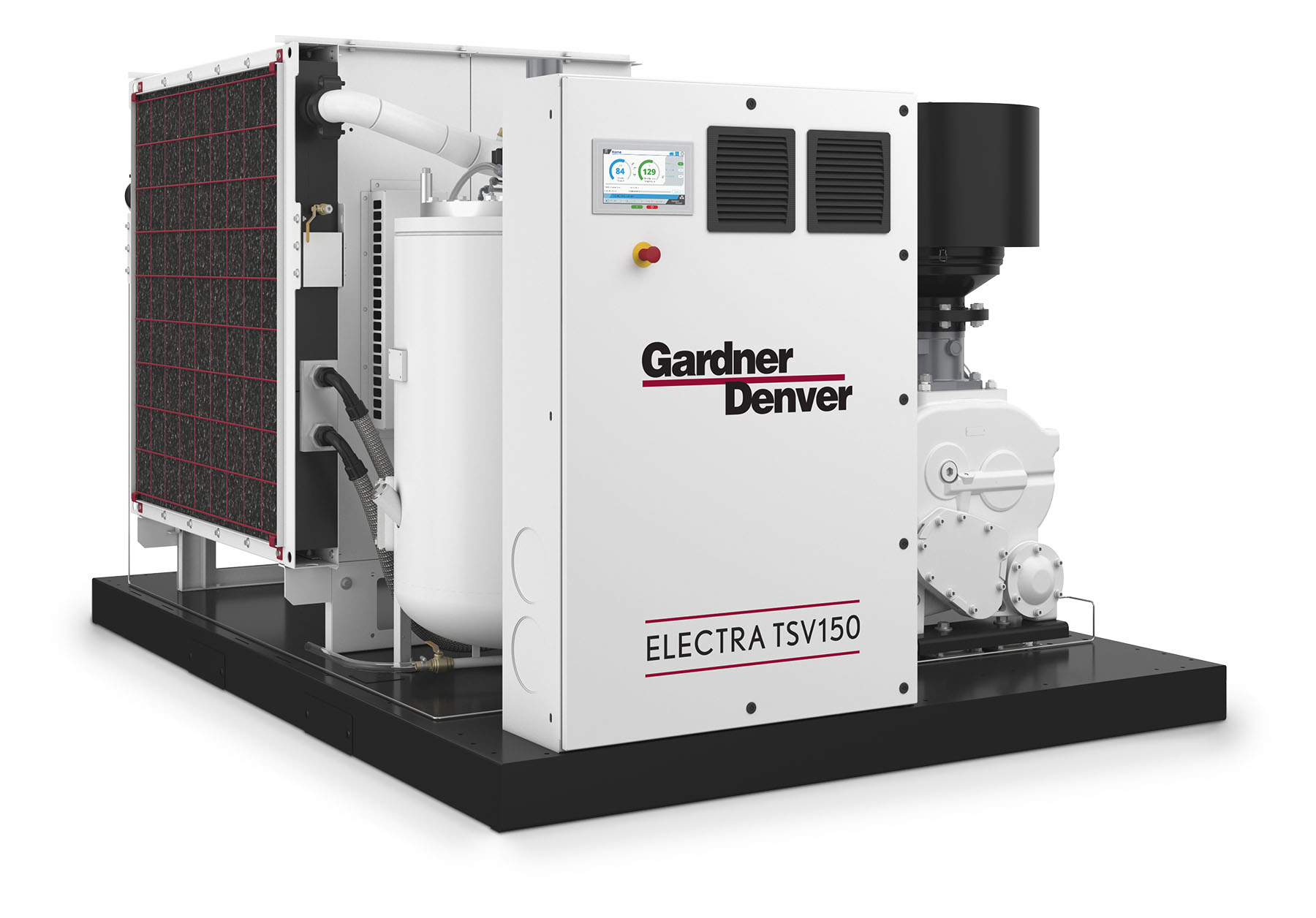

Product Photo Exterior left Electra TSV Unenclosed

The engineering ingenuity of Gardner Denver began in 1859. For over 150 years, our compressed air products have been a dependable resource for meeting the world’s most demanding and ever-changing industrial needs. Featuring high performance airends, premium efficiency motors and following the same design philosophy as the Electra Saver G2; we offer the same clean design, service benefits and features in a compact, two stage machine.

Featuring a semi-integrated over/under two stage proven airend with integral cartridge filter makes a compact, lean and easy-to-service package. The Electra TSV utilizes commonality in parts and components with the Electra Saver/SaverII 200–300 HP packages. This truly makes the Gardner Denver Electra series a comprehensive and complete family portfolio. Following our good, better and best philosophy of supporting our customer in ALL applications and market segments.

• 150-225kW

• Two stage high efficiency airend

• Enclosed or Unenclosed Base Mount on all HP

• Air or Water Cooled

• Variable Speed Motor

• IP54 Control Enclosure Standard on all Models

• New 10" Governor touchscreen microprocessor controller

• Variable Speed Capacity Control

• Tip-out Air and Oil Cooler

• Stainless Steel Control Lines

Reduced downtime due to service-friendly package design

Integrated cartridge style oil filter
Tip-out cooler
Enclosed package with large access doors allows for quick access to all service items

Slow speed GD10DS airend design ensures reliability and efficiency

Variable speed airend, maximizes efficiency and increases reliability
New 4 gear VS traditional 3 gear design adds rigidity and reduces bearing load
Integrated cartridge style oil filter reduces risk of leakage and aides in a compact airend design
Integrated interstage cooling improves efficiency and relability of the airend

Governor Controller = Information at your fingertips

Easy to use touchscreen display & navigation
10" Full-Color LCD Screen
Built-in digital gauges
Advanced machine diagnostics
Real-time and historical trending

Electra TSV 150–225 HP ROTARY SCREW COMPRESSOR

Model	Drive Motor		50 Hz				60 Hz				NOISE LEVEL¹ Enclosed/ Unenclosed	WEIGHT²		Dimensions L × W × H
	Drive Motor		NOMINAL PRESSURE		FAD		NOMINAL PRESSURE		FAD		NOISE LEVEL¹ Enclosed/ Unenclosed	WEIGHT²		Dimensions L × W × H
	HP	KW	PSIG	BAR	ACFM	M³/MIN	PSIG	BAR	ACFM	M³/MIN	DB(A)	LBS	KG	IN (MM)
ETSV-150	200	150	100 145 200	6.9 10.0 13.8	1178 1011 834	33.37 28.62 23.6	100 145 200	6.9 10.0 13.8	1178 1011 834	33.37 28.62 23.6	80/93	11179	5071	129 × 92 × 76 (3277 × 2337 × 1930)
ETSV-185	250	185	100 145 200	6.9 10.0 13.8	1418 1227 1057	40.14 34.74 29.94	100 145 200	6.9 10.0 13.8	1418 1227 1057	40.14 34.74 29.94	80/93	11755	5332
ETSV-225	300	225	100 145 200	6.9 10.0 13.8	1652 1452 1223	46.79 41.10 34.65	100 145 200	6.9 10.0 13.8	1652 1452 1223	46.79 41.10 34.65	80/93	11954	5422

1) Noise levels are for enclosed/unenclosed air-cooled models.

2) Weights and dimensions are for air-cooled unenclosed models.

Electra TS & TSV Series Compressors

Brochure, English

Unplanned downtime and interruptions in your production can greatly affect your business. That is why having a proper maintenance schedule for your compressed air operation is critical. By choosing one of Gardner Denver's service offerings or warranty programs, your business will have peace of mind that you will get the best reliability out of your equipment.

Ensure Your Equipment’s Health with Gardner Denver Platinum Series

Platinum Guard Service Offering

Platinum Guard is a preventative maintenance agreement serviced by Gardner Denver Authorized Distributors using genuine OEM parts and lubricants. Guard your investment with a service plan that keeps your compressor (and operations) running with few interruptions.

Platinum Trust Service Offering

The multi-year Platinum Trust service agreement offers peace of mind with extended coverage beyond the major components—the entire compressor package is included. Protect your equipment against unforeseen events with this service offering and guarantee consistent, reliable coverage from partners you trust.
