Electra Saver G2 Series Rotary Screw Air Compressors

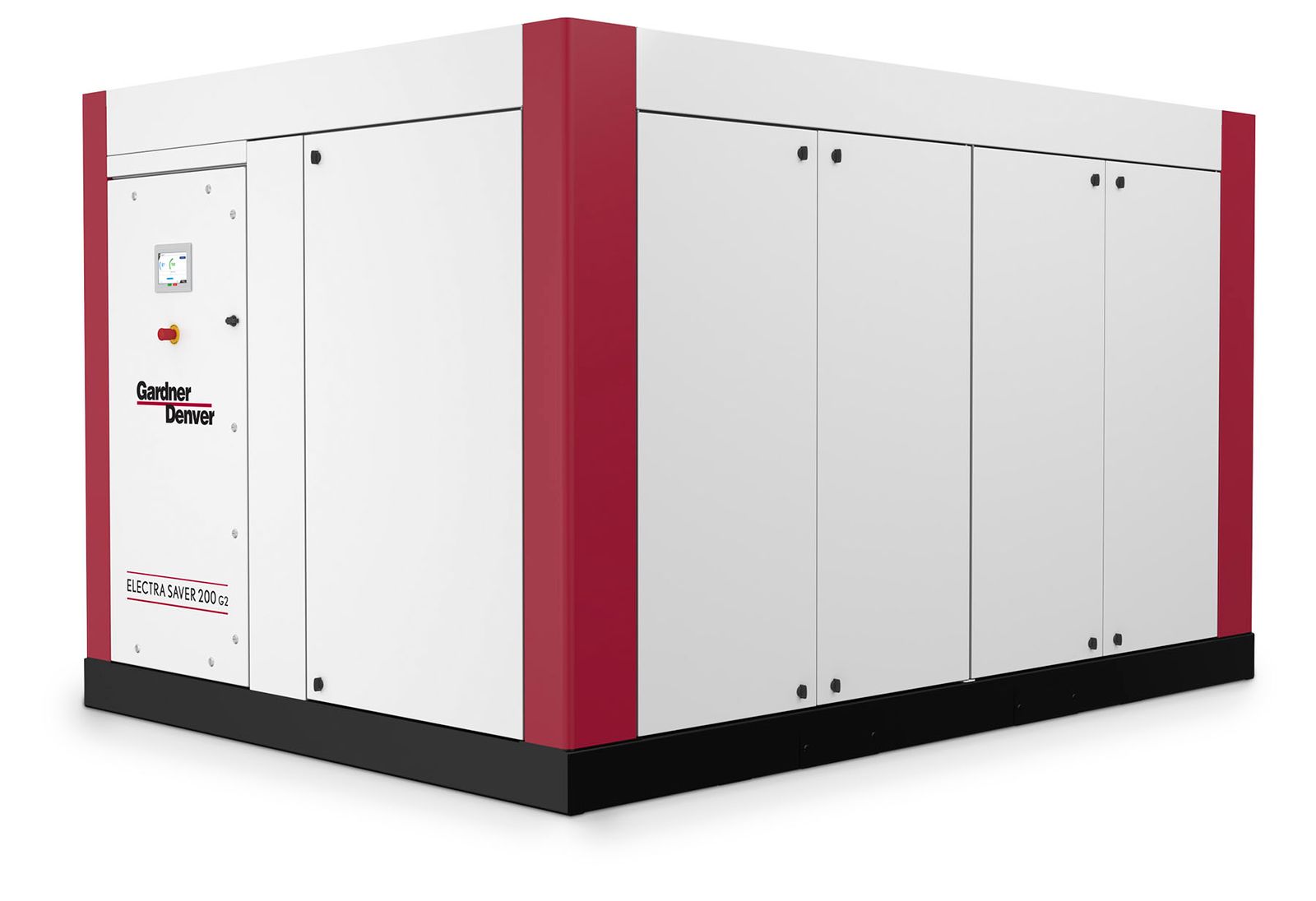

Product Photo Exterior right Electra Saver G2 Enclosed

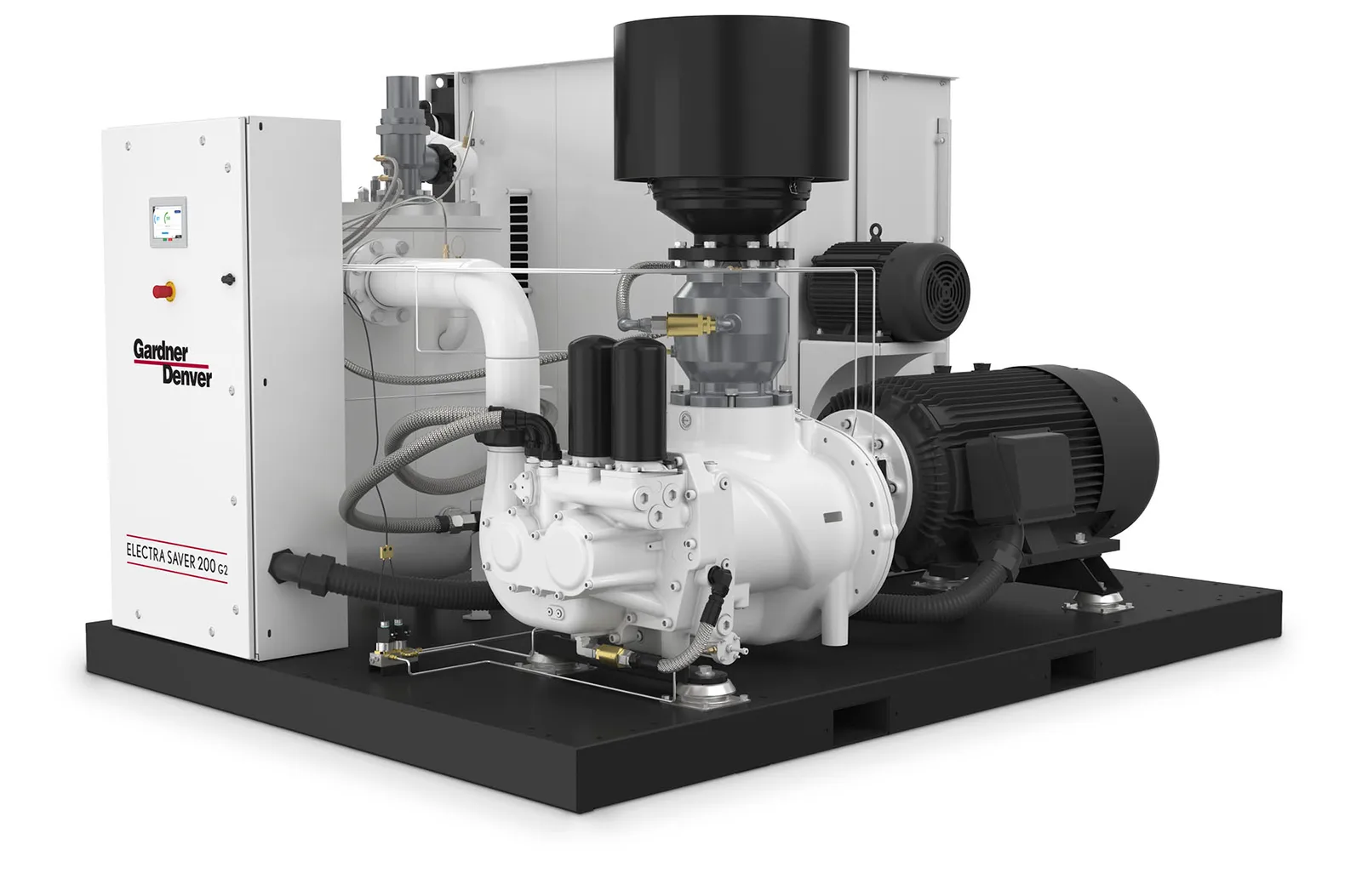

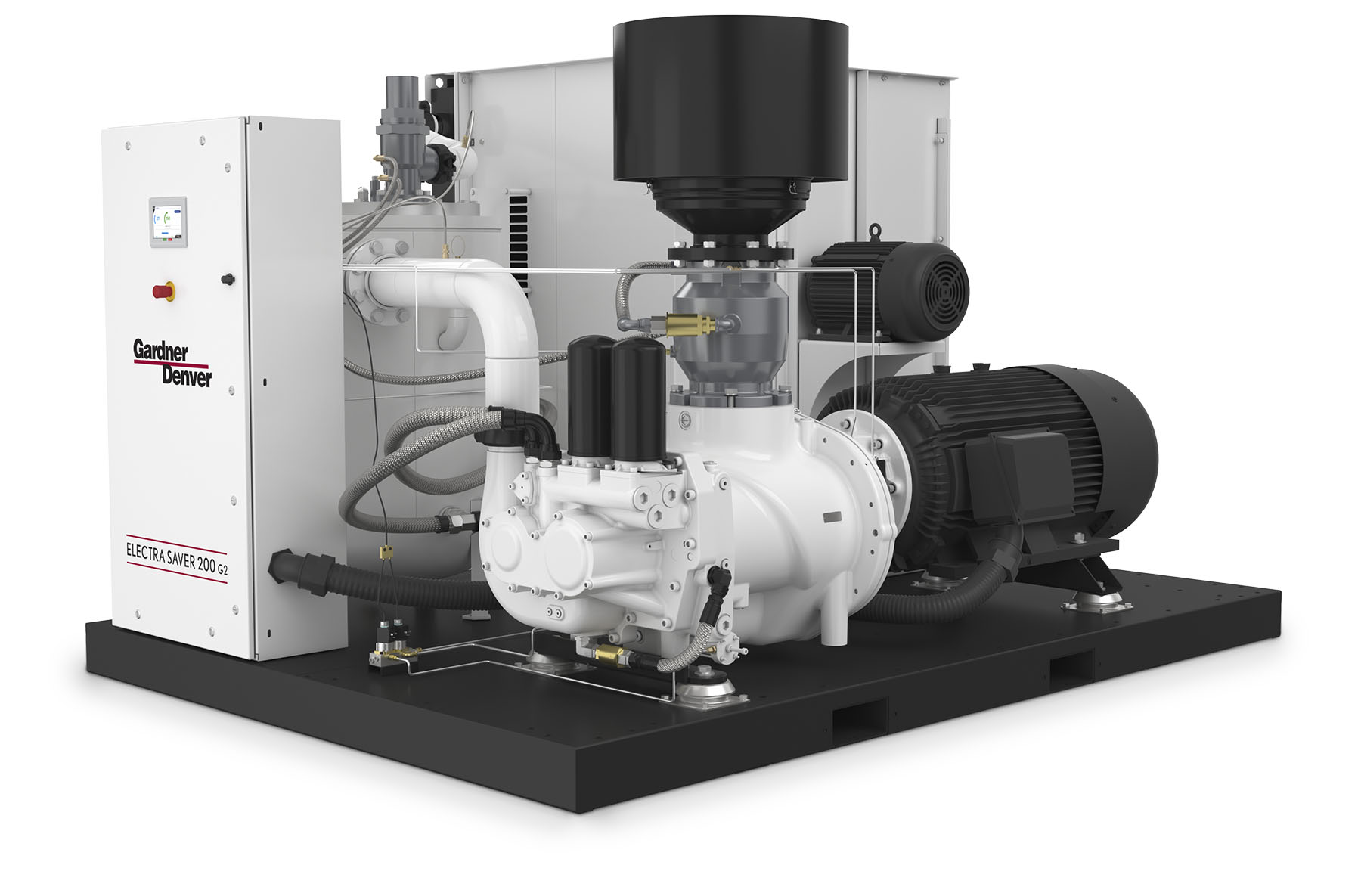

Product Photo Exterior right Electra Saver G2 Unenclosed

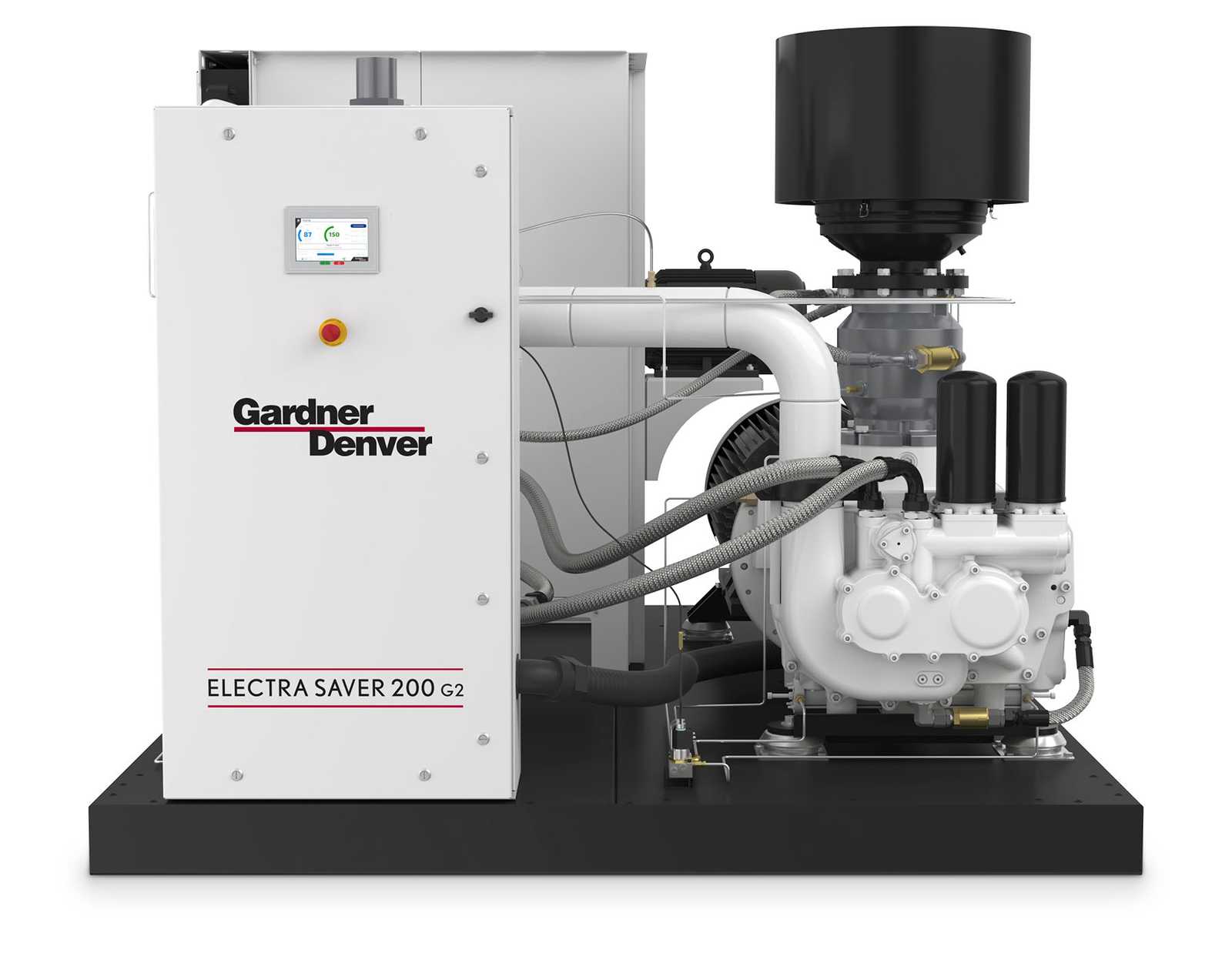

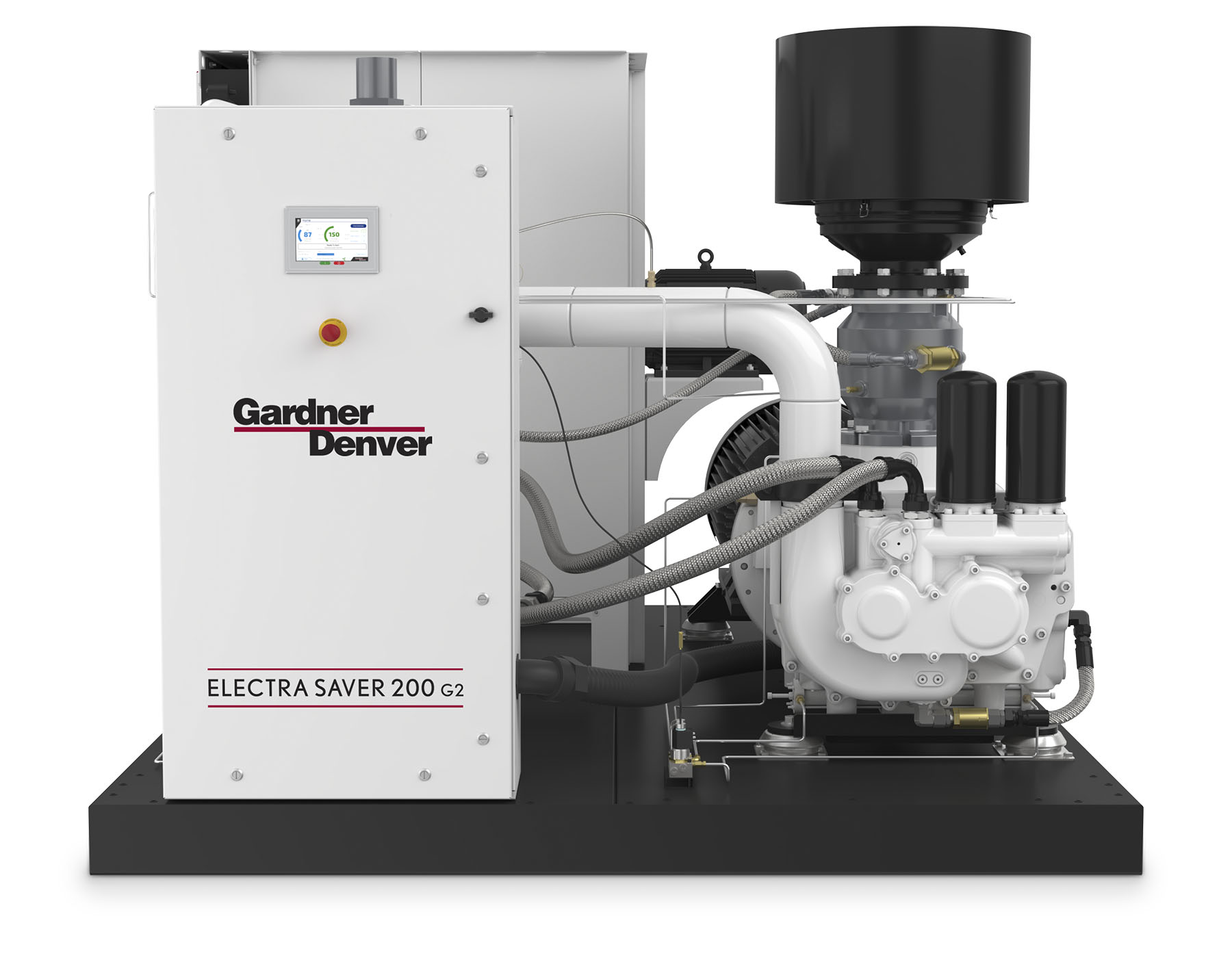

Product Photo Exterior front Electra Saver G2 Unenclosed

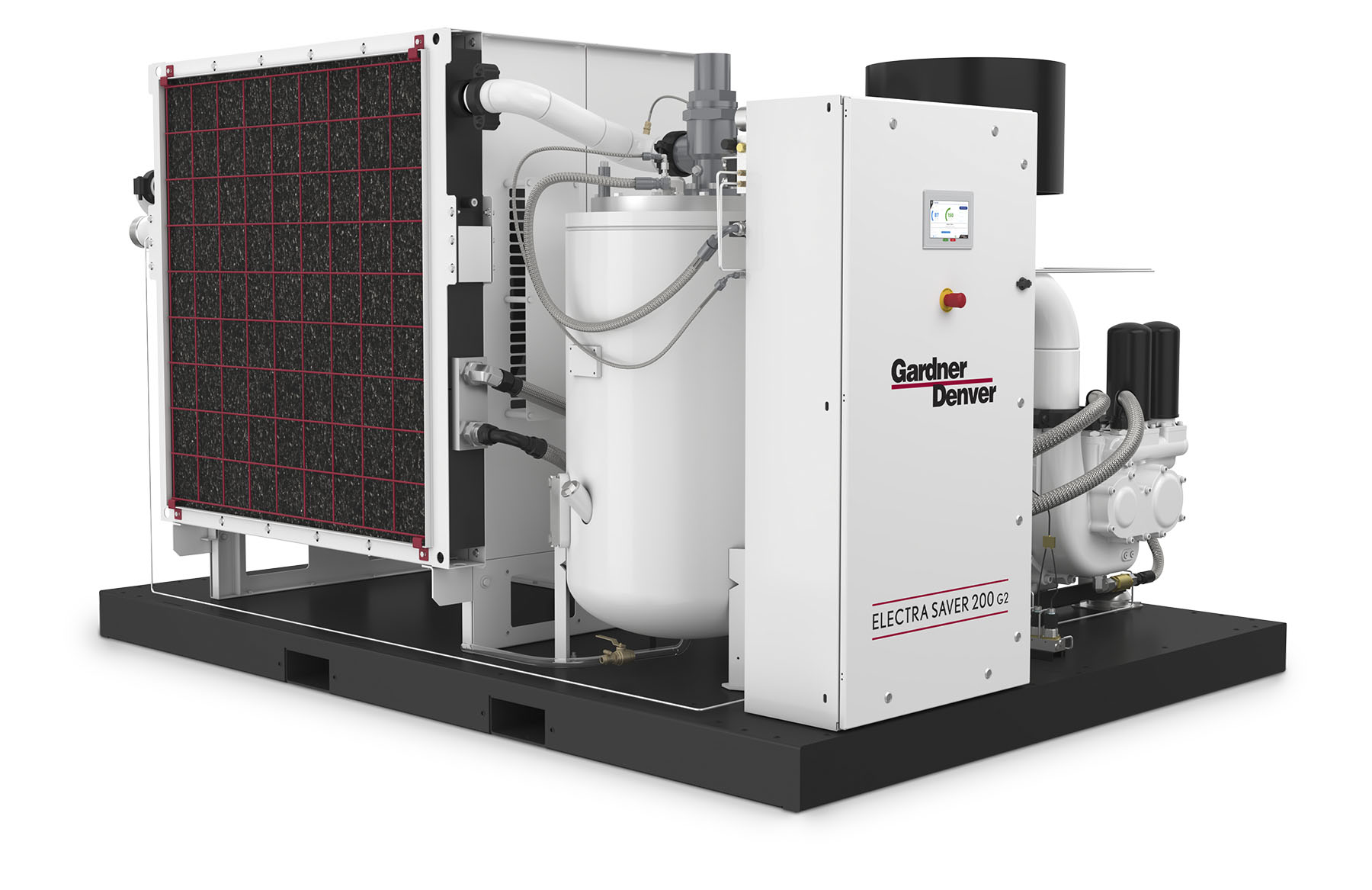

Product Photo Exterior left Electra Saver G2 Unenclosed

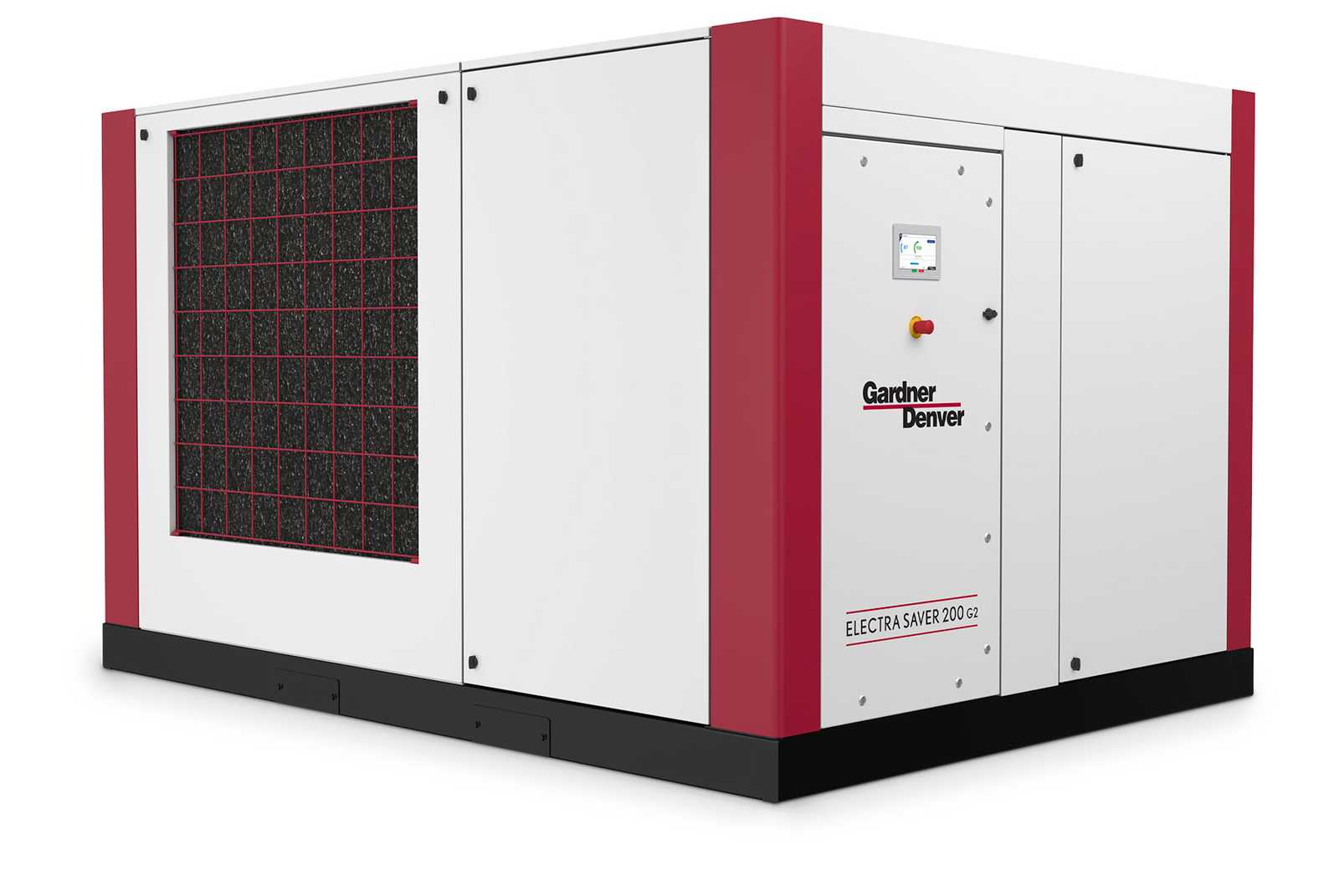

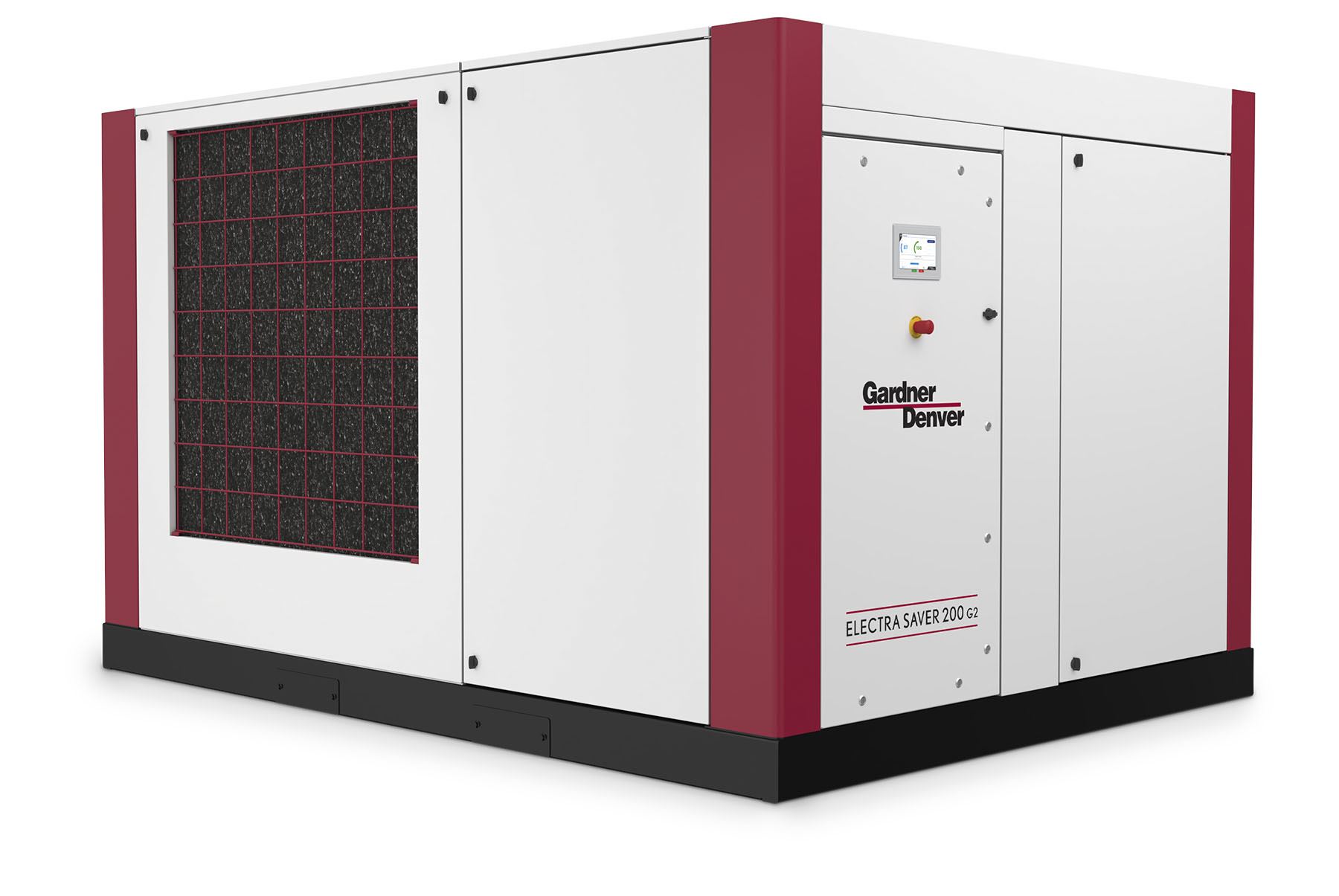

Product Photo Exterior left Electra Saver G2 Enclosed

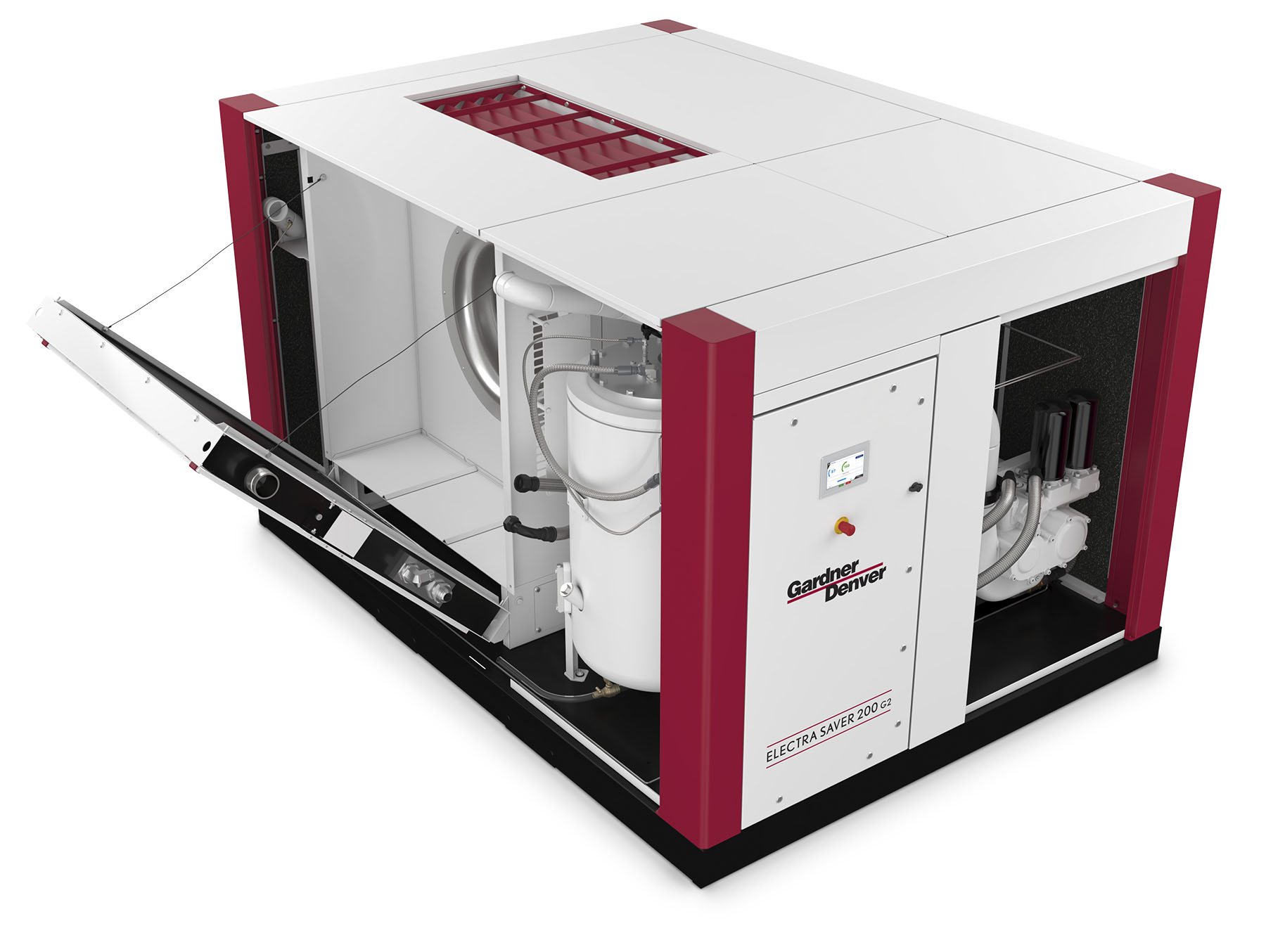

Product Photo Exterior left Electra Saver G2 Enclosed Tip Out

The engineering ingenuity of Gardner Denver began in 1859. For over 160 years, our compressed air products have been a dependable resource for meeting the world’s most demanding and ever-changing industrial needs. A legend in its own right, the Electra Saver was founded on slow-speed, 1800 rpm design principles and has been providing decades of dependability.

• 75-300 HP

• Unenclosed or Enclosed on all HP

• Direct-Gear Driven

• Wye-Delta Starters

• Air or Water Cooled

• Standard 1800 rpm ODP motors (TEFC motors optional)

• NEMA 4 Control Enclosure

• Patented Turn Valve Energy Saving Technology

• Tip-out Air and Oil Cooler

Reduced downtime due to service-friendly package design

All filters are easily accessible
Servicing the separator does not require any piping removal
Unenclosed package allows for quick access to all service items

Engineered for decades of dependability

Slower speeds reduce system stress, increase reliability, and extend equipment lifespan
Our airends are up to 40% larger than competition, delivering maximum efficiency

Governor Controller = Information at your fingertips

Easy to use touchscreen display & navigation
Full color LCD Screen
Built-in digital gauges
Advanced machine diagnostics
Real-time and historical trending

Electra Saver G2 75–300 HP ROTARY SCREW COMPRESSOR

MODEL	DRIVE MOTOR		50 Hz				60 Hz
	DRIVE MOTOR		NOMINAL PRESSURE		FAD		NOMINAL PRESSURE		FAD		NOISE LEVEL¹ Enclosed/ Unenclosed	WEIGHT²		DIMENSIONS² L × W × H
	HP	kW	PSIG	BAR	ACFM	M³/MIN	PSIG	BAR	ACFM	M³/MIN	DB(A)	LBS	KG	IN. (MM)
SAVG2- 75	75	55	100 110 125	6.9 7.6 8.6	373 345 344	10.56 9.77 9.74	100 110 125	6.9 7.6 8.6	385 344 342	10.9 9.74 9.68	74/81	4,521	2,051	90 × 61 × 59 (2286 × 1549 × 1499)
SAVG2-100	100	75	100 125 150	6.9 8.6 10.3	496 463 422	14.05 13.11 11.95	100 125 150	6.9 8.6 10.3	518 467 411	14.67 13.22 11.64	74/81	4,660	2,114	90 × 61 × 59 (2286 × 1549 × 1499)
SAVG2-125	125	90	100 125 150 175 200	6.9 8.6 10.3 12.0 13.8	629 580 525 454 451	17.81 16.42 14.87 12.86 12.77	100 125 150 175 200	6.9 8.6 10.3 12.0 13.8	650 597 528 445 443	18.41 16.91 14.95 12.60 12.54	79/88	7,800	3,538	122 × 75 × 79 (3096 × 1902 × 2013)
SAVG2-150	150	110	100 125 150 175 200	6.9 8.6 10.3 12.0 13.8	757 694 630 522 512	21.44 19.65 17.84 14.78 14.50	100 125 150 175 200	6.9 8.6 10.3 12.0 13.8	767 696 633 525 523	21.72 19.71 17.92 14.85 14.81	79/88	8,000	3,629	122 × 75 × 79 (3096 × 1902 × 2013)
SAVG2-200	200	150	100 125 150	6.9 8.6 10.3	980 948 857	27.76 26.85 24.26	100 125 150	6.9 8.6 10.3	1039 938 845	29.43 26.57 23.94	76/85	10,200	4,627	129 × 90 × 76 (3277 × 2286 × 1930)
SAVG2-250	250	185	100 125 150 175 200	6.9 8.6 10.3 12.0 13.8	1234 1155 1048 887 884	34.93 32.71 29.66 25.11 25.03	100 125 150 175 200	6.9 8.6 10.3 12.0 13.8	1265 1184 1074 907 904	35.82 33.54 30.41 25.69 25.61	76/85	10,500	4,763
SAVG2-300	300	225	100 125 150 175 200	6.9 8.6 10.3 12.0 13.8	1492 1354 1231 1047 1044	42.23 38.35 34.84 29.65 29.56	100 125 150 175 200	6.9 8.6 10.3 12.0 13.8	1479 1387 1261 1074 1070	41.88 39.27 35.71 30.40 30.30	76/85	10,850	4,921

1) Noise levels are for enclosed/unenclosed air-cooled models.

2) Weights and dimensions are for air-cooled unenclosed models.

Electra Saver G2 Series Compressors

Brochure, English

Unplanned downtime and interruptions in your production can greatly affect your business. That is why having a proper maintenance schedule for your compressed air operation is critical. By choosing one of Gardner Denver's service offerings or warranty programs, your business will have peace of mind that you will get the best reliability out of your equipment.

Ensure Your Equipment’s Health with Gardner Denver Platinum Series

Platinum Guard Service Offering

Platinum Guard is a preventative maintenance agreement serviced by Gardner Denver Authorized Distributors using genuine OEM parts and lubricants. Guard your investment with a service plan that keeps your compressor (and operations) running with few interruptions.

Platinum Trust Service Offering

The multi-year Platinum Trust service agreement offers peace of mind with extended coverage beyond the major components—the entire compressor package is included. Protect your equipment against unforeseen events with this service offering and guarantee consistent, reliable coverage from partners you trust.
