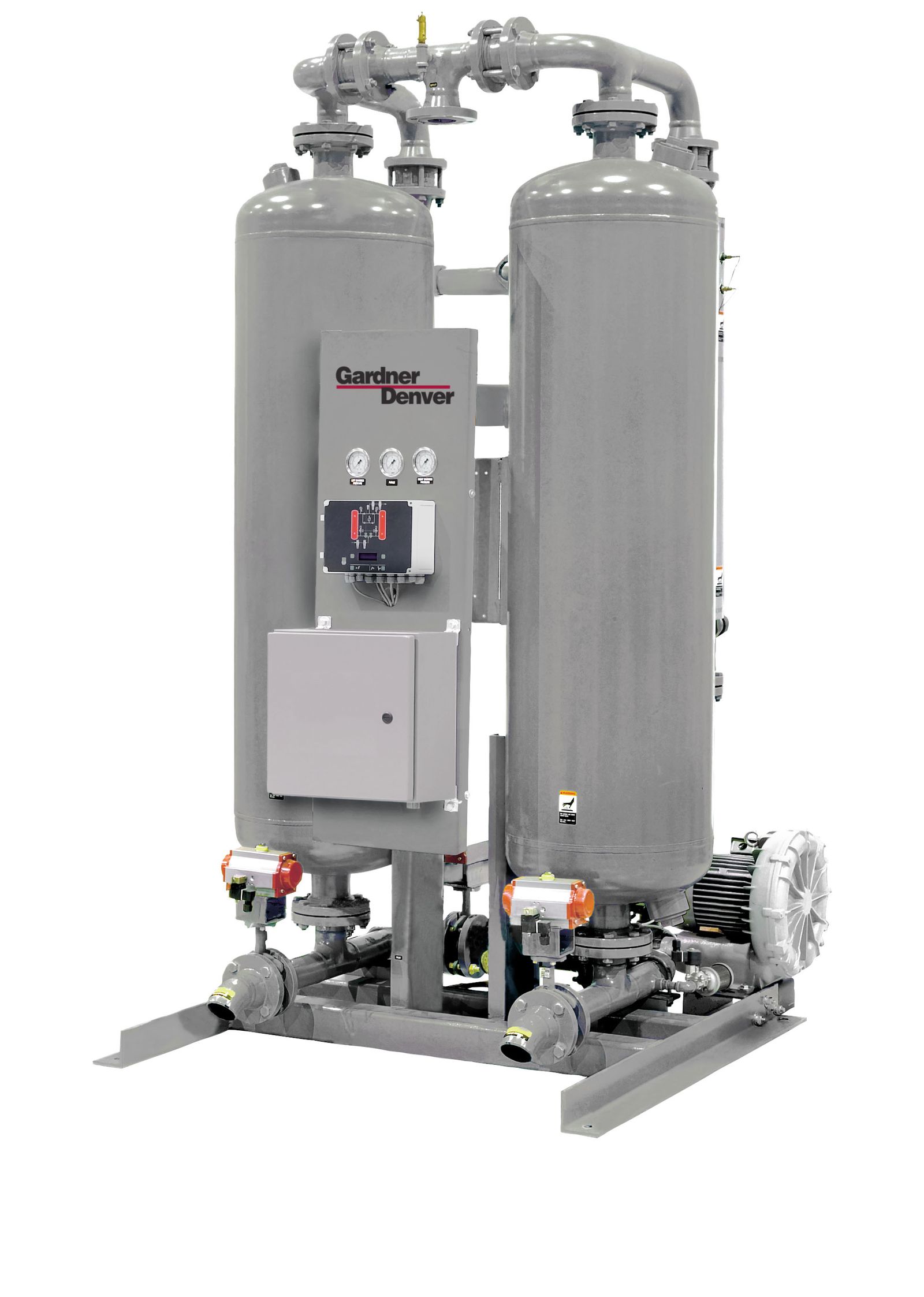

Blower Purge Desiccant Dryer

The DPB Series blower purge desiccant dryer process design offers the end user the opportunity to significantly reduce the energy costs associated with achieving a reliable -40°F (-40°C) pressure dew point. This is achieved by eliminating or reducing purge air requirements (compressed air utilized to regenerate desiccant beds) typical of other desiccant dryer designs.

Specifications – Table 1

Model

Flow

Heater Rated Output

Blower

Dimensions

Weight

In/Out Connections

Replacement Desiccant



scfm

kW

hp

h × w × l
inches

lbs



lbs

















DPB0500

500

10

2.2

105 × 53 × 70

1866

2" NPT

354

DPB0600

600

12

3.4

108 × 55 × 71

2111

2" NPT

453

DPB0750

750

14

2.9

114 × 60 × 83

2456

3" ANSI Flg

590

DPB0900

900

16

2.7

114 × 60 × 83

2472

3" ANSI Flg

590

DPB1050

1050

19

3.7

113 × 64 × 84

2981

3" ANSI Flg

710

DPB1300

1300

23

7.1

118 × 66 × 85

3576

3" ANSI Flg

923

DPB1500

1500

28

10.1

116 × 80 × 93

5359

3" ANSI Flg

1259

DPB1800

1800

32

9.4

116 × 80 × 93

5359

3" ANSI Flg

1259

DPB2200

2200

39

7.5

124 × 85 × 104

8018

4" ANSI Flg

1867

DPB2600

2600

45

13.9

124 × 85 × 104

8123

4" ANSI Flg

1867

DPB3200

3200

53

11.1

121 × 97 × 117

9333

6" ANSI Flg

2377

DPB3600

3600

58

5.4

128 × 97 × 117

9833

6" ANSI Flg

2610

DPB4300

4300

70

5.9

124 × 105 × 130

12350

6" ANSI Flg

3398

Correction factors – table 2

Pressure

Inlet Temperature °F (°C)

PSIG (KGF/CM²)

60 (15.6)

70 (21.1)

80 (26.7)

90 (32.2)

100 (37.8)

110 (43.3)

120 (48.9)

















60 (4.2)

1.03

1.01

0.99

0.80

0.58

0.43

0.32

70 (4.9)

1.10

1.08

1.07

0.94

0.68

0.50

0.37

80 (5.6)

1.17

1.15

1.14

1.08

0.79

0.58

0.43

90 (6.3)

1.24

1.22

1.20

1.18

0.89

0.66

0.49

100 (7.0)

1.30

1.28

1.26

1.24

1.00

0.74

0.55

110 (7.7)

1.36

1.34

1.32

1.30

1.11

0.82

0.61

120 (8.4)

1.42

1.40

1.38

1.36

1.22

0.90

0.67

130 (9.1)

1.48

1.46

1.44

1.42

1.33

0.99

0.74

140 (9.8)

1.53

1.51

1.49

1.47

1.44

1.07

0.80

150 (10.6)

1.58

1.56

1.54

1.52

1.50

1.16

0.87

Notes: Inlet Flow capacities have been established at an inlet pressure of 100 psig (7 kgf/cm²), and a saturated inlet temperature at 100° F (38° C). To determine maximum
inlet flow at other conditions, multiply the inlet flow from the Specifications (Table 1) by the correction factor from Table 2 that corresponds to your operating conditions.

Dew Point: Outlet pressure dew point at rated inlet conditions of 100 psig (7 kgf/cm²) and 100° F (38° C) and 70° F (21° C) atmospheric dew point is -40° F (-40° C).
Dew point varies slightly at other conditions. Consult factory to determine exact outlet pressure dew point at your operating conditions.

Outlet Temperature at normal rated conditions (after temperature spike) is 127° F (53° C). Outlet temperature varies depending on inlet temperature and pressure.
Consult factory to determine exact outlet temperature at your operating conditions.
