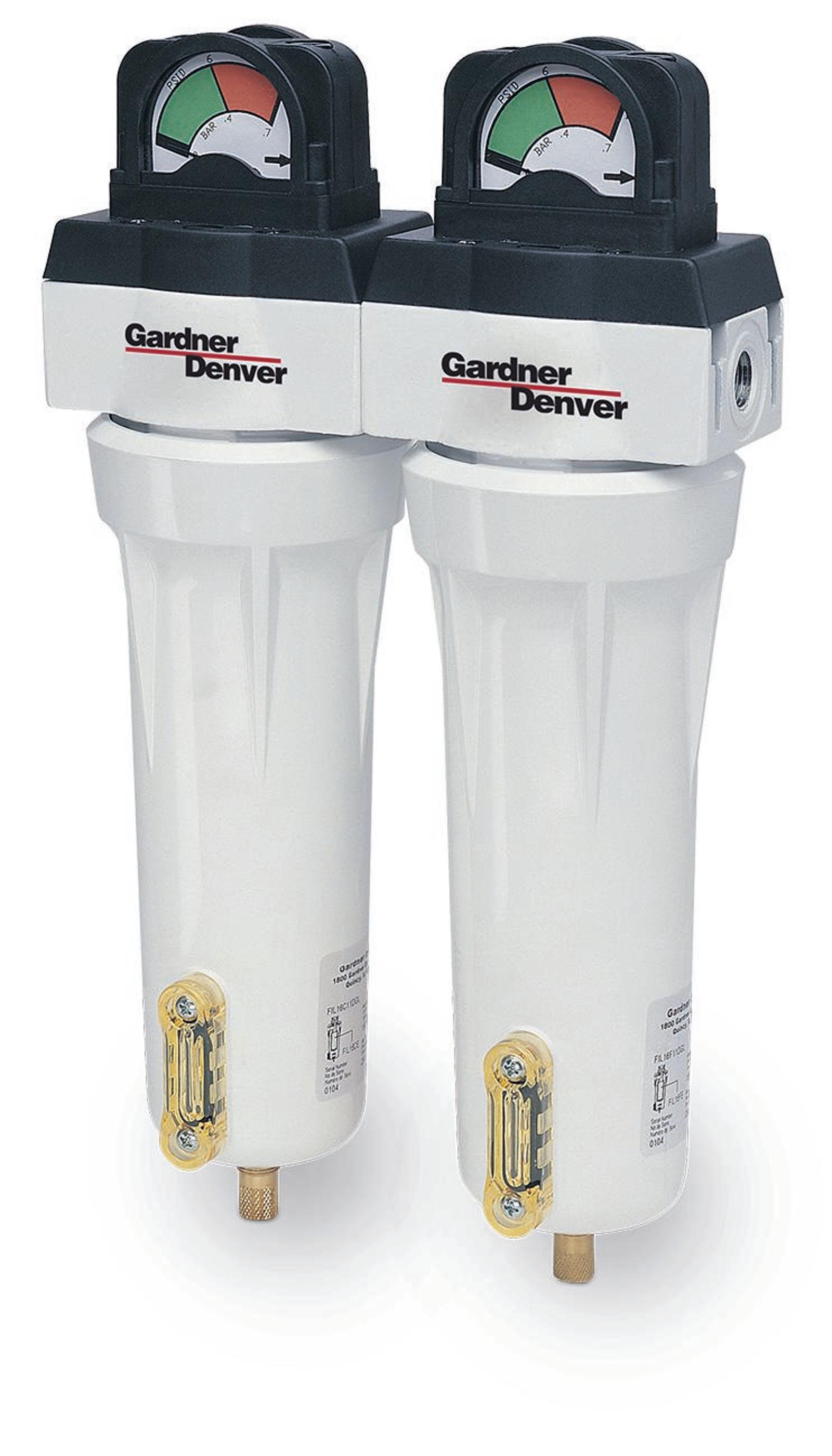

Air Compressor Filter

FIL Series

FIL Series filters provide your compressed air system with premium quality filtration for the three typical contaminant types:

solid particles come from ambient air contaminants like dust and from rusted, oxidized pipework. They will cause pneumatic equipment to malfunction, cause instrument and control failures, and contaminate end products;
condensed water droplets come from the humidity in ambient air. Water will oxidize pipework and pneumatic equipment, ruin paint finishes and end products and;
liquid oil and oil vapors are introduced by compressor lubricants and by hydrocarbon vapors present in ambient air. Oil-free compressed air is particularly important in food and pharmaceutical processes.

Save money and operate responsibly

Flow range from 20 to 21250 SCFM
Maximum Working Pressure: 300 PSIG
Maximum Inlet Temperature: 150°F
Seven filtration grades provide ISO 8573.1 standard air quality
Housings used conform to major pressure vessel directives in the Americas, Europe and Asia

Benefits at a Glance

Modular housings save space and time
Element grades offer superior filtration
Simple maintenance

Replacement Model Grade-Features		Capacity		Connections Npt/Ansi Flg.	Standard Features					Max Pressure Psig [Kgf/Cm²] Temp °F (°C)		Dimensions						Element
		Capacity			Filter Grades					Max Pressure Psig [Kgf/Cm²] Temp °F (°C)		Height		Width		Weight		Element
		scfm	m³/min		A	B	C,E,F	D	G	Manual Drain	with D or L	in	mm	in	mm	lb	kg	Model- Grade	QTY
Modular Type Housings	FIL12-11	20	0.57	⅜" NPTF	Internal Automatic Drain	Internal Automatic Drain Differential Pressure Slide	Internal Automatic Drain Differential Pressure Slide	Differential Pressure Slide	NONE	300 psig 21 kgf/cm² 150° F 66° C	250 psig 17.6 kgf/cm² 150° F 66° C	8.15	207	4.13	105	4.2	1.9	FIL12-E	1
	FIL14-13	35	1.00	½" NPTF								11.05	281	4.13	105	8.1	3.7	FIL14-E
	FIL16-13	60	1.72	½" NPTF								13.4	340	4.13	105	8.5	3.9	FIL16-E
	FIL18-15	100	2.9	¾" NPTF	Internal Automatic Drain	Internal Automatic Drain Differential Pressure Gauge	Internal Automatic Drain Differential Pressure Gauge	Differential Pressure Gauge				15.32	389	5.25	133	6.3	2.9	FIL18-E
	FIL20-17	170	4.9	1" NPTF	Internal Automatic Drain	Internal Automatic Drain Differential Pressure Gauge						19.57	497	5.25	133	6.9	3.1	FIL20-E
	FIL22-21	250	7.2	1½" NPTF		Differential Pressure Gauge						22.8	579	6.44	164	10.2	4.6	FIL22-E
	FIL24-21	375	11	1½" NPTF	Drain plugs standard. Externally mounted automatic drains are available.	Drain plugs standard. Externally mounted automatic drains are available.						27.29	693	6.44	164	11.3	5.1	FIL24-E
	FIL26-23	485	14	2" NPTF	Drain plugs standard. Externally mounted automatic drains are available.		Internal Automatic Drain Differential Pressure Gauge					31.08	789	7.63	194	28	12.7	FIL26-E
	FIL28-25	625	18	2½" NPTF								36.83	935	7.63	194	33	15.0	FIL28-E
	FIL30-25	780	22	2½" NPTF								42.96	1091	7.63	194	38	17.2	FIL30-E
	FIL32-27	625	18	3" NPTM	Internal Automatic Drain	Internal Automatic Drain Differential Pressure Gauge	Internal Automatic Drain Differential Pressure Gauge	Differential Pressure Gauge	NONE Drain plugs standard. Externally mounted automatic drains are available.	300 psig 21 kgf/cm²	300 psig 21 kgf/cm²	40.88	1038	10.25	260	36	16.3	FIL32-E	1
Pressure Vessels	FIL34-27	1,000	29	3" NPTM	Drain plugs standard. Externally mounted automatic drains are available.					225 psig 15.8 kgf/cm² 150° F 66° C	225 psig 15.8 kgf/cm² 150° F 66° C	48.00	1219	16.00	406	91	41.3	FIL34-E	2
	FIL36-27	1,250	36	3" NPTM								48.00	1219	16.00	406	91	41.3	FIL32-E	2
	FIL38-27	1,875	54	3" NPTM								49.00	1245	16.25	413	120	54.4	FIL32-E	3
	FIL40-29	2,500	72	4" FLG.								52.25	1327	20.00	508	179	81.2	FIL32-E	4
	FIL42-29	3,125	89	4" FLG.								52.25	1327	20.00	508	182	82.6	FIL32-E	5
	FIL44-31	5,000	143	6" FLG.								54.63	1387	24.00	610	271	123	FIL32-E	8
	FIL46-31	6,875	197	6" FLG.								62.56	1589	28.00	711	518	235	FIL32-E	11
	FIL48-31	8,750	250	6" FLG.								62.56	1589	28.00	711	527	239	FIL32-E	14
	FIL50-33	11,875	340	8" FLG.								69.13	1756	33.00	838	709	322	FIL32-E	19
	FIL52-33	16,250	465	8" FLG.								67.94	1726	39.00	991	918	416	FIL32-E	26
	FIL54-35	21,250	608	10" FLG.								70.94	1802	45.88	1165	1412	640	FIL32-E	34

Sizing Correction Factors

To find the maximum flow at pressures other than 100 psig [7 kgf/cm²], multiply the flow by the Correction Factor corresponding to the minimum pressure at the inlet of the filter.
Do not select filters by pipe size; use flow rate and operating pressure.

psig	20	30	40	60	80	100	125	150	175	200	250	300
kgf/cm²	1.4	2.1	2.8	4.2	5.6	7.0	8.8	10.6	12.3	14.1	17.6	21.1
Correction Factor	0.30	0.39	0.48	0.65	0.82	1	1.22	1.43	1.65	1.87	2.31	2.74
