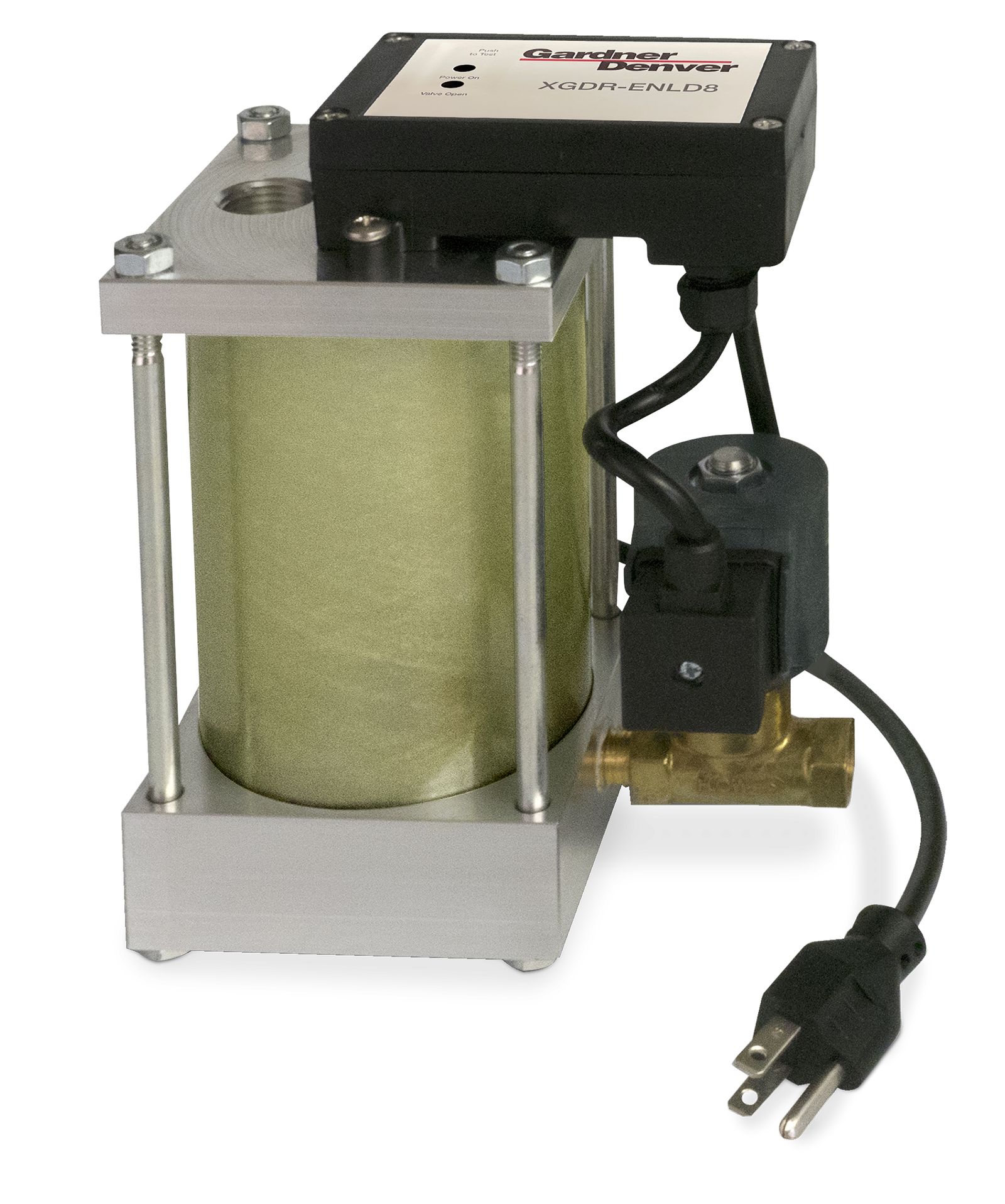

XGDR-ENLD Series Electric Condensate Drain

Electric-Operated Condensate Drain

Condensate enters the drain through one of the two inlet connections. As condensate is collected and the translucent reservoir fills, a stainless steel level switch rises. When the condensate reaches a designated level, the level switch sends a signal to the straight flow posi valve, which in turn opens a full-port drain.

When installed, a light indicates power is being supplied to the drain. A second light indicates when the valve has been actuated by the float switch. An override switch is provided for manual operation of the drain.

Zero air loss

Non-clogging, straight through flow, posi-valve, guillotine-style valve

Vertical, compact design, translucent reservoir

Indicator lights

Multiple sizes

Energy efficient

Passes rust and scale that would foul other solenoid valves, no strainers to clean

Can be installed in tight spaces

Easy to see condensate level "quick check"

Easy to see the status of the drain

Sized for your needs

PART	xgdr-enld8	xgdr-enld21
Inlets	(2) 1/2" npt	3/4" & 1/2" npt
outlet	1/4" npt	1/4" npt
compressor capacity	450 cfm	1125 cfm
dryer capacity	900 cfm	2250 cfm
Filter capacity	2700 cfm	6750 cfm
pressure	0 to 200 psi	0 to 200 psi
operating temp	35° to 180° f	35° to 180° f
weight	5 lbs.	10 lbs.
Discharge	8 ounces per cycle	21 ounces per cycle
