- Minimal air loss
- Efficient bowl size with large quiet zone
- Manual override option
- Metal bowl
- Float type operation

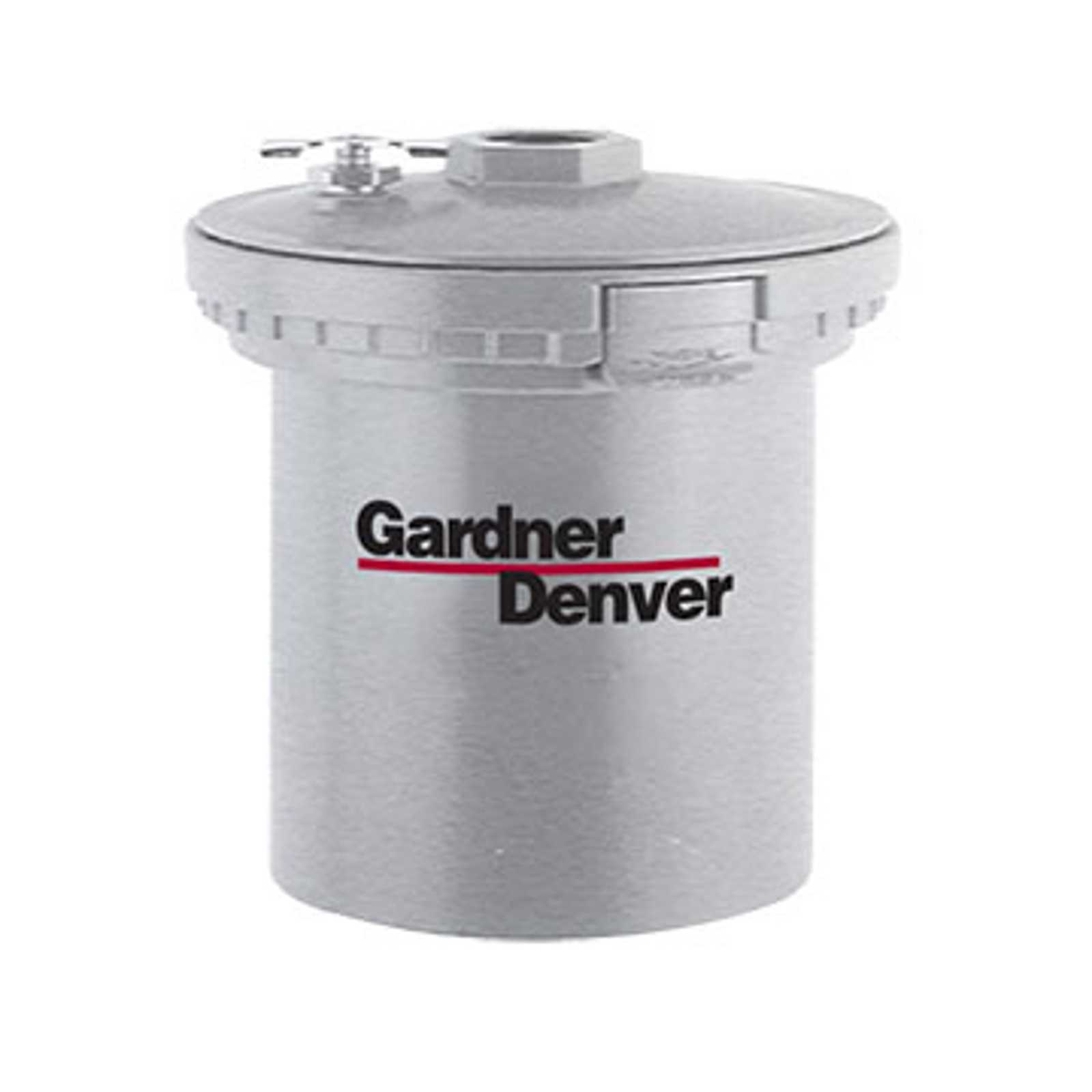

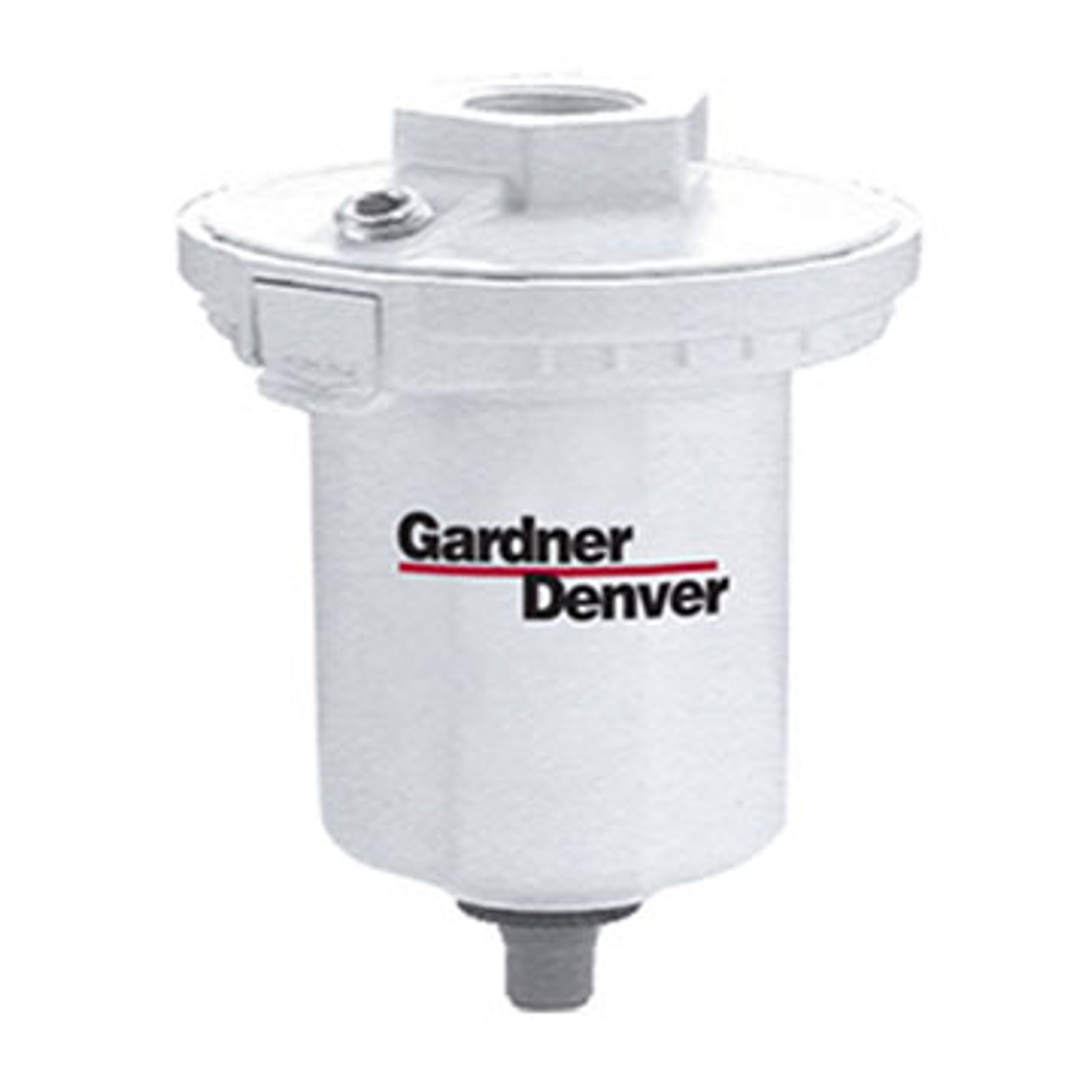

DS1 Series
The DS1 Mechanical Drain is a pnuematically designed drain that automatically removes liquid, oil, and water contaminates from compressed air system components. The design, which includes an efficient bowl size with a large quiet zone allows for no re-entrainment of liquid back into the air system. The metal bowl is also compatible with all compressor lubricants.
- Energy efficient
- No re-entrainment of liquid back into the air system
- Drain on demand
- Compatible with all compressor lubricants and high pressure 200 psig (14 bar)
- No electricity needed
Inlet pipe size | ½" NPT |
Drain connections | ⅛" NPT |
Drain orifice | ⅛" |
Bowl capacity | 5 oz. & 32 oz. |
Maximum drain rate | 1.3 GPM & 2.5 GPM |
Bowl | Zinc |
Float | Plastic with Stainless Steel Internals |
Manual override | Brass |
- Maximum operating pressure - 200 psig (14 bar)
Maximum fluid temperature - 75 °F (79 °C)
