- Pneumatic action
- Non–Magnetic
- No air loss
- Automatic
- 52 oz. Static capacity
- ⅝" Ports
- Self–purging
- Corrosion resistant construction
- Trunion–mounted actuator
- Shear–action ball valve
- Manual bypass button kit

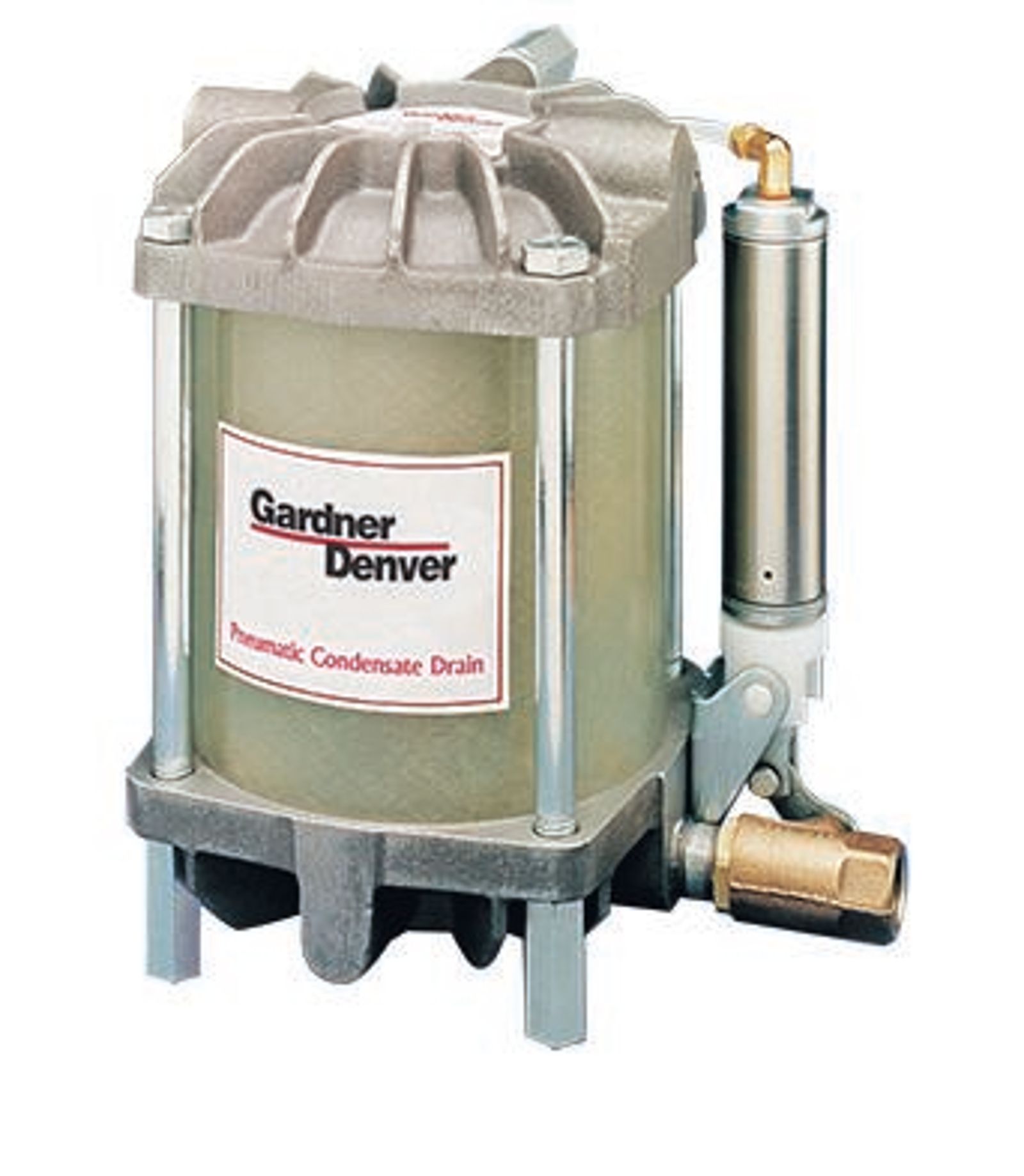

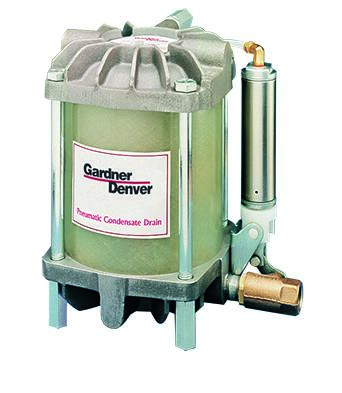

DS2 Series Evacuator
The EvacuatorTM is the most reliable demand drain solution for large condensate loads in a compressed air system. The EvacuatorTM is available in a 52 oz. pneumatically operated version or a 27 oz. or 77 oz. electronically managed system version. The electronically managed system incorporates microprocessor based electronics for self-diagnostics, error correction and host computer communications capabilities.
- Permits installation anywhere without concerns for electrical safety issues
- Means no magnets to attract metallic trash and cause fouling
- Energy efficient
- Operates on demand
- Meets the demands of almost any application and its capacity is 40% more than other models
- Substantially minimizes clogging problems
- Trouble–free / Maintenance–free
- Permits installation in most hostile environments
- Reduces side pressure and wear, while increasing ball valve life
- Ensures durable performance
- Easy and safe maintenance
Specification | Details |
|---|---|
150 psi Evacuator Unit | Part Number: 7003108 |
450 psi Evacuator Unit | Part Number: 7003110 |
Weight | 13 lbs |
Height | 10¼" |
Width | 9 ⅝" |
Depth | 7 ½" |
Voltage | Not required |
Operating Pressure | 150 psi maximum / 450 psi maximum |
Operating Temperature | 34°F to 150°F |
Capacity | 52 oz. static, 42 oz. discharge |
Reservoir Material | Aluminium and composite |
Ball Valve Port | ½" Stainless steel ball stem, double Viton "O" rings, nickel plated brass body |
Installation Kit | ¼ nylon tubing (10"), threaded fittings (2) |
Operating Conditions
- Maximum operating pressure - 200 psig (14 bar)
- High pressure units - 450 psig (31 bar)
Fluid temperature - 34–180° F (1–80° C)
