- 5-15 HP
- Tank-mounted compressor & motor with refrigerated dryer
- The total system solution
- 100-150 psi
- Up to 50.2 cfm

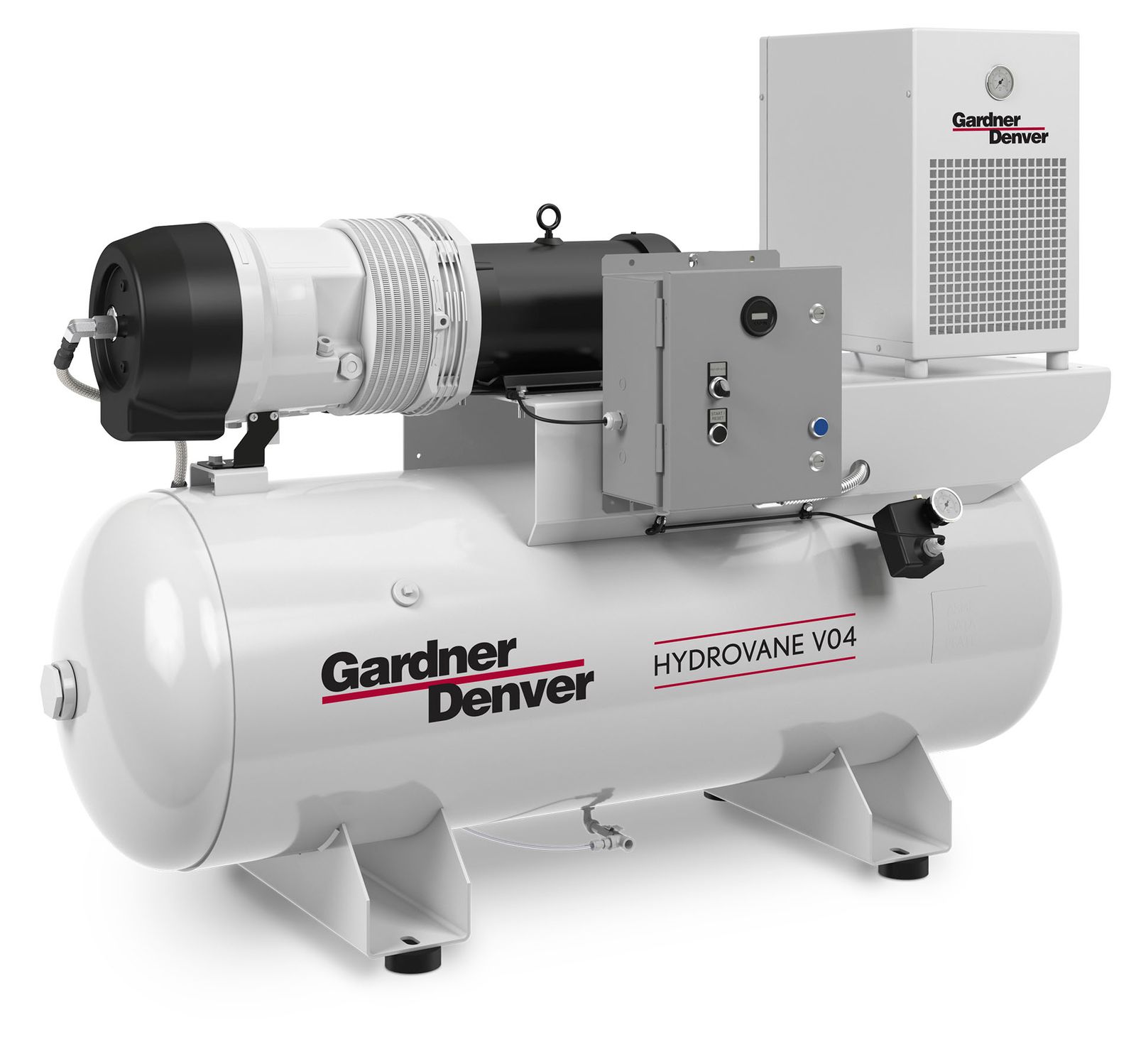

Our popular V/VR Simplex series of rotary vane compressors is available in a packaged solution, complete with a tank-mounted rotary vane compressor and motor with a refrigerated dryer. The Hypac, package solution is available with 5-15 HP, 100-150 psi and up to 50.2 cfm. The V/VR series of Rotary Vane air compressors are engineered to meet the most stringent of specifications. Their compact, simple, robust and integrated design allows them to be fitted anywhere undercover. They are easy to install and maintain as well as extremely quiet.
- Slow Speed Reliability
- Configuration Flexibility
- Low Noise: as low as 65 dBA
- Cost effective and low energy costs
- Ideal for 100% Duty Cycle Applications

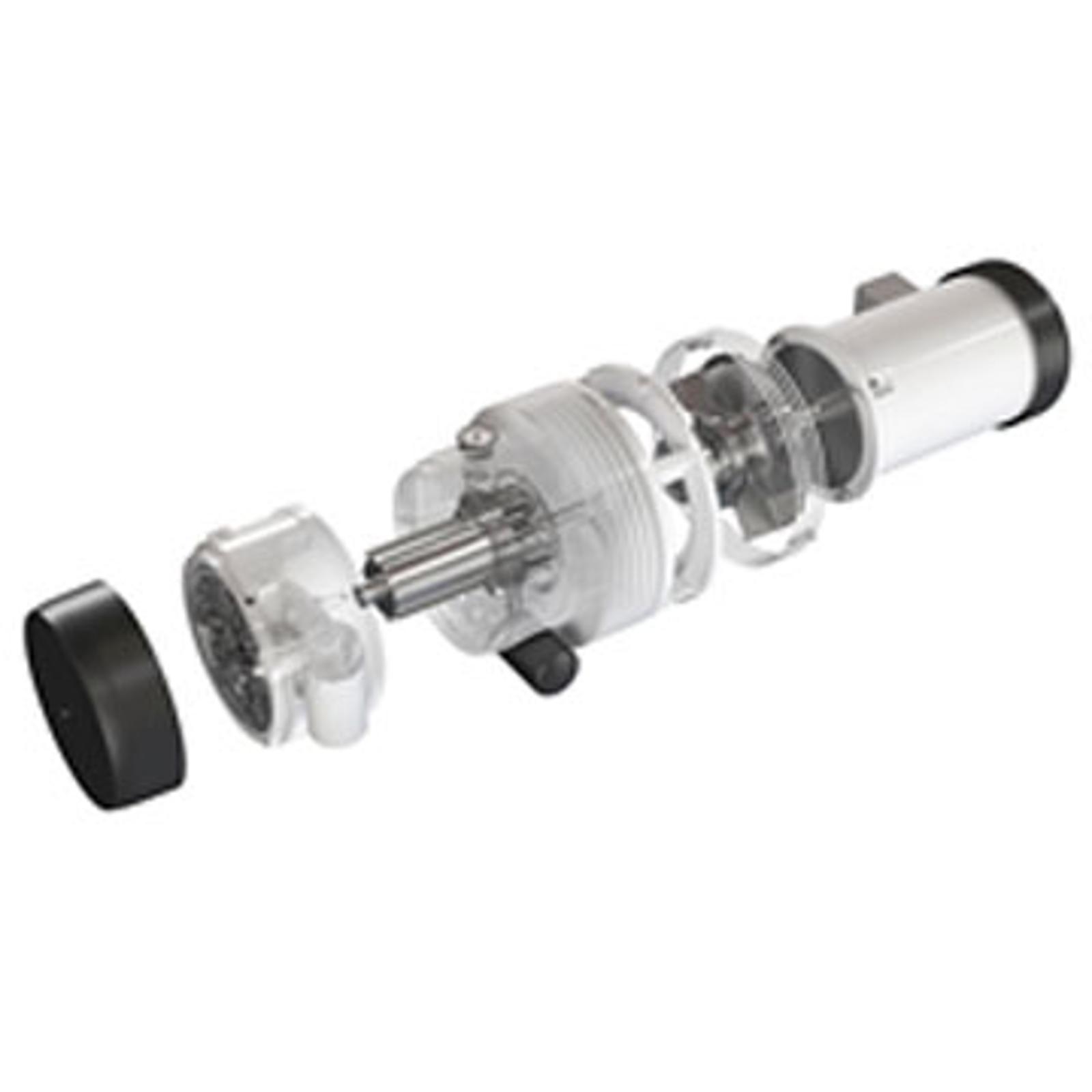

The performance of hydrovane improves overtime once parts are bedded within the rotary stator unit, reducing power and energy costs. Allowing up to 100,000+ operating hours with no expensive airend change.
HP | kW | Model | Voltage/Phase | PSIG | Mounting Config | Tank Style | Tank Cap. | CFM @ 100 PSIG | CFM @ 150 PSIG | Noise Level | Air Outlet | Oil Cap. | Dimensions | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
| Gal |
|
| dBA | NPT | Gal | L | W | H |
2 | 1 | V01PUTS | 115/208-230 1 Ph 208-230/460 3 Ph | 100/150 | Tripod | N/A | N/A | 6.3 | 4.5 | 65 | .50” | 0.3 | 28.6 | 18.5 | 10.6 |

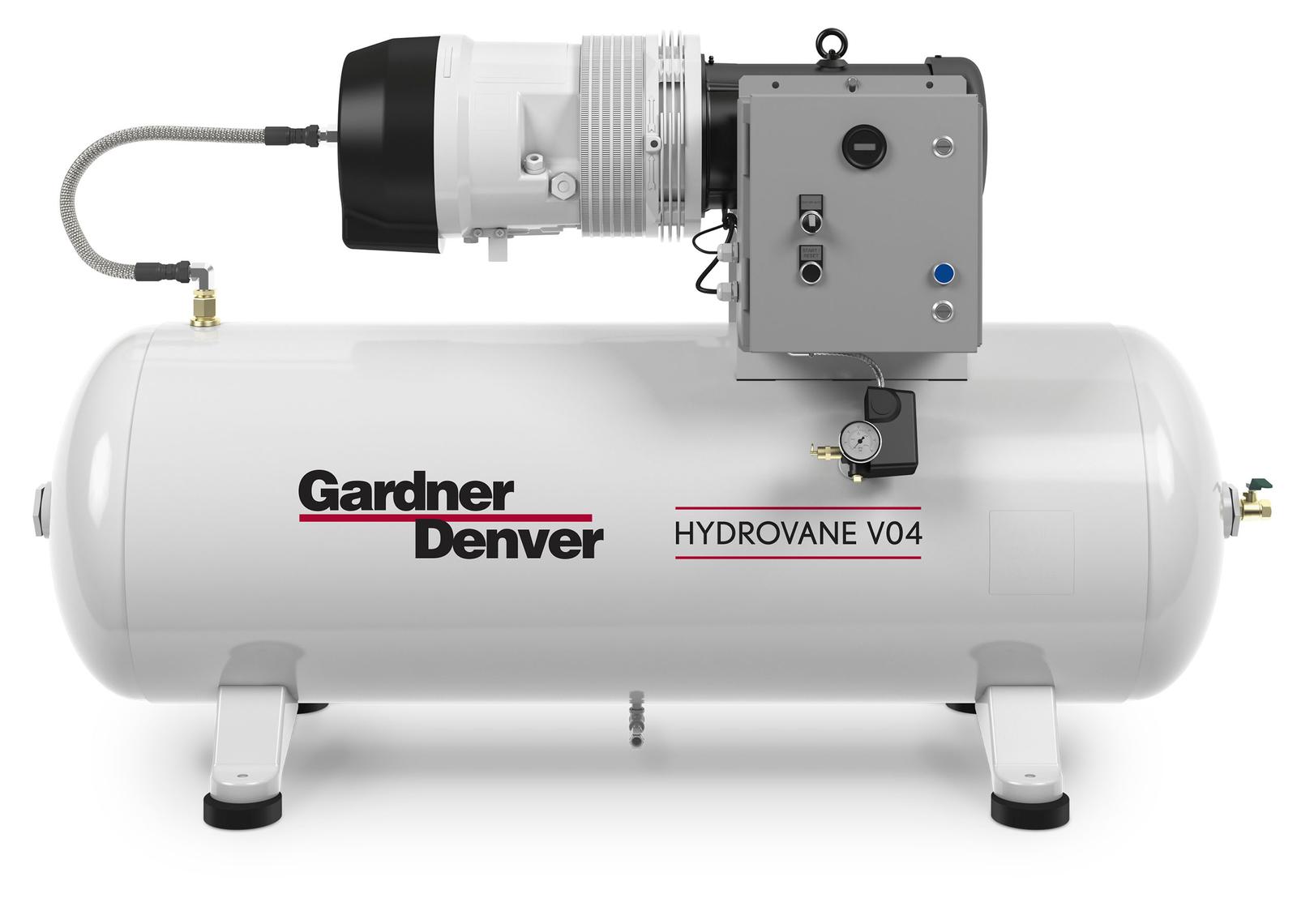

5 | 4 | V04PURVS-8 | 208-230 1 Ph 208-230/460/575 3 Ph | 100/150 | Tank | Vert. | 80 | 19.5 | 16 | 72 | .50” | 0.5 | 36.9 | 27.1 | 65.3 |
V04PURHS-8 | 208-230 1 Ph 208-230/460/575 3 Ph | 100/150 | Tank | Horiz. | 80 | 19.5 | 16 | 72 | .50” | 0.5 | 67.1 | 25.0 | 39.1 | ||
V04 hypac | 208-230 1 Ph 208-230/460/575 3 Ph | 100 150 | hypac | Horiz. | 80 | 19.5 N/A | N/A 16 | 72 | .50” | 0.5 | 65.1 | 31.4 | 51.4 49.2 | ||
100 150 | hypac | Horiz. | 120 | 19.5 N/A | N/A 16 | 72 | .50” | 0.5 | 69.5 | 31.4 | 56.1 53.7 | ||||
100 150 | hypac | Horiz. | 240 | 19.5 N/A | N/A 16 | 72 | .50” | 0.5 | 86.1 | 32.9 | 63.0 60.5 | ||||

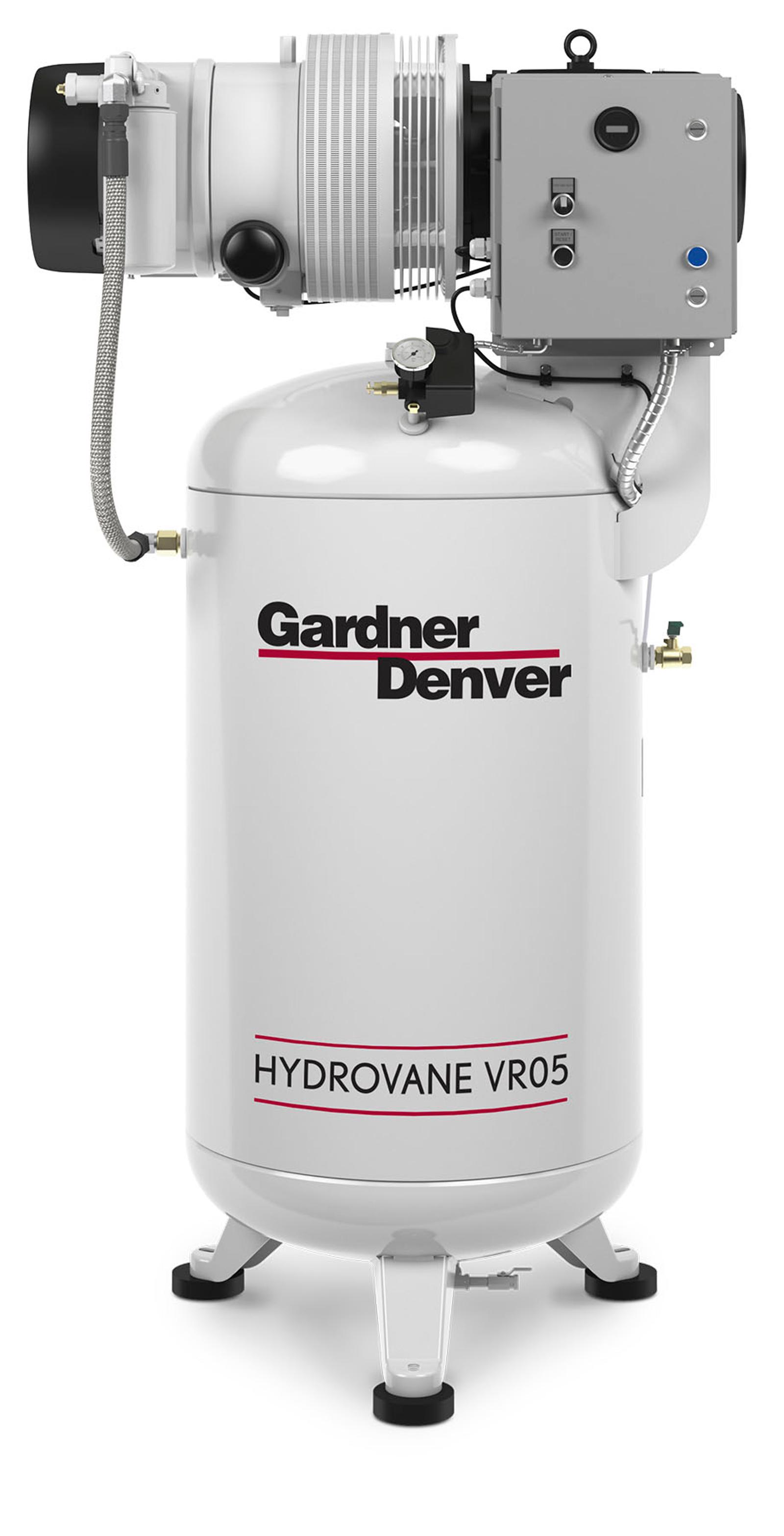

7.5 | 5 | VR05PURVS-8 | 208-230 1 Ph 208-230/460/575 3 Ph | 100/150 | Tank | Vert. | 80 | 26.3 | 22.2 | 74 | .75” | 1 | 37.3 | 27.1 | 67.3 |
VR05PURHS-8 | 208-230 1 Ph 208-230/460/575 3 Ph | 100/150 | Tank | Horiz. | 80 | 26.3 | 22.2 | 74 | .75” | 1 | 67.1 | 25.0 | 41.1 | ||
VR05PURHS-12 | 208-230 1 Ph 208-230/460/575 3 Ph | 100/150 | Tank | Horiz. | 120 | 26.3 | 22.2 | 74 | .75” | 1 | 71.5 | 27.3 | 46.6 | ||
VR05 hypac | 208-230 1 Ph 208-230/460/575 3 Ph | 100 150 | hypac | Horiz. | 80 | 26.3 N/A | N/A 22.2 | 74 | .75” | 1 | 65.1 65.1 | 31.5 31.5 | 51.4 49.2 | ||
100 150 | hypac | Horiz. | 120 | 26.3 N/A | N/A 22.2 | 74 | .75” | 1 | 69.5 69.5 | 31.4 31.4 | 55.9 53.7 | ||||
100 150 | hypac | Horiz. | 240 | 26.3 N/A | N/A 22.2 | 74 | .75” | 1 | 86.1 86.1 | 33.8 33.8 | 62.8 60.5 | ||||
10 | 7 | VR07PURHS-8 | 208-230/460/575 3 Ph | 100/150 | Tank | Horiz. | 80 | 36.4 | 28.7 | 74 | .75” | 1 | 67.1 | 25.0 | 41.1 |
VR07PURHS-12 | 208-230/460/575 3 Ph | 100/150 | Tank | Horiz. | 120 | 36.4 | 28.7 | 74 | .75” | 1 | 71.5 | 27.3 | 46.6 | ||
VR07 hypac | 208-230/460/575 3 Ph | 100 150 | hypac | Horiz. | 80 | 36.4 N/A | N/A 28.7 | 74 | .75” | 1 | 65.1 65.1 | 31.5 31.5 | 62.7 49.2 | ||
100 150 | hypac | Horiz. | 120 | 36.4 N/A | N/A 28.7 | 74 | .75” | 1 | 69.5 69.5 | 31.4 31.4 | 68.7 53.7 | ||||
100 150 | hypac | Horiz. | 240 | 36.4 N/A | N/A 28.7 | 74 | .75” | 1 | 86.1 86.1 | 33.8 33.8 | 75.5 60.5 | ||||
15 | 11 | V11 hypac | 208-230/460/575 3 Ph | 100/150 | hypac | Horiz. | 120 | 50.2 | 47.6 | 76 | .75" | 1.5 | 69.5 | 35.0 | 55.9 |

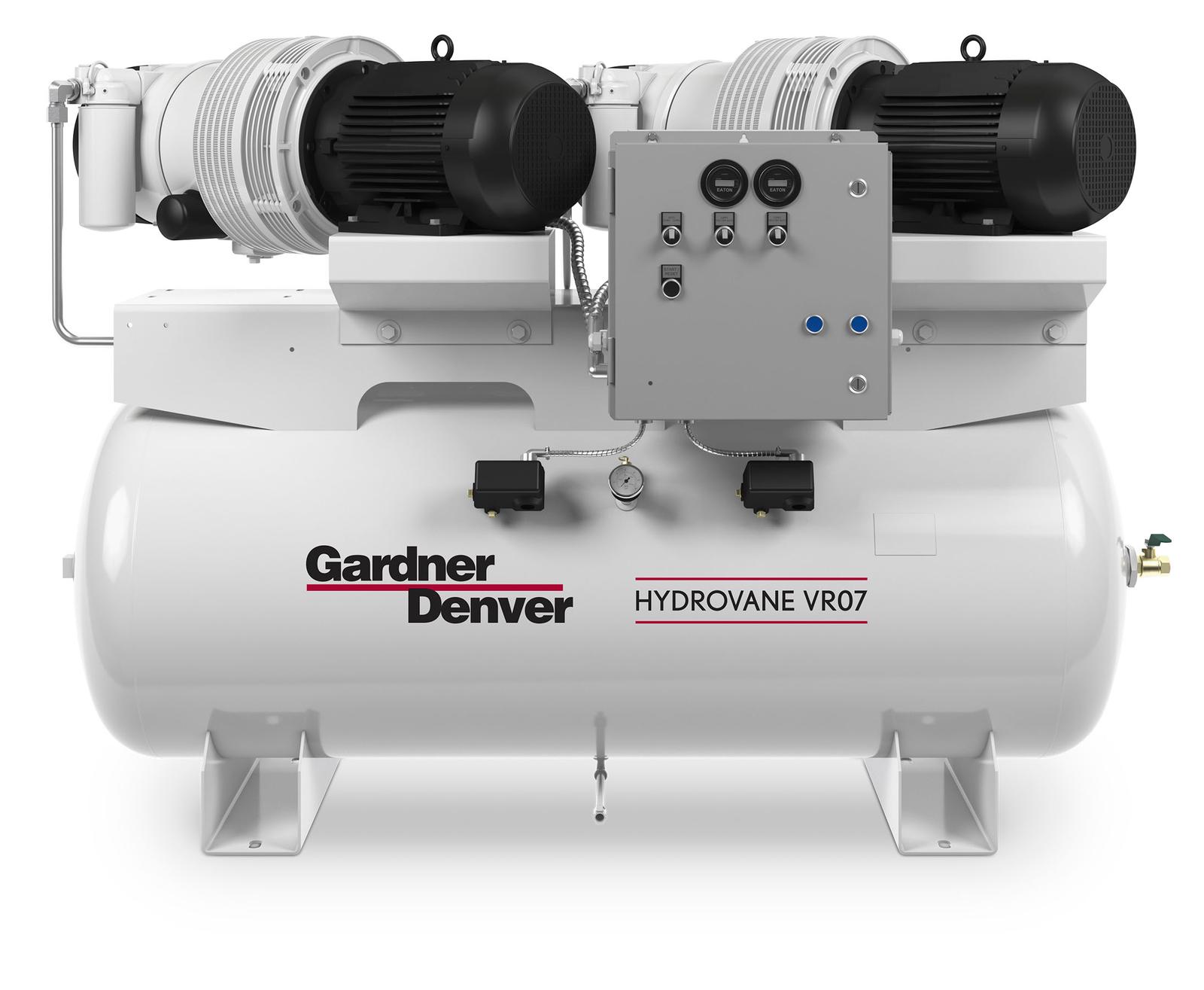

V/VR Series: Duplex*
HP | kW | Model | Voltage/Phase | PSIG | Mounting Config | Tank Style | Tank Cap. | CFM @ 100 PSIG | CFM @ 150 PSIG | Noise Level | Air Outlet | Oil Cap. | Dimensions | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
| Gal |
|
| dBA | NPT | Gal | L | W | H |
5 | 4 | V04PDRHS-12 | 208-230 1 Ph 208-230/460/575 3 Ph | 100/150 | Tank | Horiz. | 120 | 39 | 32 | 72 | .50” | 1 | 76.0 | 27.4 | 48.0 |
7.5 | 5 | VR05PDRHS-12 | 208-230 1 Ph 208-230/460/575 3 Ph | 100/150 | Tank | Horiz. | 120 | 52.6 | 44.4 | 74 | .75” | 1 | 76.1 | 32.0 | 49.8 |
10 | 7 | VR07PDRHS-12 | 208-230/460/575 3 Ph | 100/150 | Tank | Horiz. | 120 | 72.8 | 57.4 | 74 | .75” | 1 | 76.1 | 32.0 | 49.8 |
*All of the above models (V/VR) include a starter.
