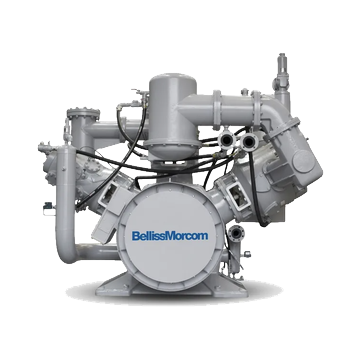

WH Compressors (WH28 – WH50)

Gardner Denver WH Series industrial high-pressure air compressors are high-pressure application compressors designed with an engineering-first approach: to deliver critical compressed air with consistent performance, real energy efficiency and defensible TCO.

High-pressure reciprocating compressors with shaftless motor

Shaftless motor compressors eliminate mechanical transmission losses, delivering 100% motor-to-crankshaft efficiency. No belts, no intermediate gears, no associated wear — zero transmission loss compressors by design.

3-stage double-acting compressors in W configuration

3-stage double-acting reciprocating design: the piston compresses on both upstroke and downstroke. The W configuration enables dynamic balancing, reduces piston ring load by up to 30% and virtually eliminates external vibrations.

Water-cooled compressors for continuous operation

IP56-protected water-cooled motor with efficiency above 97.1%. Self-contained system that reduces radiated heat to the compressor room, operates in harsh environments and virtually eliminates maintenance associated with forced ventilation.

Optimized total cost of ownership

• Compressors with low total cost of ownership
• 3-stage design with only 18 valves (vs. 36 in adapted 4-stage compressors)
• 40-year design life — 40-year lifespan compressors
• Defensible TCO without premium brand markup

High energy efficient compressors

• Up to 12% less energy consumption vs. belt-driven compressors
• Shaftless motor with 100% transmission efficiency
• Heat recovery compressor systems with 22-30% dissipated energy savings
• Reduce compressor energy consumption from the design stage

Class 0 oil-free compressed air

• Contamination-free air, verified as Class 0 per ISO 8519-1
• ISO 8519-1 compliance for compressed air quality
• FDA and GMP compliant compressors for regulated industries
• Auditable compliance from first installation

Guaranteed operational uptime

• Continuous operation compressors, shift after shift
• Local service and spare parts across Mexico and Latin America
• Fixed-cost preventive maintenance contracts
• Maximum uptime with 24/7/365 support

Applied engineering compressed air

• Native design for 40 barg operation (not adapted from another application)

• Selected materials with service life exceeding recommended maintenance intervals

• Integration with the Gardner Denver compressed air and treatment portfolio

• Honest engineering serving real performance

Technology and performance

• 3-stage double-acting high-pressure reciprocating compressors
• IP56 shaftless motor with efficiency above 97.1%
• Up to 45 barg pressure / 650 psig
• Capacity from 1,680 to 3,200 m³/h FAD @ 40 barg
• Power from 258 to 505 kW / 346 to 677 HP

Design and configuration

• W configuration with dynamic balancing
• Cylinders inclined at 60 degrees from horizontal
• Profiled HP valves with anti-rotation (range -200°C to 220°C)
• Installation with only 4 anti-vibration mounts (AVM), no special foundations

Operation and control

• VSD capacity control: 3 steps (0 – 50% – 100%) + optional VSD from 30% to 100%
• Intuitive HMI with pressure, load, hours and start monitoring
• Compatibility with AirPET multi-compressor systems (up to 30 units)
• Available options: acoustic enclosure <70 dB(A), heat recovery, air recovery

Key industries

• High-pressure compressors for PET blowing (bottled water, soft drinks, juices, personal care)
• Compressors for industrial autoclaves (automotive, aerospace, aviation, electronics)
• Compressors for high-precision industrial laser cutting
• Compressors for hydroelectric power in pumped-storage plants
• Compressors for chemical and pharmaceutical industry with Class 0 air
