The EnviroAire S series oil-free scroll compressors are fixed speed, single stage, 100% oil-free compressors from 3 -10 hp (per pump). Scroll packages have been designed specifically for industrial, laboratory, and medical applications in a variety of configurations. The EnviroAire S scroll systems meet current CSA standards, are NFPA 99 code compliant, and are offered in several designated flow designs.

EnviroAire S series oil-free scroll compressors offer many standard features as well as optional features designed to meet your requirements and exceed your expectations.

5 Micron industrial-grade intake filters
ASME-coded receiver
Premium efficient TEFC motor
Integral air end cooling fan
Air-cooled aftercooler
Automatic moisture drain
Moisture separator
Deluxe HMI Controller (optional)
50/60 Hz
3-10 HP per pump (3-40 HP total package)
116 or 140 PSI
100% Oil-Less, 100% Duty Cycle

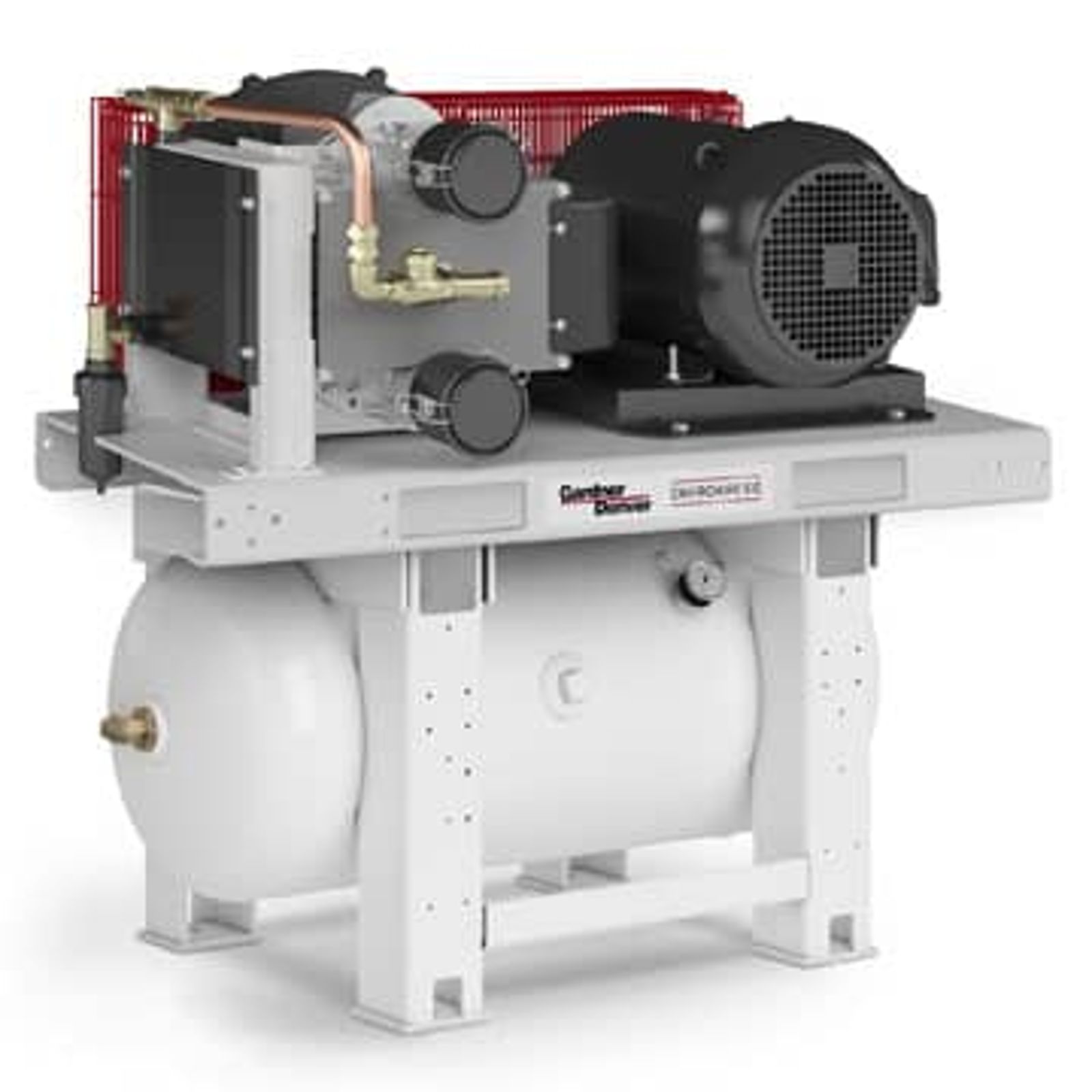

Simplex base mount or tank mount
Duplex, Triplex, Quadraplex base mount stacked frames

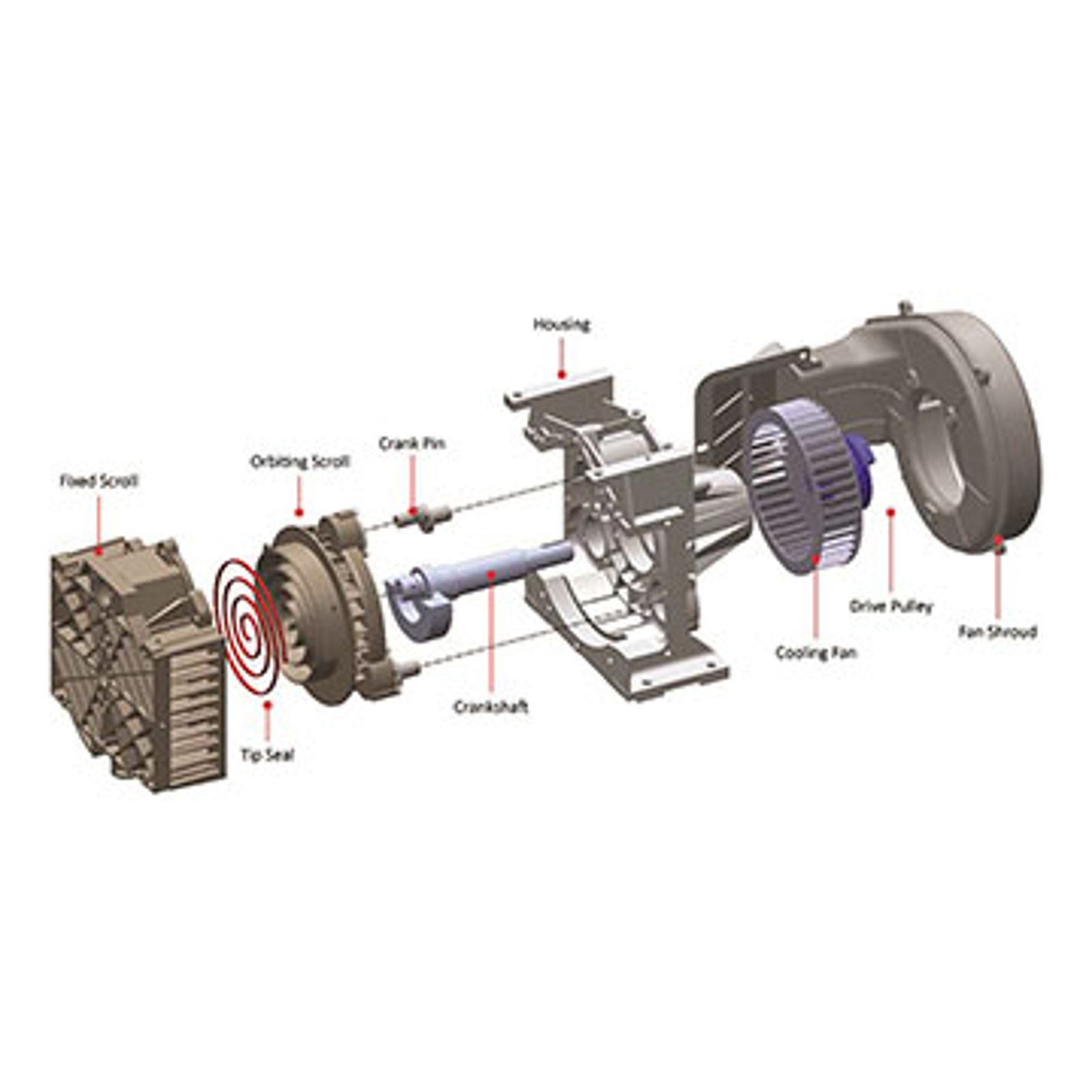

Scroll Compression Explained

An orbiting (rotating) scroll and fixed scroll housing are mated to create the compression chambers. The continual movement of the orbiting scroll moves atmospheric air from the intake toward the centre, compressing the air into progressively smaller areasThe compressed air is directed to the centre discharge port of the compressor. Discharge pressure is accomplished during multiple stages of compression, resulting in a continuous intake suction and discharge

Why oil-free? Don't compromise on quality

The EnviroAire S Series oil-free scroll air compressors from Gardner Denver set the standards for air purity. These oil-free scroll compressors are ISO 8573-1 ClassO compliant. Offering not only 100% oil-free air but also improved energy efficiency, these compressors are made to meet the precise needs of a diverse range of industries.

Why Oil-FreeScroll Systems?

Rotary scroll compressor technology is popular because of the minimal preventative maintenance required, moderate time periods between the maintenance intervals, and fewermoving parts than other technologies like reciprocating or screw. All maintenance procedures can be performed in the field at a very economical cost to your customer.

Gardner Denver designed the EnviroAireS scroll compressor package to meet the strict requirements for contaminant-free, oil-free, clean air applications. The scroll compressor range starts with Simplex units at 4, 6 and 8 kW and the Duplex units with 7, 11 and 15 kW. The compressor design features a very clean, simple and serviceable layout.

Benefits at a Glance

Oil-Free/Contaminant Free Air
Continuous Operation, 100% Duty Cycle
Low Sound Levels
Low Vibration
Compact Footprint
Fewer Moving Parts
High Efficiency

Bare Airend

Model	DIMENSIONS L × W × H IN.	Approx. Ship Weight lbs
SC3-5	13.6 × 14.7 × 11.4	45
SC5	13.6 × 14.7 × 11.4	45
SC7	16.3 × 16.1 × 13.9	61
SC10	16.8 × 16.8 × 13.9	62

INDUSTRIAL S SERIES

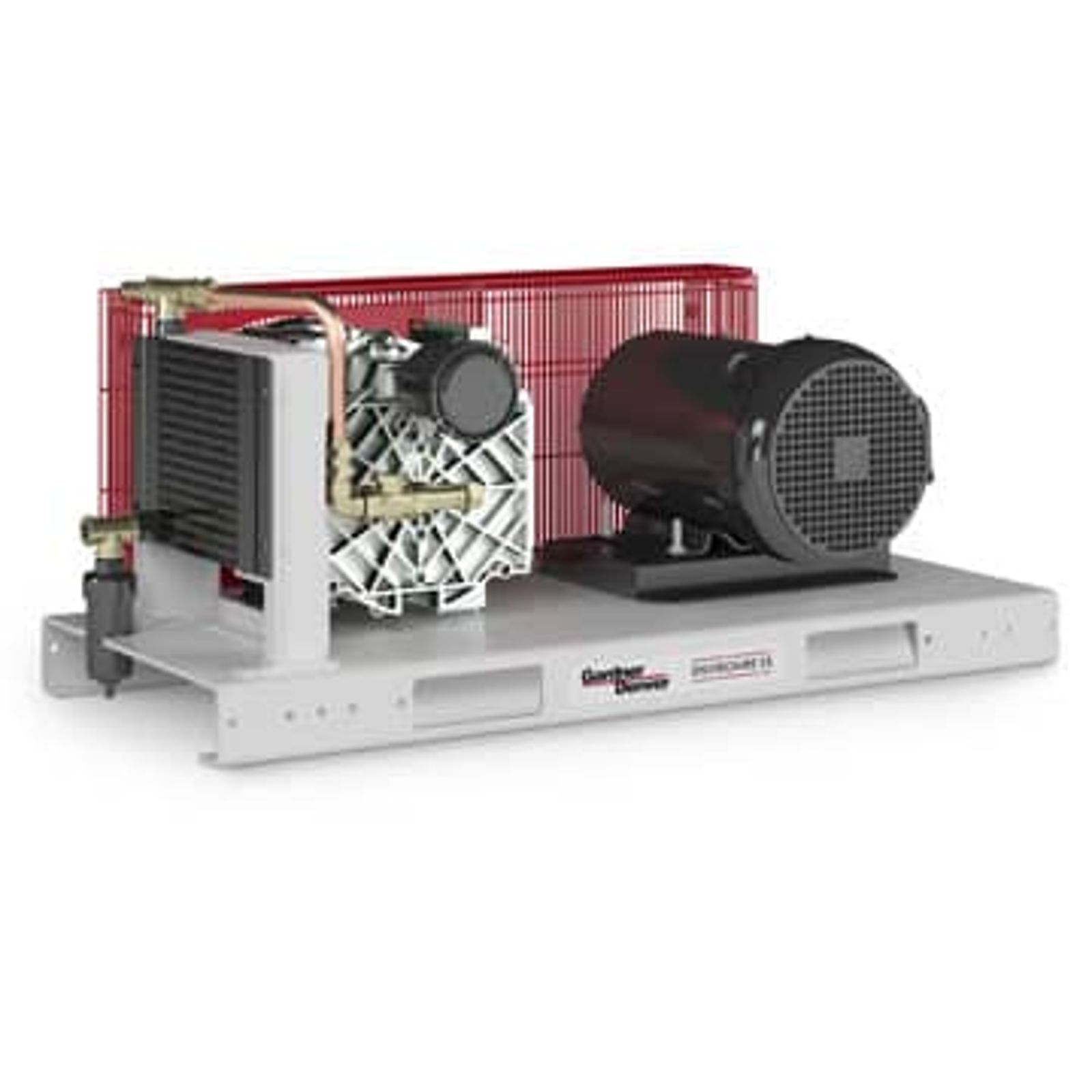

SIMLEX

Motor HP	Base or Tank Capacity Gal.	IDENTIFICATION NUMBER	DIMENSIONS L × W × H IN.	Approx. Ship Weight lbs	116 PSI Rating		140 PSI Rating
Motor HP	Base or Tank Capacity Gal.	IDENTIFICATION NUMBER	DIMENSIONS L × W × H IN.	Approx. Ship Weight lbs	RPM	ACFM	RPM	ACFM
3	Base	BENVS3	38 × 21 × 17	260	2200	9.2	1950	7.6
3	30	HENVS3-3	43 × 24 × 38	535	2200	9.2	1950	7.6
3	80	HENVS3-8	67 × 24 × 42	660	2200	9.2	1950	7.6
3	120	HENVS3-12	71 × 27 × 46	760	2200	9.2	1950	7.6
5	Base	BENVS5	38 × 21 × 17	260	3100	13.9	2900	12.5
5	30	HENVS5-3	43 × 24 × 38	535	3100	13.9	2900	12.5
5	80	HENVS5-8	67 × 24 × 42	660	3100	13.9	2900	12.5
5	120	HENVS5-12	71 × 27 × 46	760	3100	13.9	2900	12.5
7.5	Base	BENVS7	38 × 21 × 17	340	3340	22.1	2650	16
7.5	30	HENVS7-3	43 × 24 × 38	615	3340	22.1	2650	16
7.5	80	HENVS7-8	67 × 24 × 42	740	3340	22.1	2650	16
7.5	120	HENVS7-12	71 × 27 × 46	840	3340	22.1	2650	16
10	Base	BENVS10	38 × 21 × 17	375	3750	31.6	3216	25.3
10	30	HENVS10-3	43 × 24 × 38	650	3750	31.6	3216	25.3
10	80	HENVS10-8	67 × 24 × 42	775	3750	31.6	3216	25.3
10	120	HENVS10-12	71 × 27 × 46	875	3750	31.6	3216	25.3

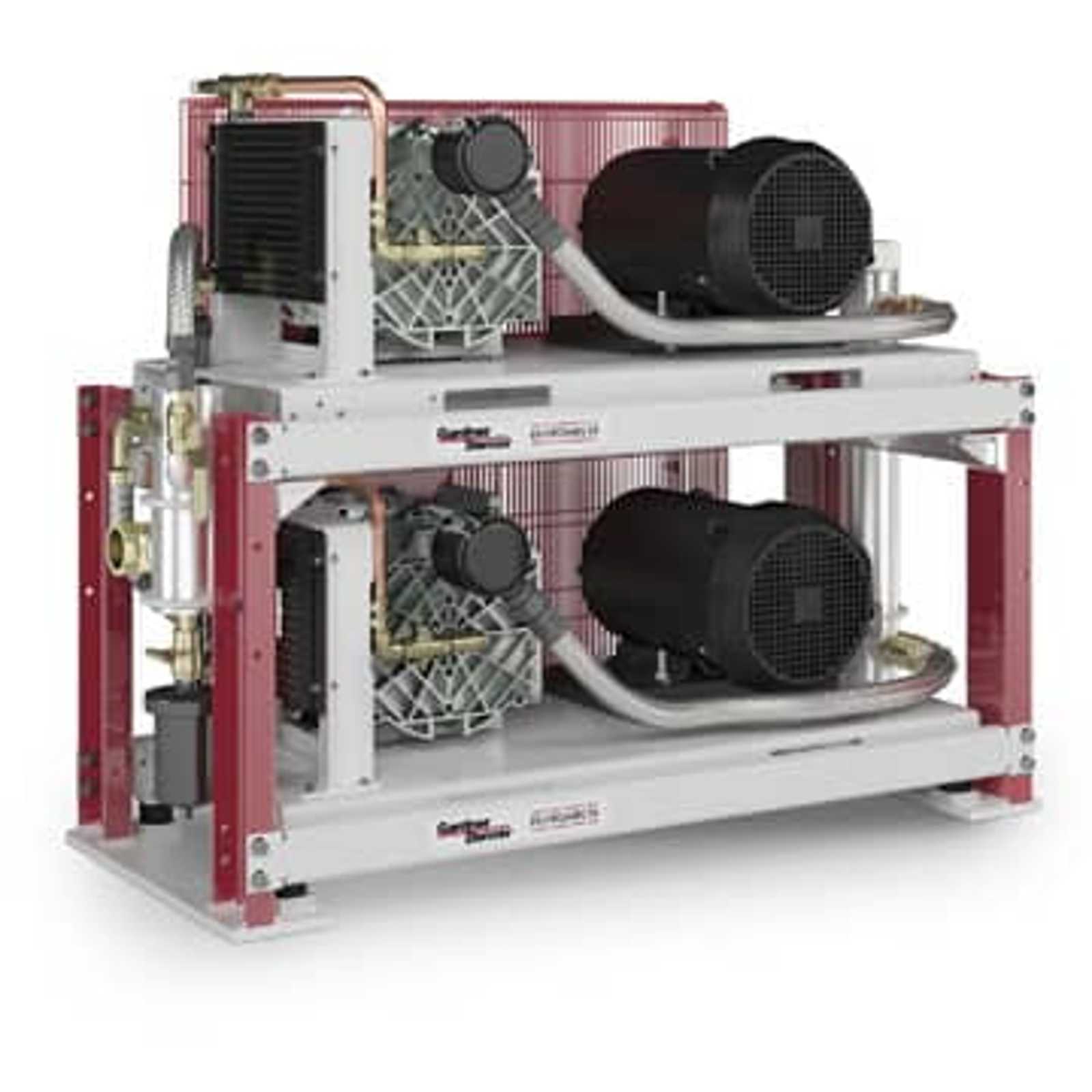

DUPLEX

Motor HP	Base or Tank Capacity Gal.	IDENTIFICATION NUMBER	DIMENSIONS L × W × H IN.	Approx. Ship Weight lbs	116 PSI Rating		140 PSI Rating
Motor HP	Base or Tank Capacity Gal.	IDENTIFICATION NUMBER	DIMENSIONS L × W × H IN.	Approx. Ship Weight lbs	RPM	ACFM	RPM	ACFM
5	Base	BENVSD	48 × 22 × 36.5	713	3100	27.8	2900	25
5	80	HENVS5D-8	65 × 26 × 61.5	1110	3100	27.8	2900	25
5	120	HENVS5D-12	69 × 27 × 65.5	1210	3100	27.8	2900	25
5	240	HENVS5D-24	86 × 33 × 71.5	1430	3100	27.8	2900	25
7.5	Base	BENVS7D	48 × 22 × 36.5	873	3340	44.2	2650	32
7.5	80	HENVS7D-8	65 × 26 × 61.5	1270	3340	44.2	2650	32
7.5	120	HENVS7D-12	69 × 27 × 65.5	1370	3340	44.2	2650	32
7.5	240	HENVS7D-24	86 × 33 × 71.5	1590	3340	44.2	2650	32
10	Base	BENVS10D	48 × 22 × 36.5	943	3750	63.2	3216	50.6
10	80	HENVS10D-8	65 × 26 × 61.5	1340	3750	63.2	3216	50.6
10	120	HENVS10D-12	69 × 27 × 65.5	1440	3750	63.2	3216	50.6
10	240	HENVS10D-24	86 × 33 × 71.5	1660	3750	63.2	3216	50.6

Simplex CFM values are doubled for duplex units. Duplex units have two motors and two pumps on one base/tank.

TRIPLEX

Motor HP	Base or Tank Capacity Gal.	IDENTIFICATION NUMBER	DIMENSIONS L × W × H IN.	Approx. Ship Weight lbs	116 PSI Rating		140 PSI Rating
Motor HP	Base or Tank Capacity Gal.	IDENTIFICATION NUMBER	DIMENSIONS L × W × H IN.	Approx. Ship Weight lbs	RPM	ACFM	RPM	ACFM
5	Base	BENVS5T	48 × 22 × 54.5	1062	3100	41.7	2900	37.5
7.5	Base	BENVS7T	48 × 22 × 54.5	1302	3340	66.3	2650	48
10	Base	BENVS10T	48 × 22 × 54.5	1407	3750	94.8	3216	75.9

Simplex CFM values are tripled for triplex units. Triplex units have three airends and three motors stacked on a common base.

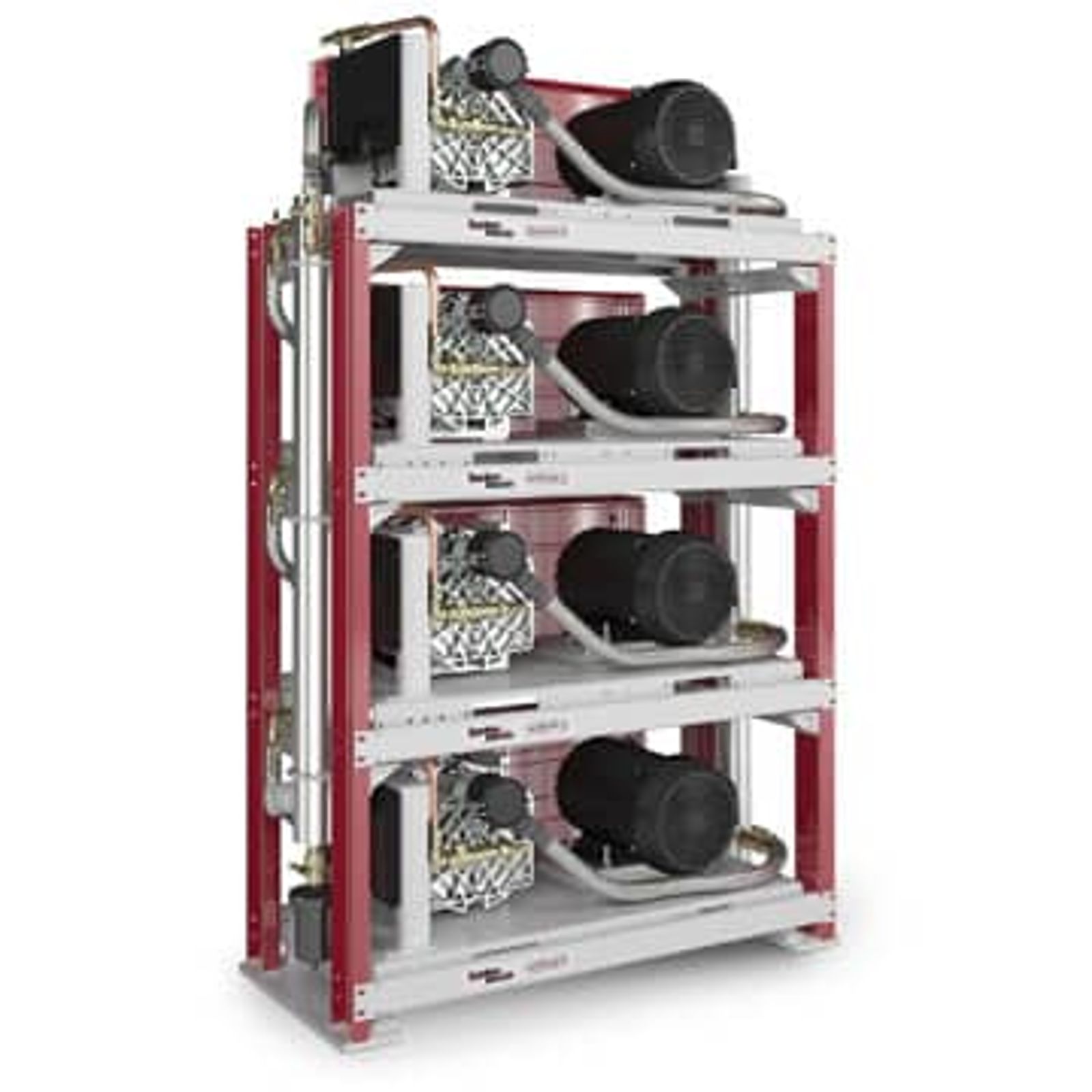

QUADRAPLEX

Motor HP	Base or Tank Capacity Gal.	IDENTIFICATION NUMBER	DIMENSIONS L × W × H IN.	Approx. Ship Weight lbs	116 PSI Rating		140 PSI Rating
Motor HP	Base or Tank Capacity Gal.	IDENTIFICATION NUMBER	DIMENSIONS L × W × H IN.	Approx. Ship Weight lbs	RPM	ACFM	RPM	ACFM
5	Base	BENVS5Q	48 × 22 × 72	1415	3100	55.6	2900	50
7.5	Base	BENVS7Q	48 × 22 × 72	1735	3340	88.4	2650	64
10	Base	BENVS10Q	48 × 22 × 72	1875	3750	126.4	3216	101.2

Simplex CFM values are quadrupled for Quadraplex units. Quadraplex units have four airends and four motors stacked on a common base.

MEDICAL S SERIES

DUPLEX

Motor HP	Base or Tank Capacity Gal.	IDENTIFICATION NUMBER	DIMENSIONS L × W × H IN.	Approx. Ship Weight lbs	116 PSI Rating		140 PSI Rating
Motor HP	Base or Tank Capacity Gal.	IDENTIFICATION NUMBER	DIMENSIONS L × W × H IN.	Approx. Ship Weight lbs	RPM	ICFM	RPM	ICFM
5	Base	BENVS5D-M	72 × 48 × 43.5	1124	3100	14.1	2900	12.7
5	80	HENVS5D-8-M	65 × 34 × 61.5	1400	3100	14.1	2900	12.7
5	120	HENVS5D-12-M	69 × 34 × 65.5	1500	3100	14.1	2900	12.7
5	240	HENVS5D-24-M	86 × 40 × 71.5	1700	3100	14.1	2900	12.7
7.5	Base	BENVS7D-M	72 × 48 × 51	1240	3340	22.4	2650	16.2
7.5	80	HENVS7D-8-M	65 × 34 × 61.5	1400	3340	22.4	2650	16.2
7.5	120	HENVS7D-12-M	69 × 34 × 65.5	1500	3340	22.4	2650	16.2
7.5	240	HENVS7D-24-M	86 × 40 × 71.5	1700	3340	22.4	2650	16.2
10	Base	BENVS10D-M	73 × 48 × 53.5	1322	3750	32.3	3216	27.8
10	80	HENVS10D-8-M	65 × 34 × 61.5	1400	3750	32.3	3216	27.8
10	120	HENVS10D-12-M	69 × 34 × 65.5	1500	3750	32.3	3216	27.8
10	240	HENVS10D-24-M	86 × 40 × 71.5	1700	3750	32.3	3216	27.8

Duplex units have two motors and two pumps on one base/tank. Performance based on full system operation with one compressor in reserve per NFPA 99.

TRIPLEX

Motor HP	Base or Tank Capacity Gal.	IDENTIFICATION NUMBER	DIMENSIONS L × W × H IN.	Approx. Ship Weight lbs	116 PSI Rating		140 PSI Rating
Motor HP	Base or Tank Capacity Gal.	IDENTIFICATION NUMBER	DIMENSIONS L × W × H IN.	Approx. Ship Weight lbs	RPM	ICFM	RPM	ICFM
5	Base with 80 Remote	BENVS5T-M	129 × 48 × 69	2238	3100	28.2	2900	25.4
7.5	Base with 80 Remote	BENVS7T-M	129 × 48 × 69	2551	3340	44.8	2650	32.4
10	Base with 80 Remote	BENVS10T-M	129 × 48 × 69	2567	3750	64.6	3216	55.6

Triplex units have three airends and three motors stacked on a common base. Performance based on full system operation with one compressor in reserve per NFPA 99.
Optional larger 120 or 240 gallon remote tanks available.

QUADRAPLEX

Motor HP	Base or Tank Capacity Gal.	IDENTIFICATION NUMBER	DIMENSIONS L × W × H IN.	Approx. Ship Weight lbs	116 PSI Rating		140 PSI Rating
Motor HP	Base or Tank Capacity Gal.	IDENTIFICATION NUMBER	DIMENSIONS L × W × H IN.	Approx. Ship Weight lbs	RPM	ICFM	RPM	ICFM
5	Base with 80 Remote	BENVS5Q-M	129 × 48 × 69	3011	3100	42.3	2900	38.1
7.5	Base with 80 Remote	BENVS7Q-M	129 × 48 × 69	3267	3340	67.2	2650	48.6
10	Base with 80 Remote	BENVS10Q-M	129 × 70 × 69	3544	3750	96.9	3216	83.4

Quadraplex units have four airends and four motors stacked on a common base. Performance based on full system operation with one compressor in reserve per NFPA 99.
Optional larger 120 or 240 gallon remote tanks available.
