HOC Adsorption Dryer Gardner Denver

HOC Adsorption Dryer

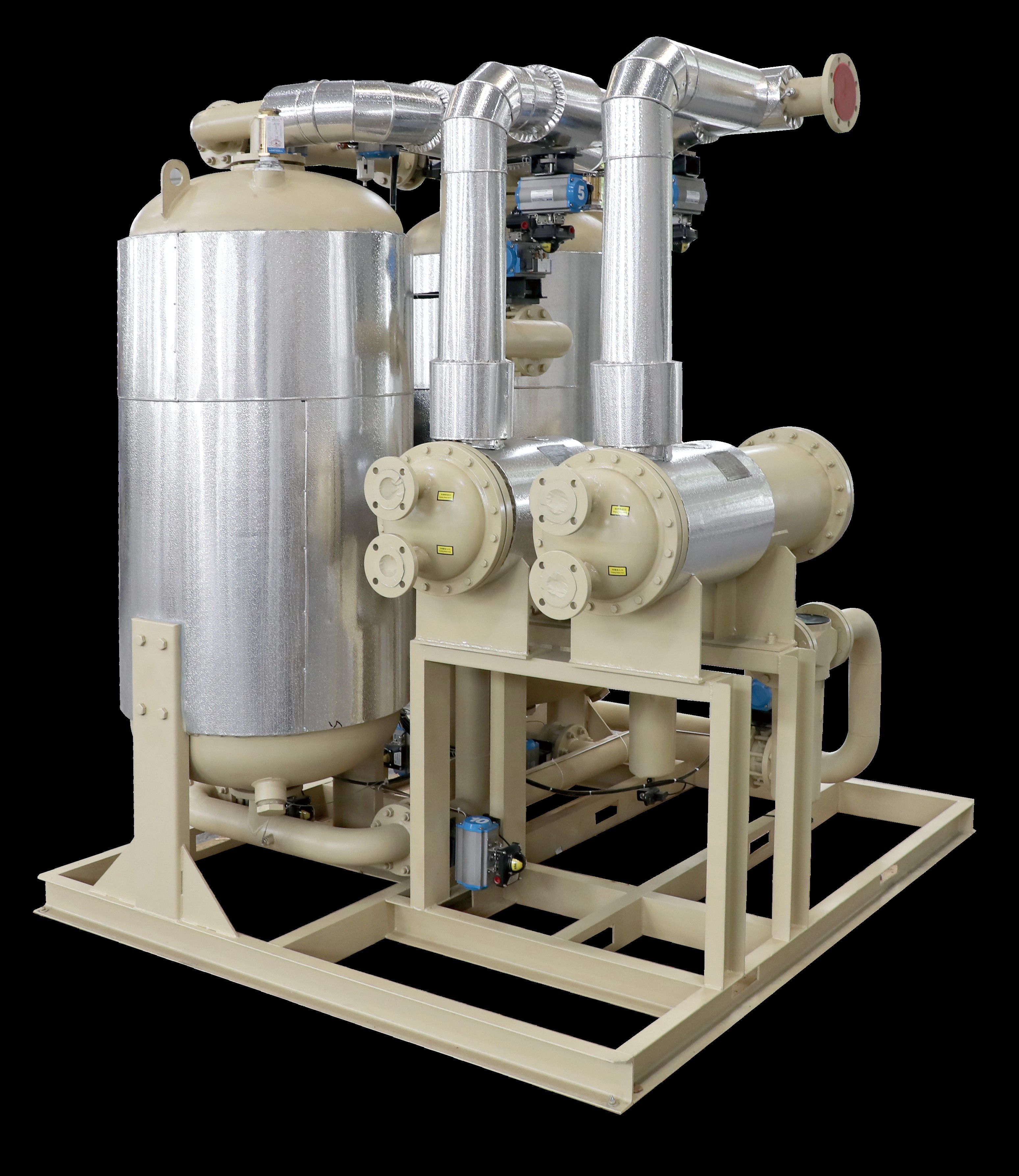

The HOC adsorption dryer Gardner Denver is an efficient compressed air treatment solution designed for industrial operations that need to reduce energy costs, eliminate air losses, and ensure automatic, reliable operation, even in continuous and demanding applications.

What is an HOC adsorption dryer?

An adsorption dryer with heat of compression is an industrial adsorption dryer that reuses the heat generated by the compressor itself to regenerate the desiccant, reducing electrical consumption and overall operating costs.

HOC dryer for compressed air

The HOC dryer for compressed air delivers reliable compressed air without the need for an electric heater, making the drying process more efficient and economical.

Industrial air dryer for continuous operation

Designed as an industrial air dryer, the Gardner Denver HOC dryer is ideal for plants operating 24/7 that require stable, dry air supply.

How does the Gardner Denver HOC dryer work?

Heat of compression without electric heater

The system operates as a dryer without electric heater, using energy already available in the compression process and achieving practical energy cost reduction.

Zero Purge Technology

Zero Purge Technology allows the dryer to operate as a no air‑loss dryer, eliminating purge air and reducing energy consumption and OPEX.

Automatic and stable operation

With fully automatic operation, the dryer requires minimal maintenance intervention and delivers consistent performance over time.

High energy efficiency and proven savings

High energy efficiency
HOC dryer with proven energy savings
HOC dryer with lower OPEX

Reliable performance for critical processes

Pressure dew point −40 °C
Air dryer with −40 °C pressure dew point
Reliable compressed air for sensitive applications

Lower operating costs

Adsorption dryer with low operating cost
Reduced electrical consumption
Elimination of purge air losses

The HOC adsorption dryer for critical processes is ideal for:

HOC dryer for automotive industry
HOC dryer for pharmaceutical industry
HOC dryer for food and beverage industry
HOC dryer for general manufacturing

Practical efficiency for daily plant operation

Industrial adsorption dryer
HOC dryer with reduced energy consumption
Robust and reliable components

Easy integration and application

Simple integration into existing systems
Ideal for industrial plant modernization

Technical Specifications of the HOC Adsorption Dryer – Gardner Denver

Feature	HCDH	HCDL	HCDH ZP	HCDL ZP
Drying technology	HOC adsorption	HOC adsorption	HOC adsorption	HOC adsorption
Regeneration	Heat of compression	Heat of compression	Heat of compression	Heat of compression
Pressure dew point (PDP)	−40 °C	−40 °C	−40 °C	−40 °C
Operating pressure	7–10 bar	7–10 bar	7–10 bar	7–10 bar
Minimum inlet temperature	≥ 180 °C	≥ 120 °C	≥ 180 °C	≥ 120 °C
Purge air loss	< 3 %	< 3 %	0 % (Zero Purge)	0 % (Zero Purge)
Pressure drop	≤ 0.03 MPa	≤ 0.03 MPa	≤ 0.03 MPa	≤ 0.03 MPa
Standard cycle	6 hours	6 hours	6 hours	6 hours
Control mode	Fully automatic	Fully automatic	Fully automatic	Fully automatic
Power supply	220 V / 1Ph / 50 Hz	380 V / 3Ph / 50 Hz	220 V / 1Ph / 50 Hz	380 V / 3Ph / 50 Hz

Frequently Asked Questions (FAQs)

Yes. It is an HOC dryer with lower energy consumption, ideal for reducing operating costs.
