Sterile filters NES

Gardner Denver industrial Sterile filters are filters for aseptic processes designed with an engineering-first approach: to deliver integrated sterile filtration with consistent performance and defensible TCO.

Sterile compressed air filtration with borosilicate glass microfiber

The borosilicate glass microfiber filters retain particles, bacteria and aerosols down to 0.01 micron, with DOP penetration < 0.0001%, guaranteeing aseptic compressed air for critical, regulated processes.

NES series for critical applications

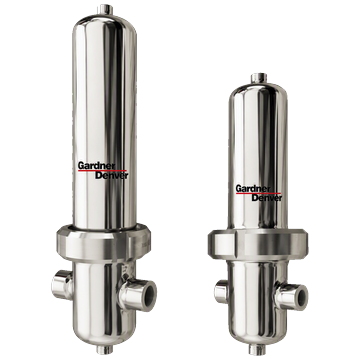

NES Series: AISI 316L stainless steel housing, SIP (in-situ steam) sterilization — designed for continuous, high-throughput aseptic lines.

Native integration with compressed air systems

Compatible with existing compressed air infrastructure and CIP/SIP loops, the filters enable integrated sterile filtration without added installation or maintenance complexity.

Operational stability in aseptic processes

• Consistent, batch-to-batch performance
• Reduce variability in critical processes
• 24/7 operational continuity without extended downtime
• Filtration solution for operational stability

Compressed air quality control

• ISO 8573-1 compliance for compressed air quality
• FDA and GMP certified filters
• Standard differential pressure monitoring
• Auditable air quality control in every cycle

Low total cost of ownership (TCO)

• Sterile filters with low total cost of ownership
• Predictable maintenance sterile filtration
• Certified 50+ sterilization cycles per element
• Defensible TCO without premium markup

Microbiological contamination removal

• 0.01 micron filtration
• DOP penetration < 0.0001%
• Reduce batch rejection due to contamination

Industrial reliability

• Certified materials (AISI 316L, FDA silicone, PETP)
• Robust design for intensive CIP/SIP
• Local spare parts and technical support across LATAM

Technology and performance

• High-efficiency compressed air filters with borosilicate glass microfiber
• 0.01 micron filtration with DOP penetration < 0.0001%
• ISO 8573-1, FDA, GMP and ANVISA compliance

Design and materials

• NES Series: AISI 316L stainless steel
• FDA-approved silicone O-rings and seals

Operation and maintenance

• SIP and autoclave sterilization up to 200°C (NES)
• Integrated differential pressure monitoring
• Wide flow range: from 40 to 2,880 m³/h

Key industries

• Sterile filters for pharmaceutical processes
• Sterile filters for food and beverage
• Air filtration for critical applications in biotech
• Filters for CIP/SIP processes in contract manufacturing (CDMOs)
• Filters for aseptic UHT filling
• Filtration for specialty chemicals and industrial cosmetics
