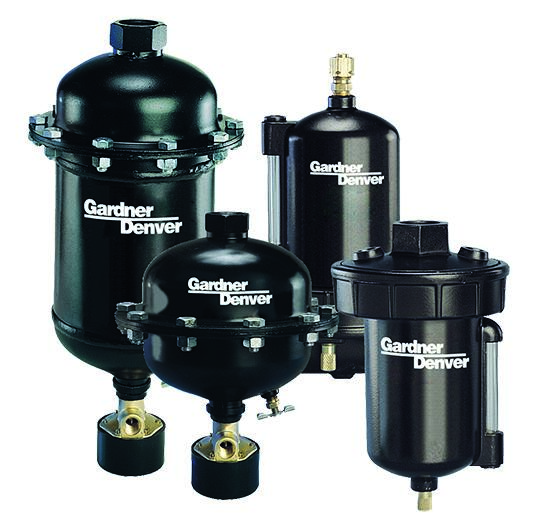

Product Photo mechanical condensate drain

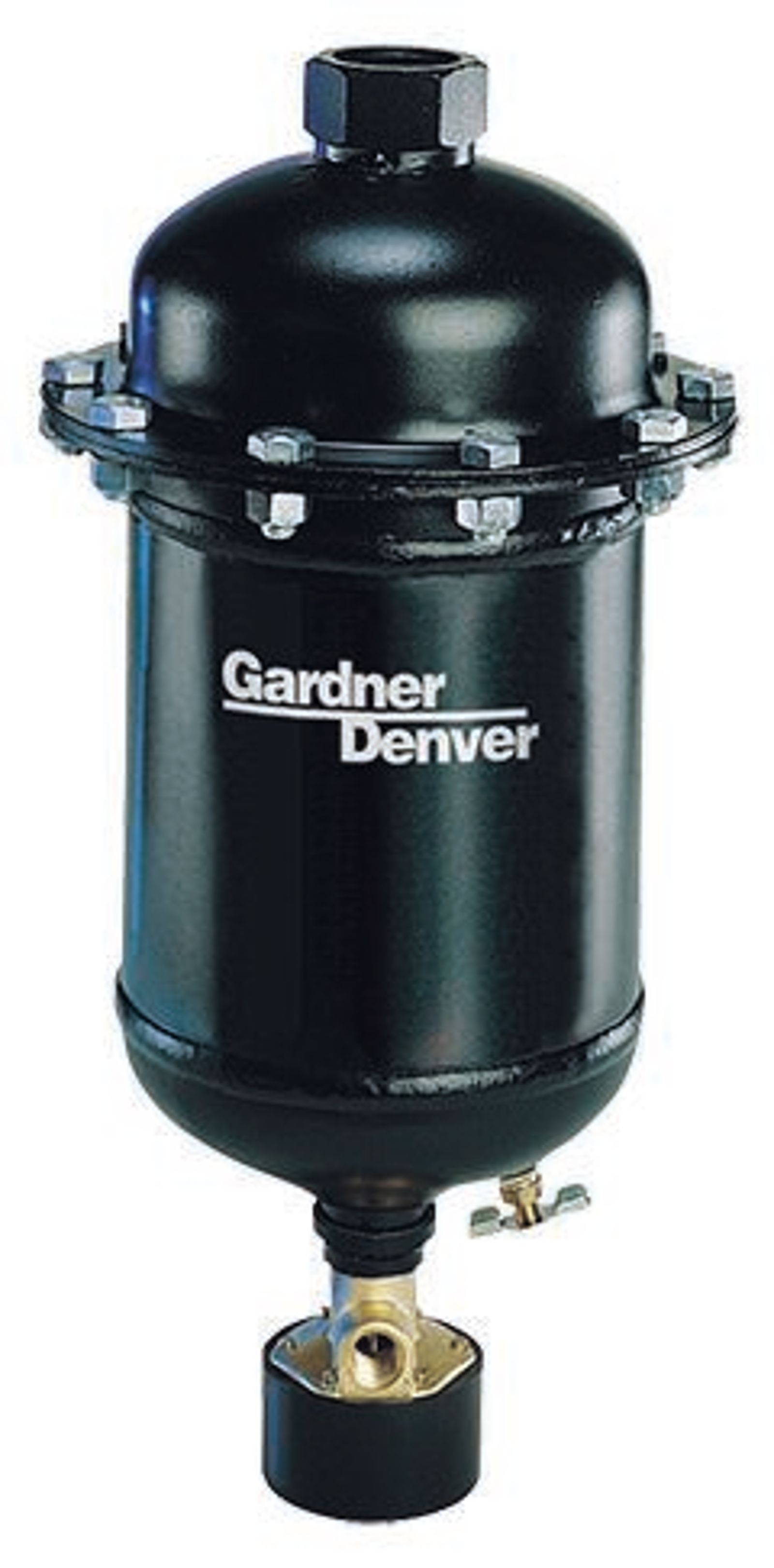

Product Photo pneumatic mechanical drain 506_tmd15

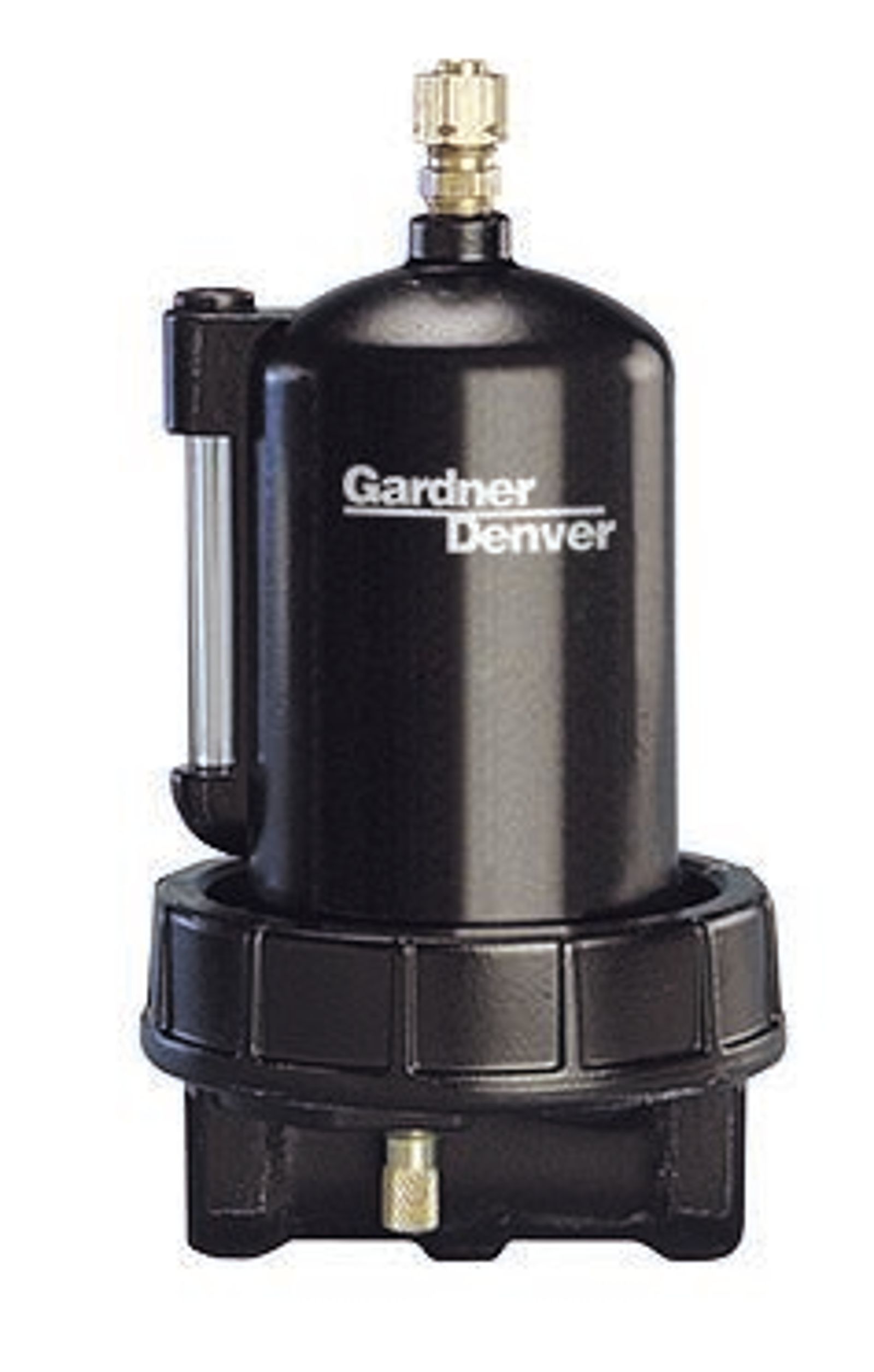

Product Photo pneumatic mechanical drain smd12b

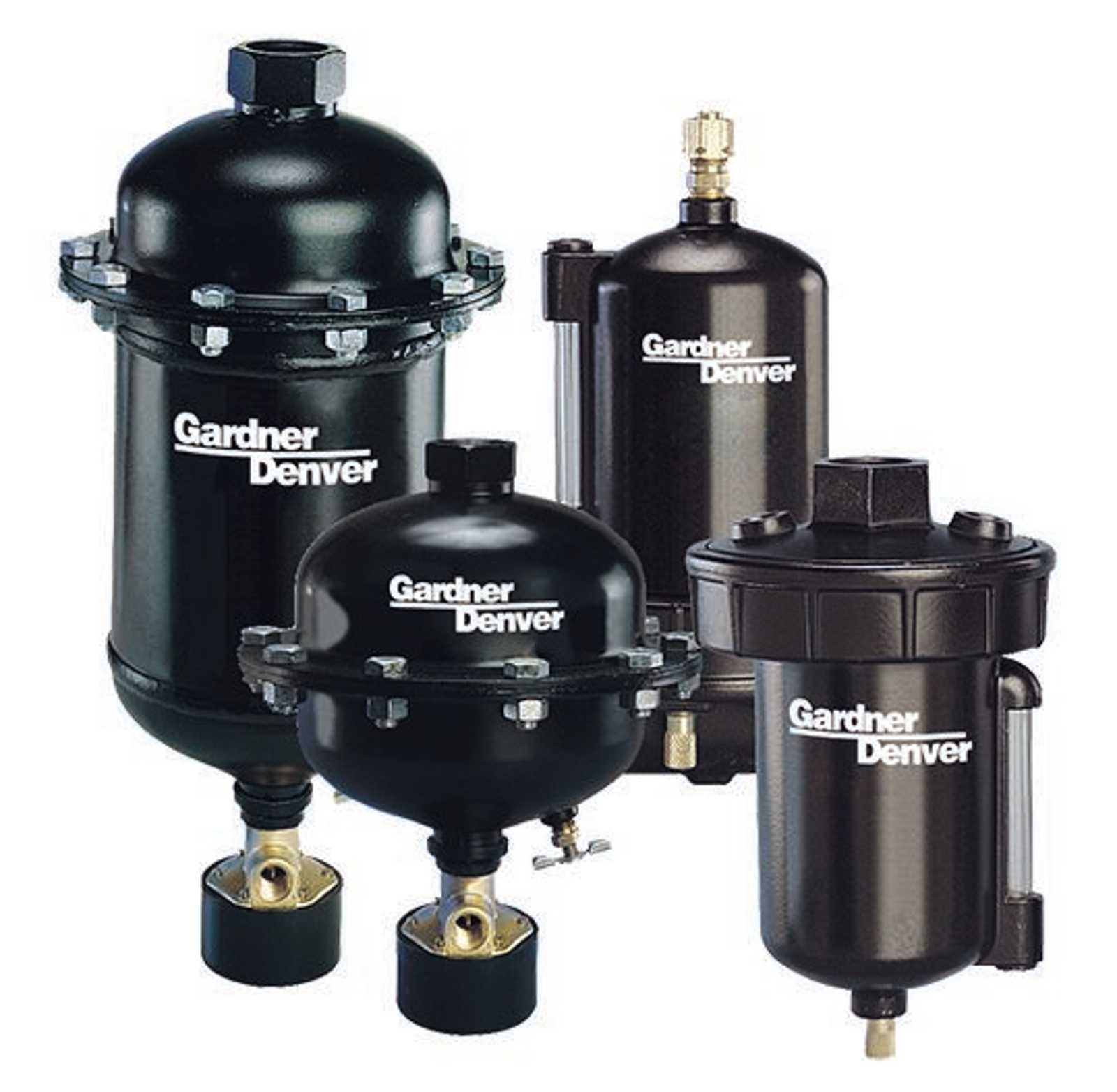

Product Photo mechanical condensate drain

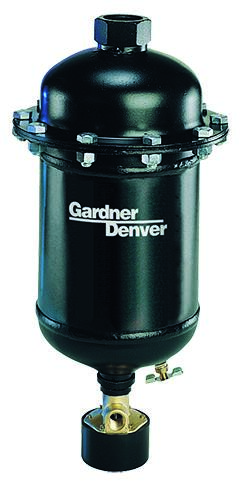

Product Photo pneumatic mechanical drain 506_tmd15
Product Photo pneumatic mechanical drain smd12b
Back to the product list

Pneumatic Condensate Drains

BMD-SMD-TMD Series

Gardner Denver pneumatically operated condensate drains are designed to ensure that manufacturing processes and products do not become contaminated by ensuring that liquid oil and water condensates are discharged from the compressed air stream. The SMD-TMD-BMD Series features a no air-loss actuated design which operates on demand. The discharge port closes before any compressed air is lost. Air powered pistons are used for positive opening and closing of discharge port.

SMD

  • Maximum Working Pressure: 175 PSIG
  • Maximum Operating Temperature 120°F
  • Economical drain for light to medium duty service
  • No air loss level actuated design — operates on demand
  • Discharge rates of .04 (20cc) per operation (0.3gal/hr - 1.2 liter/hr)
  • Built-in stainless steel screen protects discharge port from clogging

TMD/BMD

  • Maximum Working Pressure: 500 PSIG (depending on unit, see literature)
  • Maximum operating Temperature: 150°F
  • Discharge rates of 3-24 gallons/hour
  • Rugged drain for heavy duty service and heavily contaminated condensate
  • Large discharge port prevents clogging

  • Top or bottom inlet connections available
  • No Air-loss level acuated design operates on demand
  • Prevents the receiver tank from filling up with condensate and causing the compressor to short cycle
  • Saves on wasted compressed air created when vavles are cracked open to purge the air lines of condensate

Sizing Information

Model

Discharge Per Operation

Normal Capacity³

Materials of Construction

Min/Max
Operating Pressure

Min/Max
Operating Temperature



Pints (CC)

(One Cycle Per Minute)
Gal/Hr (CC/Min)

Bowl

Internals

PSIG (KGF/CM²)

°F (°C)

SMD10T¹

0.04

(20)

0.3

(1200)

Polycarbonate housing c/w bowl guard

Polycarbonate mechanical parts Buna N Seals

20–150

(1.4–10.6)

35–120

(2–49)

SMD12T¹

0.04

(20)

0.3

(1200)

Epoxy coated Zinc housing w/c sight glass

Derlin mechanical parts Vilton Seals for synthetic lubricants

20–175

(1.4–12.3)

35–120

(2–49)

TMD13¹ & BMD13²

0.4

(190)

3

(11.4)

Carbon steel housing: stainless steel, brass, derlin, nylon mechanical parts: Vilton Seals

All stainless steel models optional⁴

10–300

(0.7–21)

35–150

(2–66)

TMD13HP¹ & BMD13HP²

TMD15¹ & BMD15²

3.2

(1514)

24

(90.8)

10–500

(0.7–35)

35–150

(2–66)

TMD15¹ & BMD15HP²

1. Top Connection. 2. Bottom Connection. 3. Drains are designated to operate at one discharge per minute for one year before rebuilding is required. Maximum capacity is six discharges per minute. 4. Stainless steel models available. Materials of 304SS housing, stainless steel mechanical parts and Viton seals. To order add “S” to model number (e.g. TMD13S or BMD13HPS)



Dimensions

Model

A

B

Connections



in (mm)

in (mm)

Inlet

Drain

TMD13¹ & BMD13²

7 (178)

8.5 (216)

3/4" Female

1/4" Female

TMD15¹ & BMD15²

7 (178)

13.75 (349)

3/4" Female

1/4" Female
