Much like DNA, the rotor design of our blowers dictate what they become. Gardner Denver is excited to announce the launch of our new CycloBlower VHX. By adding a variable helix to our patented helical screw design, unmatched levels of blower performance and efficiency is achieved. This new patented rotor design incorporates faster internal compression and a significantly larger discharge port to eliminate losses, thus creating premium efficiency and higher turndown capability. Gardner Denver’s blower evolution continues with the world’s first variable helix blower technology, the CycloBlower VHX.
- Positive Displacement Blowers & Packages
- Helical Screw Technology

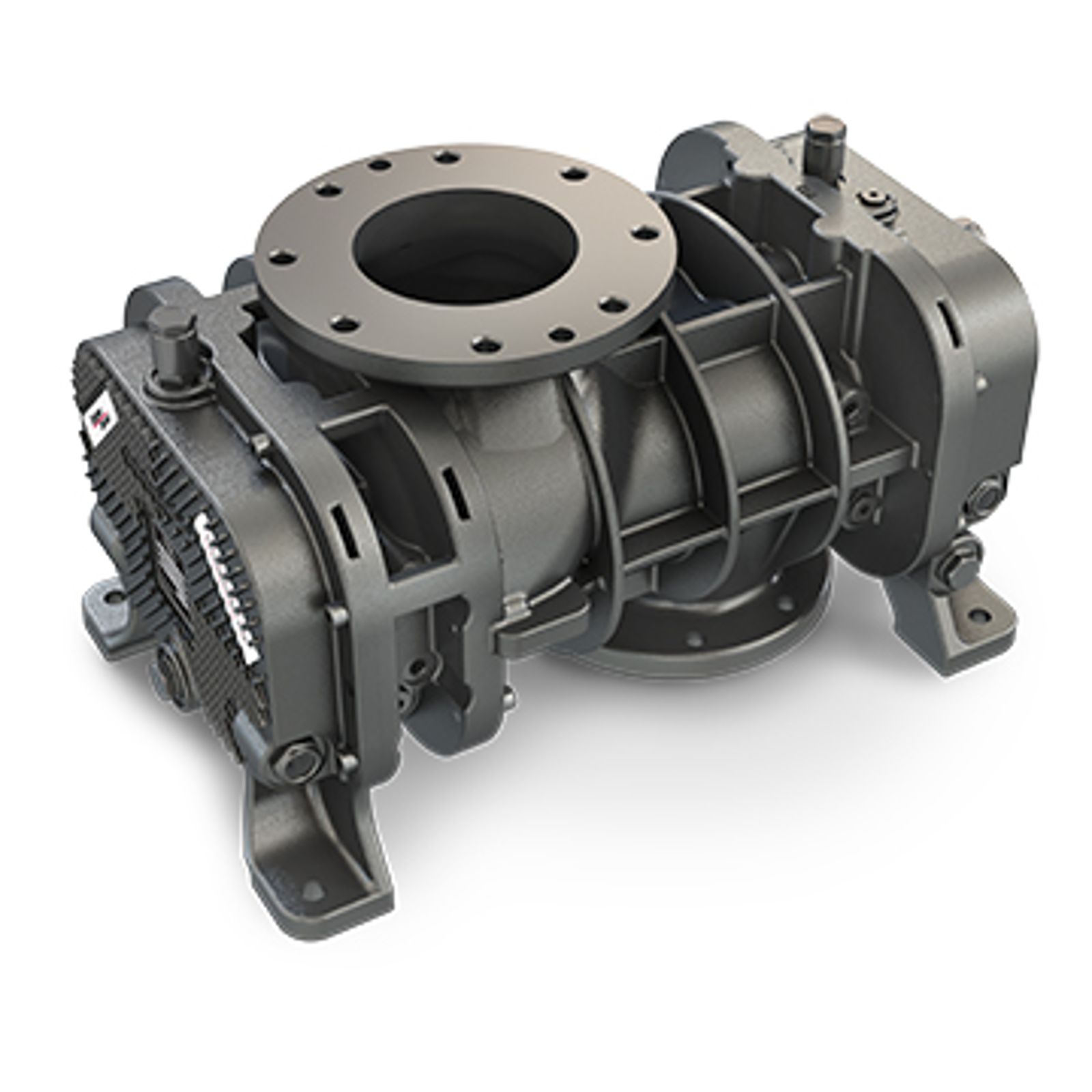

CycloBlower VHX Series Screw Blower
CycloBlower VHX Series Screw Blower






3x5 Variable Helix Screw Blower
The demand for energy savings is higher than ever. As energy costs continue to rise and significantly impact manufacturer’s bottom line, the demand for more efficient technology grows. Thankfully, our extensive research has been translated into constant innovation; providing our customers with never before seen screw blower efficiency levels.
- Patented, highly-efficient 3×5 variable helix screw rotor profile
- Food-grade PTFE (Polytetrafluoroethylene) coated rotors
- 3 discharge port designs matches the most efficient performance to your application requirements
- High pressure capability up to 36 psi
- O-ring sealing
- Helical Timing Gears
- Unique Dual Splash Lubrication with eccentric slinger ring
- Force Feed Lubrication optional for applications under 20 psi, required for applications over 20 psi
- Inpro/Seal Premium Oil Seals
- Mechanical Seals also available for gas applications
- Piston Ring or Graphite Air Seals
- Robust Ductile Iron Shaft
- Available as bare blower for upgrading existing packages

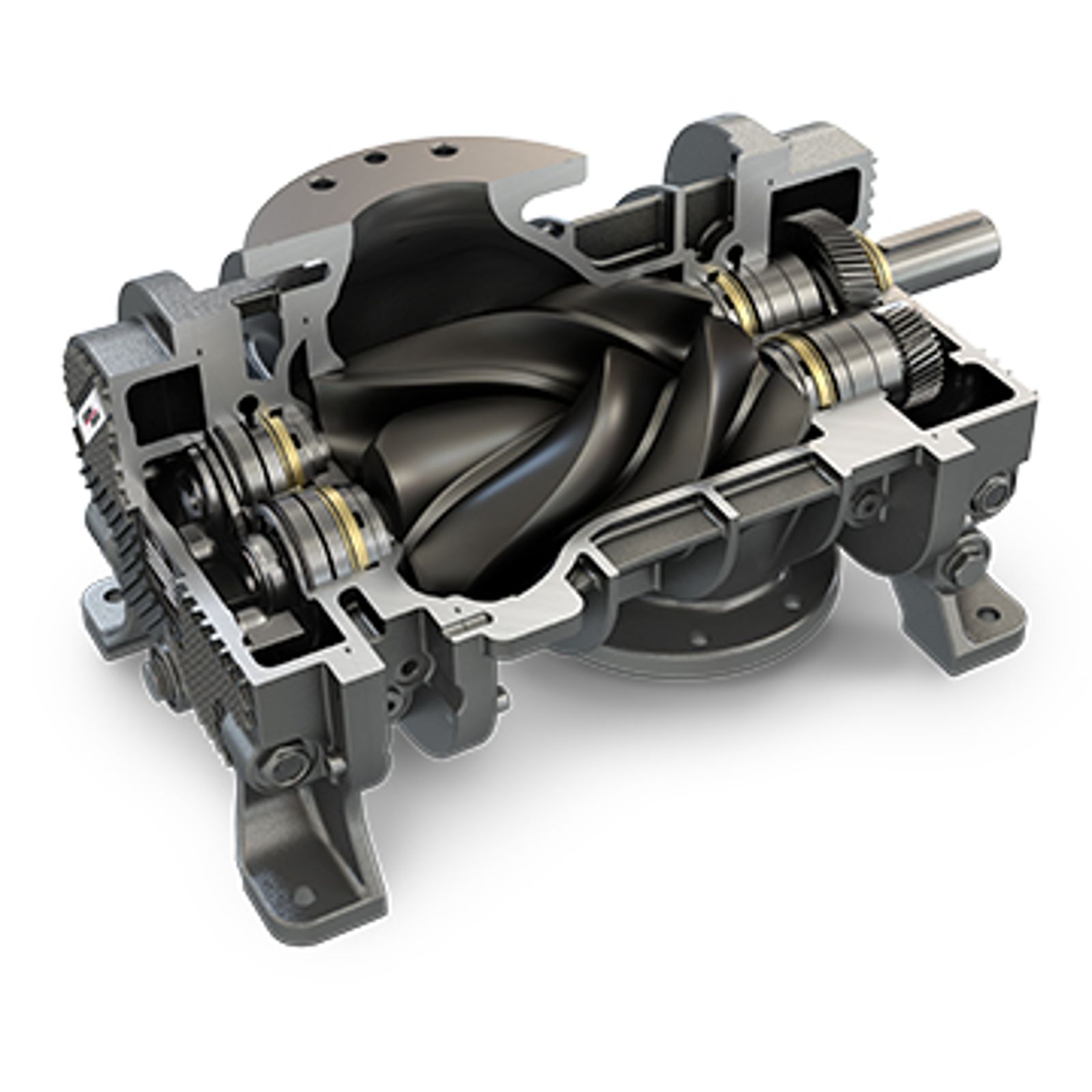

Patented Design
- Patented, highly-efficient 3×5 variable helix screw rotor profile provides a competitive advantage for you
- Food-grade PTFE (Polytetrafluoroethylene) coated rotors minimize air loss while maximizing efficiency
- Three discharge port options optimize efficiencies based on your specific performance needs
- High pressure capability for dense phase conveying applications
Best of the Best Components
O-Rings
- O-Ring Seals
- Durable Protection
- No Gaskets
Helical Timing Gears
- Smooth, Quiet Operation at all Speeds
- Assures on-Slip Rotor Timing
Dual-Splash Lubrication with Eccentric Slinger Ring
- Unique Design
- Maximizes Efficiency by Reducing Power Consumption
- Optimizes Oil Distribution
Discharge Bearings
- Axial: 4 Point Angular Contact Bearings
- Radial: Cylindrical Roller
- Provides Absolute Strength and Stability on Multiple Planes to Handle Extreme Applications
- Extended Bearing Life
Inpro/Seal® Premium Oil Seal
- Contactless Dual-Ring Design
- Non-Wearing
- Extends Longevity Reducing Maintenance Costs
- Market-Leading Protection Against Leaks
Piston Ring Air Seals
- Delivers Leak-Free Operation
- Provides Maximized Seal Life
Robust Ductile Iron Shaft
- Designed & Tested for Strength
- High Shaft Load Capacity
- Direct & V-Belt Drive Capable
PTFE (Polytetrafluoroethylene) Coated Rotors
- Food Grade
- Minimizes Air Loss
- Maximizes Efficiency
Options
Force Feed Lubrication
- Ensures Cool Oil Temperature and Distribution
- Optional for Applications up to 20 psi
- Required for Applications Greater than 20 psi
Mechanical Seals
- For Gas Applications
- Interchangeable with Inpro/Seal
PTFE (Polytetrafluoroethylene) Coated Cylinder
- Minimizes Air Loss
- Maximizes Efficiency
- Corrosion and Rust Protection
Graphite Air Seals
- Required for High Pressure Applications Over 20 psi
Low, Medium & High Pressure Discharge Cylinder
- Optimizes Efficiencies
- Unique Technology
Installation Flexibility
- Top and Bottom Discharge Orientations
- 4 Mounting Foot Configurations Available
- ANSI or Metric Flanges
RTD Ports & Probes
- Designed to Ensure Precise and Accurate Bearing Temperature Measurements
Gardner Denver ... The Answer
You get total product support now and for years to come from our dedicated international team of professional distributors, our Master Distribution Center with its extensive genuine replacement parts inventory, our Remanufacturing Center, and our skilled, factory-trained technicians.
- Great PD Blower Warranties
- Dedicated, Authorized, Factory-Trained PD Blower Distributors
- Genuine PD Blower Replacement Parts
- 24-hour PD Blower Service Support
