PureAir Series Oil-Free Screw Air Compressor 185-355kW (250-450 hp)

Product Photo Exterior left Pureair t tvs 185355

Product Photo Exterior right Pureair t tvs 185355

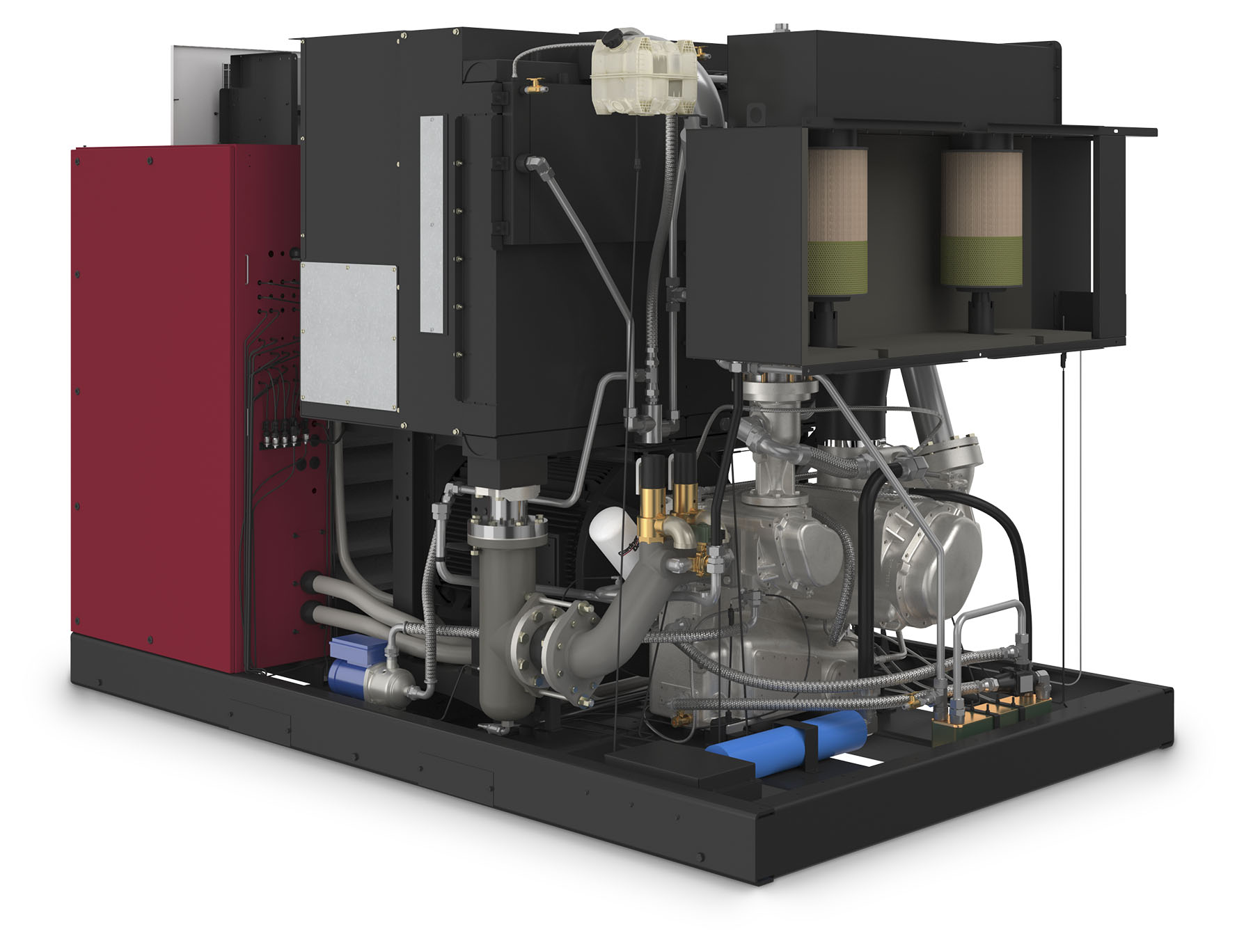

Product Photo Interior left Pureair t tvs 185355

Product Photo Interior right Pureair t tvs 185355

The PureAir Series T & TVS 185-355 kW oil-free screw air compressors is a continuation in our long heritage of compressed air products. Utilizing state-of-the-art design and simulation software, combined with decades of experience in oil-free compression, Gardner Denver continues to deliver on our promise to offer the most efficient and reliable oil-free compressors available.

Request a Quote

Request Service or Parts

Class 0: 100% oil-free air

RotorArmor™ airend coating

Stainless steel 2nd stage airend rotors

Stainless steel discharge air piping

TEFC cooling fan

Quiet enclosure

GD Governor™ Controller

Operates up to 131°F

Compact footprint

Optional energy recovery

Embrace the pinnacle of air compression with Gardner Denver's PureAir T TVS series—where pure air production meets unparalleled efficiency. Our compressors deliver 100% oil-free air, guaranteeing the safety and quality of your end products. With RotorArmor™ coated airends and stainless steel components, these machines not only offer industry-leading efficiency but also promise exceptional longevity and resilience to harsh environments. The series' space-efficient design, coupled with advanced controls, quiet operation, and optional energy recovery, makes it a superior choice for businesses looking to enhance performance while prioritizing environmental sustainability.

Pure Air Production: Eliminates the risk of oil contamination in your air supply, ensuring the Class 0 100% oil-free air and the safety and quality of your end products.
Optimized Efficiency: The RotorArmor™ coating on airend rotors and housing is designed to enhance efficiency, contributing to industry-leading performance in air compression
Longevity with Stainless Steel Components: Utilizes stainless steel for 2nd stage airend rotors and discharge air piping, offering increased resistance to corrosion and extending the airend's service life.
Environmental Protection with TEFC Fan: The Totally Enclosed Fan-Cooled (TEFC) design keeps out dirt and water, ensuring optimal cooling performance and longevity.
Reduced Noise Operation: A quiet enclosure design significantly lowers sound levels, contributing to a more comfortable workplace.
Advanced Control with GD Governor™: The precision control and monitoring provided by the GD Governor™ Controller offer operational confidence and peace of mind.
High-Temperature Resilience: Capable of operating in harsh environments with temperatures up to 131°F, ensuring reliability under extreme conditions.
Space-Efficient Design: A compact footprint reduces floor space requirements, making it ideal for facilities with limited area.
Optional Energy Recovery: Offers an energy recovery option to supply hot water, harnessing waste heat for other processes and enhancing overall energy efficiency

FIXED SPEED MACHINES, 50 & 60 HZ

MODEL	COOLING METHOD	DRIVE MOTOR		NOMINAL PRESSURE		FAD*				NOISE LEVEL**	WEIGHT				DIMENSIONS
		DRIVE MOTOR		NOMINAL PRESSURE		60 Hz		50 Hz		NOISE LEVEL**	60 Hz		50 Hz		L × W × H
		HP	KW	PSIG	BARG	ACFM	M³/MIN	ACFM	M³/MIN	DB(A)	LBS	KG	LBS	KG	IN. (MM)
T185	Air	250	185	100 125 150	6.9 8.6 10.3	1265 1141 1000	35.4 31.9 28.0	NA	NA	80	11671	5294	NA	NA	137 × 85 × 97 (3457 × 2152 × 2446)
T185	Water	250	185	100 125 150	6.9 8.6 10.3	1281 1158 1018	35.9 32.4 28.5	NA	NA	76	10146	4602	NA	NA	137 × 85 × 97 (3457 × 2152 × 2446)
T220	Air	300	220	100 125 150	6.9 8.6 10.3	1485 1370 1257	41.6 38.4 35.2	NA	NA	80	11682	5299	NA	NA	137 × 85 × 97 (3457 × 2152 × 2446)
T220	Water	300	220	100 125 150	6.9 8.6 10.3	1502 1387 1274	42.1 38.8 35.7	NA	NA	76	10157	4607	NA	NA	137 × 85 × 97 (3457 × 2152 × 2446)
T260	Air	350	260	100 125 150	6.9 8.6 10.3	1601 1560 1442	44.8 43.7 40.4	NA	NA	80	12189	5529	NA	NA	137 × 85 × 97 (3457 × 2152 × 2446)
T260	Water	350	260	100 125 150	6.9 8.6 10.3	1617 1577 1459	45.3 44.2 40.9	NA	NA	76	10664	4837	NA	NA	137 × 85 × 97 (3457 × 2152 × 2446)
T300	Air	400	300	100 125 150	6.9 8.6 10.3	1840 1777 1598	51.5 49.8 44.7	NA	NA	80	12520	5679	NA	NA	137 × 85 × 97 (3457 × 2152 × 2446)
T300	Water	400	300	100 125 150	6.9 8.6 10.3	1856 1794 1614	52.0 50.2 45.2	NA	NA	76	10994	4987	NA	NA	137 × 85 × 97 (3457 × 2152 × 2446)
T355	Water	450	355	125 150	8.6 10.3	1916 1803	53.6 50.5	NA	NA	76	12218	5542	NA	NA	137 × 85 × 97 (3457 × 2152 × 2446)

Data measured and stated in accordance with ISO1217 4th Edition Annex C and E at the following conditions:
Air Intake Pressure: 1 bar a/14.5 psi, Air Intake Temperature: 20°C/68°F, Humidity: 0% (dry)

Measured in free field conditions in accordance with the ISO 2151, tolerance ±3 dB(A)

VARIABLE SPEED MACHINES, 50* & 60 HZ

MODEL	COOLING METHOD	DRIVE MOTOR		NOMINAL PRESSURE		FAD**		NOISE LEVEL***	WEIGHT		DIMENSIONS
		DRIVE MOTOR		NOMINAL PRESSURE		50/60 Hz		NOISE LEVEL***	50/60 Hz		L × W × H
		HP	KW	PSIG	BARG	ACFM	M³/MIN	DB(A)	LBS	KG	IN. (MM)
TVS200	Air	268	200	100 125 150	6.9 8.6 10.3	1230 1121 1016	34.4 31.4 28.4	64–80	12531	5684	137 × 85 × 97 (3457 × 2152 × 2446)
TVS200	Water	268	200	100 125 150	6.9 8.6 10.3	1253 1178 1073	35.1 33.0 30.0	62–76	11005	4992	137 × 85 × 97 (3457 × 2152 × 2446)
TVS250	Air	335	250	100 125 150	6.9 8.6 10.3	1493 1386 1282	41.8 38.8 35.9	64–80	12884	5844	137 × 85 × 97 (3457 × 2152 × 2446)
TVS250	Water	335	250	100 125 150	6.9 8.6 10.3	1527 1451 1346	42.8 40.6 37.7	62–76	11358	5152	137 × 85 × 97 (3457 × 2152 × 2446)
TVS315	Air	422	315	100 125 150	6.9 8.6 10.3	1778 1674 1570	49.8 46.9 44.0	64–80	13997	6349	137 × 85 × 97 (3457 × 2152 × 2446)
TVS315	Water	422	315	100 125 150	6.9 8.6 10.3	1809 1744 1639	50.7 48.8 45.9	62–76	12471	5657	137 × 85 × 97 (3457 × 2152 × 2446)
TVS355	Water	476	355	100 125 150	6.9 8.6 10.3	1809 1807 1796	50.7 50.6 50.3	62–76	12504	5672	137 × 85 × 97 (3457 × 2152 × 2446)

50 Hz only applies to TVS90–TVS160 models.

Measured in free field conditions in accordance with the ISO 2151, tolerance ±3 dB(A)
