- 7-1200 SCFM
- NEMA 1 Standard
- Maximum Inlet Air Temperature:
- XGNC7-150: 140°F (60°C)
- XGNC200-1200: 120°F (49°C)
- Maximum Operating Pressure: 300psig (Model XGNC200-1200)
- XGNC7-100: 203psig
- Rated Flow Capacity: Conditions for rating dryers are in accordance with ISO 7183
- Compressed air at dryer inlet: 100 psig (7 bar) and 100°F (38°C); ambient air temperature: 100°F (38°C)
- Pressure drip: +/- 0.5 psig (Models XGNC200-1200)
Designed for Optimum Efficiency
Our dryers offer multiple design features to ensure a constant dew point at all load levels, and to deliver continuous dry-air performance that satisfies ISO7183 and CAGI ADF100 industry standards. The dryer's full function control with enhanced control parameters, diagnostics and alarms is more sophisticated and powerful than similarly sized competitive products. We also test every unit to ensure leak-free operation and compliance with operating specifics.
Quiet Compressor
- Highest, quality, fully hermetic compressor offers quiet, reliable operation.
Superior Heat Exchanger
- 100% corrosion-resistant heat exchanger delivers superior heat transfer, lowest pressure drop and extreme reliability.
Highly Efficient Separator
- High efficiency separator removes moisture for all applications, even under partial load conditions.
Clog Resistant Condensate Drain
- Adjustable electric condensate drain with large port resists clogging.
High Quality Enclosure
- Full cabinet made from heavy gauge steel, powder coated to yield a durable finish.
Large Condensers
- Generously-sized condensers precisely positioned to avoid any accumulation of dust or debris.

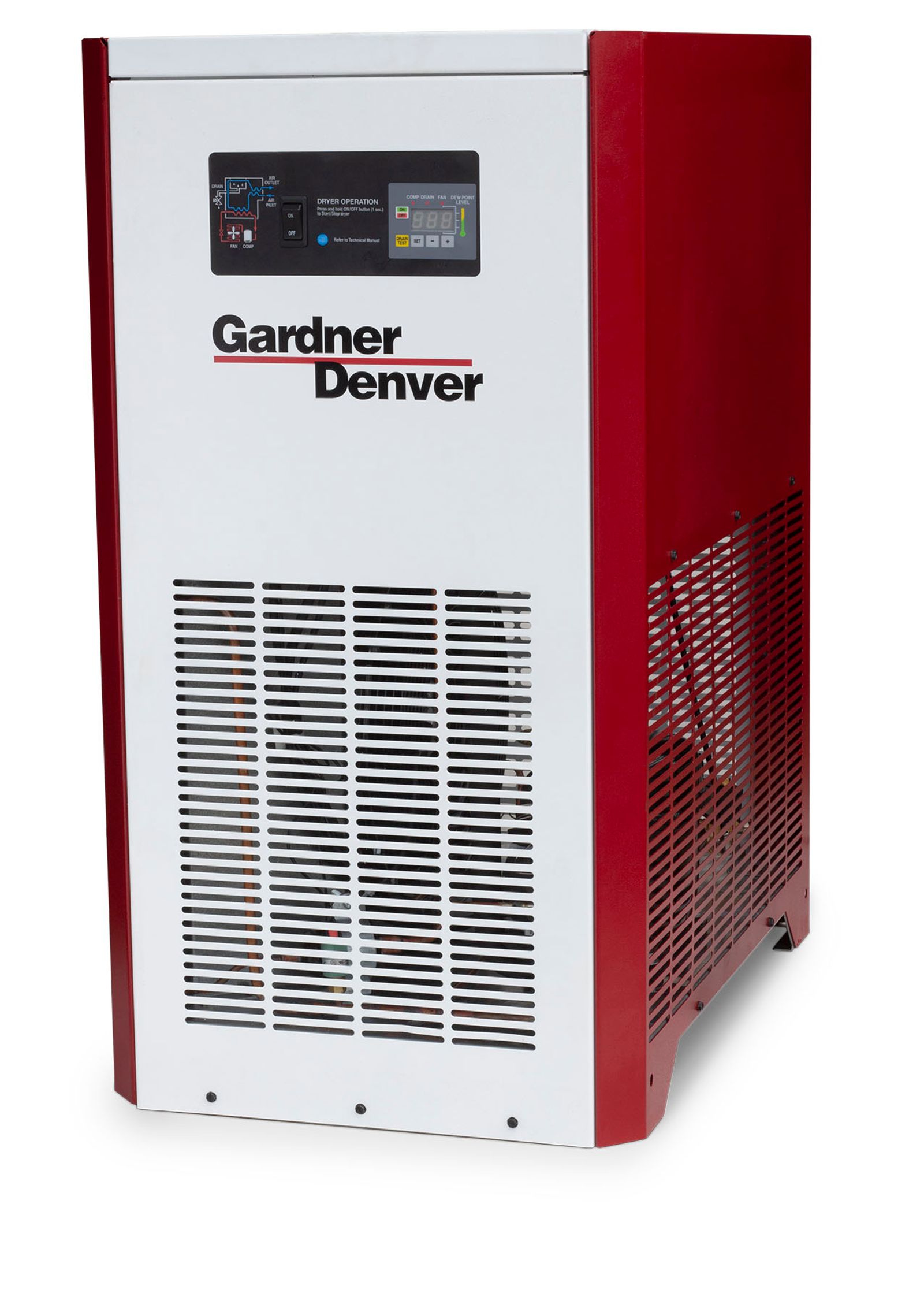

Non-Cycling Refrigerated Dryer
Model | Inlet | Pressure Drop | Voltage** | In/Out | Power Consumption | Refrigerant | Dimensions | Weight | |||||||
SCFM | NM³/H | PSI | kW | Inches | MM | LBS | KG | ||||||||
XGNCA75 | 75 | 120 | 2.94 | 115/1/60 | 3/4" FPT | 0.66 | R-513A | 24.3 × 15.2 × 19.7 | 618 × 387 × 501 | 94 | 43 | ||||
XGNCA100 | 100 | 160 | 3.5 | 115/1/60 | 3/4" FPT | 0.85 | R-513A | 24.3 × 15.2 × 19.7 | 618 × 387 × 501 | 99 | 45 | ||||
XGNCA150 | 150 | 240 | 3.2 | 115/1/60 | 11/2" FPT | 0.88 | R-513A | 37.5 × 19.7 × 30.3 | 953 × 501 × 770 | 154 | 70 | ||||
XGNCA200 | 200 | 321 | 4.4 | 115/1/60 | 11/2" FPT | 1.12 | R-513A | 37.5 × 19.7 × 30.3 | 953 × 501 × 770 | 170 | 78 | ||||
XGNCA250 | 250 | 401 | 5.71 | 115/1/60 | 11/2” FPT | 1.52 | R-513A | 49.3 × 20.9 × 31.8 | 1253 × 531 × 531 | 440 | 200 | ||||
XGNC300 | 300 | 510 | 2 | 460/3/60 | 2" MNPT | 2.4 | R-404A | 43 × 28.09 × 32.62 | 1092 × 713 × 829 | 375 | 170 | ||||
XGNC400 | 400 | 680 | 2.9 | 460/3/60 | 2" MNPT | 3.6 | R-404A | 43 × 28.09 × 32.62 | 1092 × 713 × 829 | 375 | 170 | ||||
XGNC500 | 500 | 850 | 2.9 | 460/3/60 | 3" MNPT | 3.7 | R-404A | 61.5 × 42.62 × 40.25 | 1562 × 1083 × 1022 | 950 | 431 | ||||
XGNC600 | 600 | 1020 | 3 | 460/3/60 | 3" MNPT | 4.6 | R-404A | 61.5 × 42.62 × 40.25 | 1562 × 1083 × 1022 | 950 | 431 | ||||
XGNC700 | 700 | 1190 | 2.7 | 460/3/60 | 3" MNPT | 5.9 | R-404A | 61.5 × 42.62 × 40.25 | 1562 × 1083 × 1022 | 1050 | 476 | ||||
XGNC800 | 800 | 1360 | 3 | 460/3/60 | 3" MNPT | 5.9 | R-404A | 61.5 × 42.62 × 40.25 | 1562 × 1083 × 1022 | 1050 | 476 | ||||
XGNC1000 | 1000 | 1700 | 2.4 | 460/3/60 | 4" CLS 150 FLN | 7.4 | R-404A | 69 × 32.44 × 76.25 | 1753 × 824 × 1937 | 1700 | 771 | ||||
XGNC1200 | 1200 | 2040 | 3.1 | 460/3/60 | 4" CLS 150 FLN | 9.5 | R-404A | 69 × 32.44 × 76.25 | 1753 × 824 × 1937 | 1725 | 782 | ||||
XGNC1600 | 1600 | 2718 | 3.3 | 460/3/60 | 4" CLS 150 FLN | 11.30 | R-404A | 69 × 32.44 × 76.25 | 1753 × 824 × 1937 | 1870 | 848 | ||||
Performance data presented in accordance with ISO 7183 (Option A2) conditions: 100°F inlet temperature,
100°F ambient temperature and 100 psig conditions.
Overall dimensions include base, threaded conn., elec enclosure protrusions.
See price book for available voltages.
