- Stainless steel heat exchangers with high heat transfer coefficients allow inlet temperatures to 180° F (82° C). All models feature air-to-air and air-to-refrigerant heat exchangers.
Adjustable timed electric drain—valve open and closed time—reliably discharges condensate from the dryer
Widely spaced Inlet/Outlet connections, flow direction stamped into cabinet, for ease of installation and filter mount
Instrumentation with lighted compressor On/Off switch, dew point temperature indicator and fault light
Top mount fan, upward condenser air flow allows installation in tight spaces
- Bottom base rail with pre-drilled mounting holes for secure floor mount
-
Quick release front panel for ease of access to dryer internals for routine maintenance

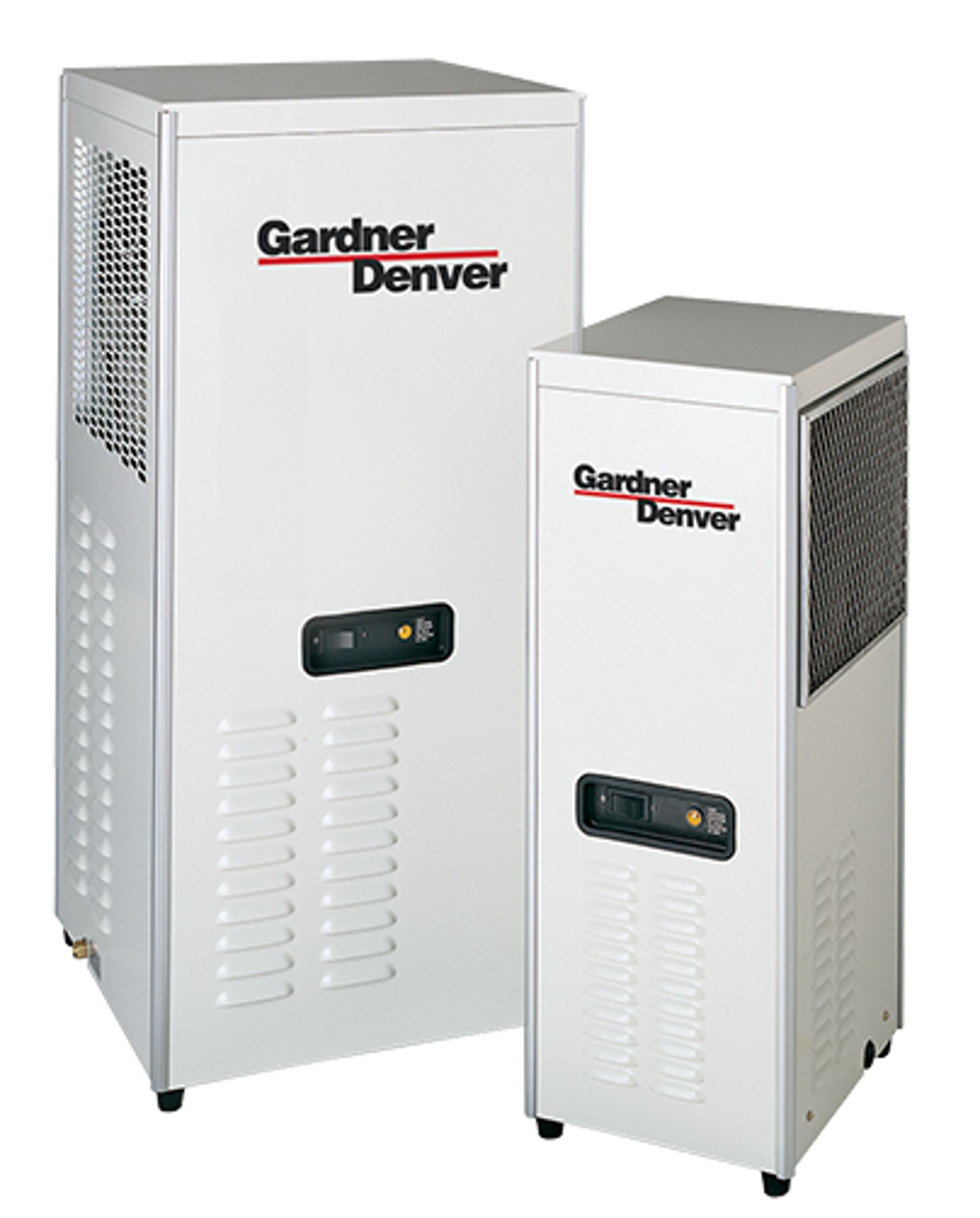

RHT Series
High Inlet Temperature Refrigerated Dryer
Gardner Denver RHT Series High Inlet Temperature refrigerated dryers feature a unique design which works directly with reciprocating air compressors. A unique heat exchanger allows the dryer to accept elevated inlet air temperatures, up to 180°F (82°C). This allows compressed air users to send high temperature air straight from their compressor directly to the RHT Series refrigerated dryer and maintain a 50°F pressure dew point. The RHT Series is ideally suited for auto body shops, auto service centers, and light industrial facilities with 5 to 30 horsepower reciprocating air compressors.
