Smarter. Stronger. Greener. And remarkably compact.
A NEW era in compression technology has begun
The ALL-NEW ESM / VS Series from Gardner Denver
Renowned for its quality and dependability, Gardner Denver continues to advance the ESM / VS Series, pushing the boundaries of performance and efficiency. This marks the beginning of a new chapter in air compression technology.
More sustainable, more powerful, more energy-efficient — and impressively compact.
Maximum performance in minimal space

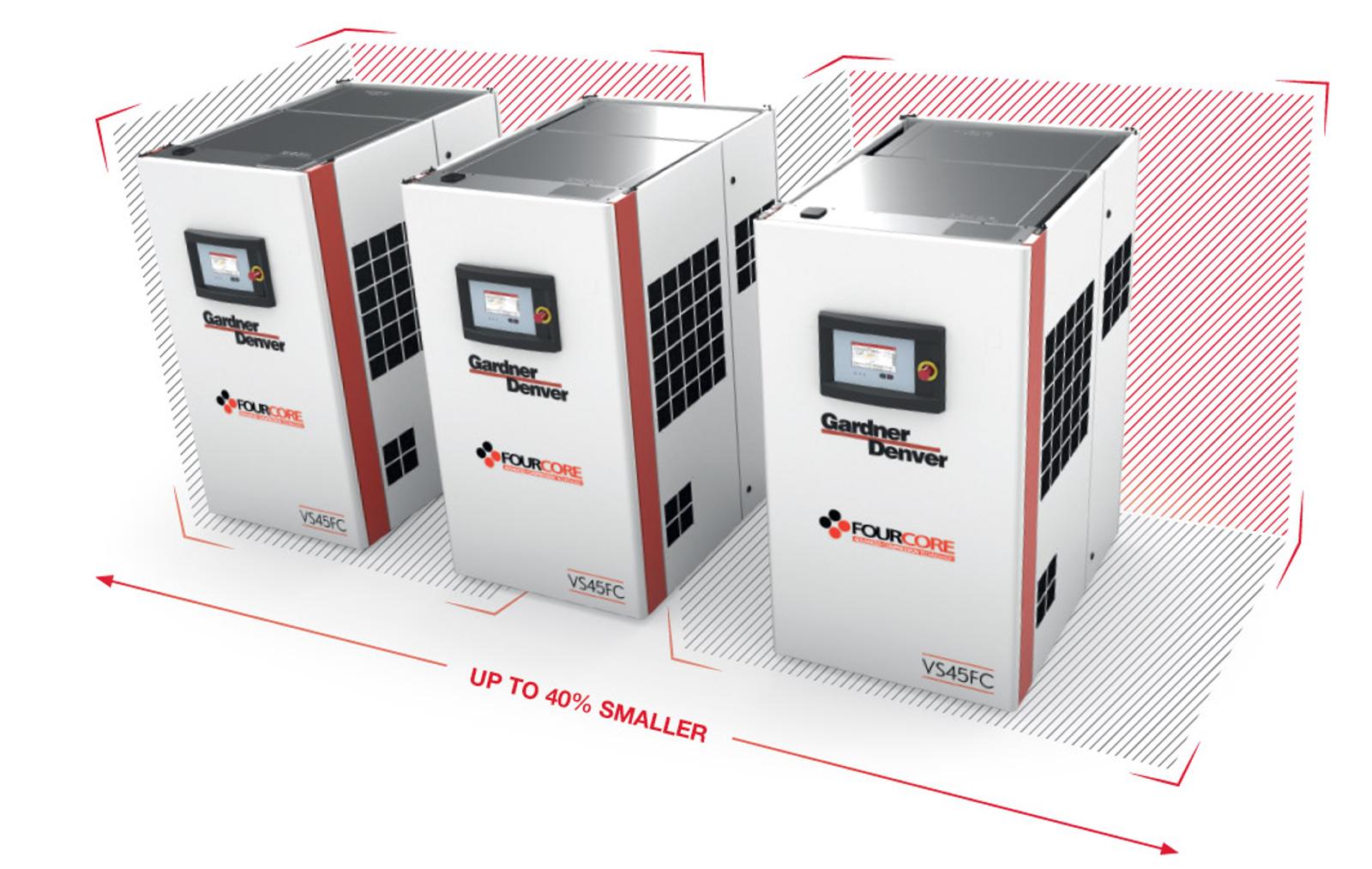

One of the standout advantages of the NEW GENERATION two-stage ESM / VS Series is its significantly higher efficiency compared to single-stage compressors — all within a compact, German-engineered design. With a footprint of just 1.4m², it's up to 40% smaller than previous models and more compact than any other solution currently available, offering space-saving benefits across a wide range of industries.
Gardner Denver Unveils Next-Level Energy Efficiency in Air Compression
This isn’t Just the Next Step for the ESM / VS Series — It’s a Groundbreaking Leap that Redefines the Industry Standard.
We’re excited to present the completely redesigned ESM / VS Series — 45–55kW, available in both single and two-stage configurations, with fixed and variable speed options. These oil-lubricated rotary screw air compressors incorporate cutting-edge technology, purpose-built to deliver superior performance and energy efficiency across a broad range of industries.
Driven by passion and a positive spirit, the entire Gardner Denver team came together with a shared vision: to make a meaningful impact on the world around us. Not content with simply changing the rules — we’ve completely redefined them.
Optimized Airends for Premium Efficiency and Engineering Excellence
Compressors represent more than a monetary investment — they play a vital role in delivering consistent, high-quality, and cost-effective air to manufacturers, processors, and operators.
As the core of the compressor, the screw compression element is critical — which is why Gardner Denver designs and manufactures it in-house. Utilizing advanced CNC rotor grinding and integrated laser technology, they ensure exceptional reliability and performance. The result: consistently low operating costs throughout the compressor’s lifespan.
Innovative FourCore Airends for Advanced Compression
Ultra-compact and lightweight design
Maximum energy efficiency
Semi-integrated two-stage airends featuring built-in oil filter, thermostatic valve, and check valve:
- Reduced need for hoses and hydraulic piping = lower overall costs
- Minimized risk of leaks
- Simplified maintenance
- Fewer spare parts and less waste = improved sustainability
Two-stage compression = significantly higher efficiency
Oil-cooled permanent magnet motors with integrated cooling within the airend housing
Exceptional flexibility thanks to a unique two-step drive gear system from Gardner Denver:
- Stable interstage pressure = enhanced efficiency
- Extremely compact configuration
Specifically designed for seamless integration into the current ESM / VS Series — exclusive to Gardner Denver
Available in both fixed and variable speed models
Advanced Energy-Efficient Electric Motor
Premium-efficiency motors come standard — featuring Permanent Magnet (PM) IE5 motors for variable speed models and IE4-class motors for fixed speed variants. Thanks to Gardner Denver’s patented oil-cooled motor design, even minimal efficiency losses are recovered through integrated heat recovery, maximizing overall energy performance.
GD Pilot TS SE Innovative Touch Screen Compressor Controller
The high-resolution touchscreen is intuitive and easy to use. Its advanced control system, combined with integrated sensors, automatically adjusts the compressor to match real-time operating conditions—reducing energy consumption and safeguarding your equipment from condensate damage.
Built-in IoT capabilities include an onboard web server and Base Load Select, enabling seamless coordination with up to three secondary units. Both the main board and controller meet high CS Standard requirements for cybersecurity.
The system is Ecoplant-ready and features iConn integration for comprehensive monitoring and control.
Intelligent Automation Boosts Energy Performance
Ecoplant is a smart, AI-powered solution designed to enhance energy efficiency in compressed air systems. It operates continuously—monitoring, analyzing, and fine-tuning compressor performance to minimize energy waste, reduce CO₂ emissions, and deliver cost savings of up to 20%. Seamlessly integrated with iConn, it offers:
- Reduced downtime & consistent pressure
- Compliance with ISO quality standards
- Early issue detection for improved reliability
- Optimized energy consumption and lower operational costs
Beyond Air Compressors
Engineered and built in-house by Gardner Denver,
our comprehensive range of air treatment and downstream equipment is designed to maximize energy efficiency, minimize environmental impact, and reduce total cost of ownership.
We ensure a consistent supply of high-quality dry air—delivering the same exceptional standards of performance, reliability, and efficiency that define our air compressors.
